Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10

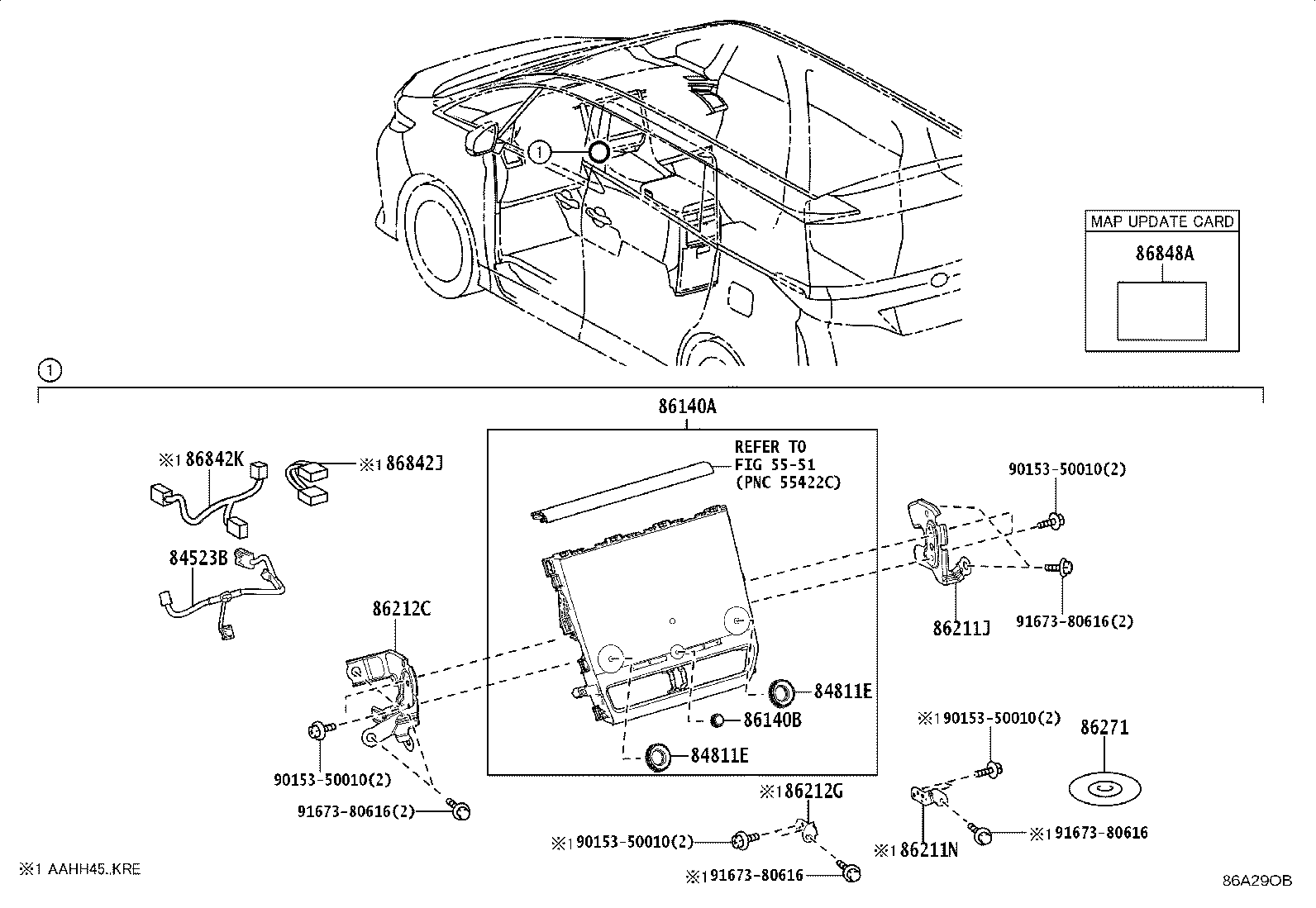

Navigation & Front Monitor Display
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82H17H | Protector, Wiring Harness |
| 84523B | Wire, Switch |
| 84811E | Knob, Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86211N | Bracket, Navigation Computer, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86212G | Bracket, Navigation Computer, NO.2 |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86736 | Converter, Microphone |
| 86842 | Wire, Navigation, NO.1 |
| 86842J | Wire, Navigation, NO.2 |
| 86842K | Wire, Navigation, NO.3 |
| 86848A | Card, Serial Number Map Update |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
