Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10

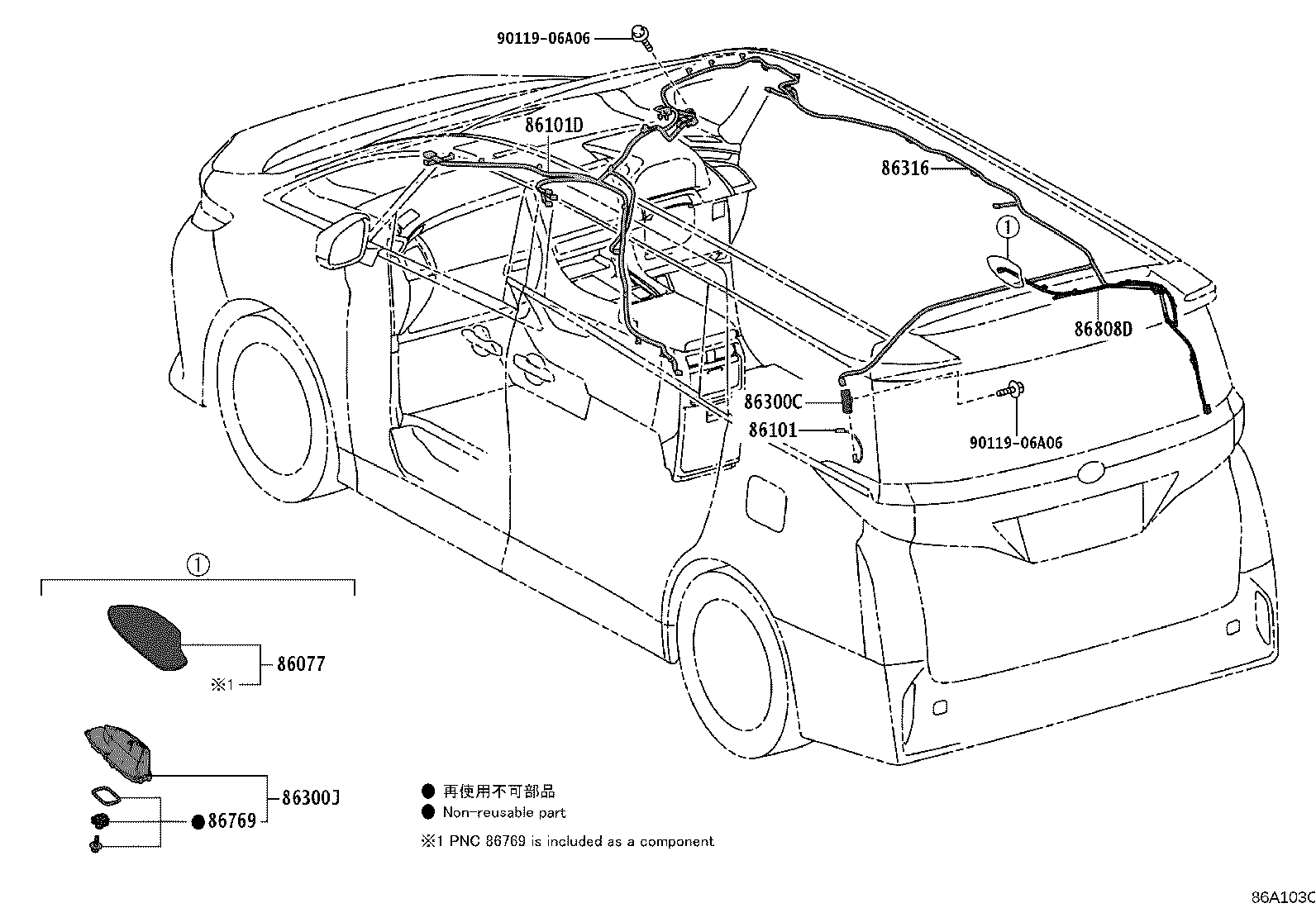

Antenna
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86300C | Antenna Assy, Amplifier, NO.2 |
| 86300J | Antenna Assy, Roof |
| 86316 | Cable, Antenna |
| 86769 | Housing, Roof Antenna |
| 86808D | Cord Sub-assy, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
