Toyota Alphard/Vellfire
2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General
Supported model
Data version 2024-10
Heating & Air Conditioning - Cooler Unit
55 part groups · 14 illustrations

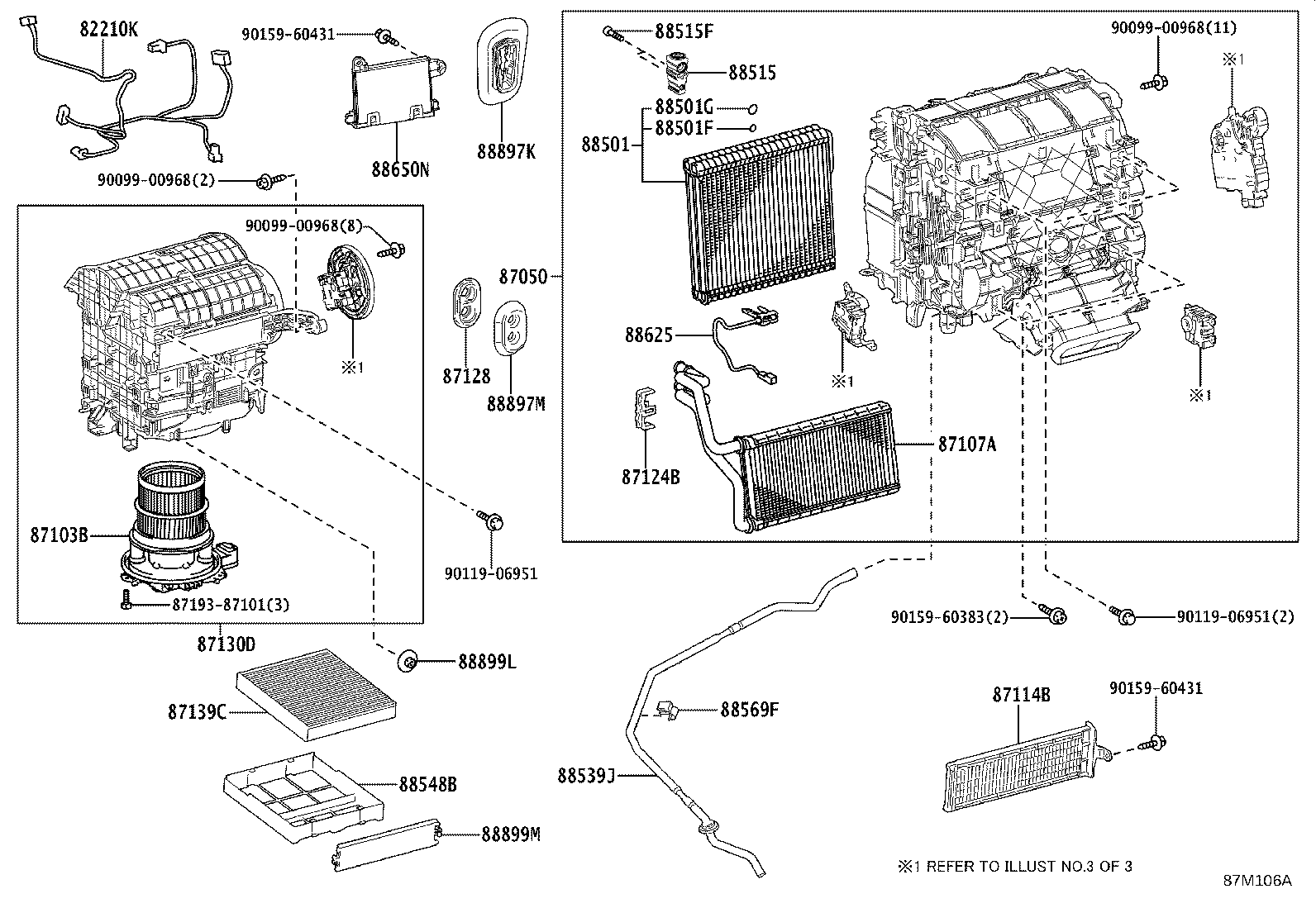

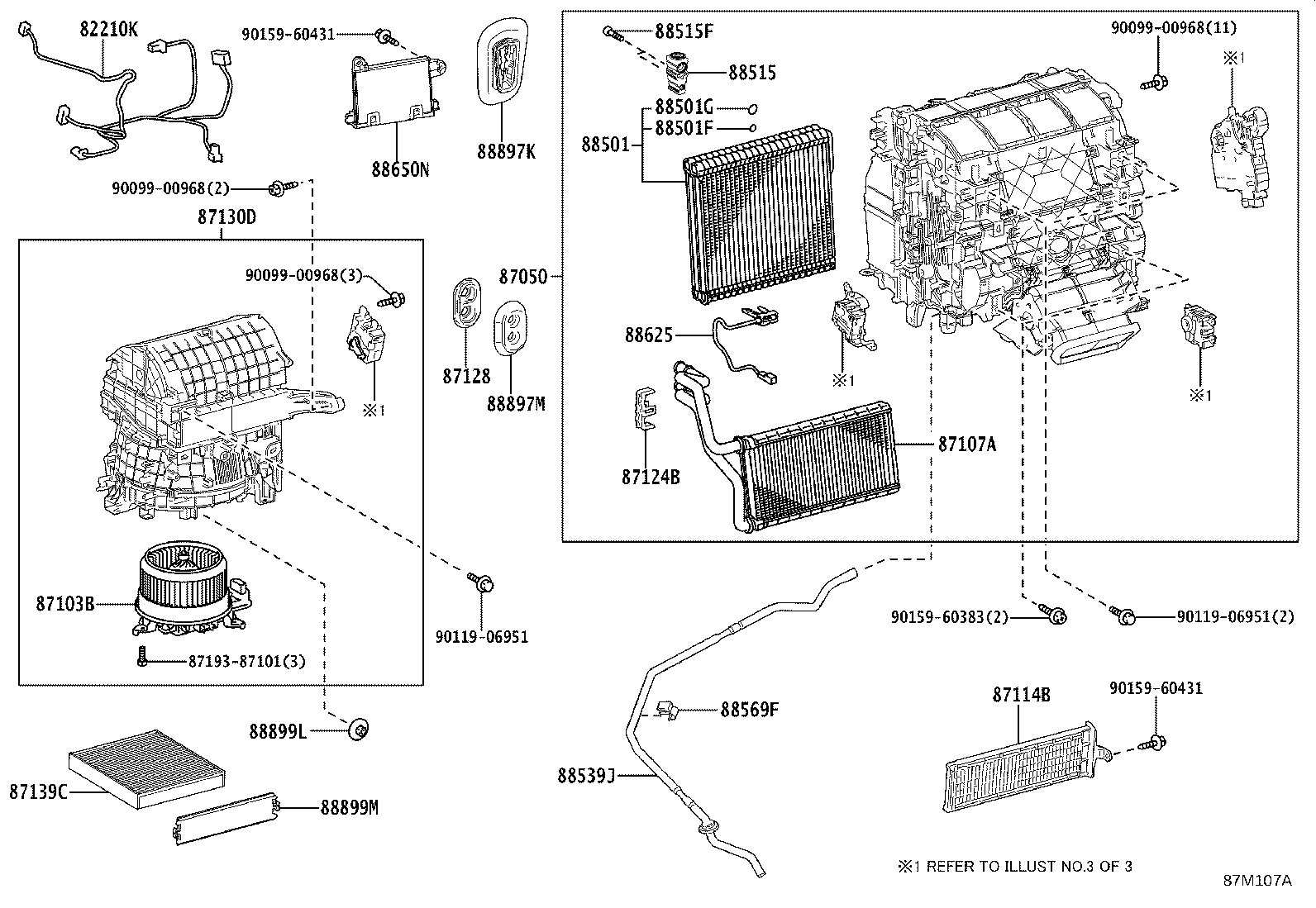

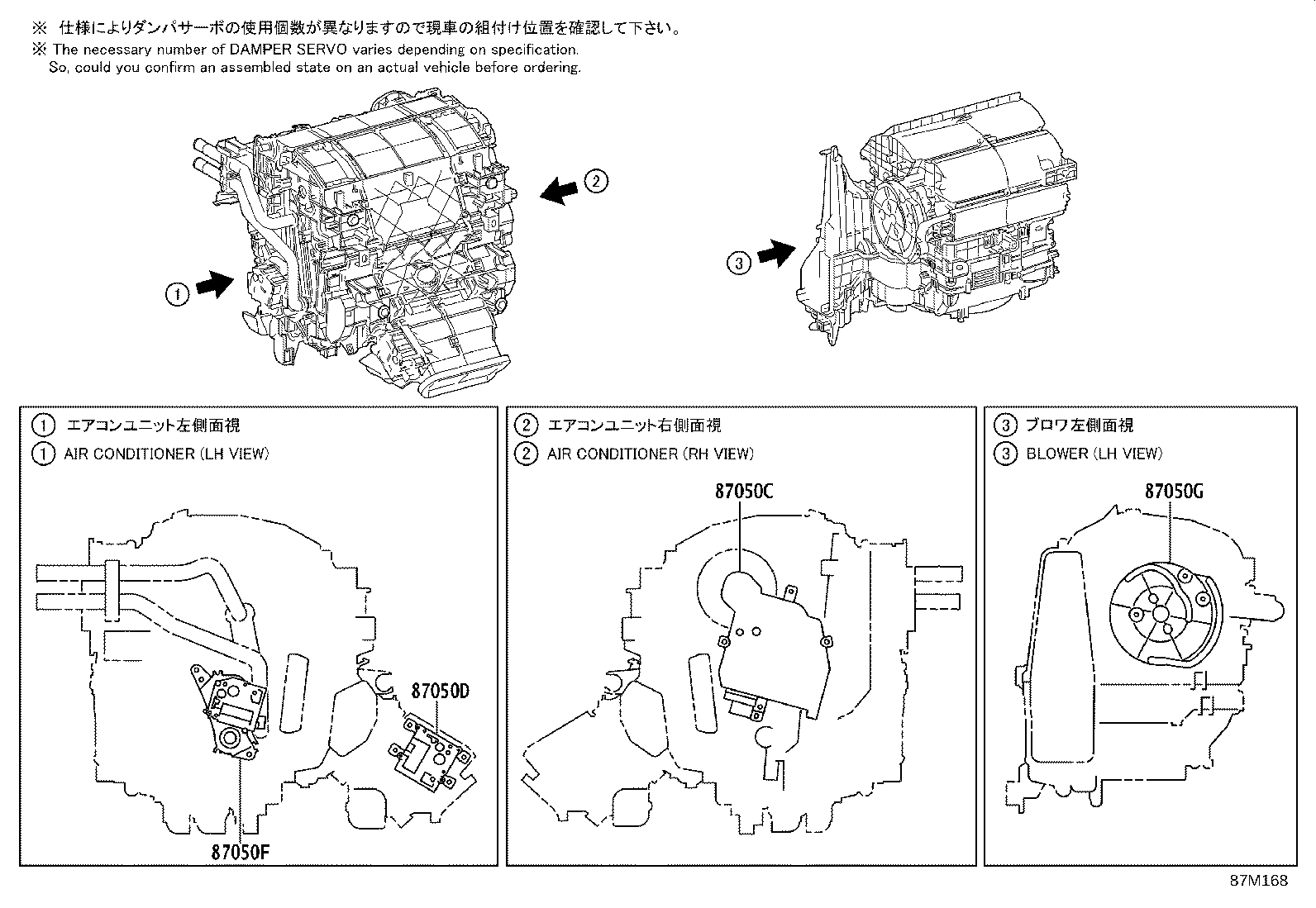

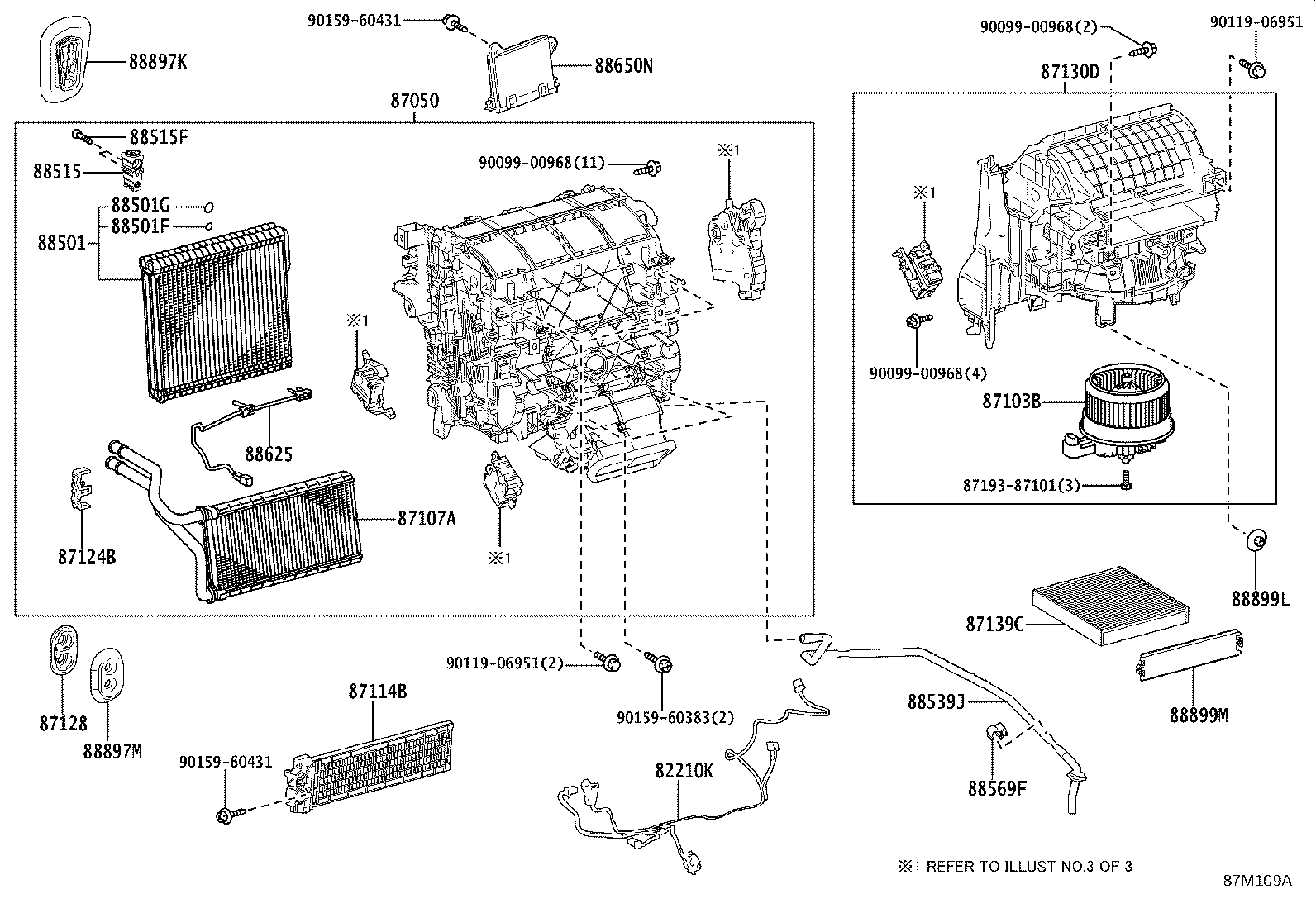

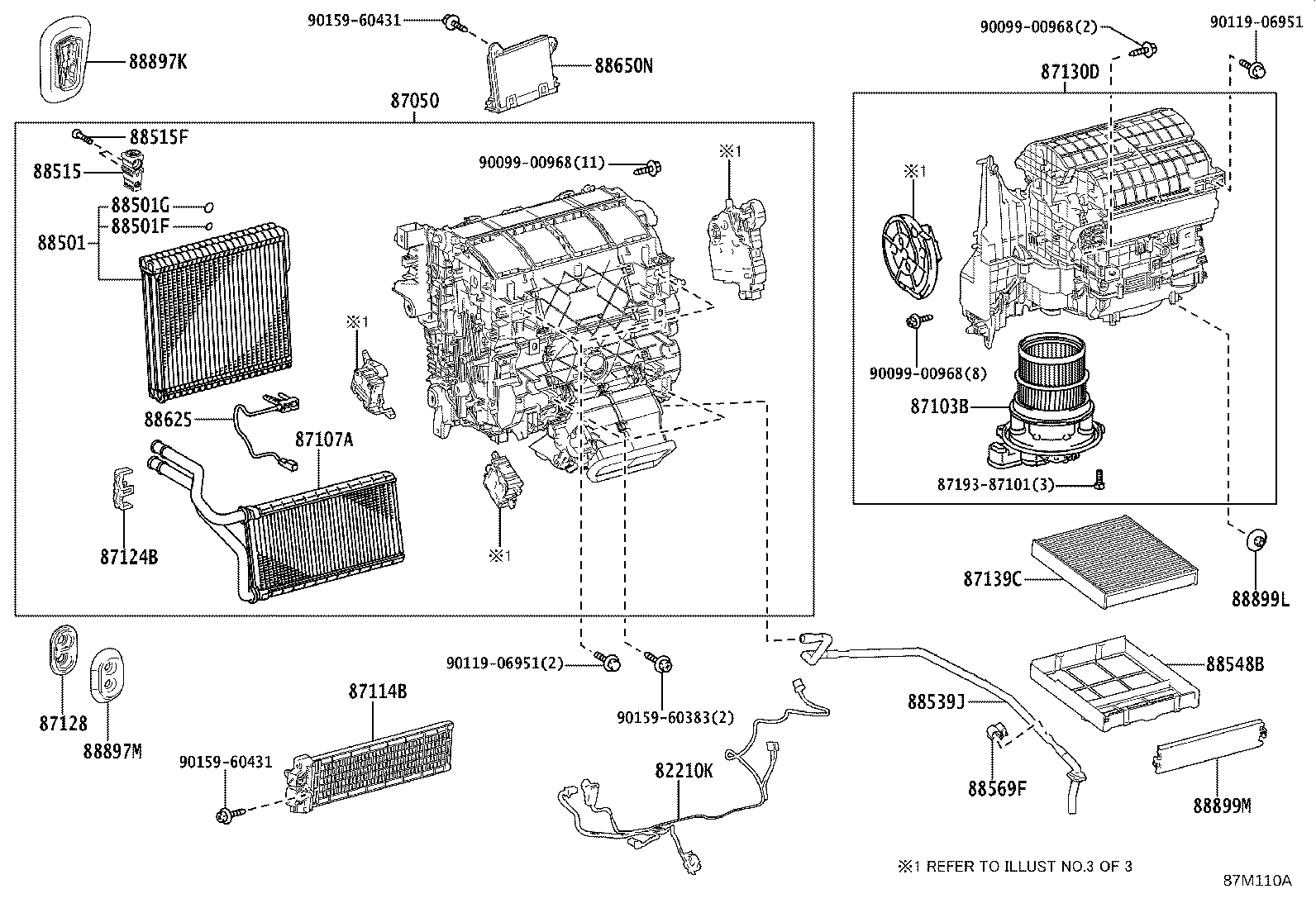

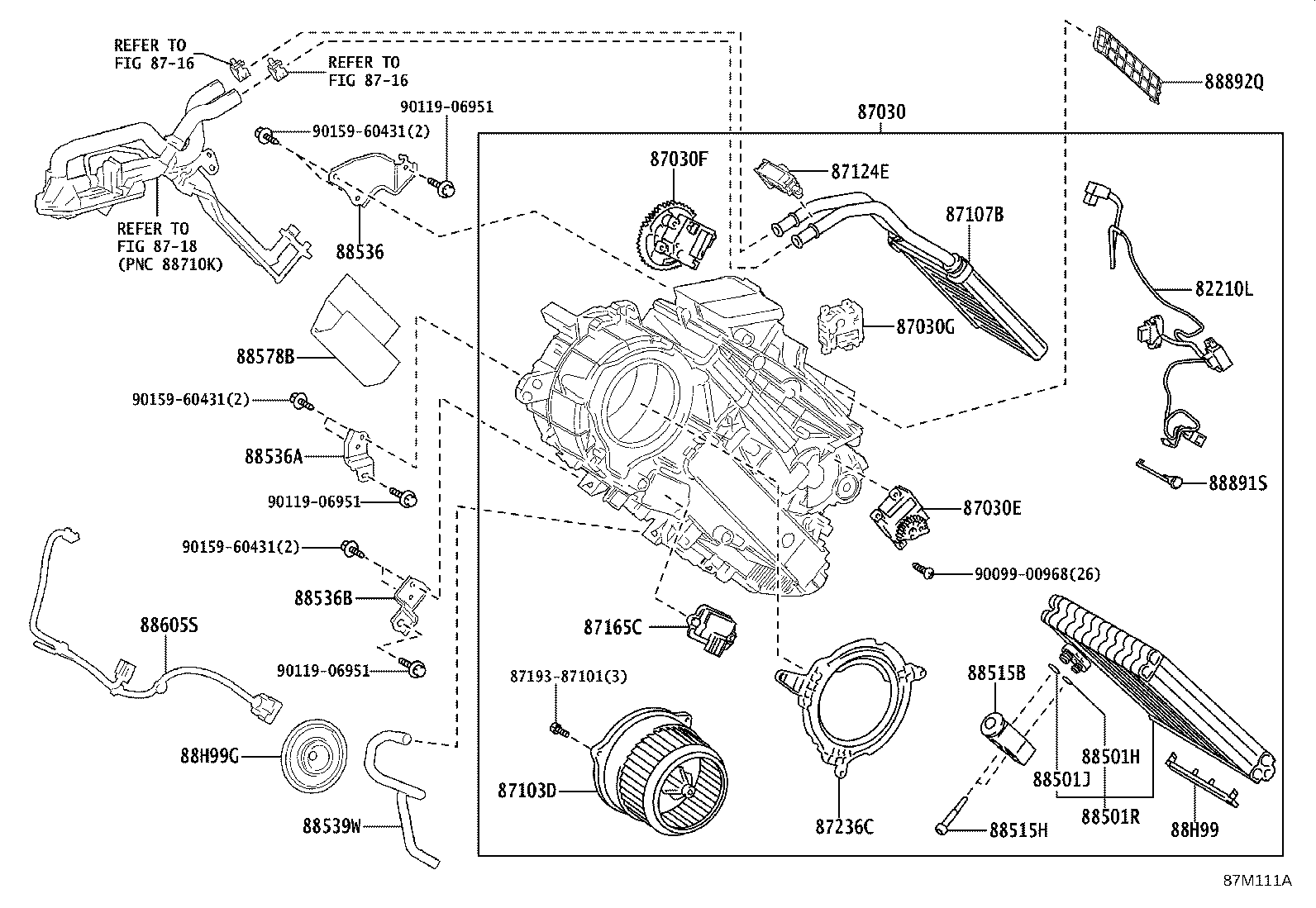

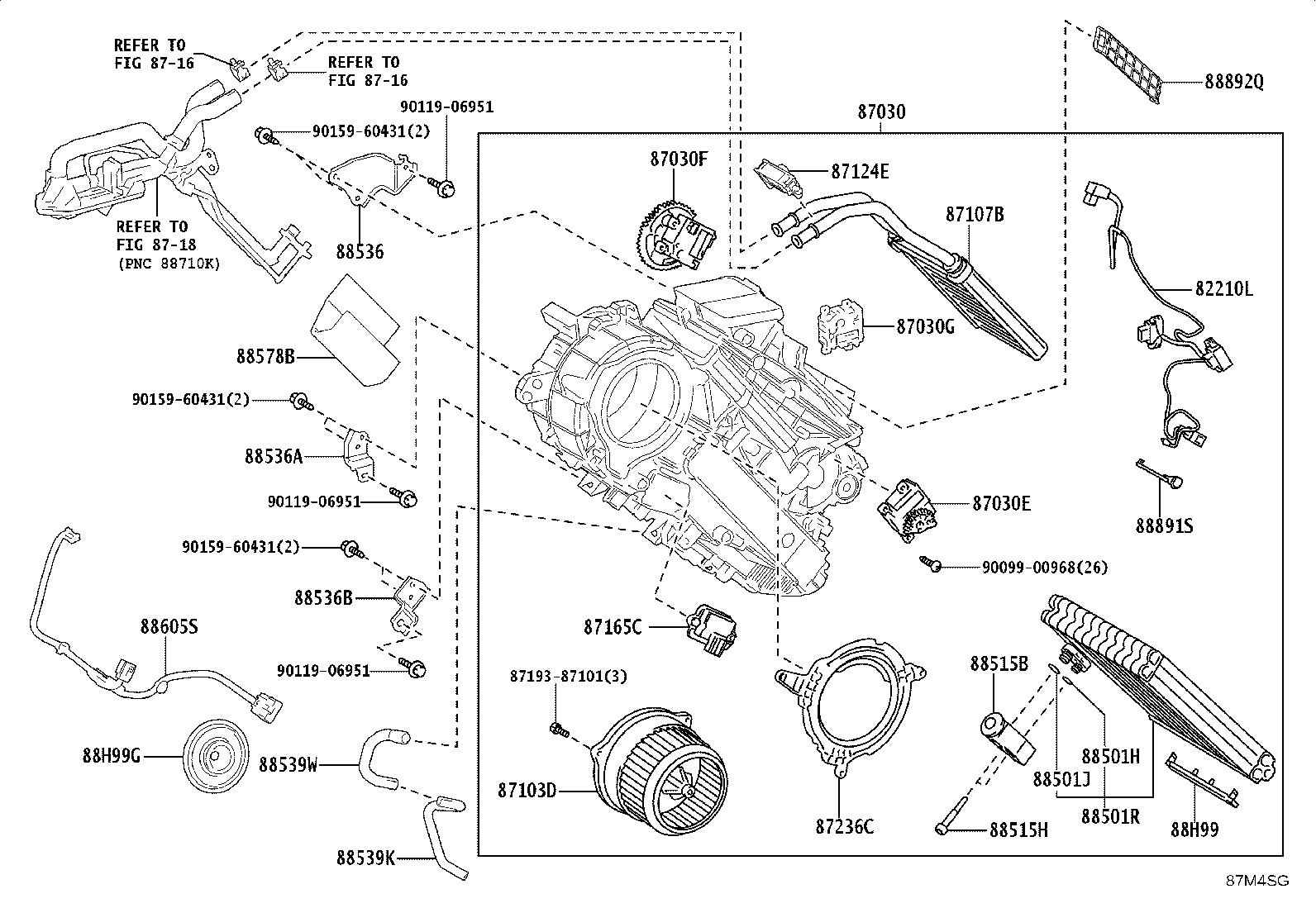

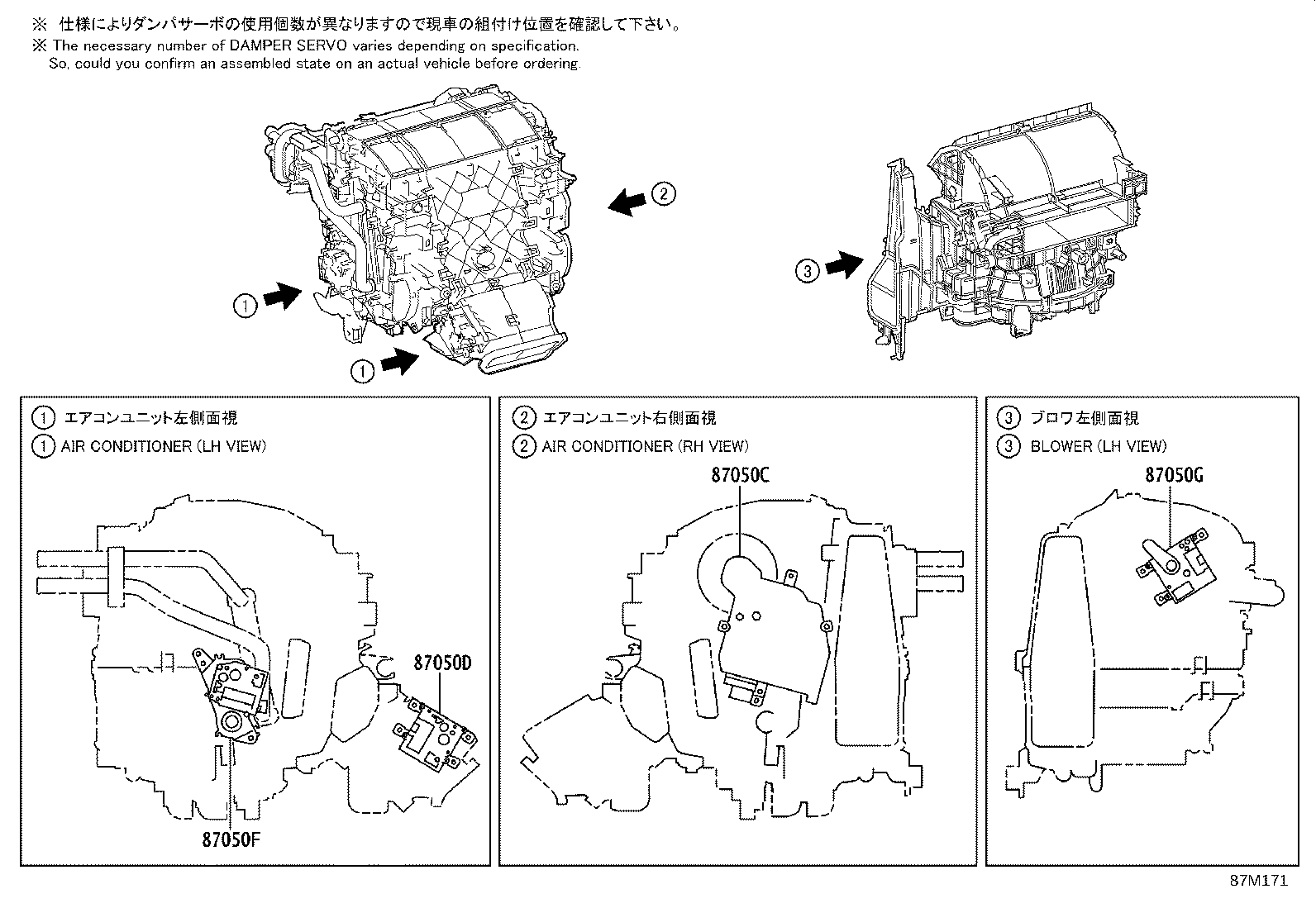

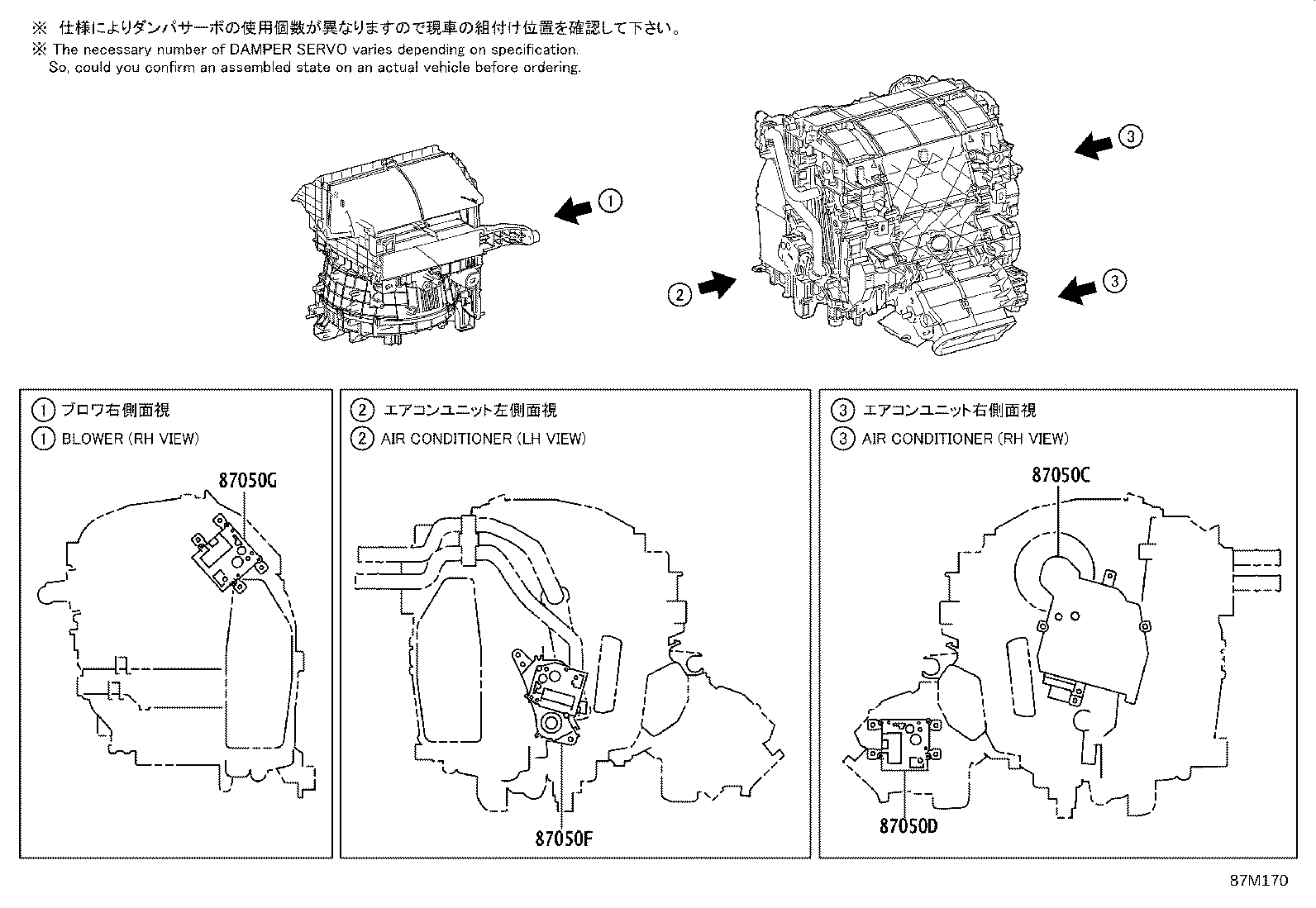

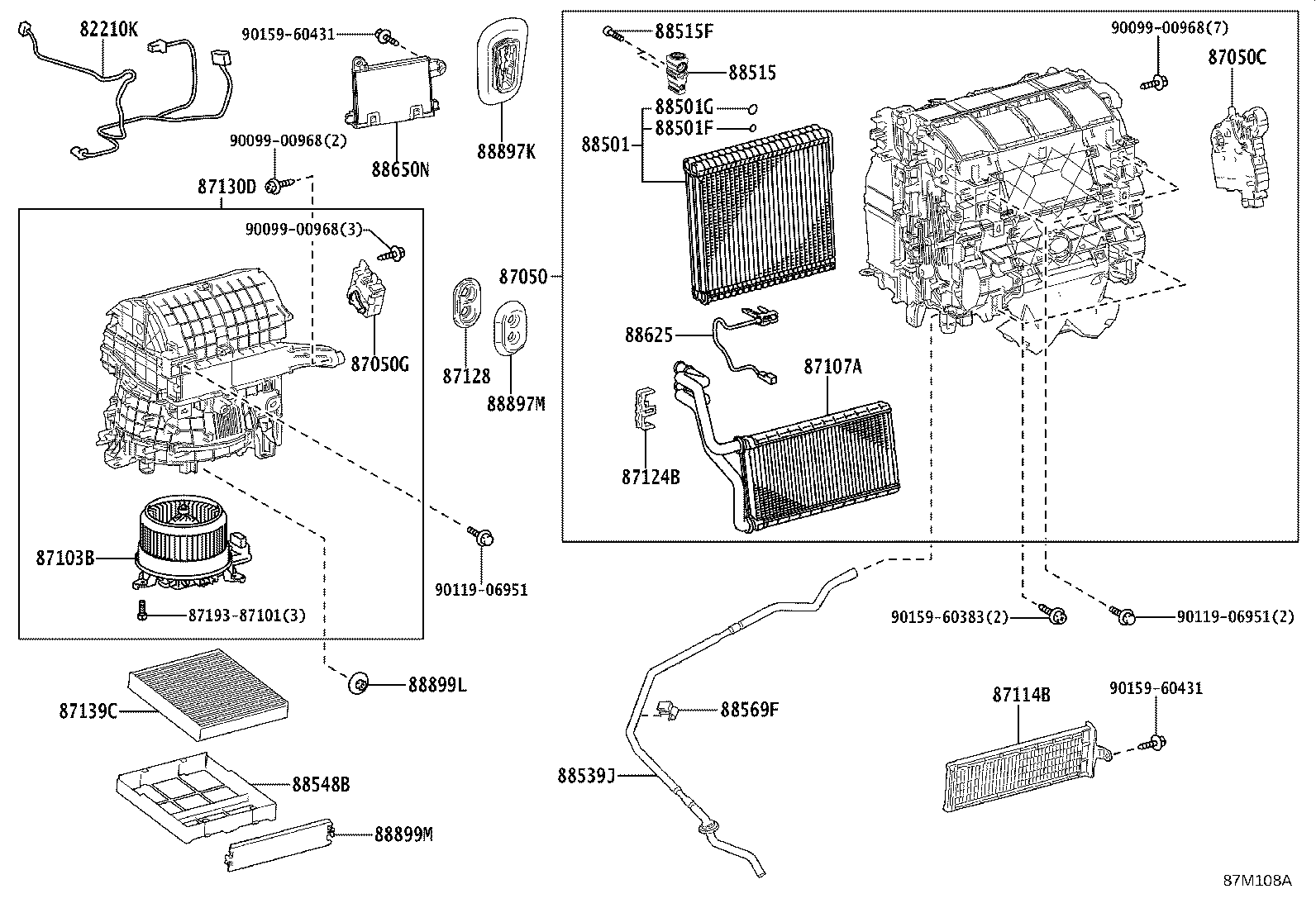

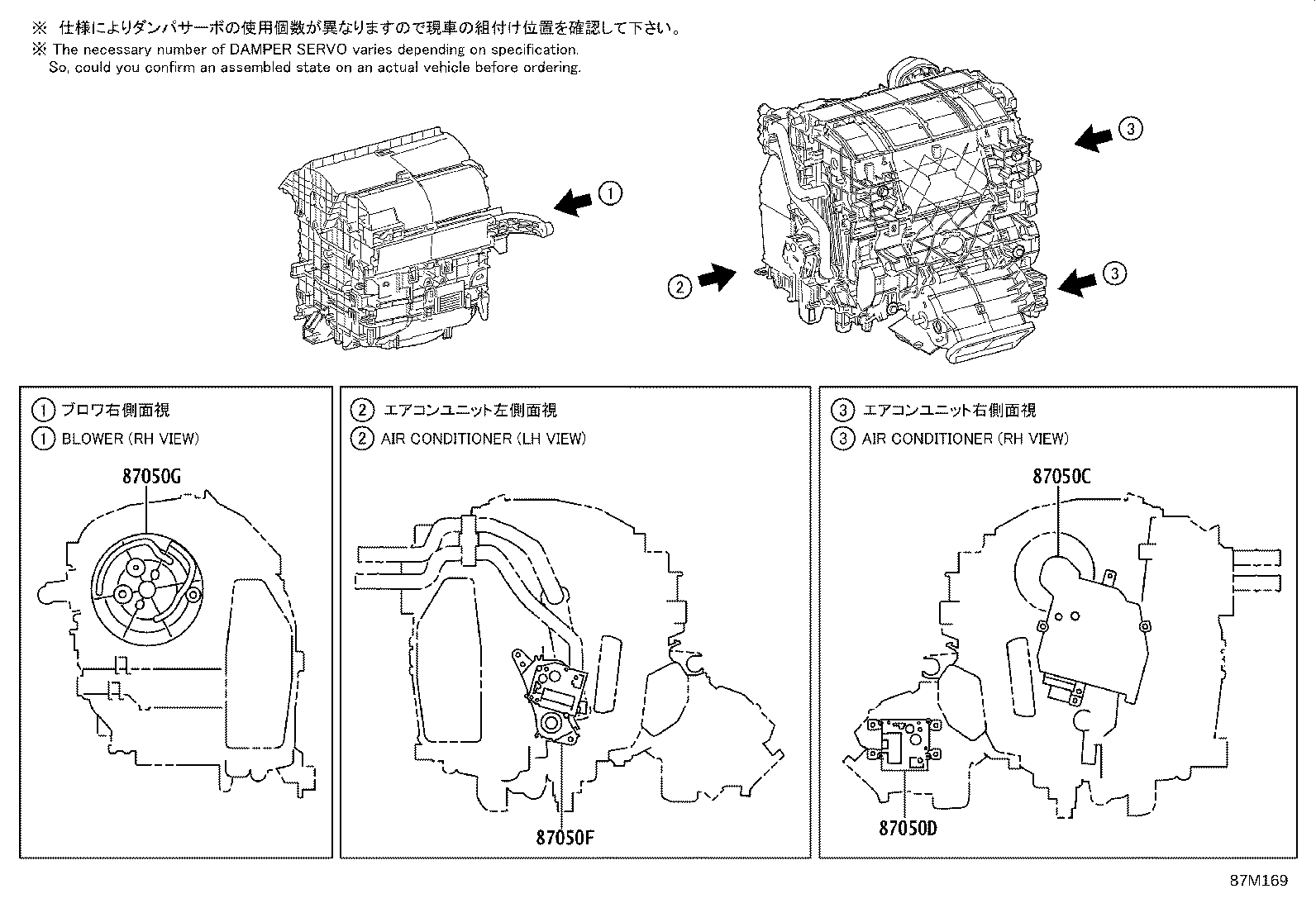

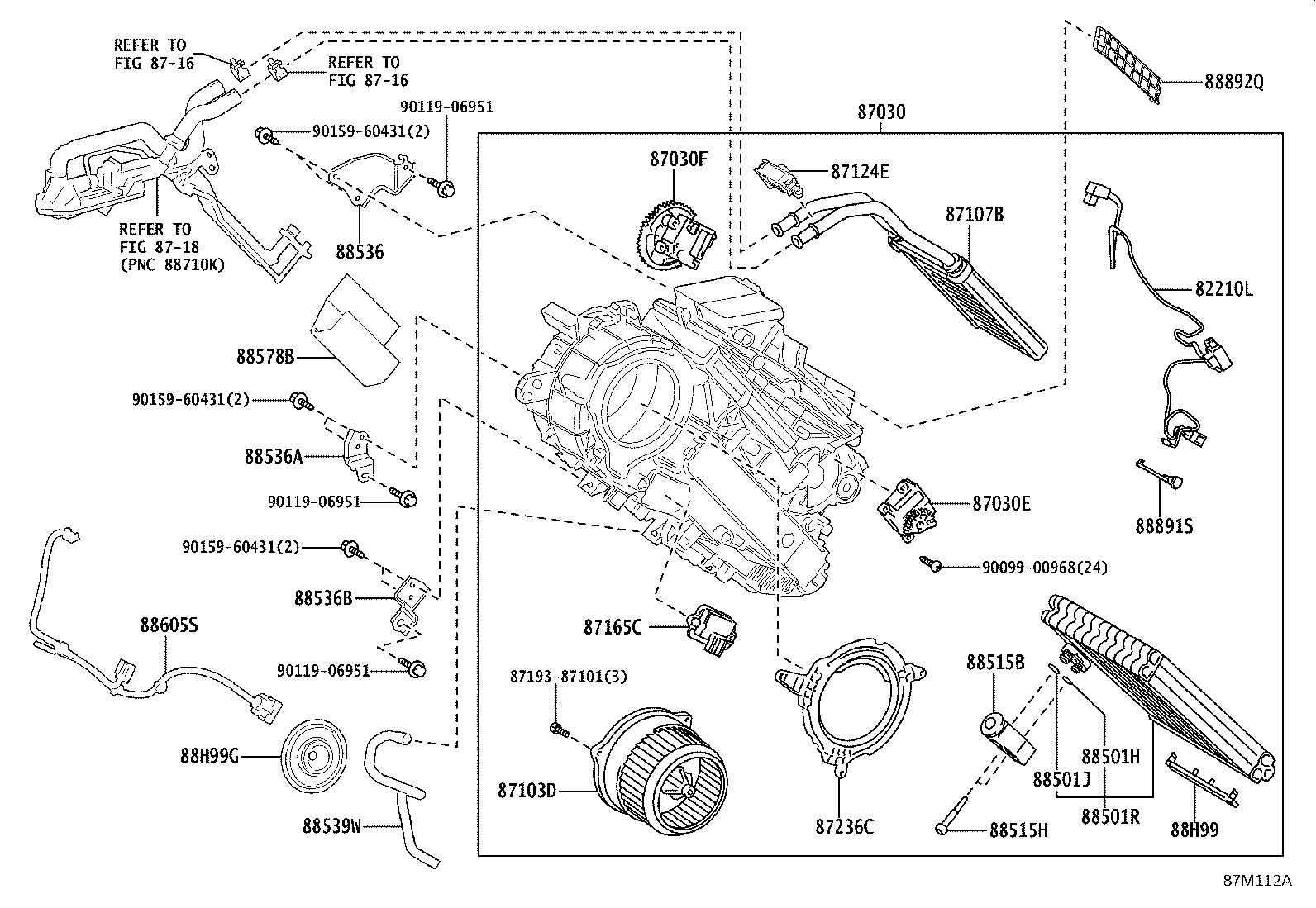

Illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 82210L | Harness Assy, Air Conditioner, NO.2 |
| 87030 | Blower Assy, Air Conditioner |
| 87030E | Damper Servo Sub-assy, Rear Cooling Unit, NO.1 |
| 87030F | Damper Servo Sub-assy, Rear Cooling Unit, NO.2 |
| 87030G | Damper Servo Sub-assy, Rear Cooling Unit, NO.3 |
| 87050 | Radiator Assy, Air Conditioner |
| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050D | Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 |
| 87050F | Damper Servo Sub-assy, Air Conditioner Radiator, NO.4 |
| 87050G | Damper Servo Sub-assy, Air Conditioner Radiator, NO.5 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87103D | Motor Sub-assy, Blower W/Fan(FOR REAR) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87107B | Unit Sub-assy, Heater Radiator |
| 87114B | Cover, Heater |
| 87124B | Clamp, Heater |
| 87124E | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87130D | Blower Assy |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 87236C | Cover, Heater Blower |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501F | O-ring, Cooler Evaporator NO.1(DISCHARGE) |
| 88501G | O-ring, Cooler Evaporator NO.1(SUCTION) |
| 88501H | O-ring, Cooler Evaporator NO.2(DISCHARGE) |
| 88501J | O-ring, Cooler Evaporator NO.2(SUCTION) |
| 88501R | Evaporator Sub-assy (REAR) |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88515H | Bolt(FOR REAR COOLER EXPANSION VALVE) |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88536A | Bracket, Cooling Unit, NO.2 |
| 88536B | Bracket, Cooling Unit, NO.3 |
| 88539J | Hose, Drain Cooler |
| 88539K | Hose, Drain Cooler |
| 88539W | Hose, Drain Cooler, NO.2 |
| 88548B | Case, Air Filter |
| 88569F | Clamp |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88605S | Harness Sub-assy, Wiring Air Conditioner |
| 88625 | Thermistor, Cooler, NO.1 |
| 88649 | Wiring, Cooler, NO.2 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88891S | Cover, Cooler, NO.1 |
| 88892Q | Plate, Cooler |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897M | Grommet (FOR HEATER PIPE) |
| 88899L | Parts, Cooling Unit |
| 88899M | Plate, Cover(FOR AIR FILTER) |
| 88H99 | Parts, Cooling Unit |
| 88H99G | Parts, Cooling Unit, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
