Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

45 part groups · 9 illustrations

Illustrations

Figure 87M176B

87M176B 2023-06 → —

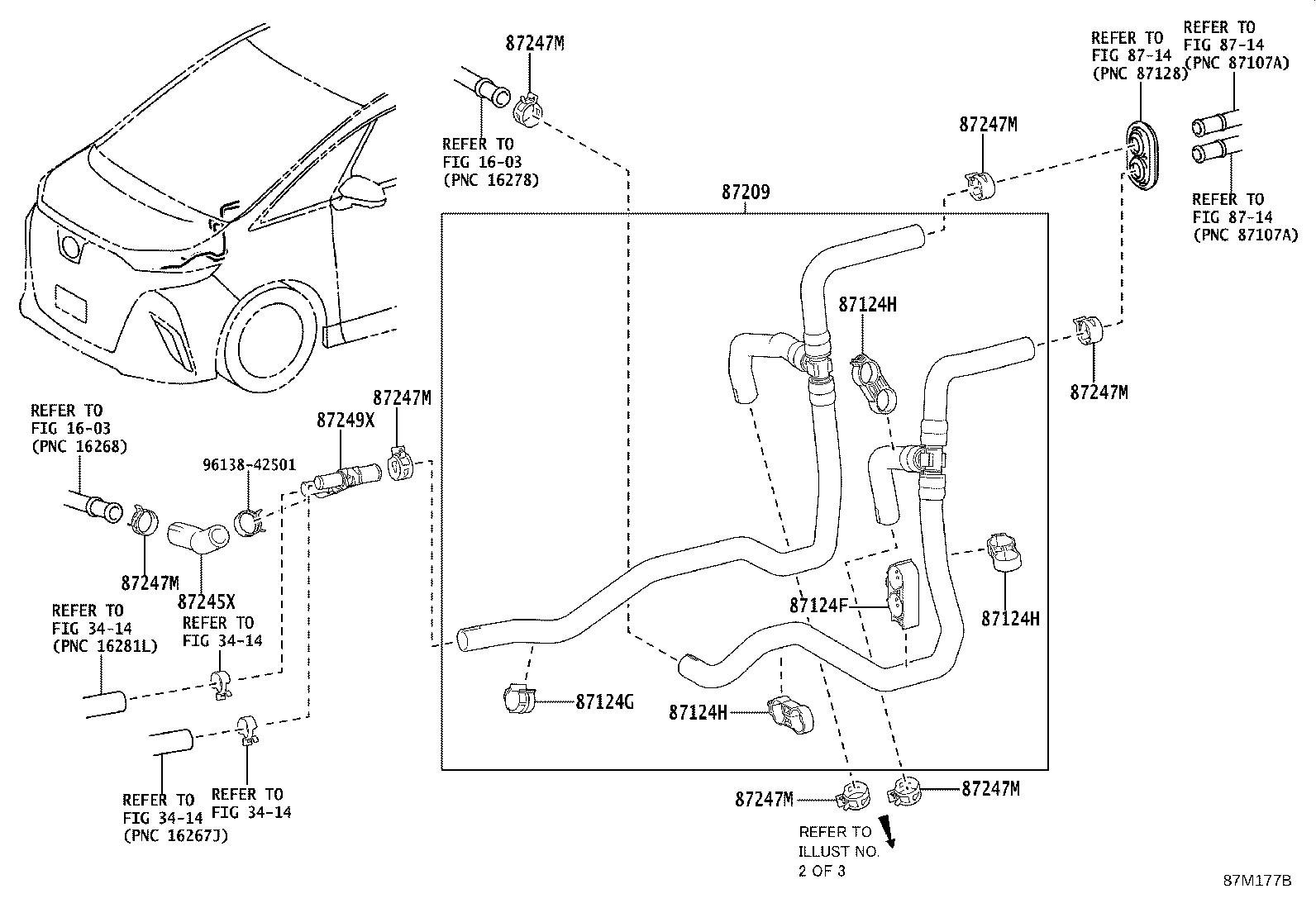

Figure 87M177B

87M177B 2023-06 → —

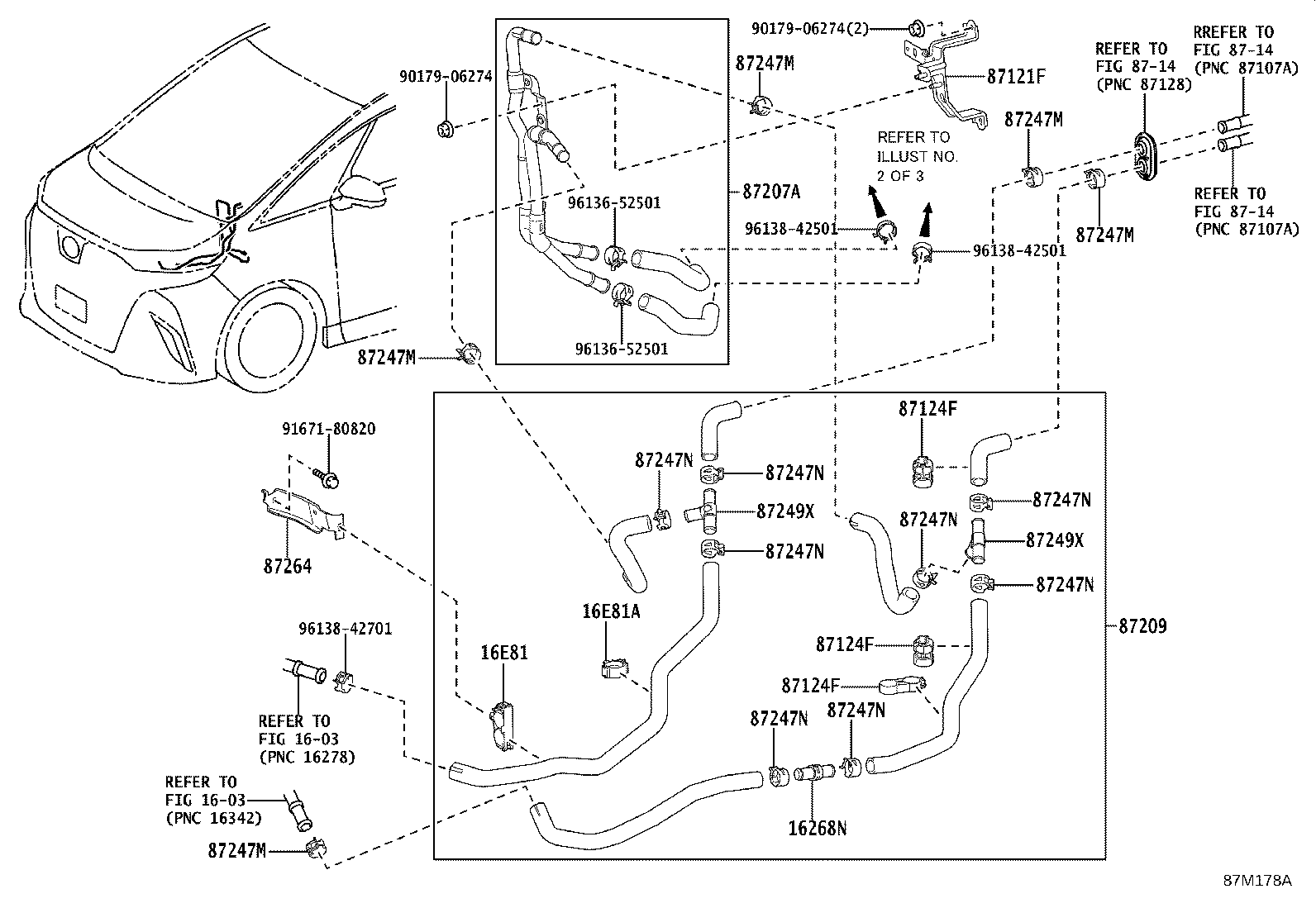

Figure 87M178A

87M178A 2023-06 → —

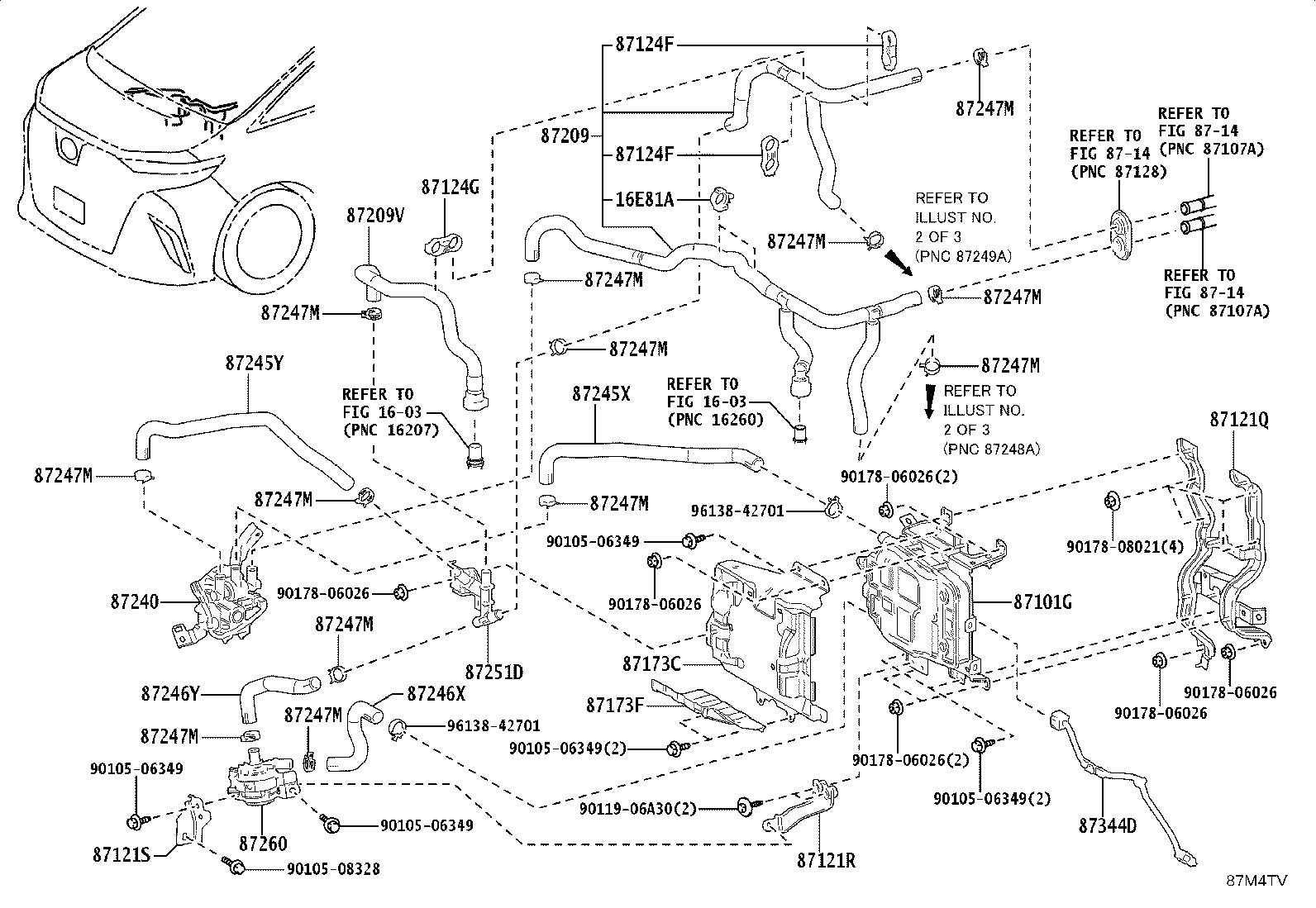

Figure 87M4TV

87M4TV 2024-10 → —

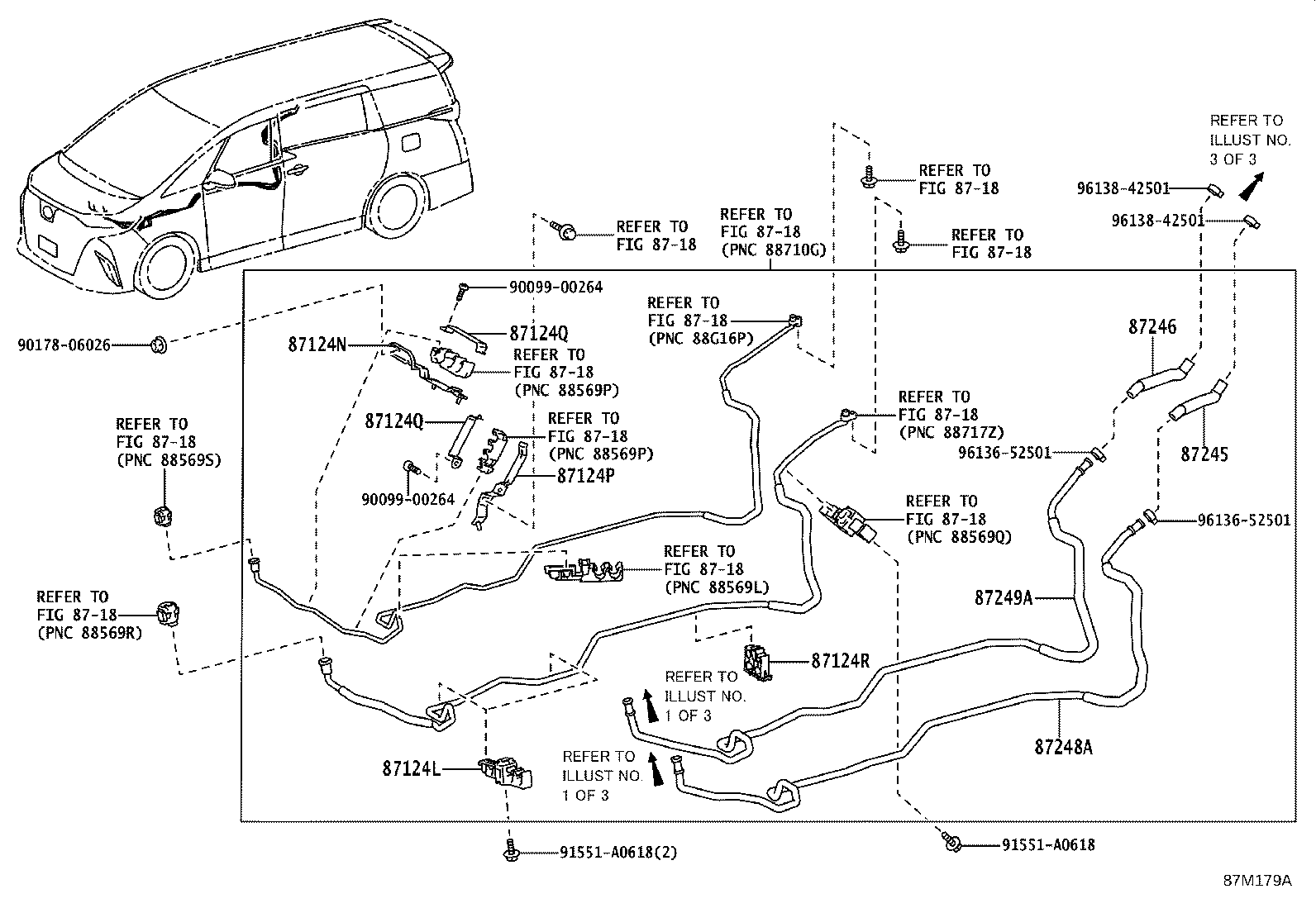

Figure 87M179A

87M179A 2023-06 → —

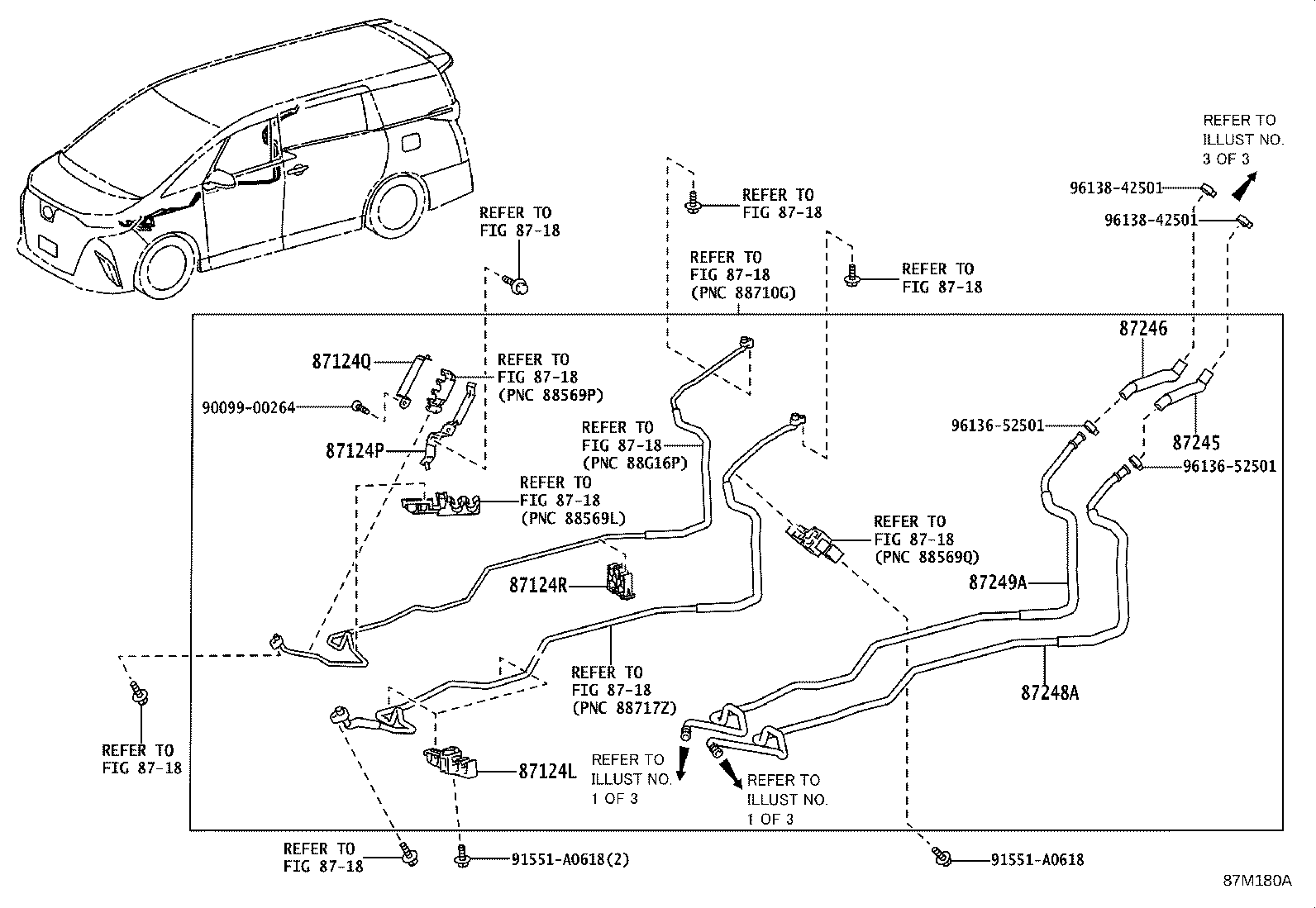

Figure 87M180A

87M180A 2023-06 → —

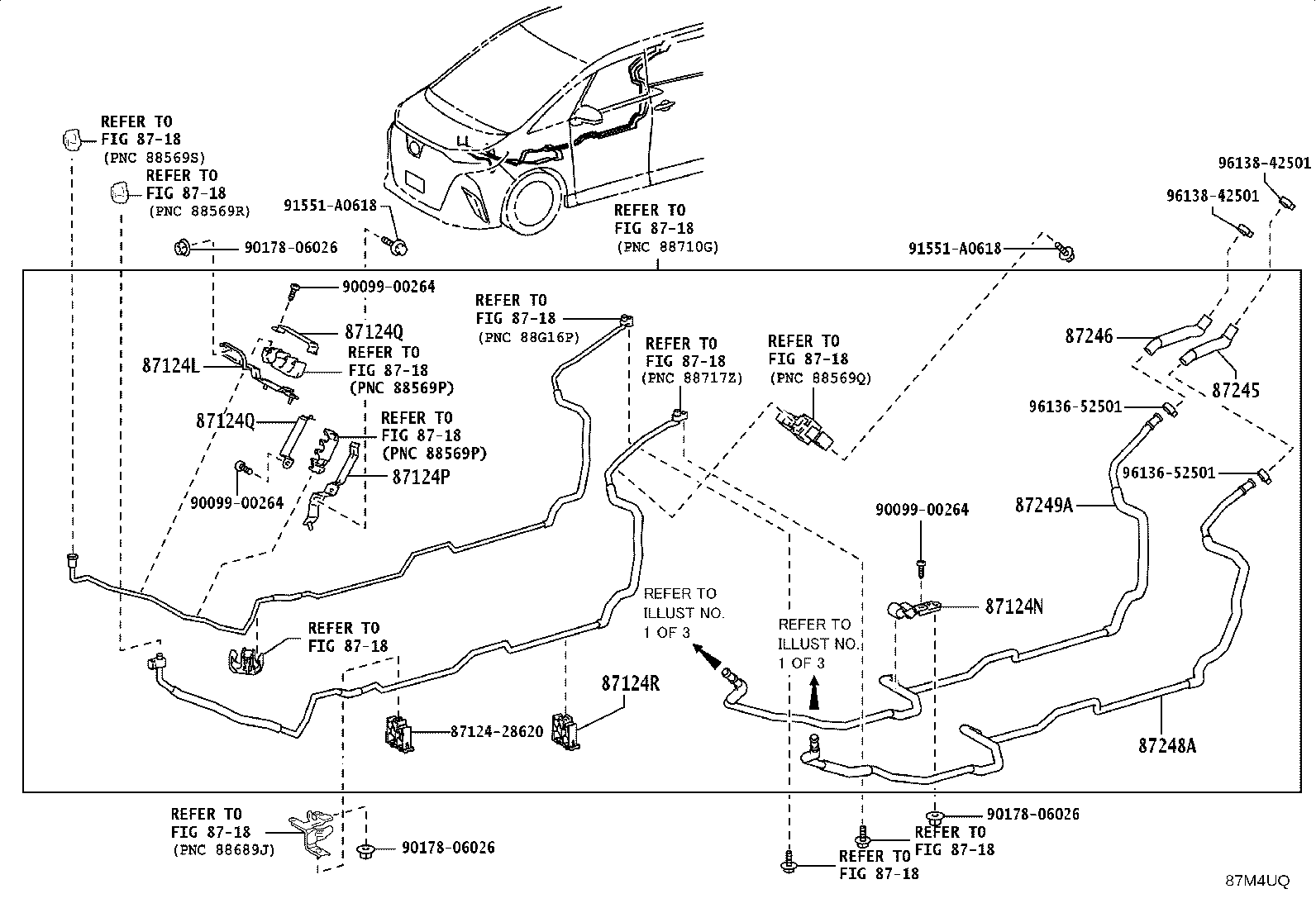

Figure 87M4UQ

87M4UQ 2024-10 → —

Figure 87M182A

87M182A 2023-06 → —

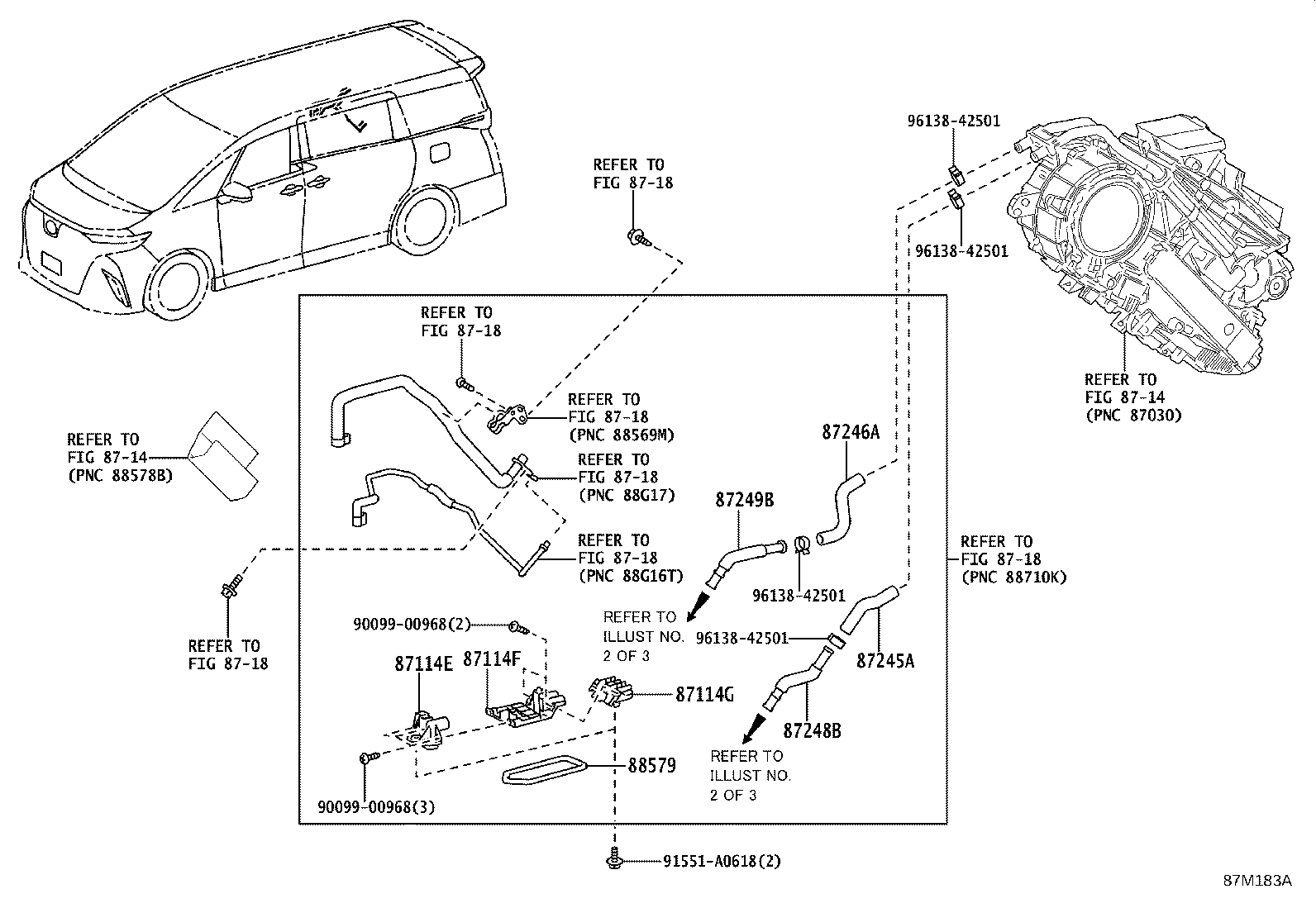

Figure 87M183A

87M183A 2023-06 → —

Part groups

PNC	Description
16268N	Pipe, Water By-pass
16E81	Clamp, Hose(FOR WATER HOSE)
16E81A	Clamp, Hose (FOR WATER HOSE), NO.2
87101G	Heater Sub-assy, Electric
87114E	Cover, Heater, NO.1
87114F	Cover, Heater, NO.2
87114G	Cover, Heater, NO.3
87121F	Bracket, Heater
87121Q	Bracket, Heater NO.2
87121R	Bracket, Heater NO.3
87121S	Bracket, Heater NO.4
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87124H	Clamp, Heater Hose, NO.3
87124L	Clamp, Heater Hose, NO.4
87124N	Clamp, Heater Hose, NO.5
87124P	Clamp, Heater Hose, NO.6
87124Q	Clamp, Heater Hose, NO.7
87124R	Clamp, Heater Hose, NO.8
87173C	Protector, Heater
87173F	Protector, Heater, NO.2
87207A	Pipe & Hose Sub-assy, Water A
87209	Hose Sub-assy, Water
87209V	Hose Sub-assy, Water, NO.2
87240	Valve Assy, Heater Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245X	Hose, Heater Water
87245Y	Hose, Heater Water
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246X	Hose, Heater Water
87246Y	Hose, Heater Water
87247M	Clip, Hose
87247N	Clip, Hose
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249X	Pipe, Water
87251D	Joint, Water, NO.1
87260	Pump Assy, Heater
87264	Bracket, Heater Water Hose
87344D	Wiring, Heater
88579	Packing, Cooler, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
