Toyota Alphard/Vellfire

2023-06 → present · chassis AAHH4#,AAHP45,AGH40,TAHA40 · catalogue 713250 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

77 part groups · 12 illustrations

Illustrations

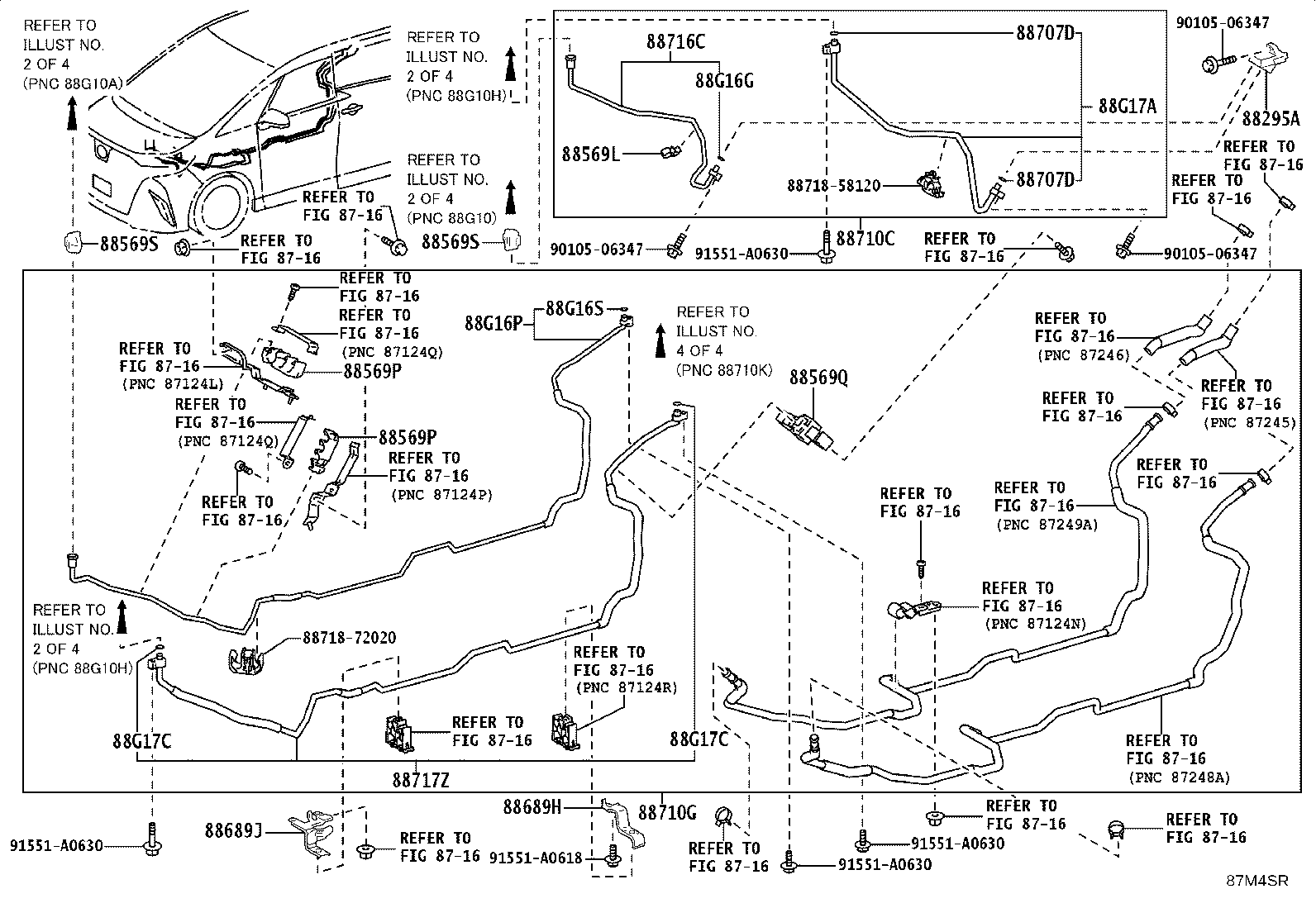

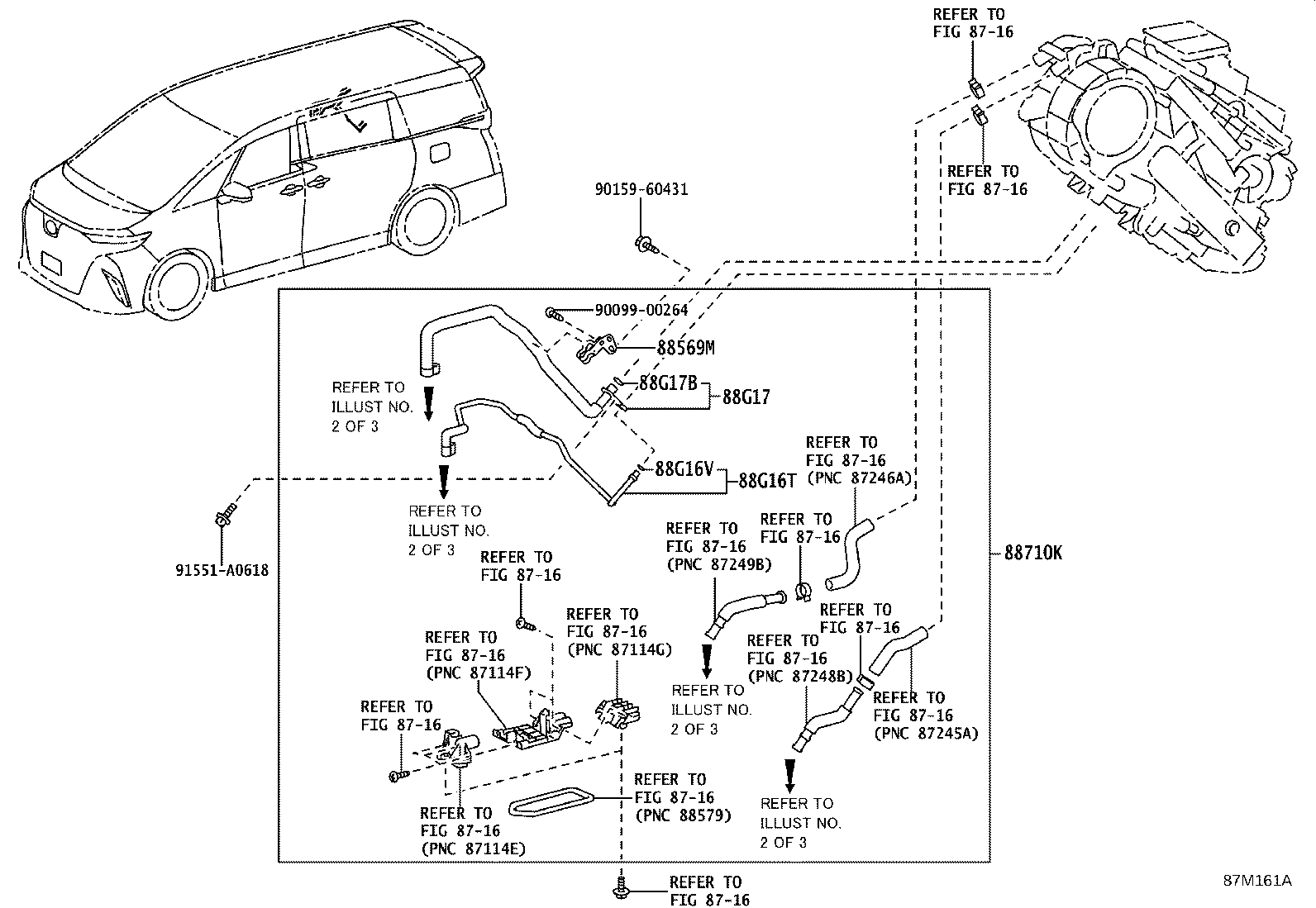

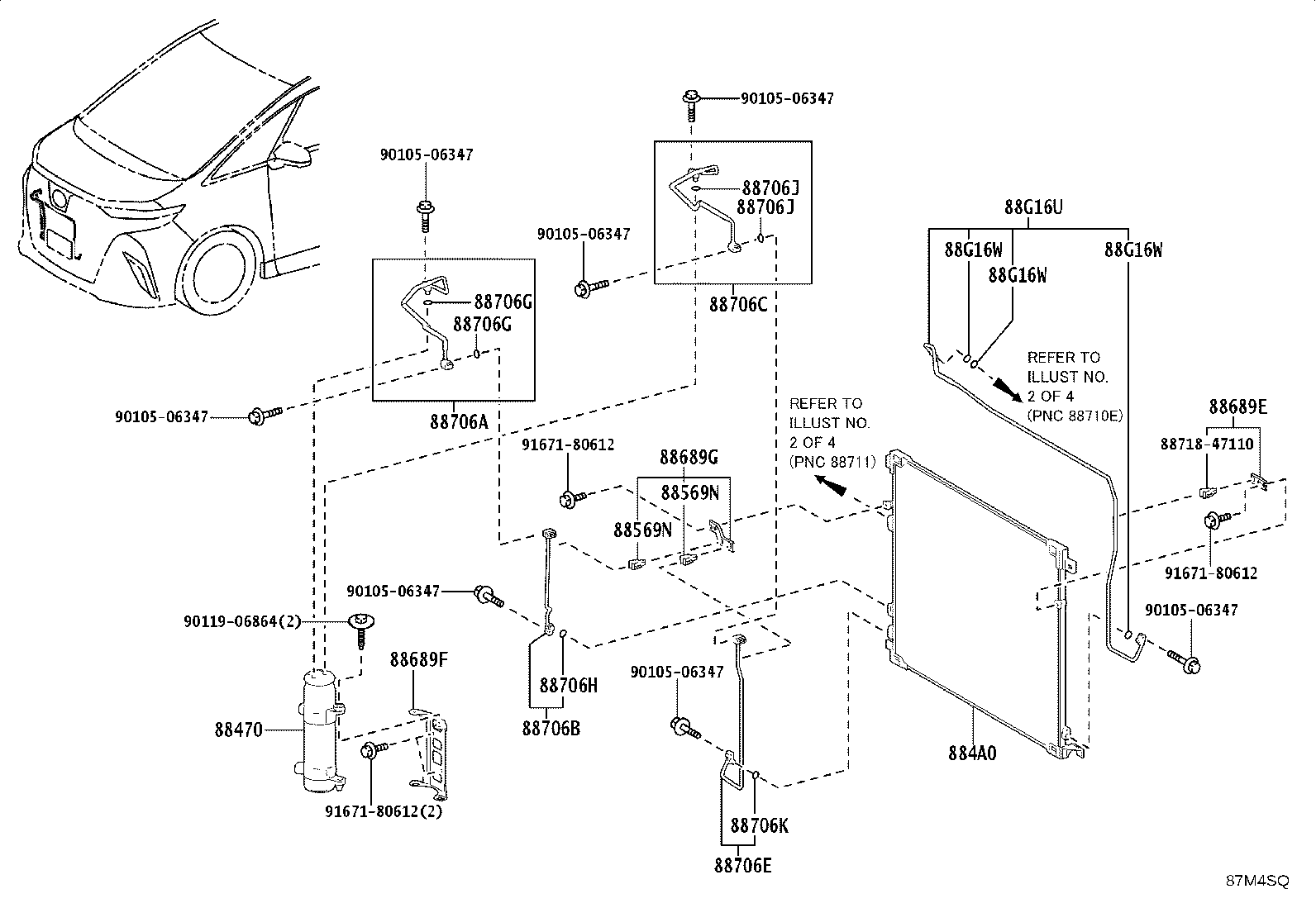

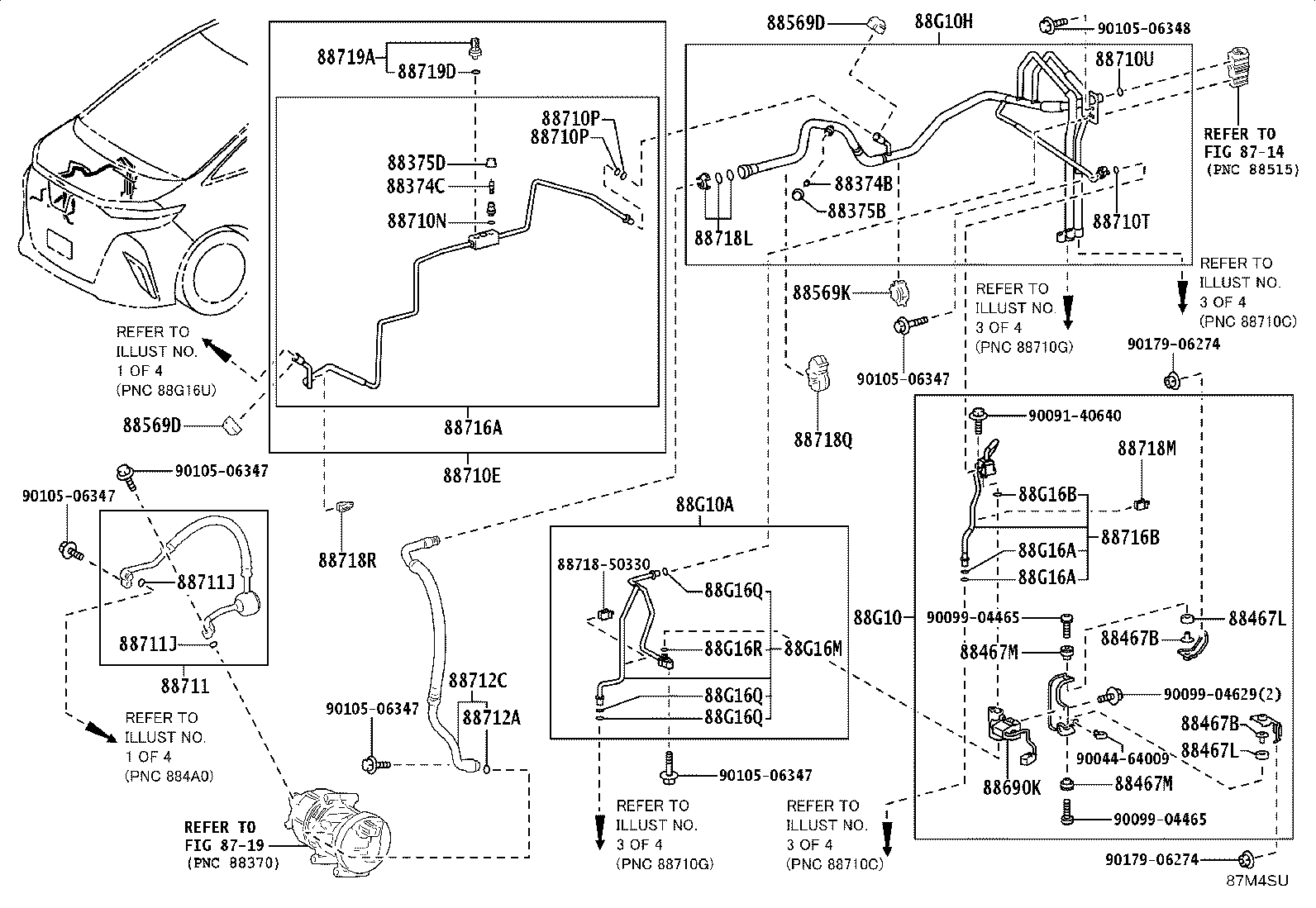

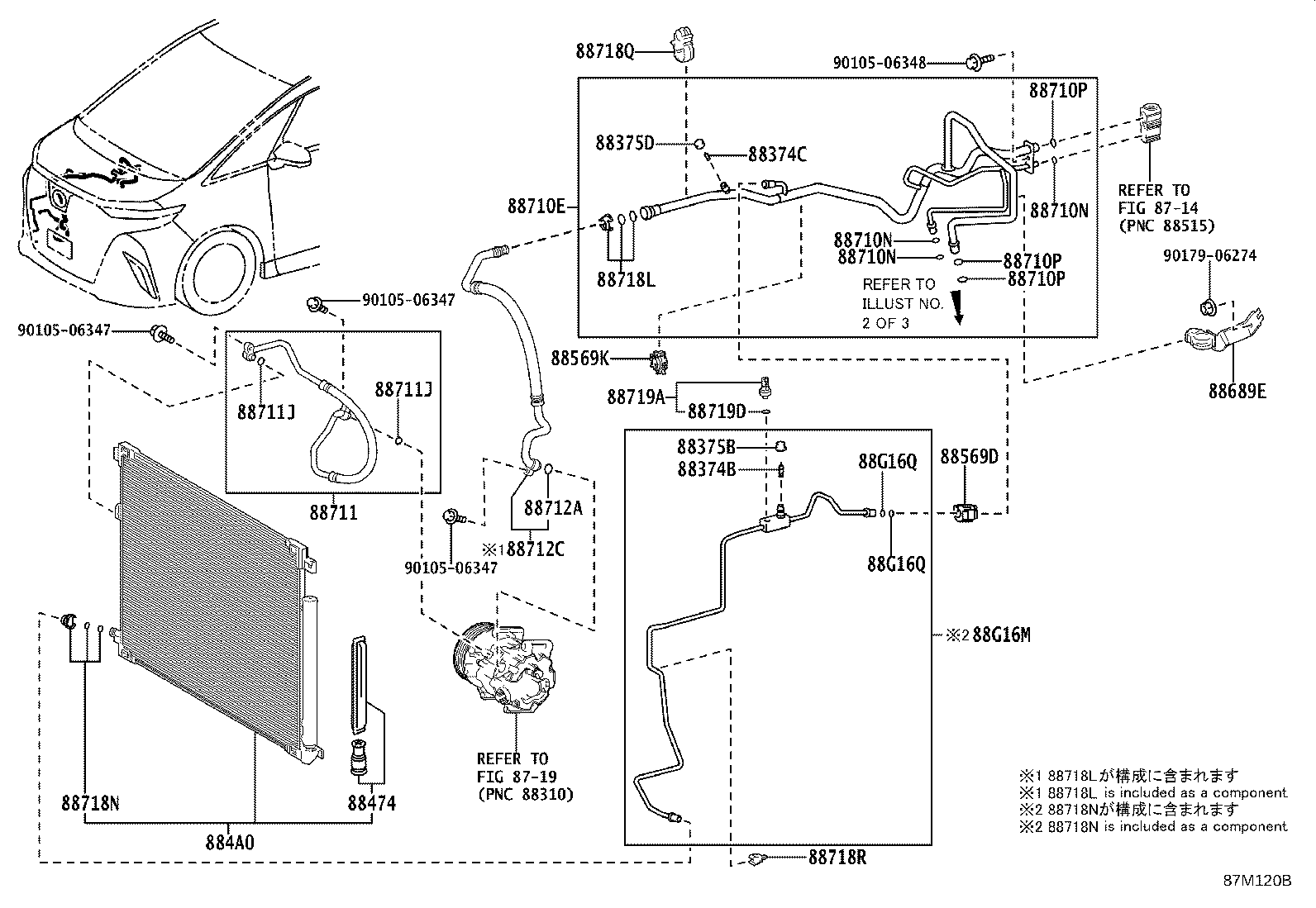

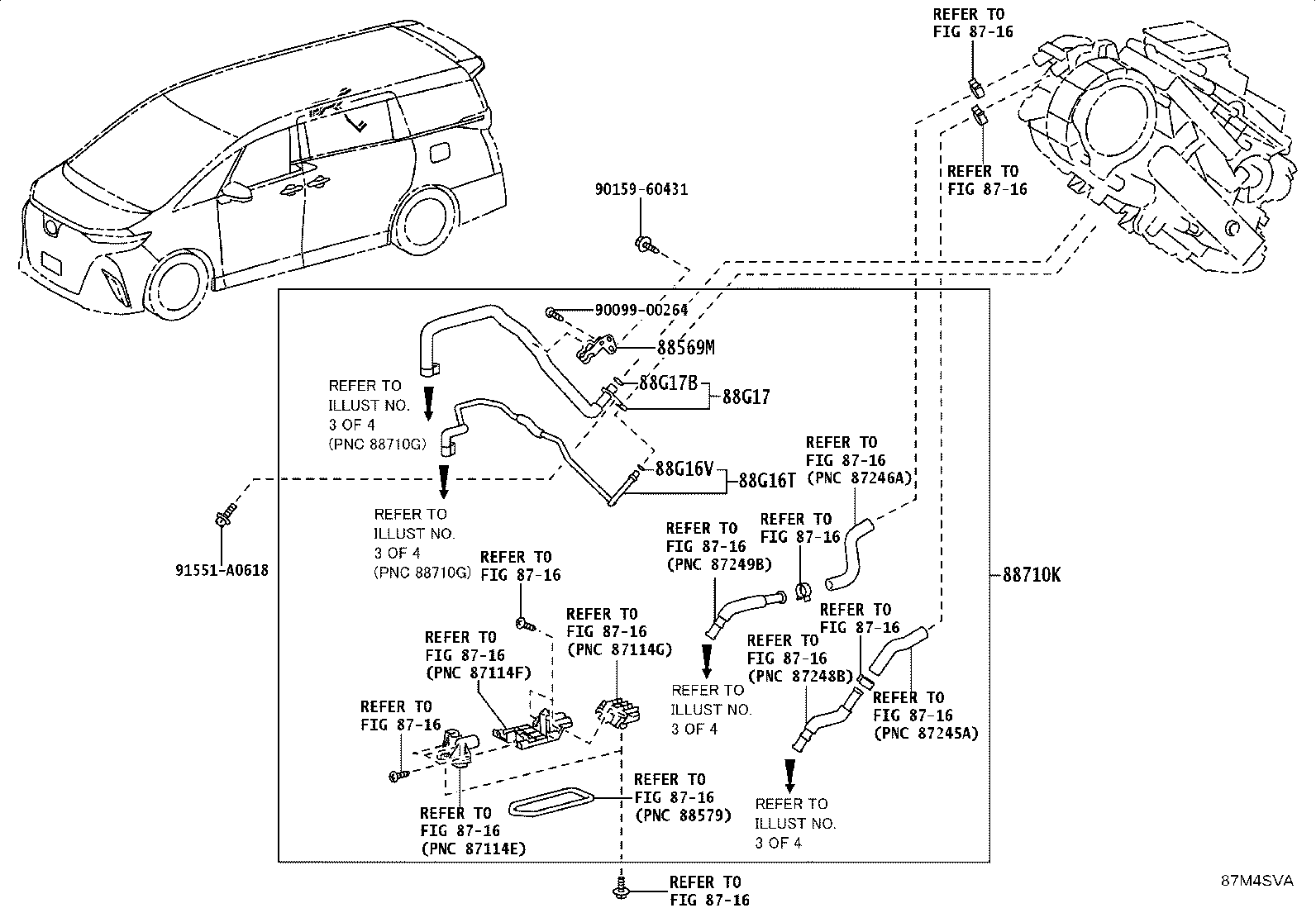

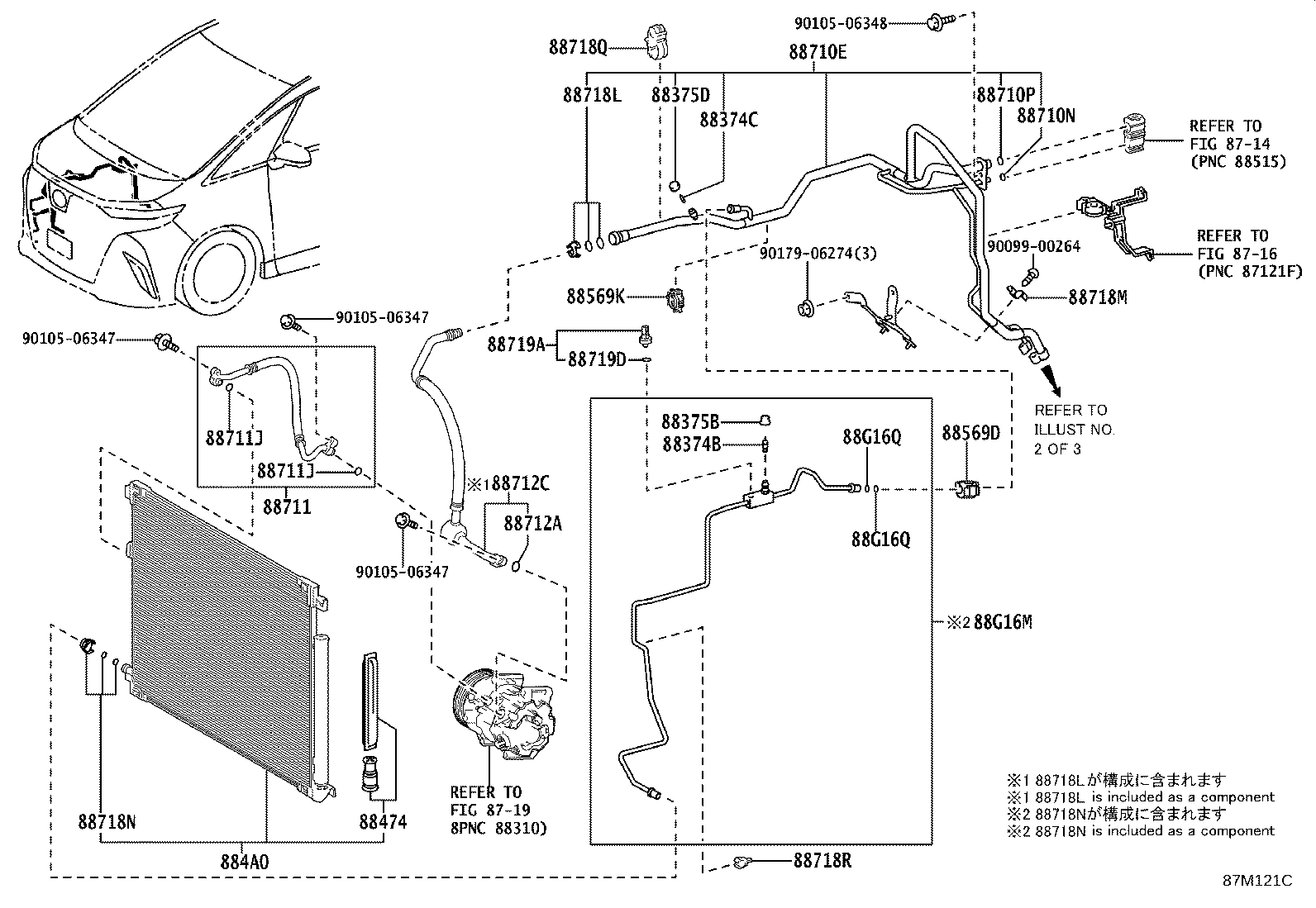

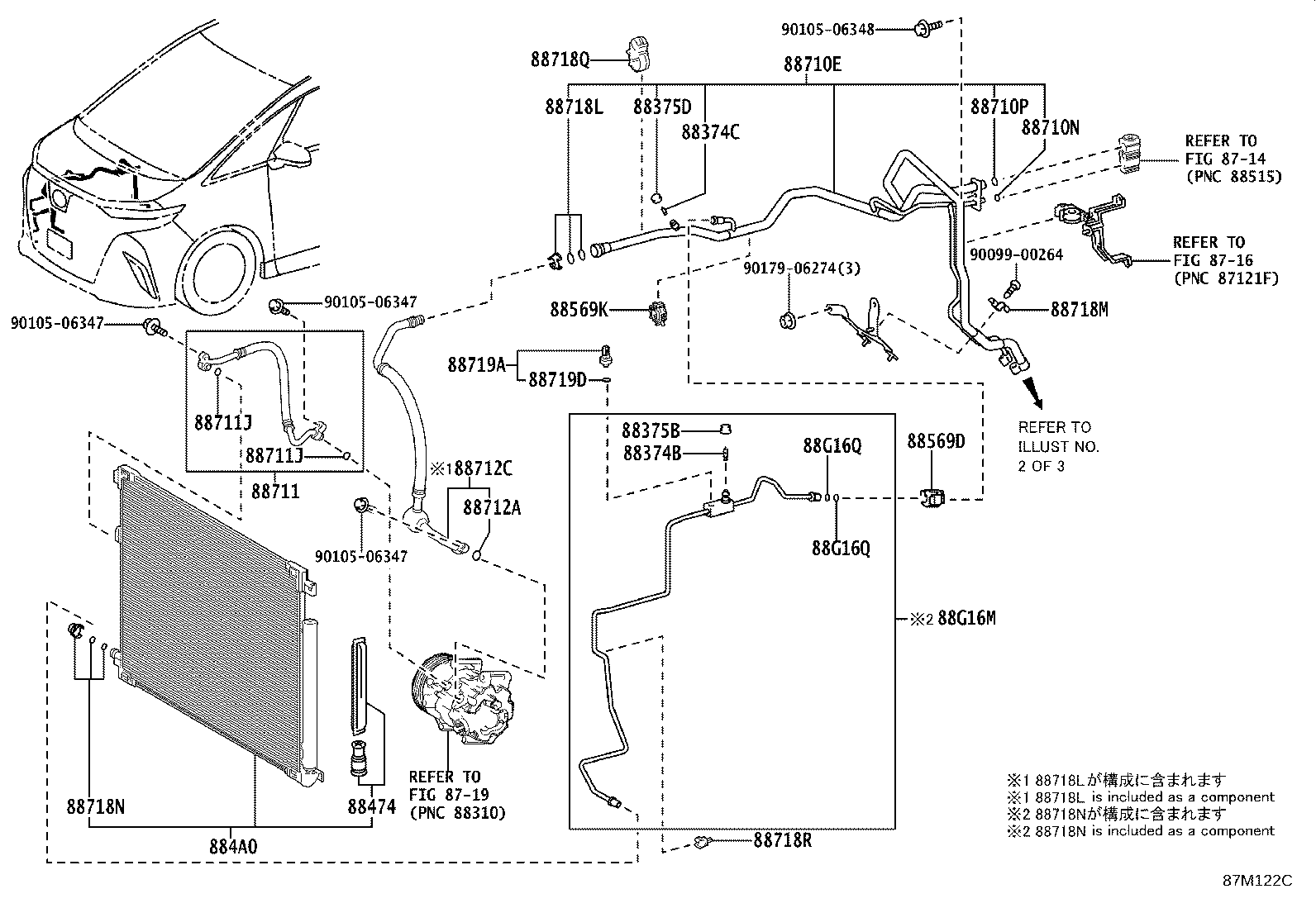

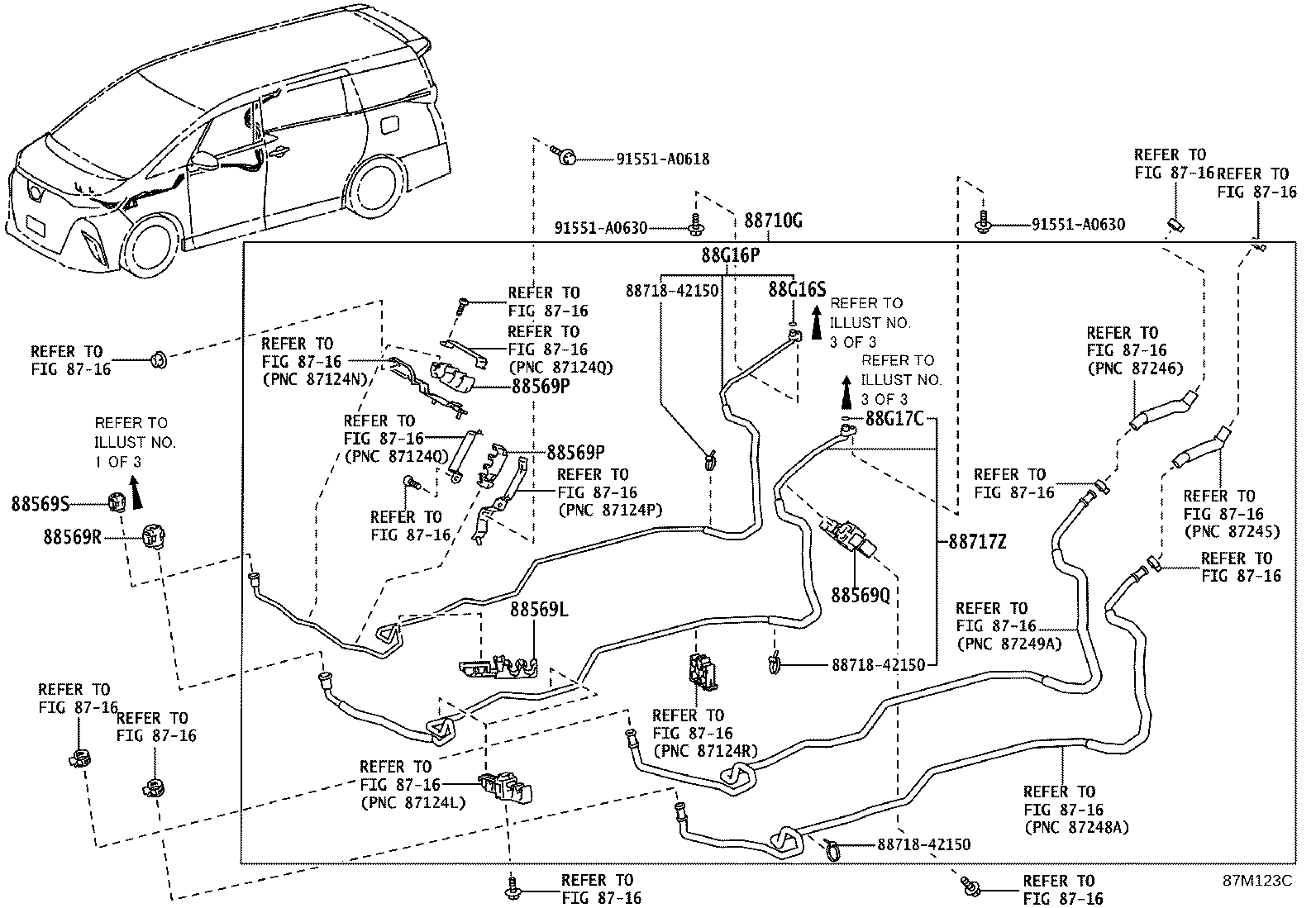

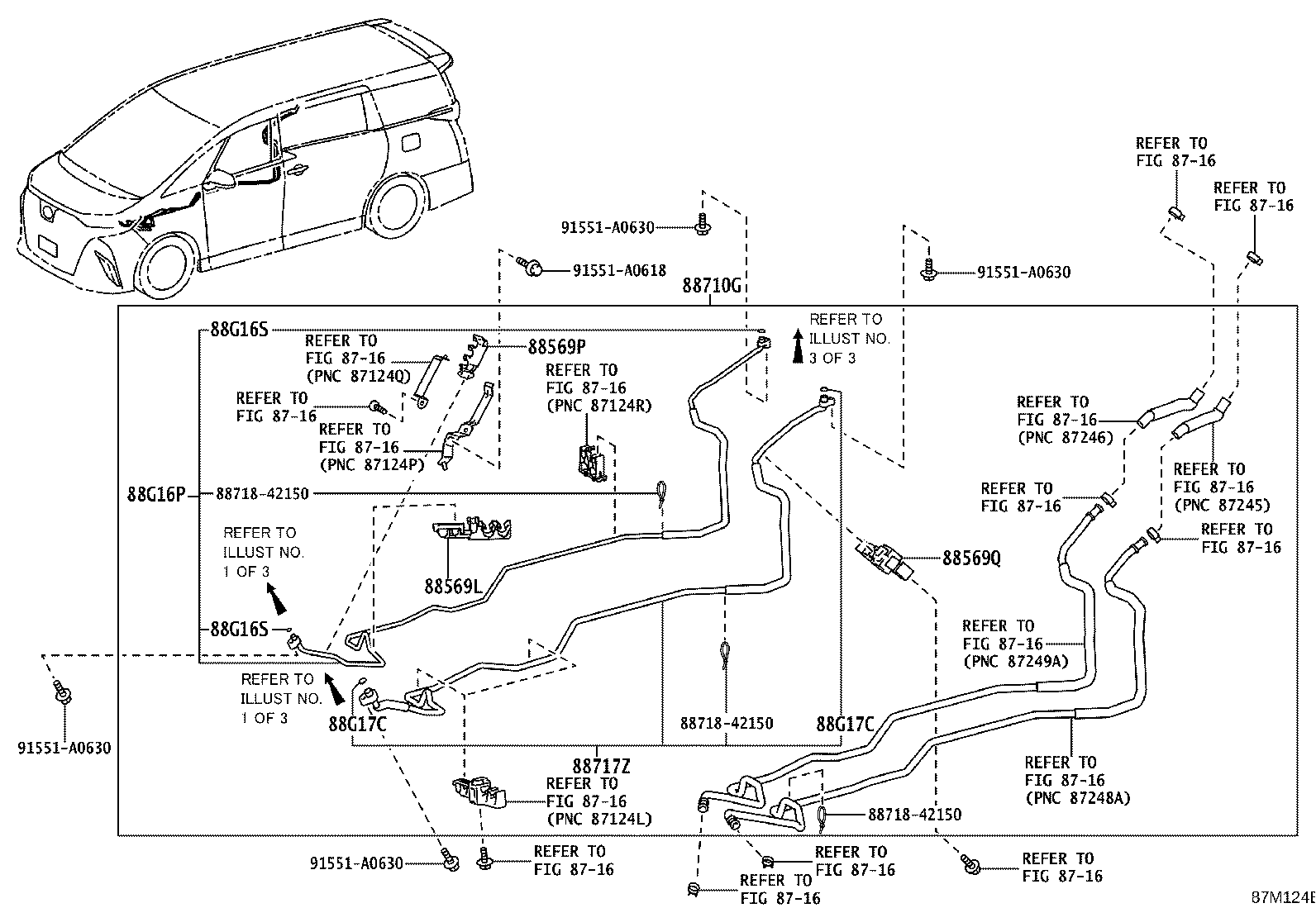

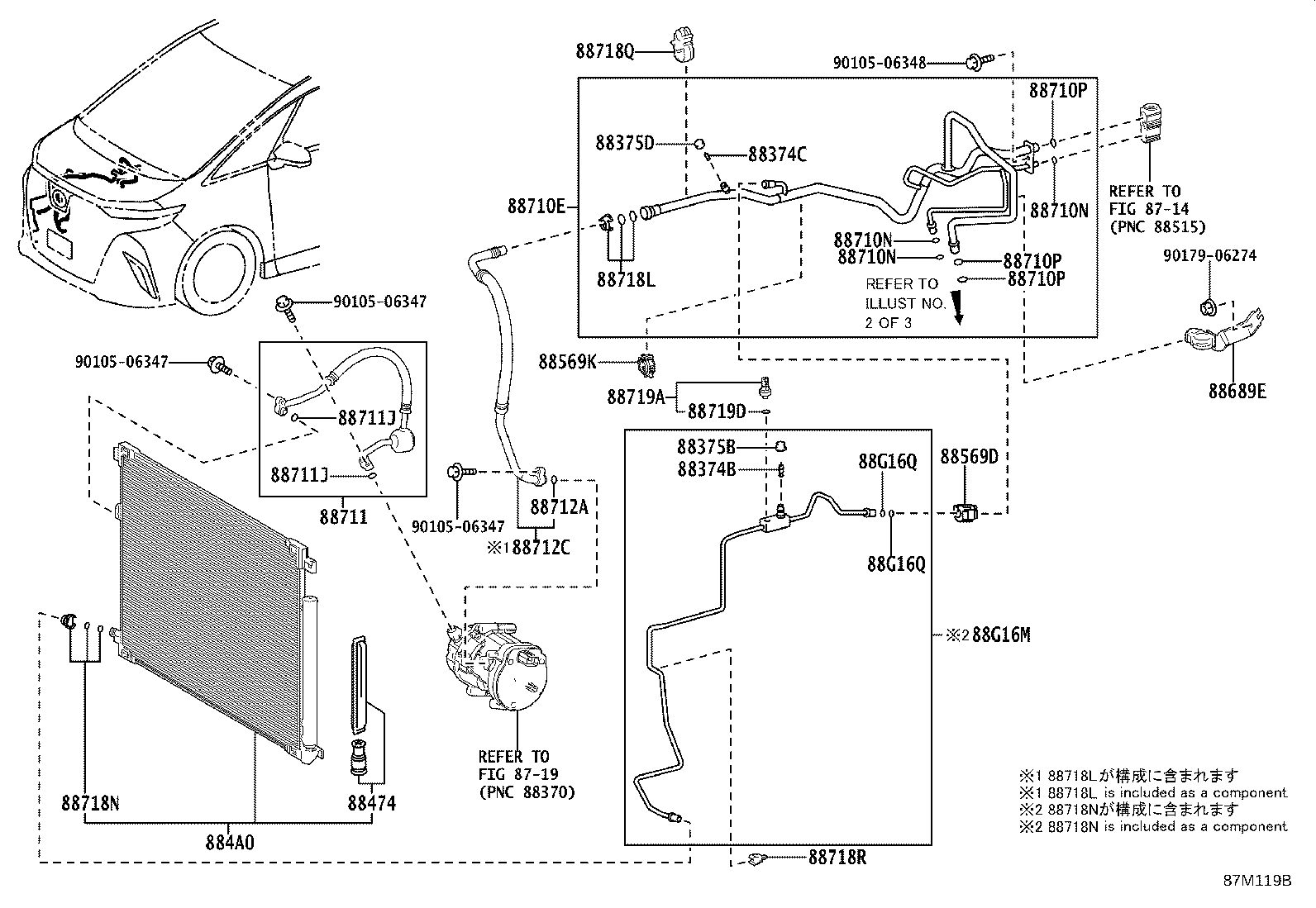

Figure 87M118B 87M118B 2023-06 → — Figure 87M119B 87M119B 2023-06 → — Figure 87M120B 87M120B 2023-06 → — Figure 87M121C 87M121C 2023-06 → — Figure 87M122C 87M122C 2023-06 → — Figure 87M4SQ 87M4SQ 2024-10 → — Figure 87M4SU 87M4SU 2024-10 → — Figure 87M123C 87M123C 2023-06 → — Figure 87M124B 87M124B 2023-06 → — Figure 87M161A 87M161A 2023-06 → — Figure 87M4SR 87M4SR 2024-10 → — Figure 87M4SVA 87M4SVA 2024-10 → —

Part groups

PNCDescription
88295A Tube, Valve TO Connector
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88467B Insulator, Cooler Condenser Mounting
88467L Cushion, Cooler, NO.1
88467M Cushion, Cooler, NO.2
88470 Receiver & Dryer Assy, Cooler
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88569D Clamp, Cooler, NO.1
88569K Clamp, Cooler, NO.2
88569L Clamp, Cooler, NO.3
88569M Clamp, Piping, NO.1
88569N Clamp, Piping, NO.2
88569P Clamp, Cooler, NO.4
88569Q Clamp, Cooler, NO.5
88569R Clamp, Cooler, NO.6
88569S Clamp, Cooler, NO.7
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88689H Bracket, Cooler, NO.4
88689J Bracket, Cooler, NO.5
88690K Valve Assy, Magnet
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88706E Tube Sub-assy, Liquid, E
88706G Ring, O(FOR LIQUID TUBE)
88706H Ring, O, NO.2(FOR LIQUID TUBE)
88706J Ring, O, NO.3(FOR LIQUID TUBE)
88706K Ring, O, NO.4(FOR LIQUID TUBE)
88707D Ring, O(FOR SUCTION TUBE)
88710C Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710P Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710T Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710U Ring, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711J Ring, O, NO.1(FOR DISCHARGE HOSE)
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717Z Tube, Suction, NO.2
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88718R Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88G10 Tube & Accessory Assy, Air Conditioner, NO.4
88G10A Tube & Accessory Assy, Air Conditioner, NO.5
88G10H Tube & Accessory Assy, Air Conditioner, NO.6
88G16A Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16B Ring, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16G Ring, O, NO.3(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16M Tube, Liquid, NO.1
88G16P Tube, Liquid, NO.3
88G16Q Ring, O, NO.1(FOR LIQUID TUBE)
88G16R Ring, O, NO.2(FOR LIQUID TUBE)
88G16S Ring, O, NO.3(FOR LIQUID TUBE)
88G16T Tube, Liquid, NO.4
88G16U Tube, Liquid, NO.5
88G16V Ring, O, NO.4 (FOR LIQUID TUBE)
88G16W Ring, O, NO.5 (FOR LIQUID TUBE)
88G17 Tube, Suction, NO.3
88G17A Tube, Suction, NO.4
88G17B Ring, O, NO.1 (FOR SUCTION TUBE)
88G17C Ring, O, NO.2 (FOR SUCTION TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
