Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

23 part groups · 8 illustrations

Illustrations

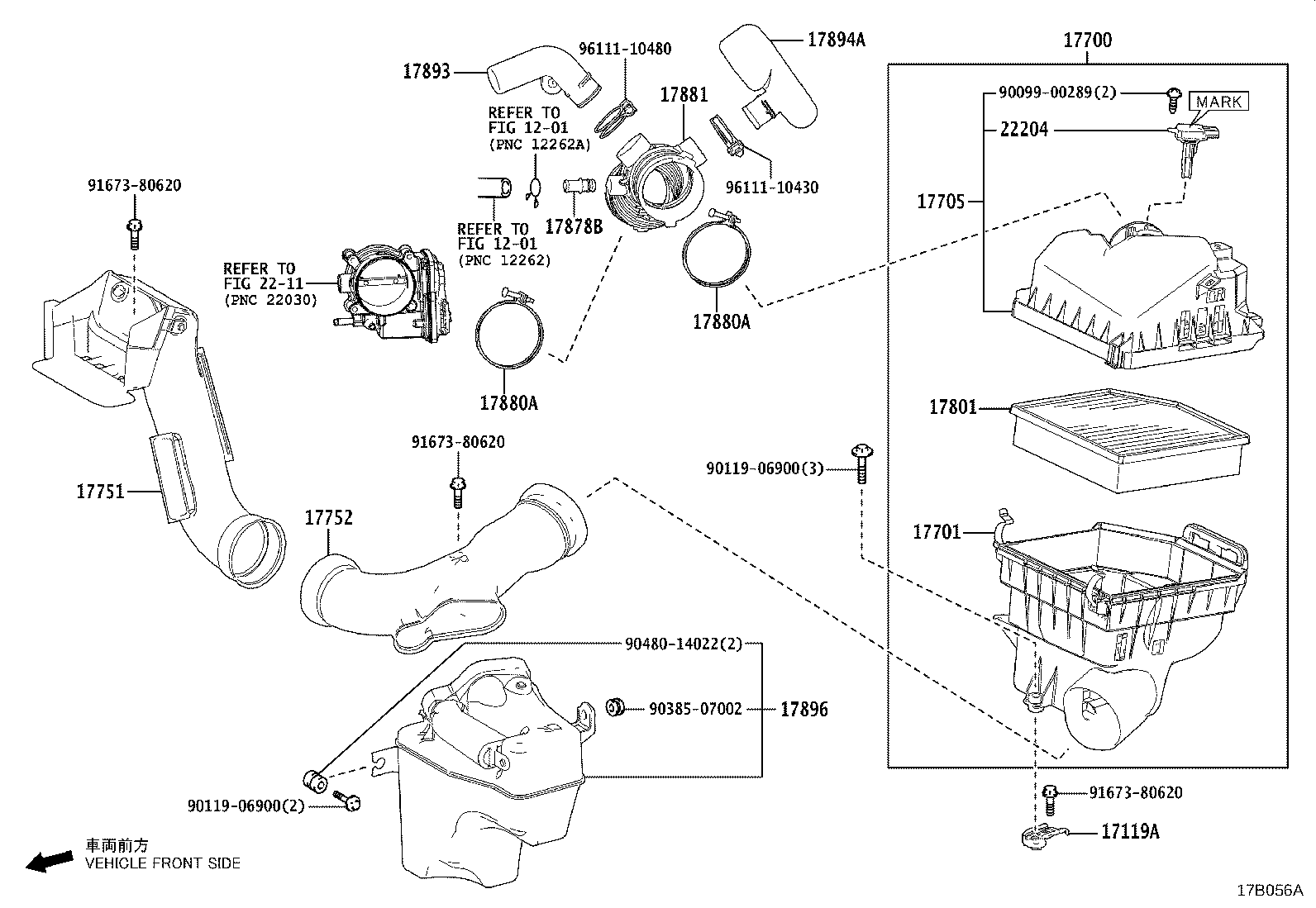

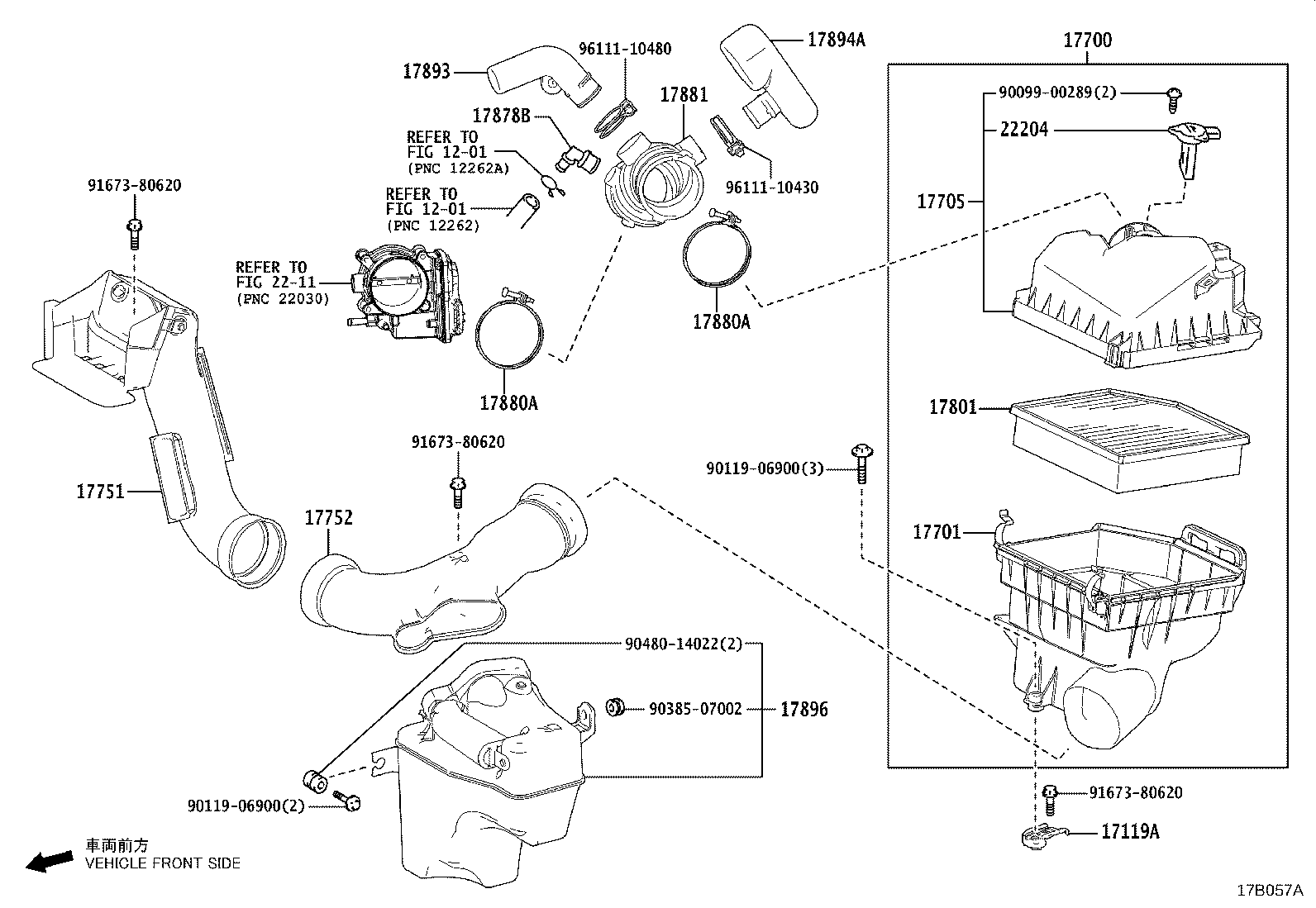

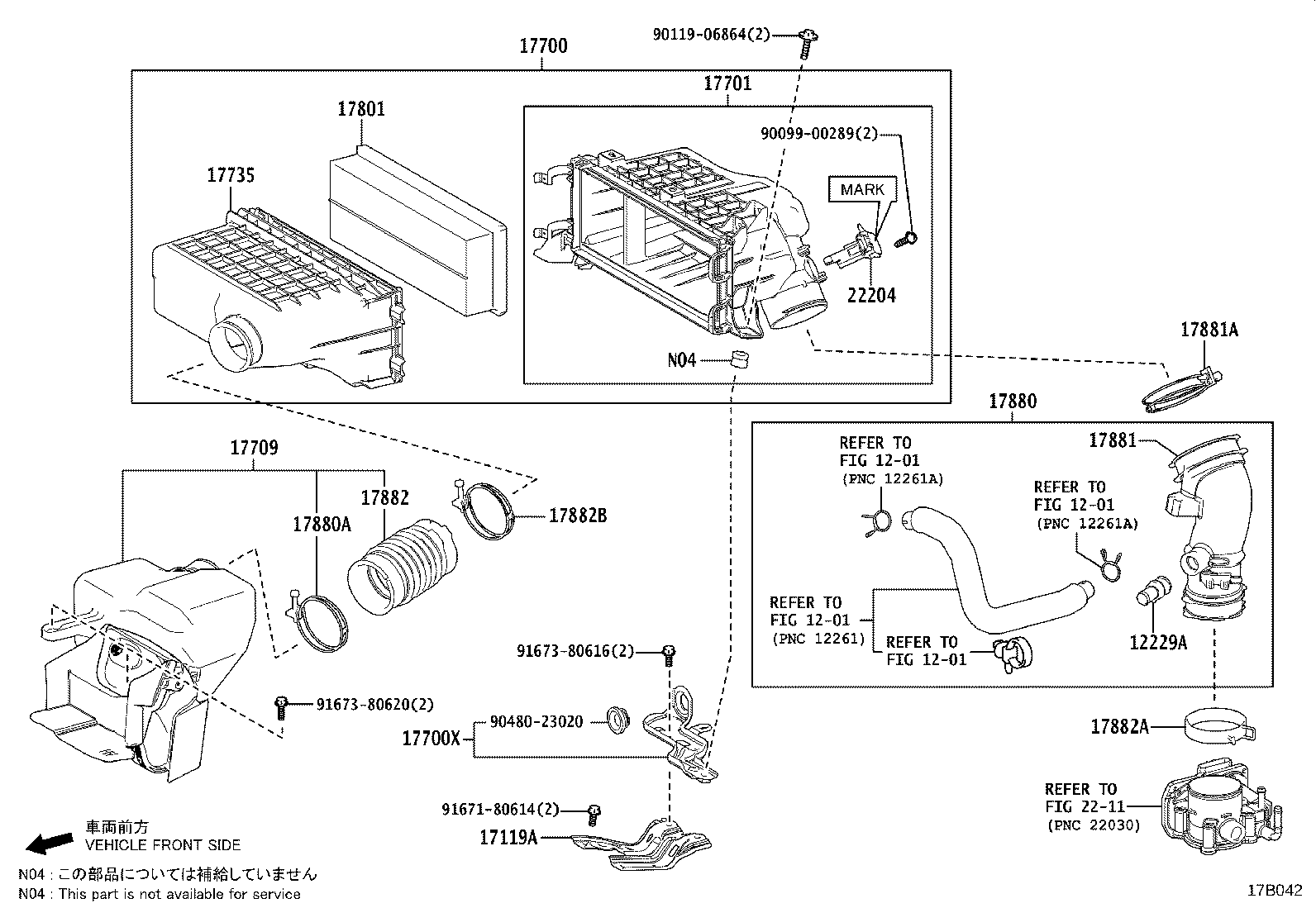

Figure 17B041 17B041 2020-01 → — Figure 17B041 17B041 2020-08 → 2021-05 Figure 17B041 17B041 2022-05 → 2022-07 Figure 17B042 17B042 2020-01 → 2020-08 Figure 17B042 17B042 2021-05 → 2022-05 Figure 17B042 17B042 2022-07 → — Figure 17B056A 17B056A 2020-01 → — Figure 17B057A 17B057A 2020-01 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17119A Bracket, Air Cleaner
17700 Cleaner Assy, Air
17700X Bracket, Air Cleaner
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17878B Tube, Ventilation
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882B Clamp(FOR COOL AIR INTAKE)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17896 Resonator, Intake Air, NO.3
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
