Toyota Lexus LM350/LM300H
2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General
Supported model
Data version 2020-02

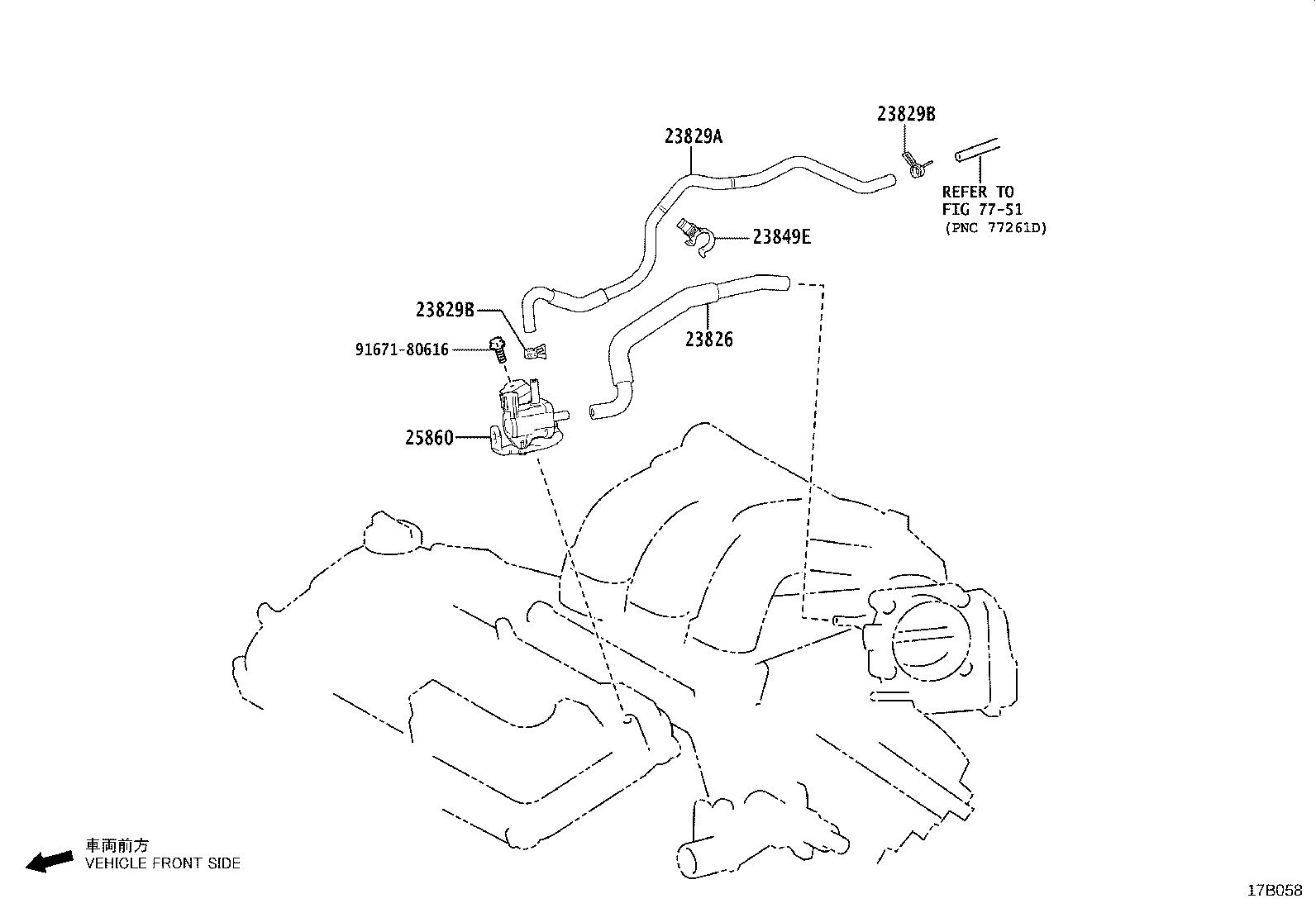

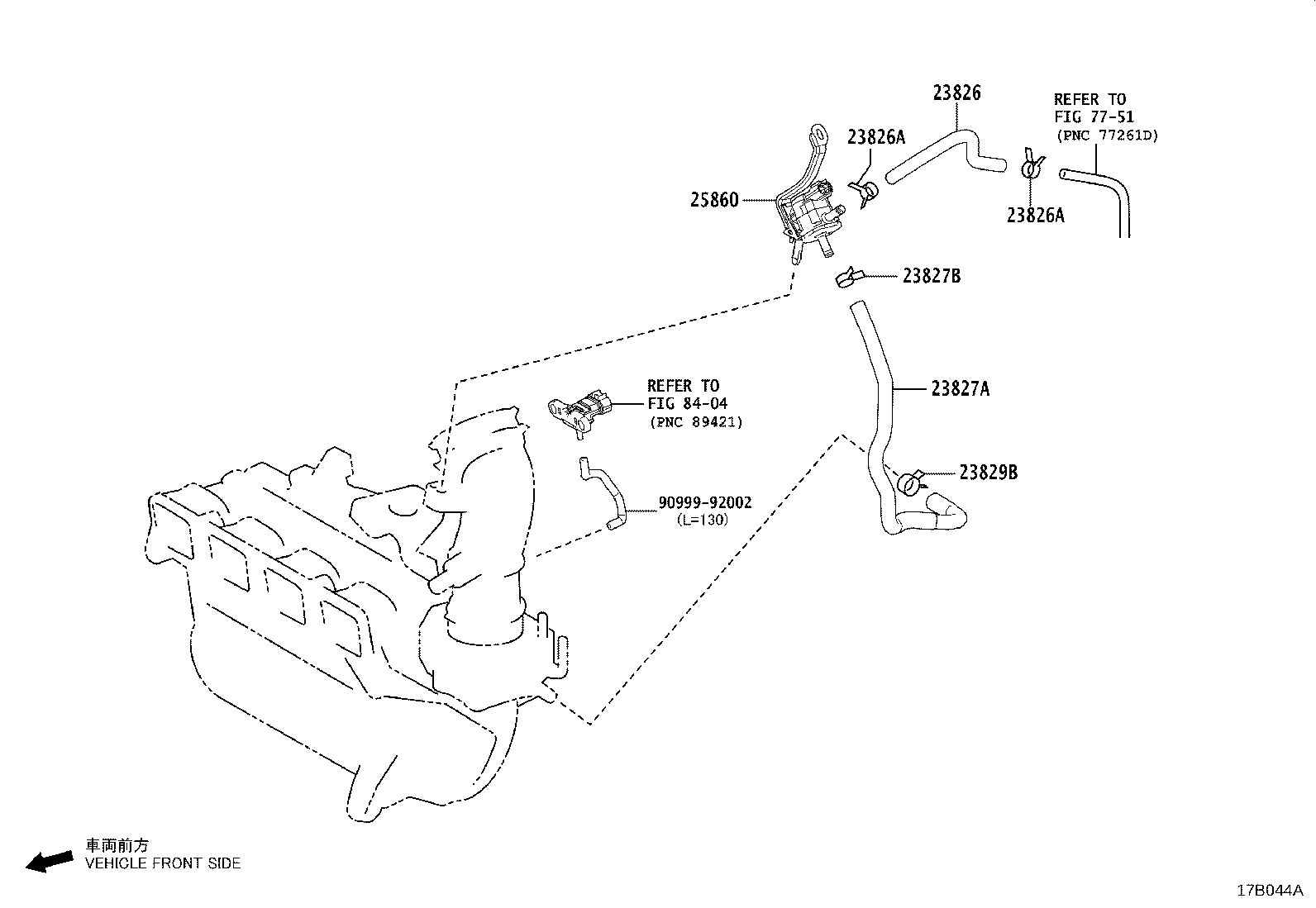

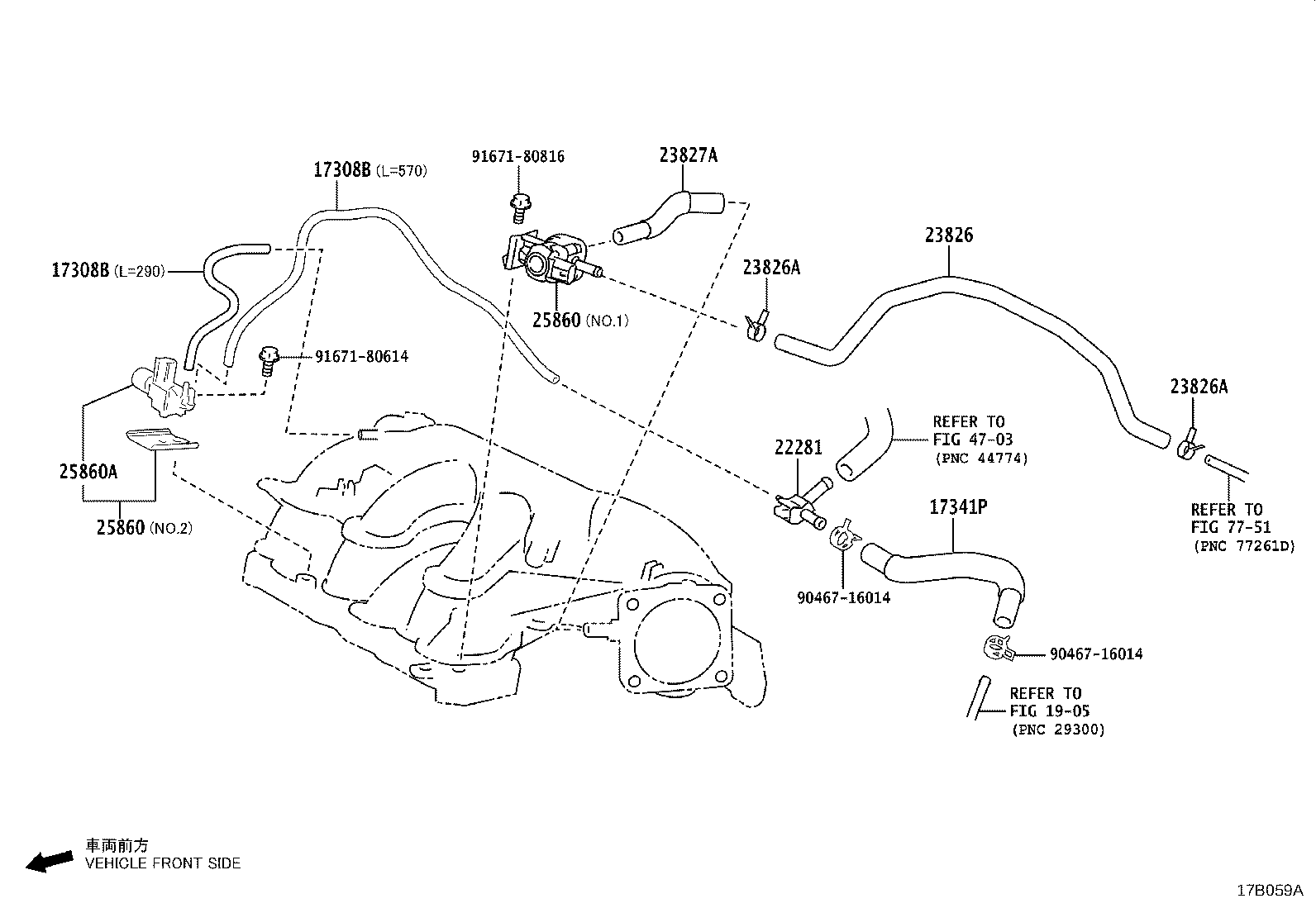

Vacuum Piping
12 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17341P | Hose, Air |
| 22281 | Way, Air Delivery |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23849E | Support, Fuel Hose Clamp |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
