Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

2 part groups · 3 illustrations

Illustrations

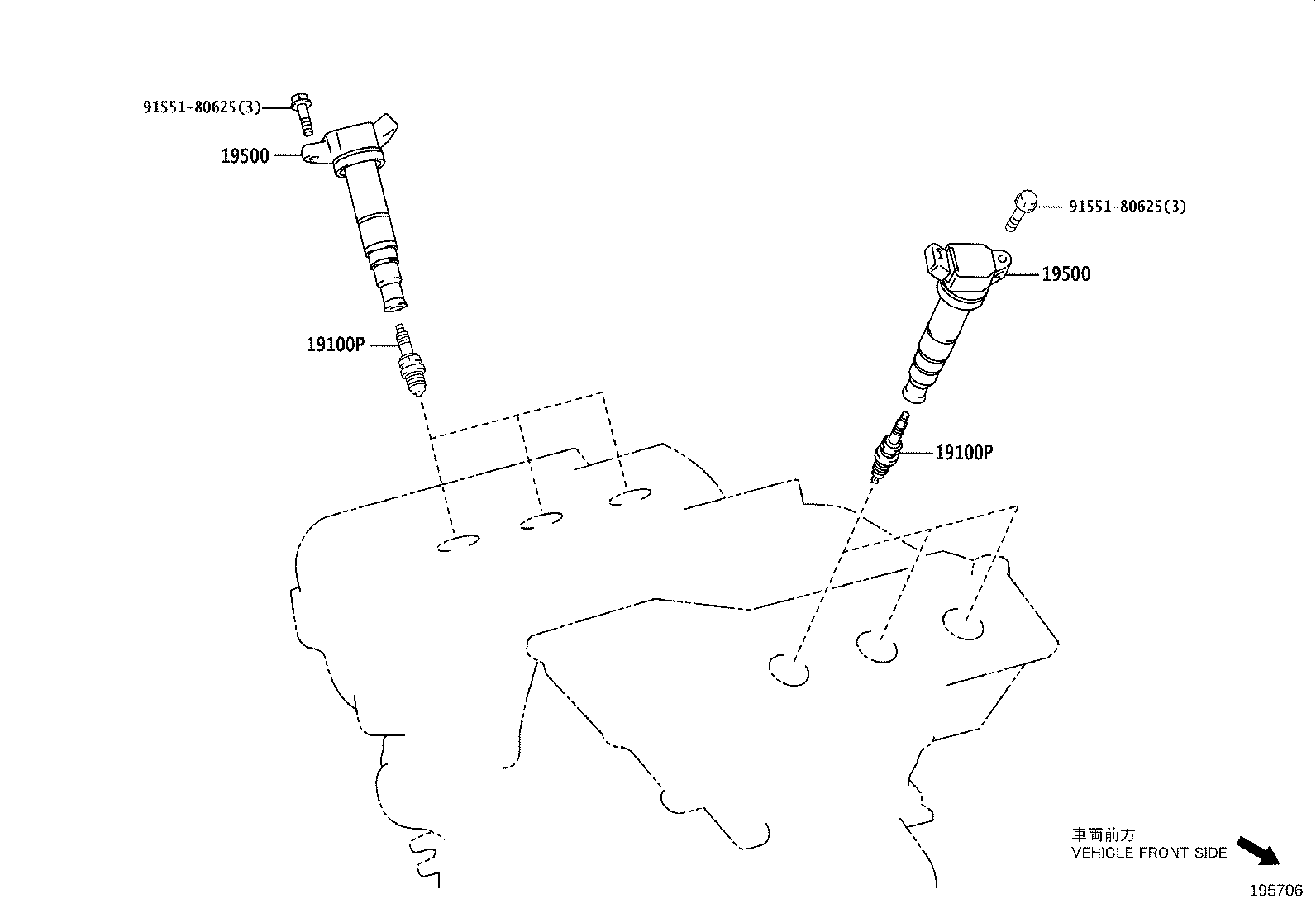

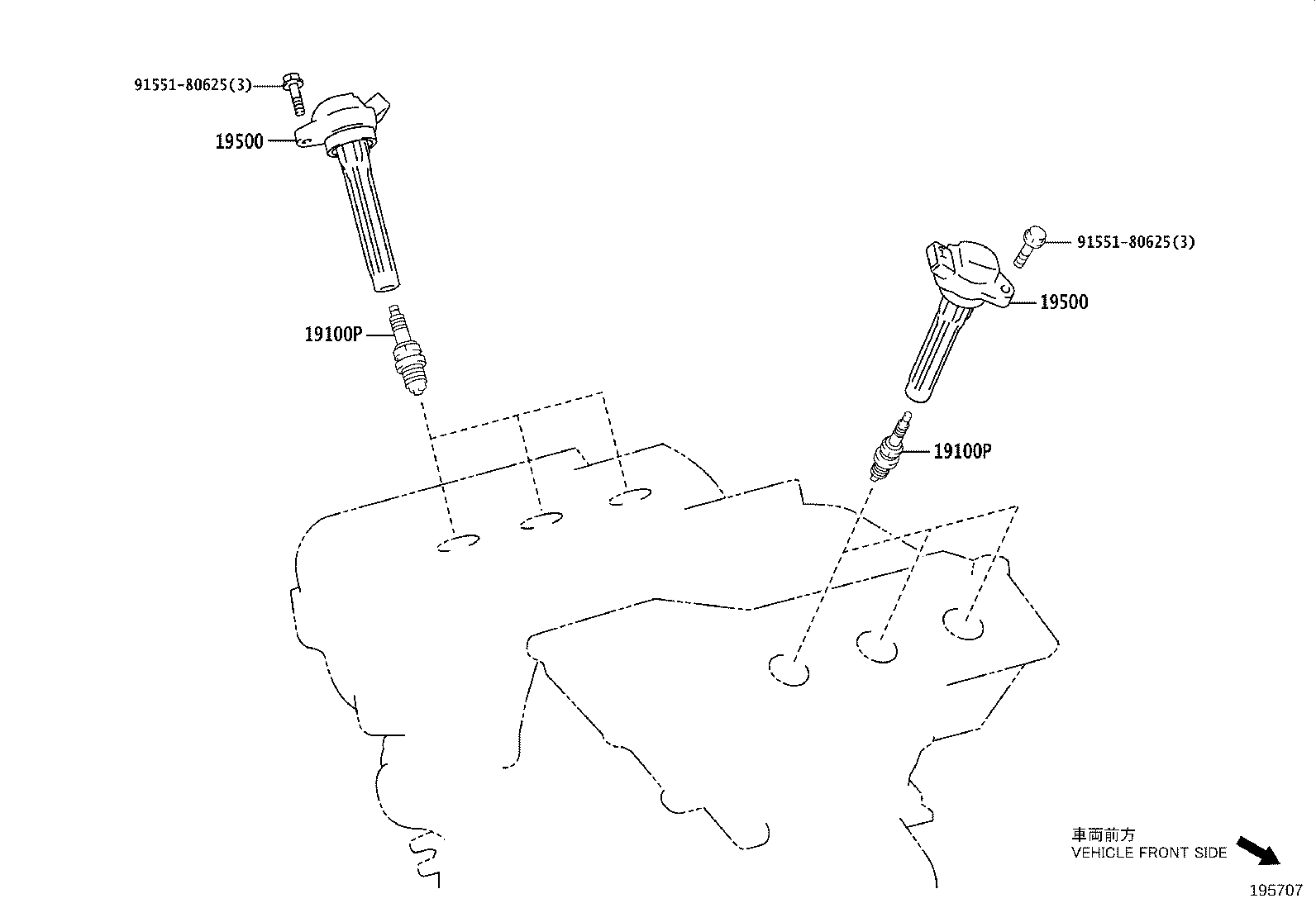

Figure 195702 195702 2020-01 → — Figure 195706 195706 2020-01 → — Figure 195707 195707 2020-01 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
