Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

12 part groups · 2 illustrations

Illustrations

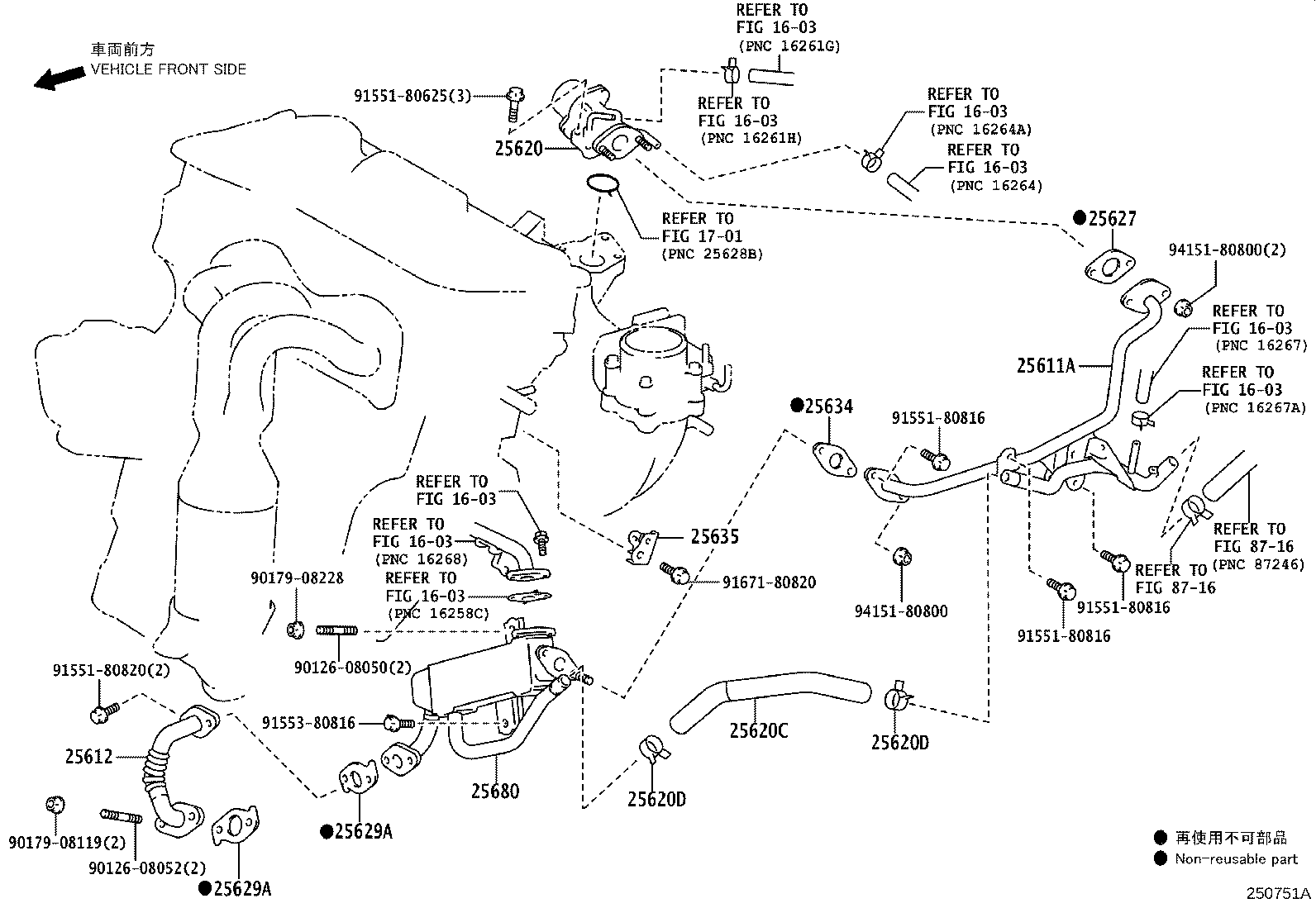

Figure 250750A 250750A 2020-01 → — Figure 250751A 250751A 2020-01 → —

Part groups

PNCDescription
25611A Pipe, Egr, NO.1
25612 Pipe, Egr, NO.2
25613 Pipe, Egr, NO.3
25620 Valve Assy, Egr
25620C Hose, Water By-pass, NO.1
25620D Clip(FOR WATER BY-PASS HOSE, NO.1)
25627 Gasket, Egr Valve
25629A Gasket, Egr Pipe, NO.2
25634 Gasket, Egr Pipe
25635 Bracket, Egr Pipe, NO.1
25639 Gasket, Egr Pipe, NO.3
25680 Cooler Assy, Egr
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
