Brake Pedal & Bracket

3 part groups · 4 illustrations

Illustrations

Figure 47C250B

47C250B 2020-01 → —

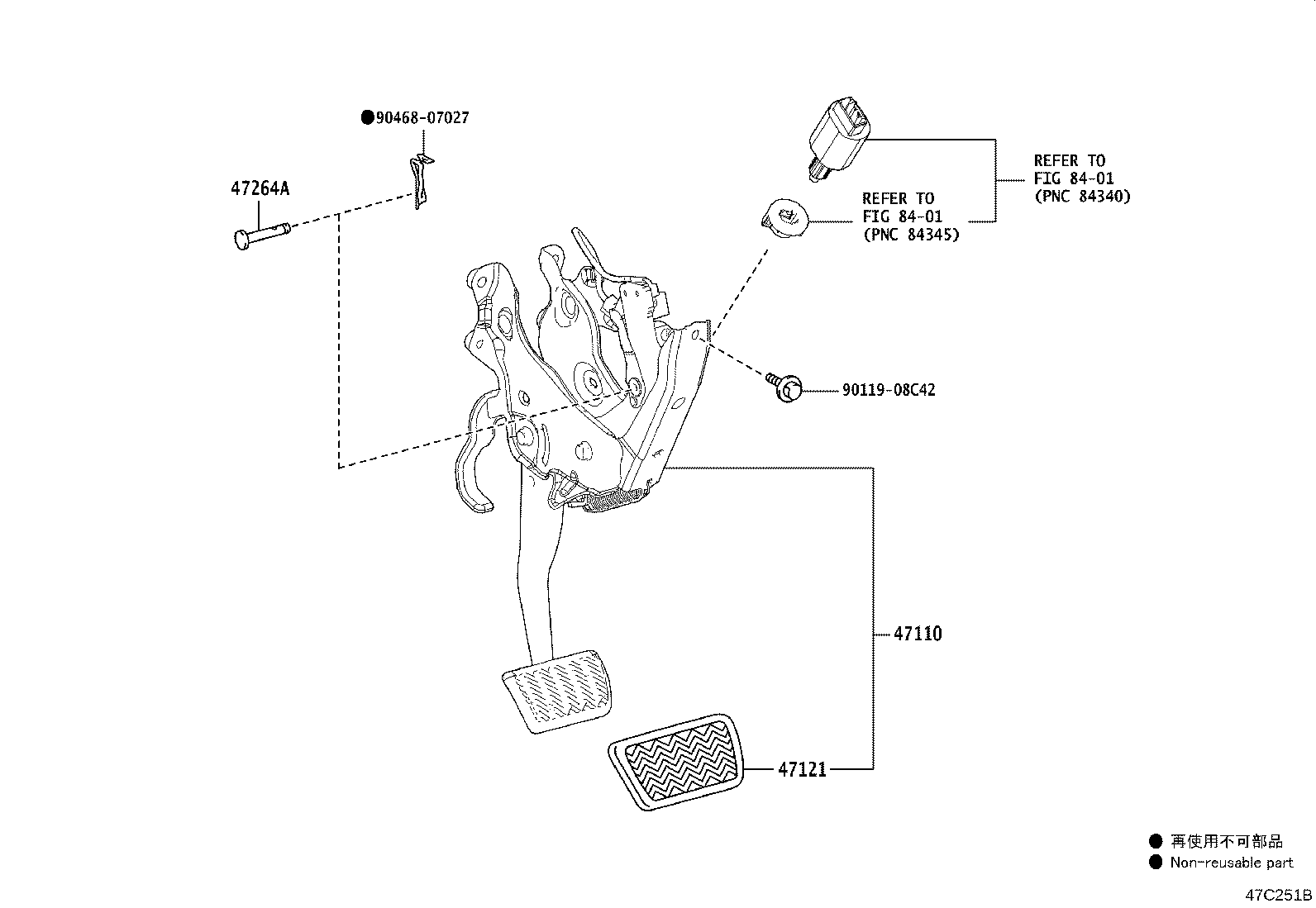

Figure 47C251B

47C251B 2020-01 → —

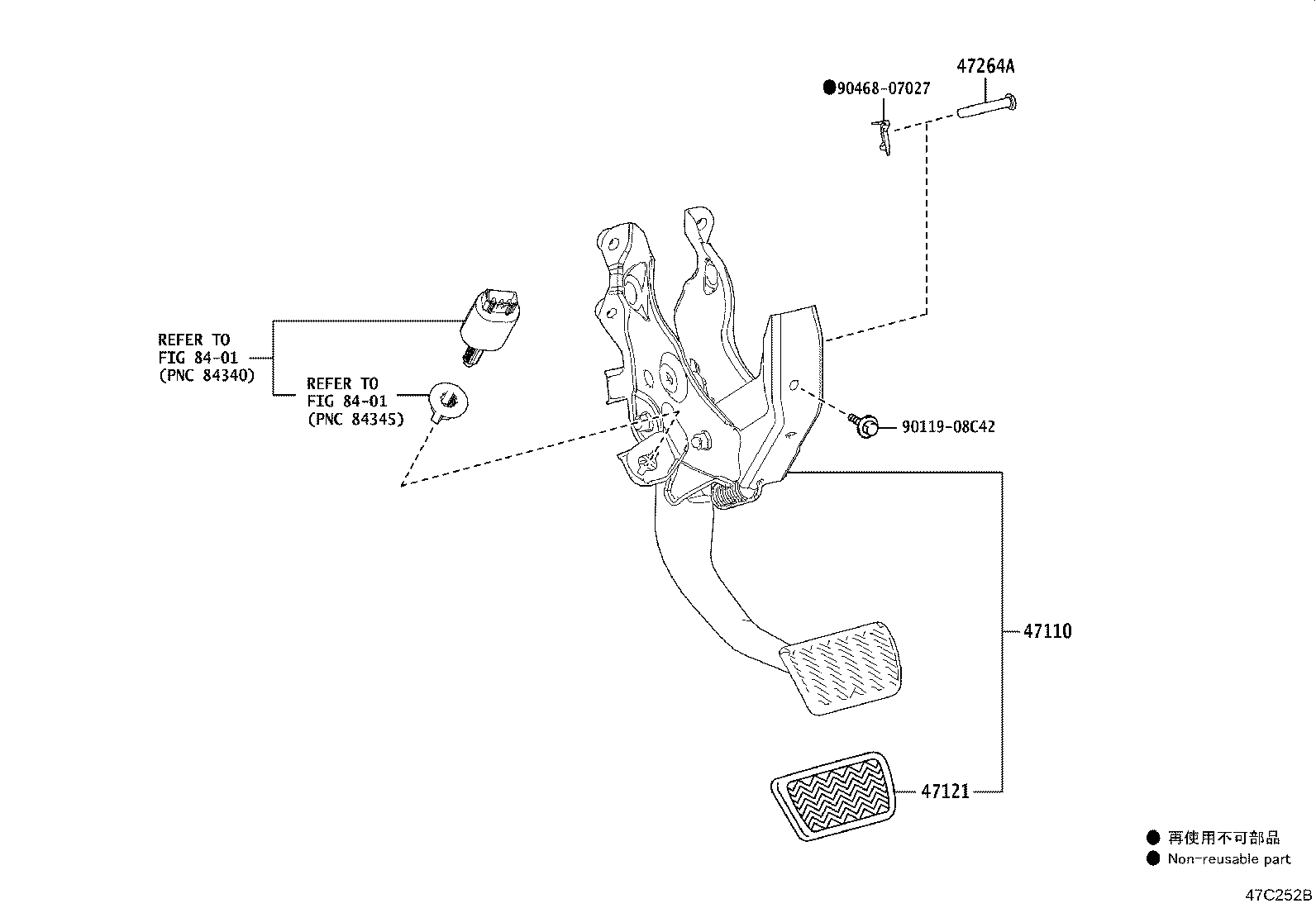

Figure 47C252B

47C252B 2020-01 → —

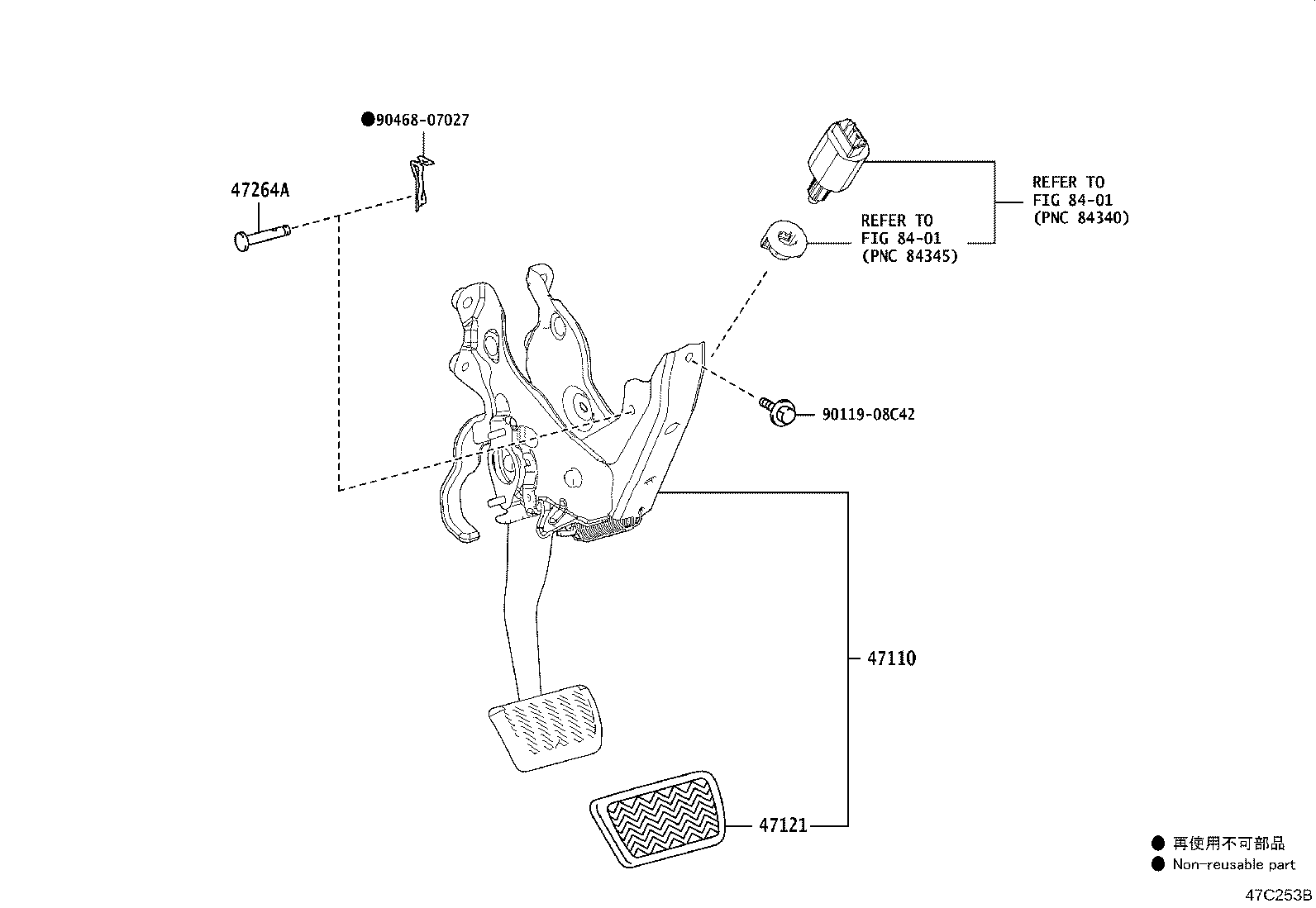

Figure 47C253B

47C253B 2020-01 → —

Part groups

PNC	Description
47110	Support Assy, Brake Pedal
47121	Pad, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
