Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

34 part groups · 3 illustrations

Illustrations

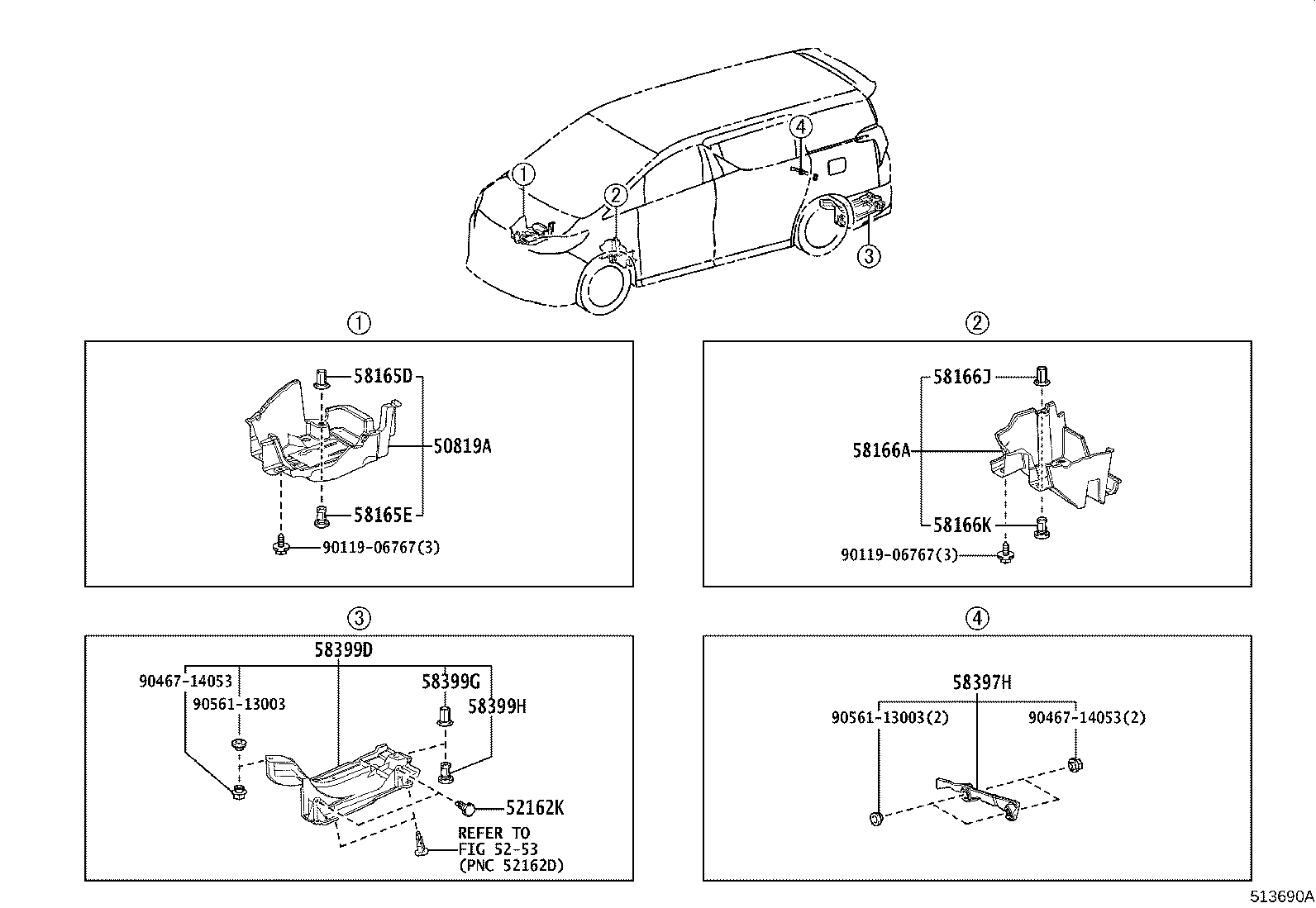

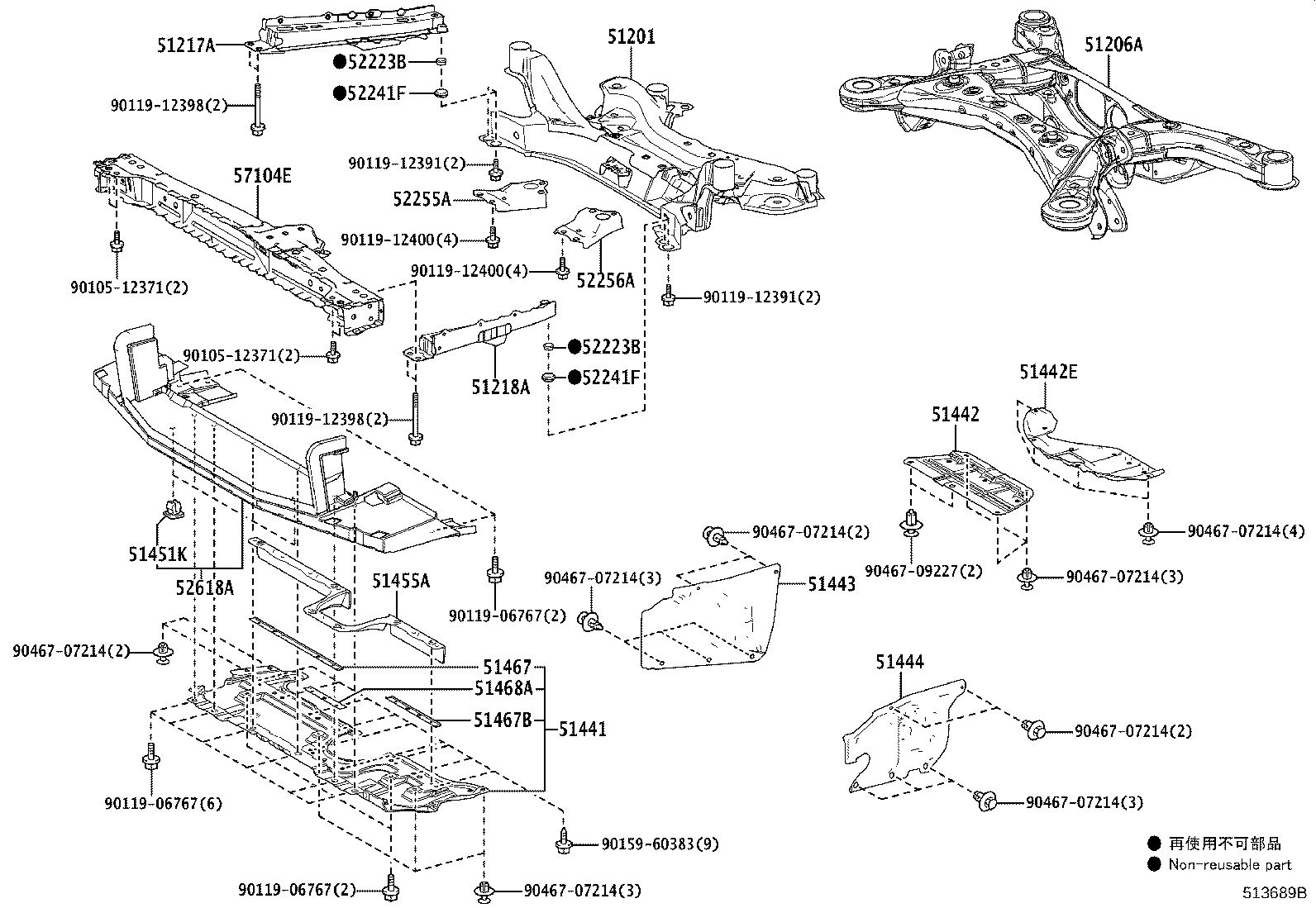

Figure 513688A 513688A 2020-01 → — Figure 513689B 513689B 2020-01 → — Figure 513690A 513690A 2020-01 → —

Part groups

PNCDescription
50819A Cover Sub-assy, Front Floor Side, Front
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51209B Protector Sub-assy, Center Member, Front
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442E Cover, Engine Under, NO.2
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51451K Grommet, Screw, NO.1
51454 Clip
51455A Seal, Engine Under Cover, NO.1
51467 Retainer, Engine Under Cover
51467B Retainer, Engine Under Cover
51468A Retainer, Engine Under Cover, NO.2
52162K Piece, Rear Bumper
52223B Spacer, Front Suspension Member Mountiong, Lower
52241F Cushion, Front Suspension Member Mounting, Lwr
52255A Brace, Front Suspension Member, Front RH
52256A Brace, Front Suspension Member, Front LH
52281 Cushion, Differential Support Member
52618A Absorber, Front Bumper, Lower
57104E Member Sub-assy, Front Cross
58165D Clip, Floor Cover
58165E Clip, Floor Cover
58166A Cover, Front Floor, LH
58166J Clip, Floor Cover
58166K Clip, Floor Cover
58397H Cover, Body Lower Back, RH
58399D Cover, Floor Under, NO.2
58399G Clip, NO.1(FOR REAR UNDER COVER)
58399H Clip, NO.2(FOR REAR UNDER COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
