Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

20 part groups · 2 illustrations

Illustrations

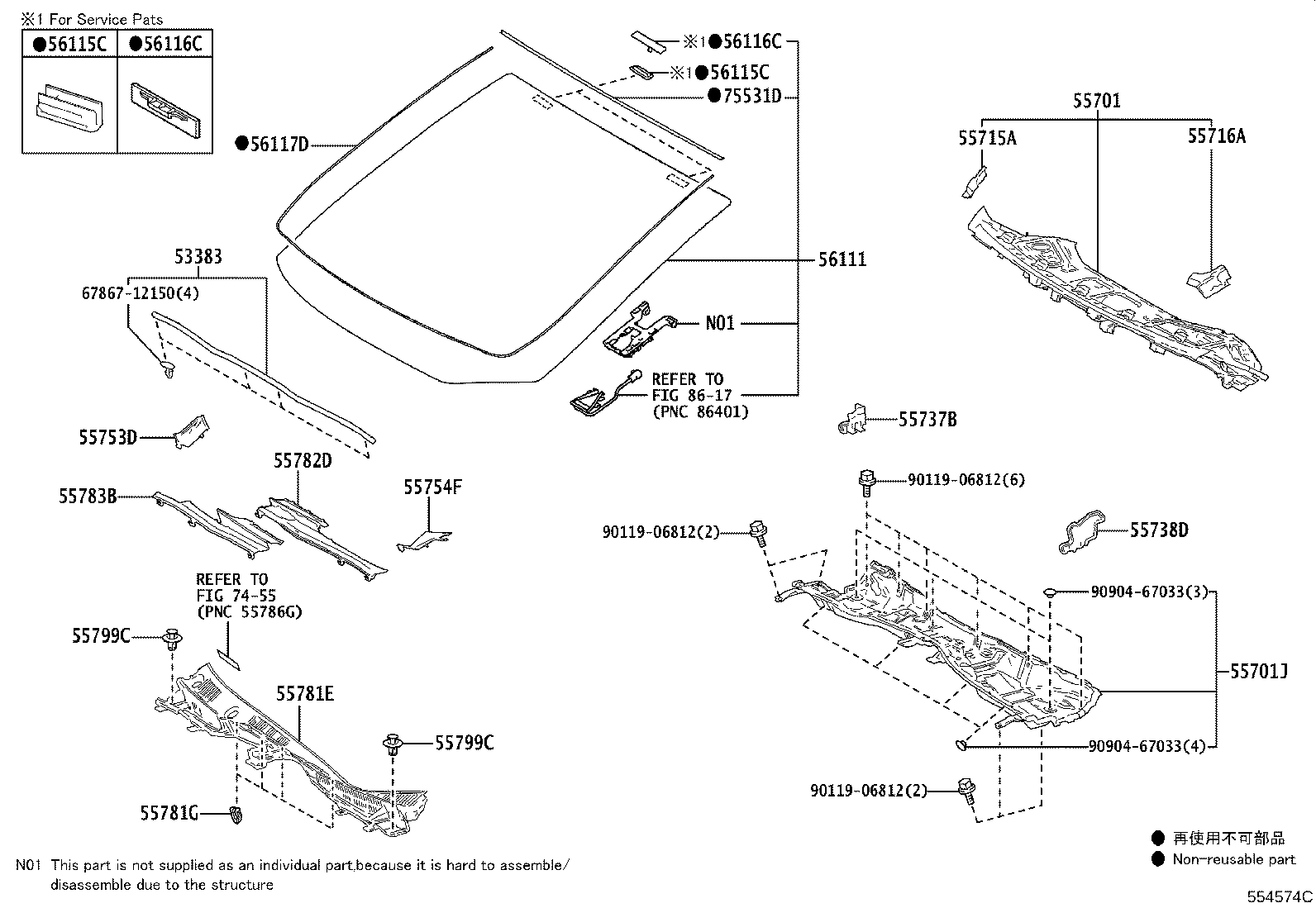

Figure 554573C 554573C 2020-01 → — Figure 554574C 554574C 2020-01 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
55701 Panel Sub-assy, Cowl
55701J Panel Sub-assy, Cowl Top, Outer
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55738D Seal, Heater Air Duct Splash Shield, NO.2
55753D Shield, Cowl Water Extract, RH
55754F Shield, Cowl Water Extract, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55782D Louver, Cowl Top Ventilator, LH
55783B Louver, Cowl Top Ventilator, Center NO.1
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115C Stopper, Windshield Glass
56116C Stopper, Windshield Glass, NO.2
56117D Dam, Windshield Glass Adhesive
56165 Cover, Front Window Inner Moulding, LH
75531D Moulding, Windshield, Outside Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
