Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

12 part groups · 4 illustrations

Illustrations

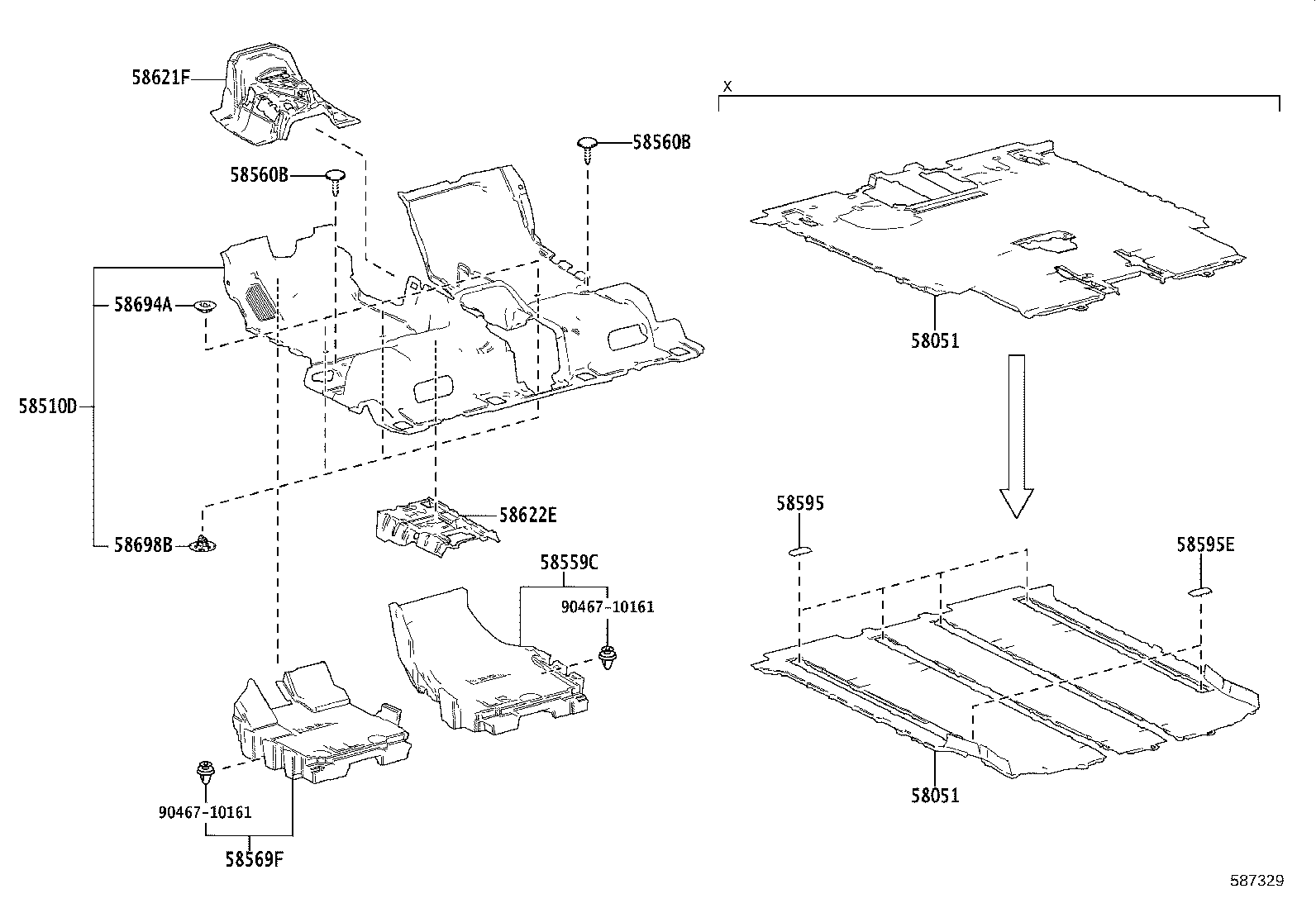

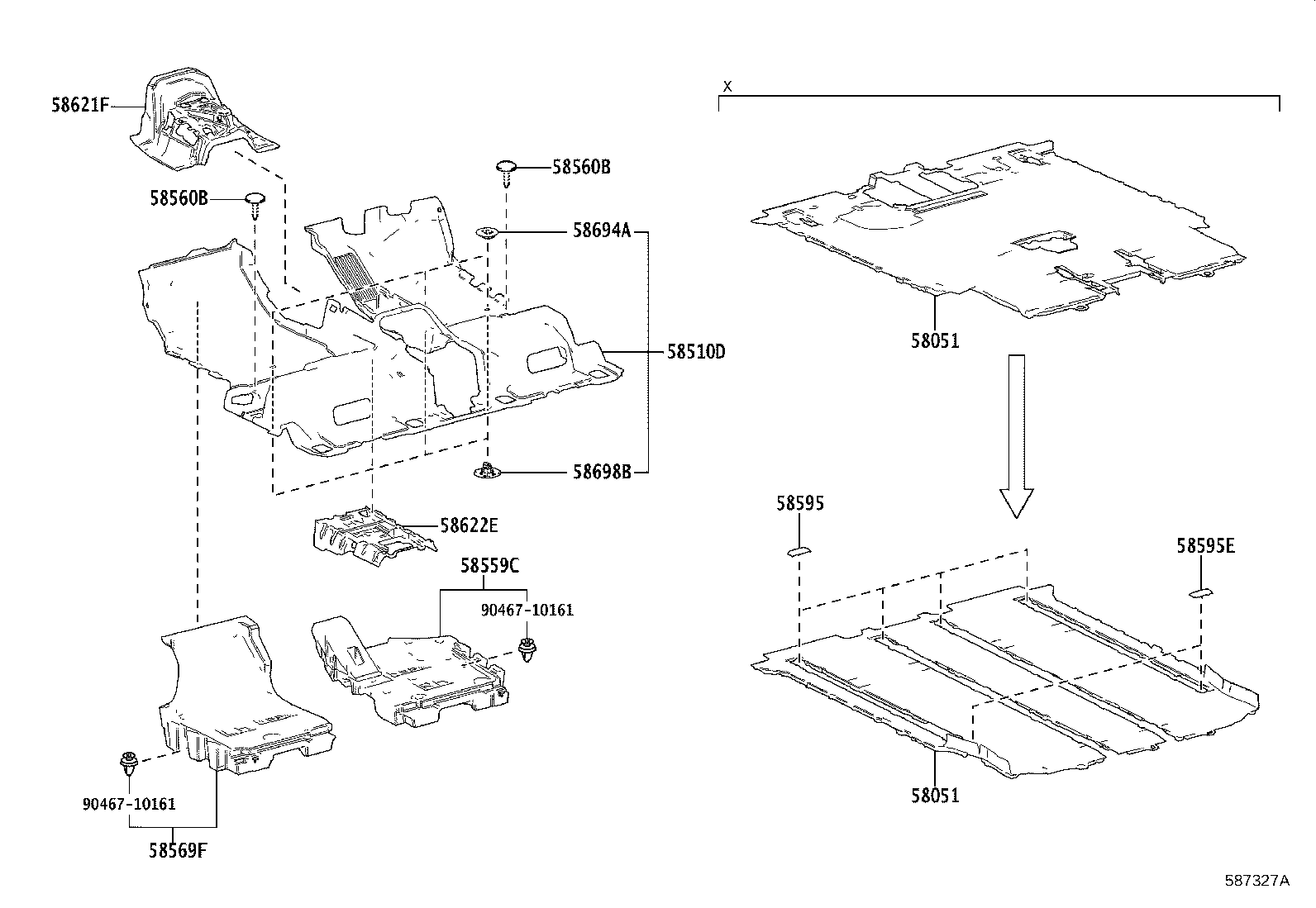

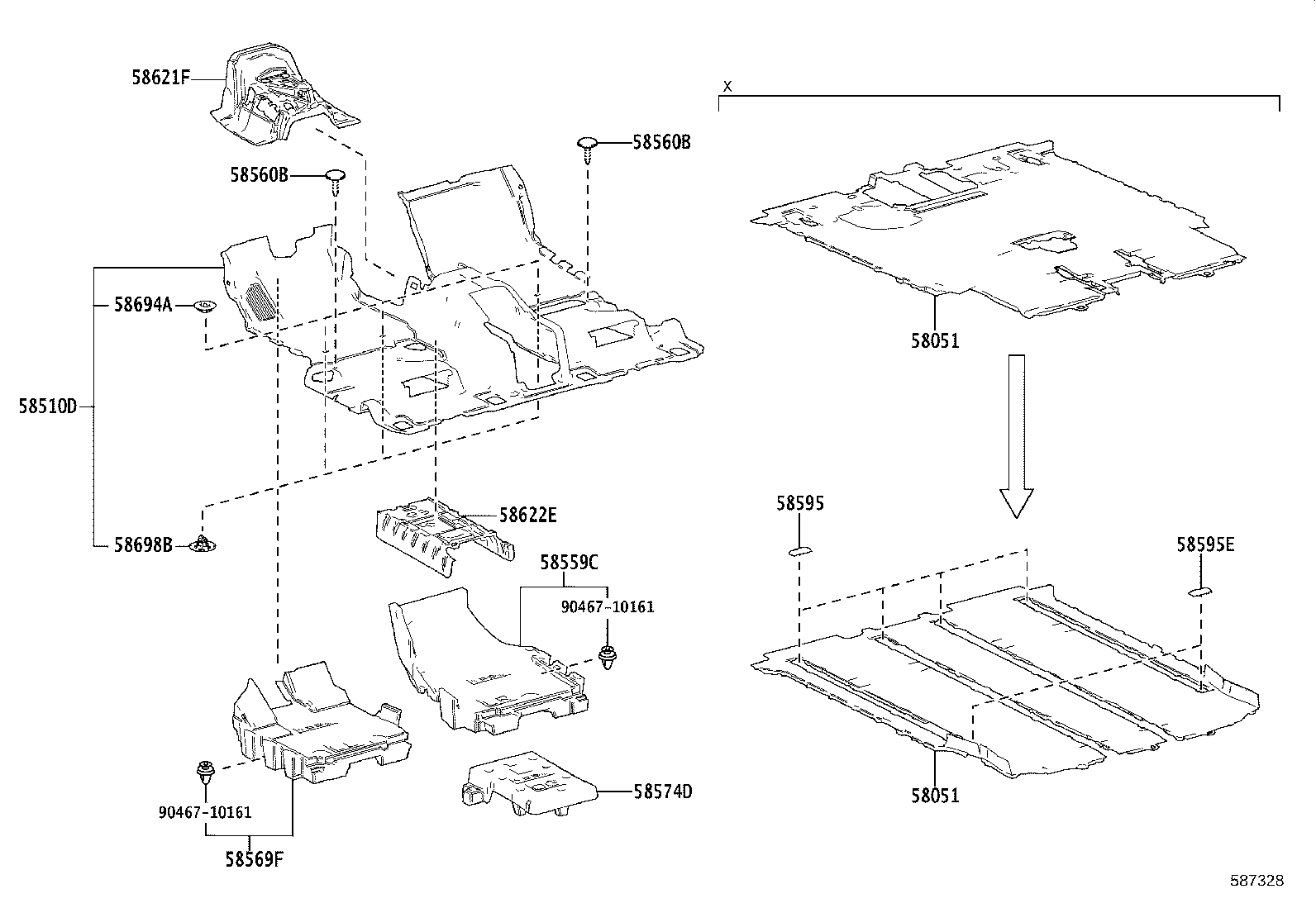

Figure 587326 587326 2020-01 → — Figure 587327A 587327A 2020-01 → — Figure 587328 587328 2020-01 → — Figure 587329 587329 2020-01 → —

Part groups

PNCDescription
58051 Mat Set, Floor
58510D Carpet Assy, Floor, Front
58559C Pad, Front Floor Side, RH
58560B Clip(FOR FLOOR CARPET, REAR)
58569F Pad, Front Floor Side, LH
58574D Pad, Front Floor, Center NO.2 RH
58595 Moulding, Floor Carpet, NO.3
58595E Moulding, Floor Carpet, NO.4
58621F Silencer, Center Console, NO.1
58622E Silencer, Center Console, NO.2
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
