Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

37 part groups · 3 illustrations

Illustrations

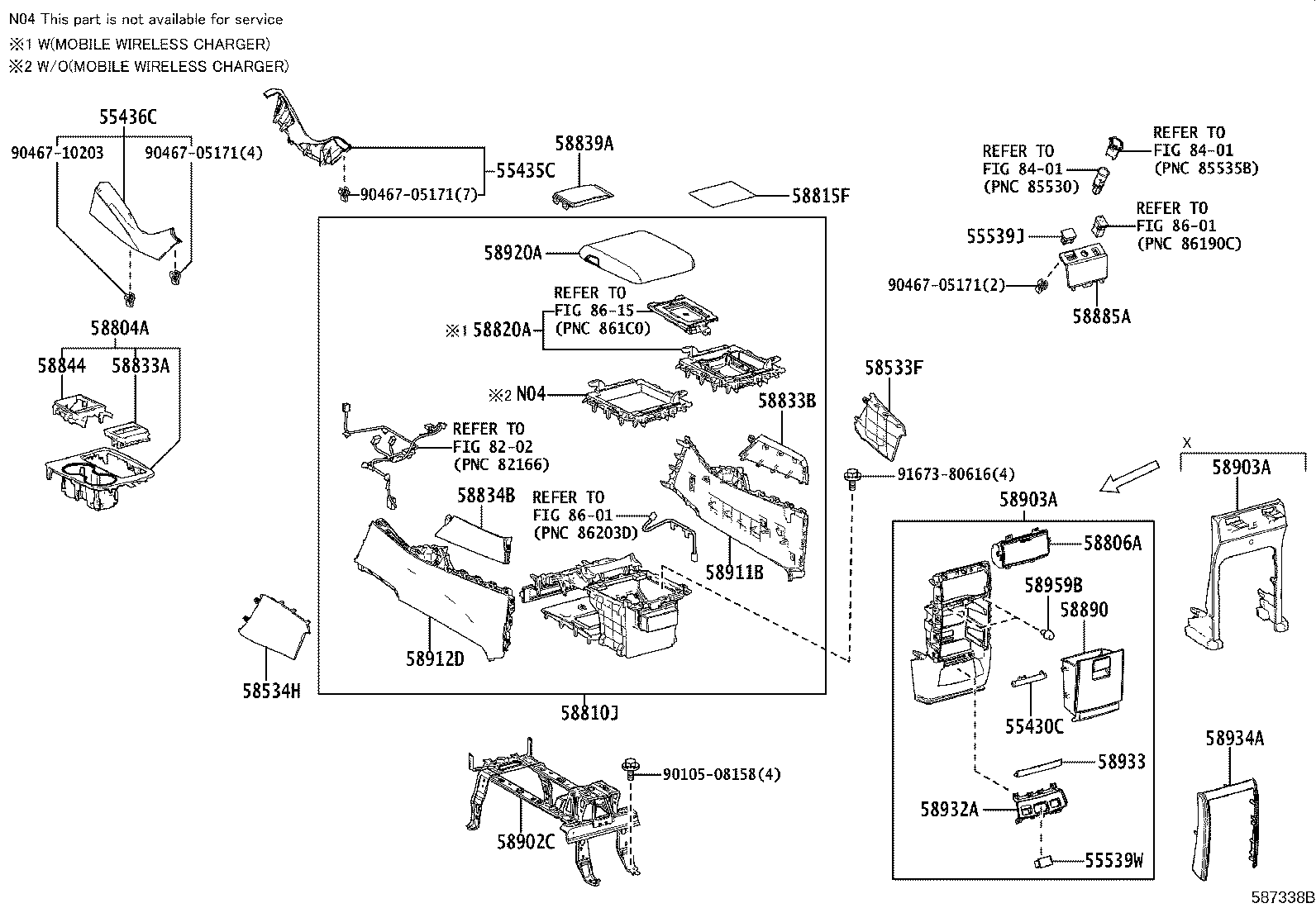

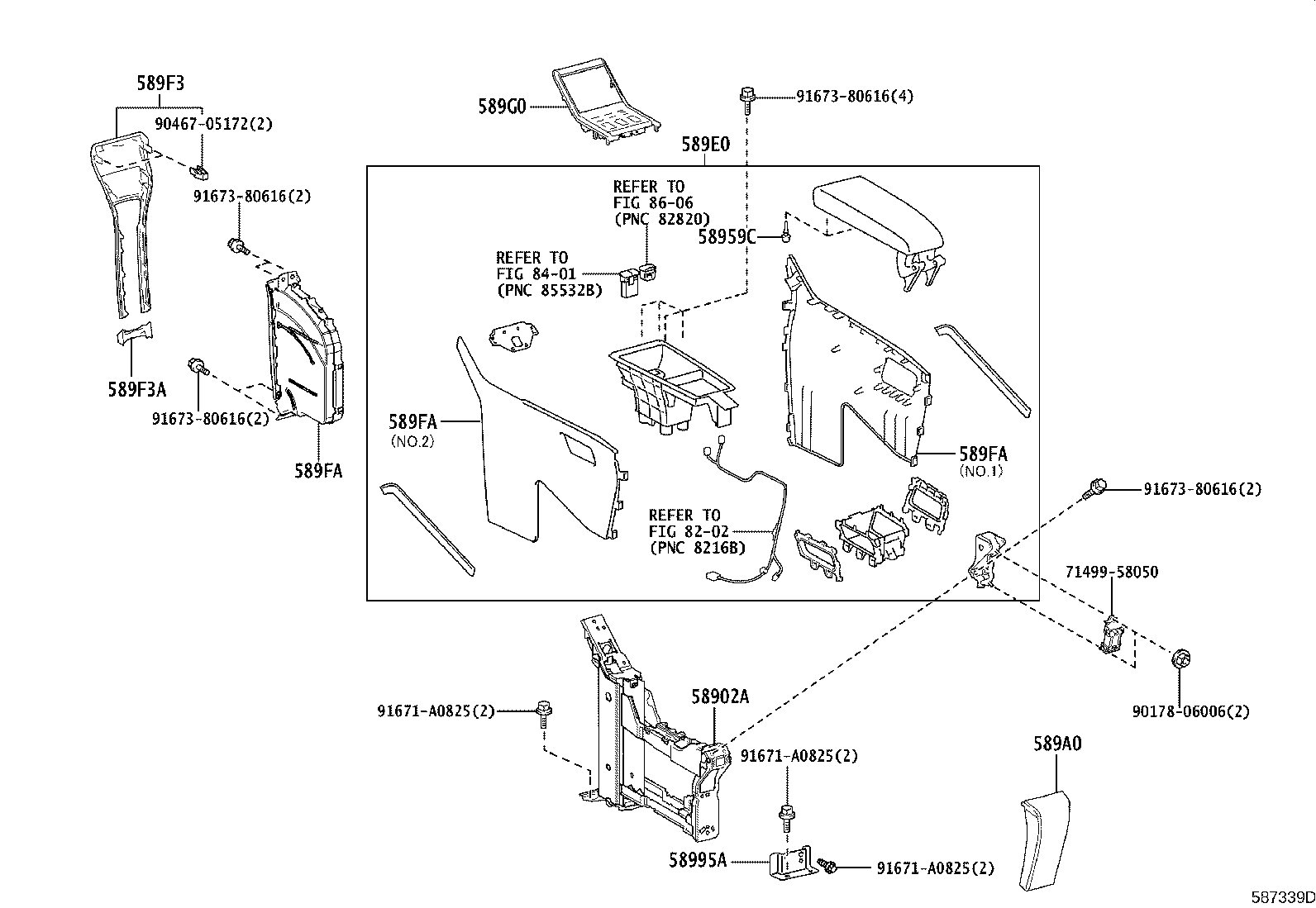

Figure 587373A 587373A 2020-01 → — Figure 587338B 587338B 2020-01 → — Figure 587339D 587339D 2020-02 → —

Part groups

PNCDescription
55430C Damper Assy, Instrument Cluster Finish Panel
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
55539J Cover, Spare Switch Hole
55539W Cover, Spare Switch Hole
58533F Cover, Floor Carpet, Center RH
58534H Cover, Floor Carpet, Center LH
58804A Panel Sub-assy, Console, Upper
58806A Pocket Sub-assy, Console Box
58810J Box Assy, Console
58815F Carpet, Console Box
58820A Box Assy, Console Compartment
58833A Cover, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58839A Cover, Console Box Hole
58844 Bezel, Console Box
58885A Panel, Equipment Set
58890 Box Assy, Trash
58902A Bracket Sub-assy, Console Box Mounting, NO.1
58902C Bracket Sub-assy, Console Box Mounting
58903A Panel Sub-assy, Console Rear End
58911B Panel, Box, NO.1
58912D Panel, Box, NO.2
58920A Armrest Assy, Rear Console
58932A Garnish, Rear Console Box
58933 Garnish, Console Rear End Panel
58934A Garnish, Console Rear End Panel, NO.2
58959B Cushion, Console Compartment Door
58959C Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
589A0 Table Assy, Rear Seat Console
589E0 Armrest Assy, Rear Seat Console
589F3 Panel, Rear Seat Console Box, Front NO.1
589F3A Panel, Rear Seat Console Box, Front NO.2
589FA Box, Rear Seat Console
589G0 Panel Assy, Rear Seat Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
