Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

122 part groups · 3 illustrations

Illustrations

616540 2020-01 → —

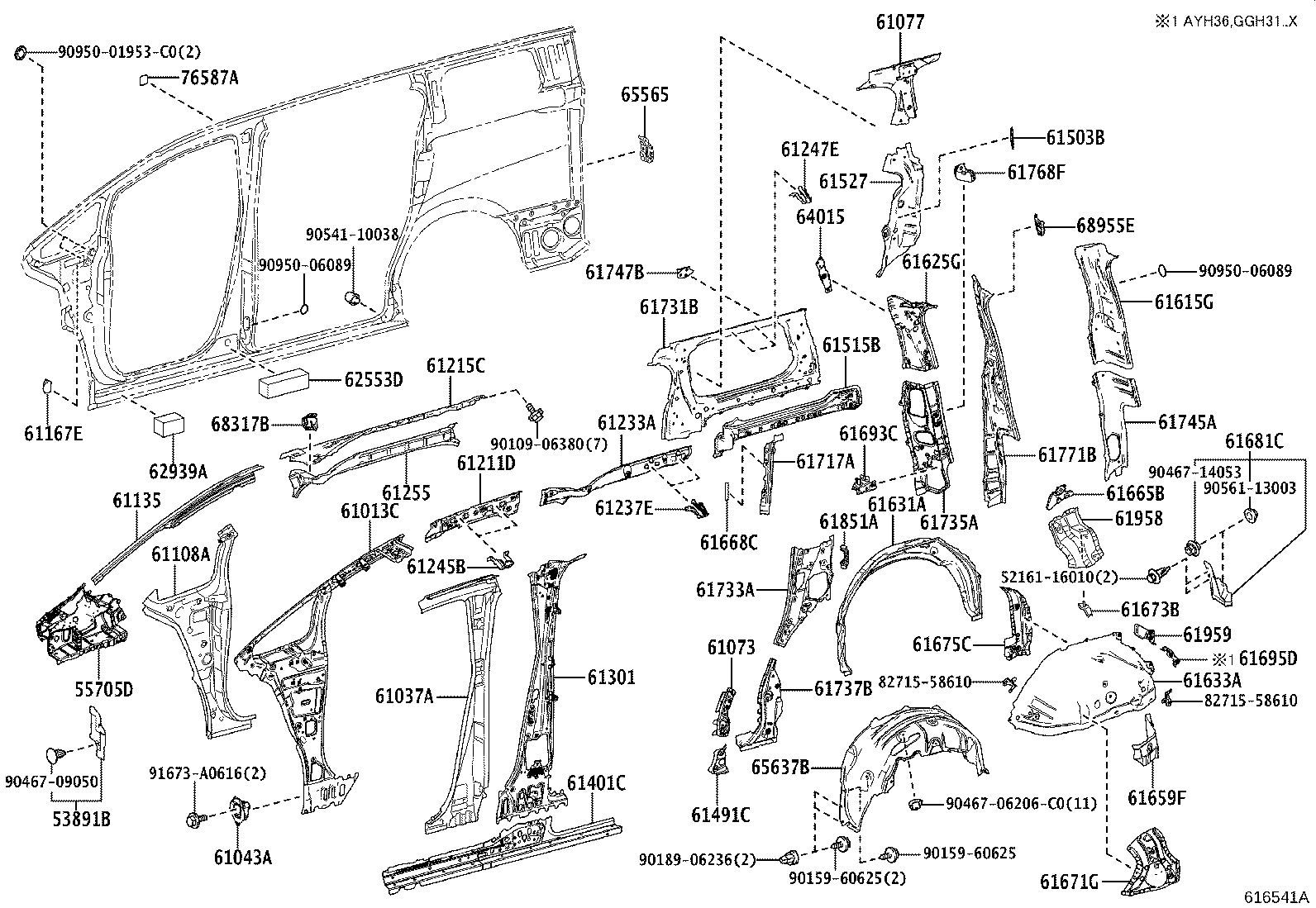

616541A 2020-01 → —

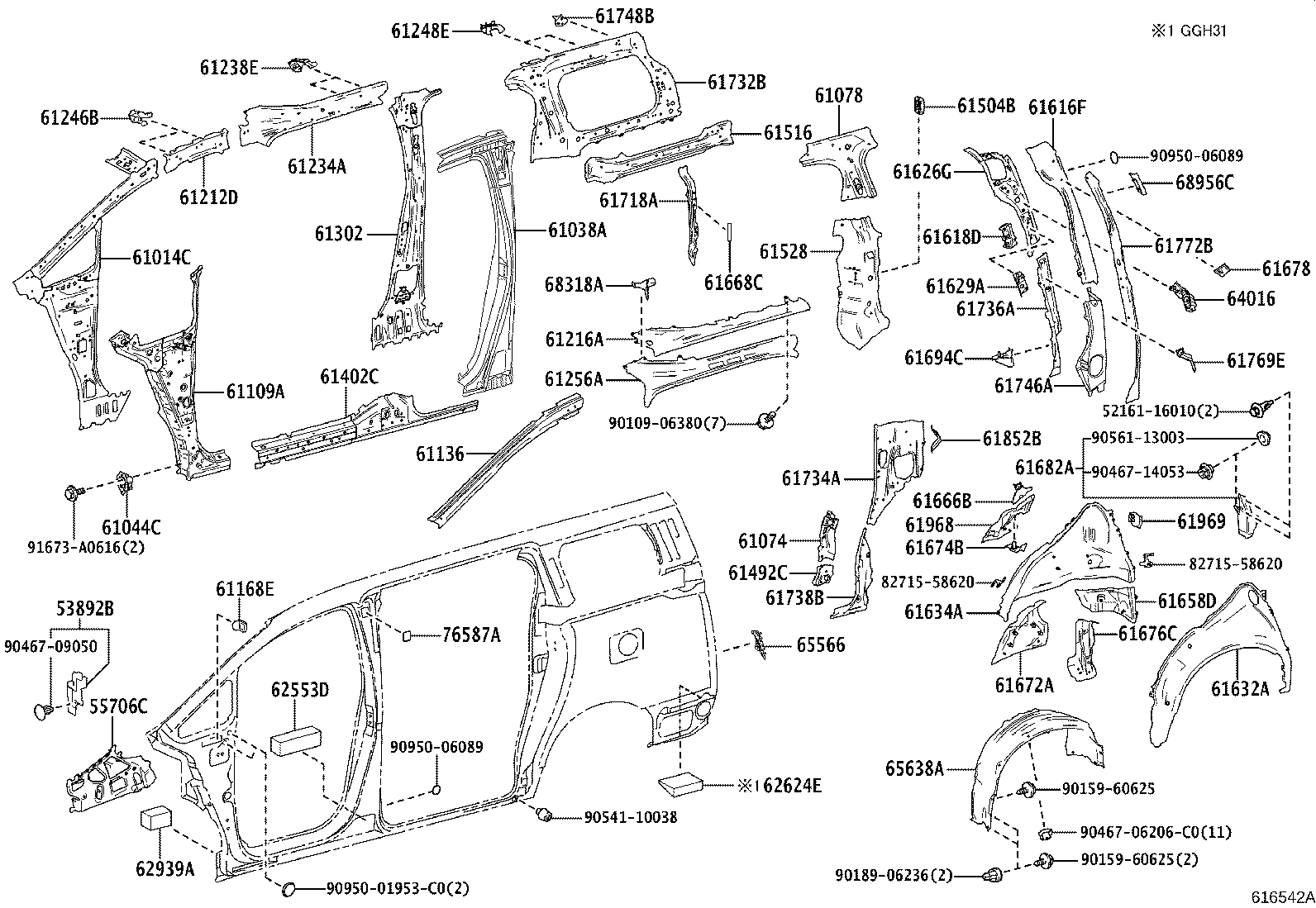

616542A 2020-01 → —

Part groups

PNC	Description
53891B	Seal, Front Fender Splash Shield, Front RH
53892B	Seal, Front Fender Splash Shield, Front LH
55705D	Panel Sub-assy, Cowl Top Side, RH,
55706C	Panel Sub-assy, Cowl Top Side, LH
61013C	Panel Sub-assy, Side, Inner RH
61014C	Panel Sub-assy, Side, Inner LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61043A	Extension Sub-assy, Front Body Pillar, Outer RH
61044C	Extension Sub-assy, Front Body Pillar, Outer LH
61073	Brace Sub-assy, Quarter Wheel House, RH
61074	Brace Sub-assy, Quarter Wheel House, LH
61077	Shield Sub-assy, Quarter Window, Rear RH
61078	Shield Sub-assy, Quarter Window, Rear LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61135	Reinforcement, Front Body Pillar, Upper RH
61136	Reinforcement, Front Body Pillar, Upper LH
61167E	Bracket, NO.6 Pillar Outer
61168E	Bracket, NO.6 Pillar Outer
61211	Rail, Roof Side, Outer RH
61211D	Rail, Roof Side, Front RH
61212	Rail, Roof Side, Outer LH
61212D	Rail, Roof Side, Front LH
61215C	Rail, Roof Side, Outer Rear RH
61216A	Rail, Roof Side, Outer Rear LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61237E	Bracket, Assist Grip, NO.1
61238E	Bracket, Assist Grip, NO.2
61245B	Bracket, Assist Grip, NO.3 RH
61246B	Bracket, Assist Grip, NO.3 LH
61247E	Bracket, Assist Grip, NO.4 RH
61248E	Bracket, Assist Grip, NO.4 RH
61255	Plate, Roof Side Rail, Outer RH
61256A	Plate, Roof Side Rail, Outer LH
61301	Pillar Sub-assy, Center Body, RH
61302	Pillar Sub-assy, Center Body, LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61401C	Panel Sub-assy, Rocker, Outer RH
61402C	Panel Sub-assy, Rocker, Outer LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61491C	Plate, NO.3 Lower Rail, Inner RH
61492C	Plate, NO.3 Lower Rail, Inner LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61515B	Extension, Quarter Lock Pillar, RH
61516	Extension, Quarter Lock Pillar, LH
61527	Reinforcement, Quarter Lock Piller, Lower RH
61528	Reinforcement, Quarter Lock Piller, Lower LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61615G	Reinforcement, Rear Body Rear Side Panel, RH
61616F	Reinforcement, Rear Body Rear Side Panel, LH
61618D	Reinforcement, Rear Upper Side Panel, Upper
61625G	Extension, Quarter Panel, Rear RH
61626G	Extension, Quarter Panel, Rear LH
61629A	Reinforcement, Quarter Panel, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61658D	Bracket, Rear Shock Absorber, LH
61659F	Bracket, Rear Shock Absorber, NO.2 RH
61665B	Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
61666B	Reinforce, Seat Belt Anchorage TO Quarter Wheel House, LH
61668C	Seal, Quarter Panel, NO.2
61671G	Support, Rear Suspension Spring, RH
61672A	Support, Rear Suspension Spring, LH
61673B	Reinforcement, Quarter Wheel House, Inner RH
61674B	Reinforcement, Quarter Wheel House, Inner LH
61675C	Reinforcement, Quarter Wheel House, Inner Rear RH
61676C	Reinforcement, Quarter Wheel House, Inner Rear LH
61678	Reinforce, Seat Belt Anchor, NO.2 Lower LH
61681C	Extension, Rear Wheel Opening, RH
61682A	Extension, Rear Wheel Opening, LH
61693C	Retainer, Rear Seatback Set, RH
61694C	Retainer, Rear Seatback Set, LH
61695D	Bracket, Rear Wheel Opening, NO.3
61717A	Reinforcement, Quarter Panel Extension, RH
61718A	Reinforcement, Quarter Panel Extension, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737B	Panel, Roof Side, Inner Lower RH
61738B	Panel, Roof Side, Inner Lower LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61747B	Reinforcement, Roof Side, Inner Rear, RH
61748B	Reinforcement, Roof Side, Inner Rear, LH
61768F	Reinforce, Belt Anchor TO Quarter, Inner Lower RH
61769E	Reinforcement, Belt Anchor TO Quarter, Inner Lower LH
61771B	Frame, Back Door Opening Upper Corner, RH
61772B	Frame, Back Door Opening Upper Corner, LH
61848A	Retainer, Quarter Panel, LH
61851A	Bracket, Quarter Inner Computer, NO.1
61852B	Bracket, Quarter Inner Computer, NO.2
61958	Bracket, Rear Seat Leg, NO.1 RH
61959	Bracket, Rear Seat Leg, NO.2 RH
61968	Bracket, Rear Seat Leg, NO.1 LH
61969	Bracket, Rear Seat Leg, NO.2 LH
62553D	Pad, Pillar, NO.3
62624E	Pad, Quarter Wheel House, Inner Rear LH
62939A	Silencer, Quarter Vent
64015	Panel Sub-assy, Back Corner, Inner RH
64016	Panel Sub-assy, Back Corner, Inner LH
65565	Patch, Side Panel Rear End, RH
65566	Patch, Side Panel Rear End, LH
65637B	Liner, Rear Wheel House, RH
65638A	Liner, Rear Wheel House, LH
68317B	Stopper, Slide Door Upper Rail, RH
68318A	Stopper, Slide Door Upper Rail, LH
68955E	Bracket, Back Door Stay, Upper RH
68956C	Bracket, Back Door Stay, Upper LH
76587A	Protector, Center Pillar Outer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
