Toyota Lexus LM350/LM300H
2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General
Supported model
Data version 2020-02

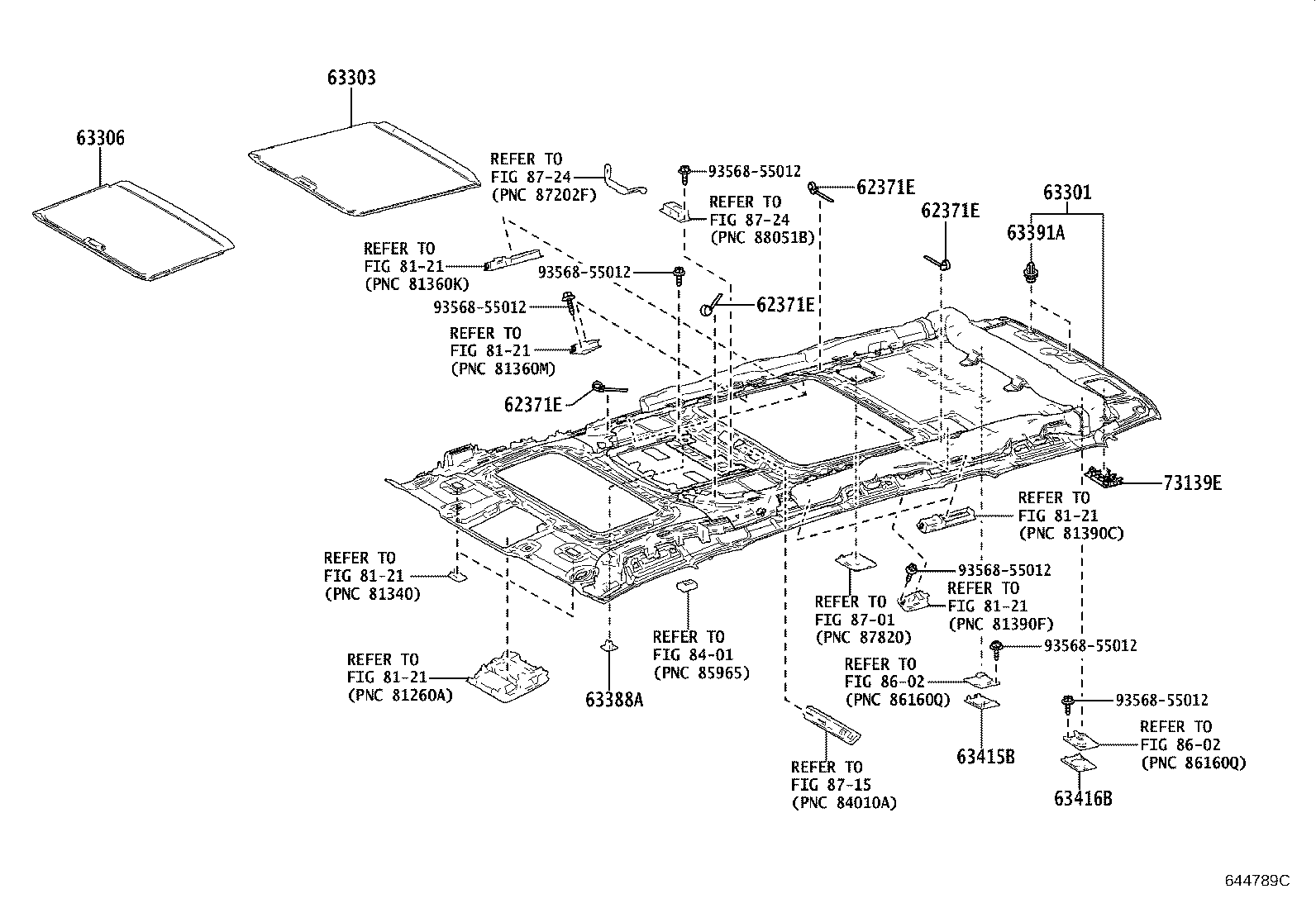

Roof Headlining & Silencer Pad
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62371E | Catch, Lock |
| 63301 | Trim Sub-assy, Roof Headlining |
| 63303 | Trim Sub-assy, Sunshade, NO.2 |
| 63306 | Trim Sub-assy, Sunshade |
| 63388A | Cover, Roof Headlining Holder |
| 63391A | Clip(FOR ROOF HEADLINING TRIM) |
| 63415B | Grille, Roof Speaker, RH |
| 63416B | Grille, Roof Speaker, LH |
| 73139E | Cover, Seat Belt Anchor |
| 86295G | Base, Television |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
