Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

28 part groups · 2 illustrations

Illustrations

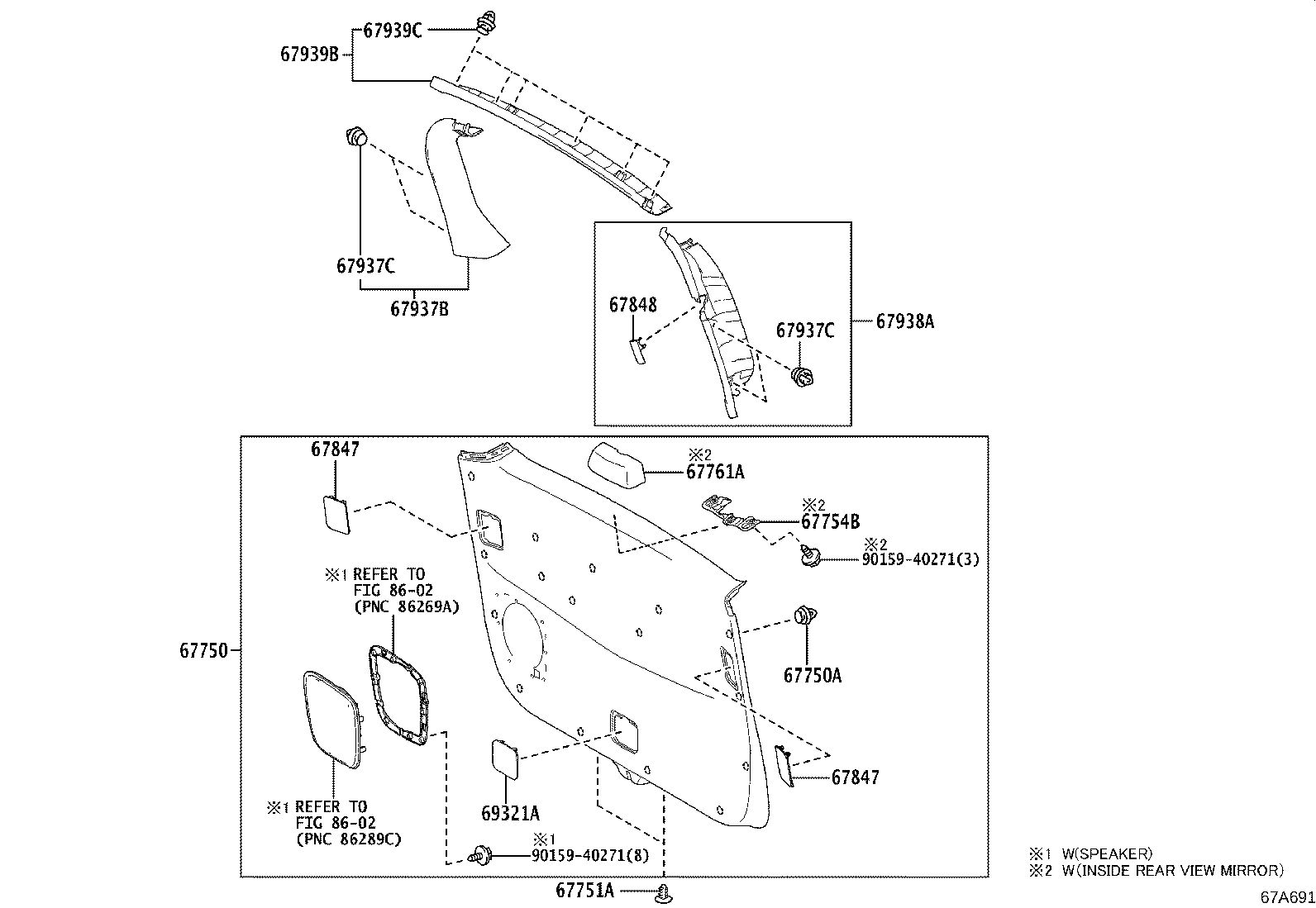

Figure 67A690E 67A690E 2020-01 → — Figure 67A691 67A691 2020-01 → —

Part groups

PNCDescription
64818B Spacer, Back Door Glass, NO.1
64819C Spacer, Back Door Glass, NO.2
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67751A Clip(FOR BACK DOOR TRIM BOARD)
67754B Spacer, Back Door Trim
67761A Cover, Back Door Trim
67837L Seal, Door Dust Proof
67847 Cover, Back Door Service Hole, RH
67848 Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
68294B Dam, Back Door Glass Adhesive
69321A Cover, Back Door Lock
75126A Plate, Rear License Plate Bracket Support
75129C Cushion, Rear Licence Plate
75573C Moulding, Back Window, Outside
76801 Garnish Sub-assy, Back Door, Outside
76802E Garnish Sub-assy, Back Door, Outside Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
