Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

31 part groups · 4 illustrations

Illustrations

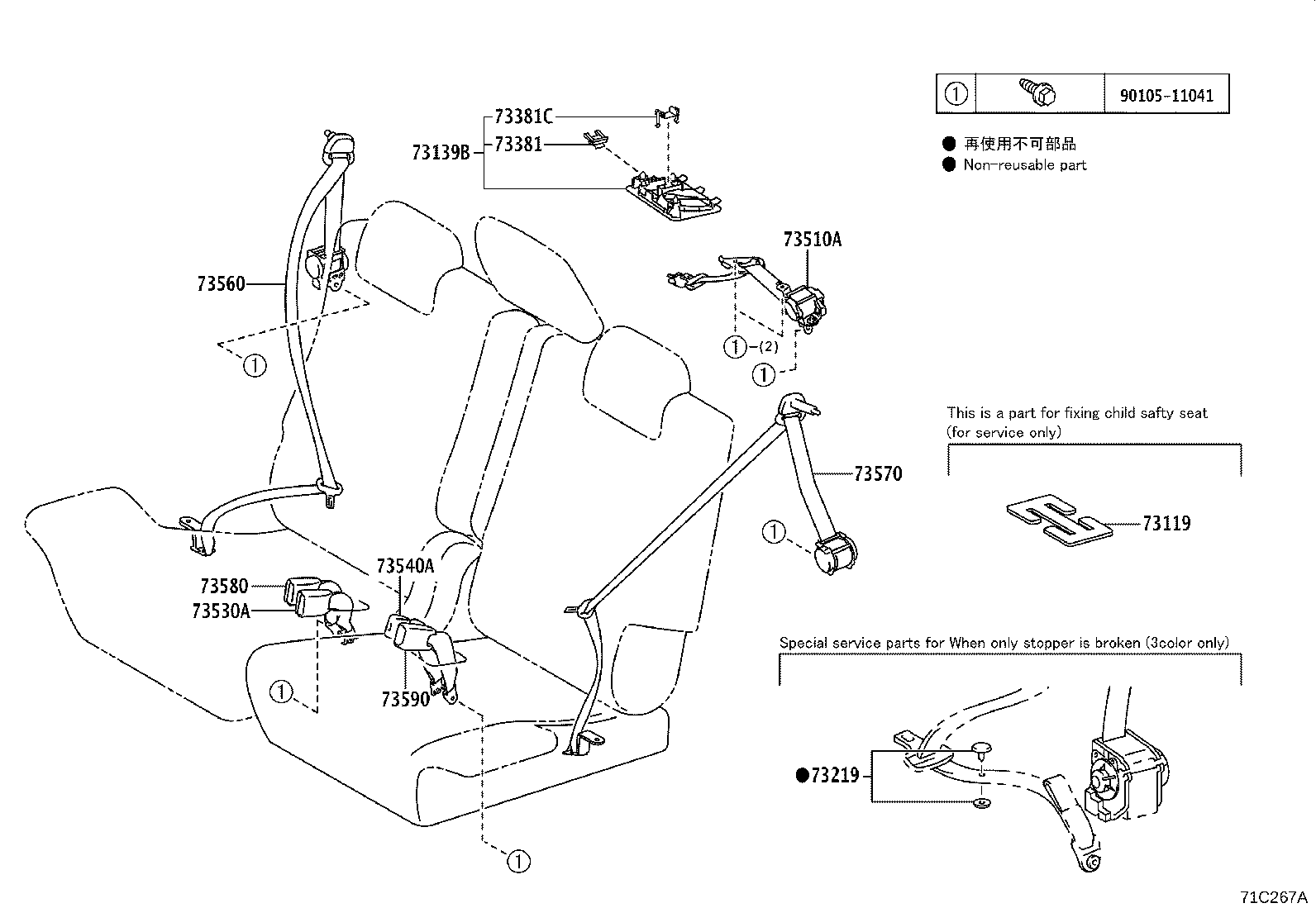

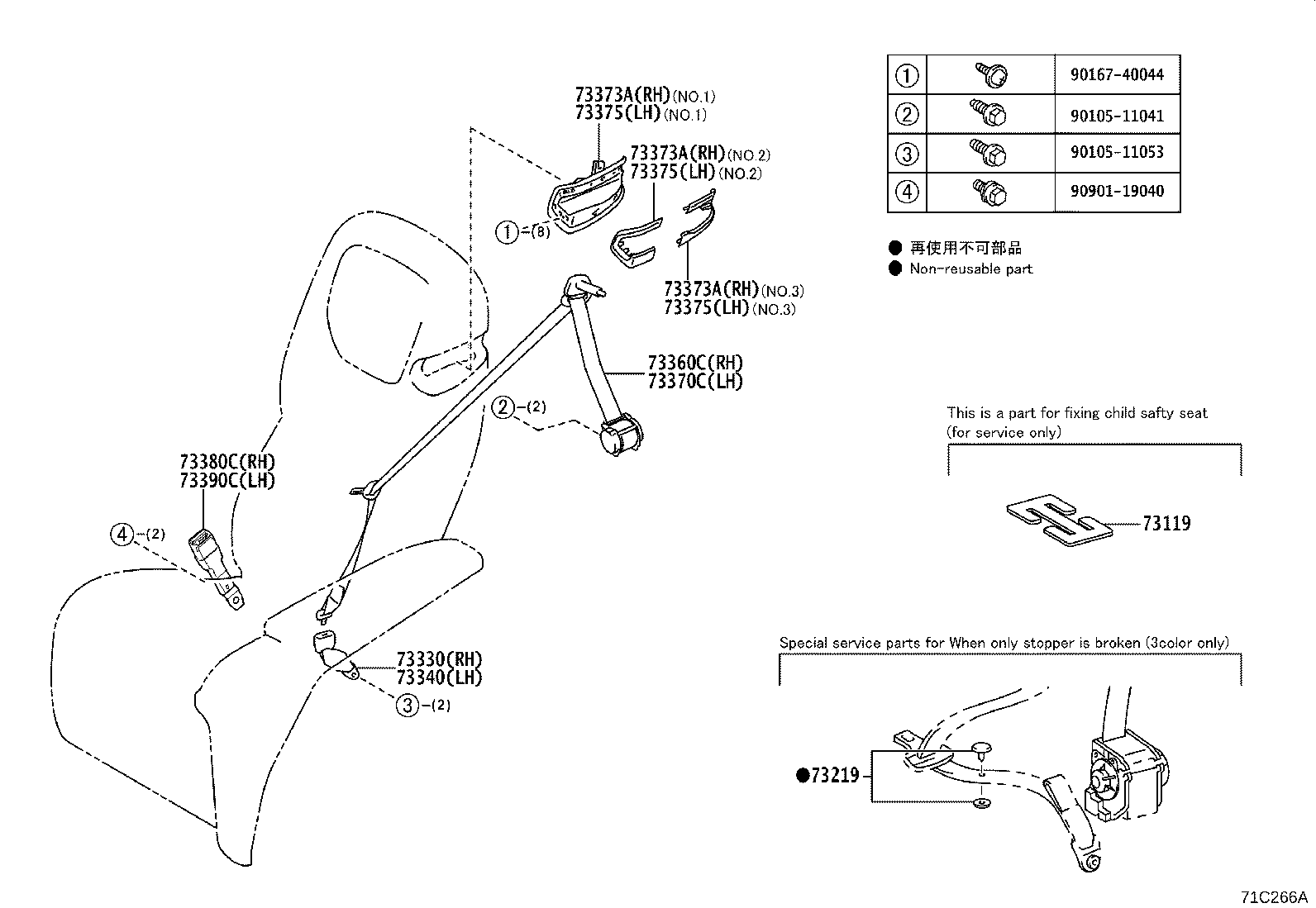

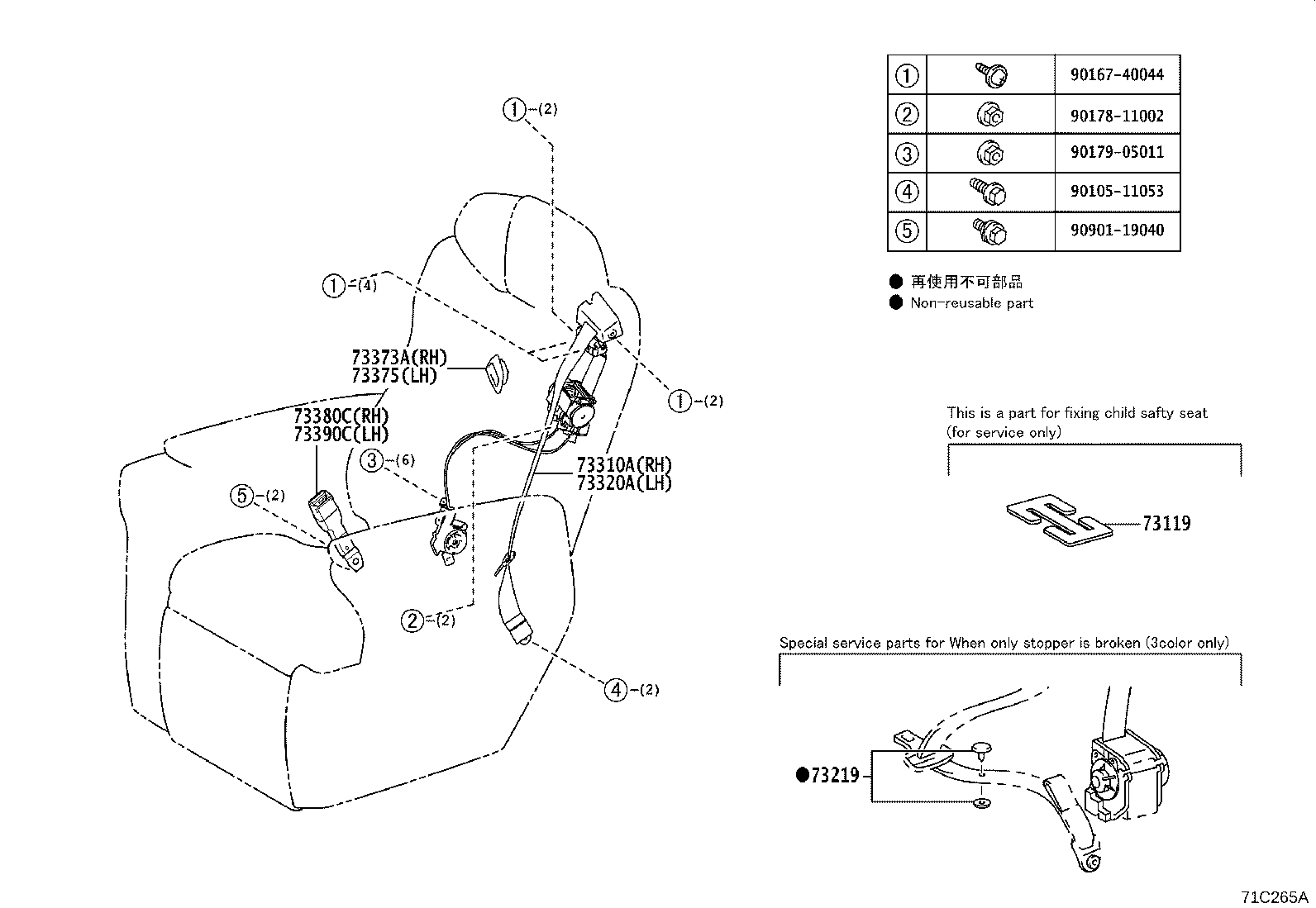

Figure 71C264A 71C264A 2020-01 → — Figure 71C265A 71C265A 2020-01 → — Figure 71C266A 71C266A 2020-02 → — Figure 71C267A 71C267A 2020-01 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73139B Cover, Seat Belt Anchor
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310A Belt Assy, NO.1 Seat 3 Point Type, RH
73320A Belt Assy, NO.1 Seat 3 Point Type, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73373A Cover, Rear Seat Shoulder Belt, RH
73375 Cover, Rear Seat Shoulder Belt, LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73381 Holder, Rear Seat Belt
73381C Holder, Seat Belt
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73510A Belt Assy, Rear NO.2 Seat, 3 Point Type
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
