Toyota Lexus LM350/LM300H
2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General
Supported model
Data version 2020-02
Front Seat & Seat Track
95 part groups · 15 illustrations
Illustrations
Part groups

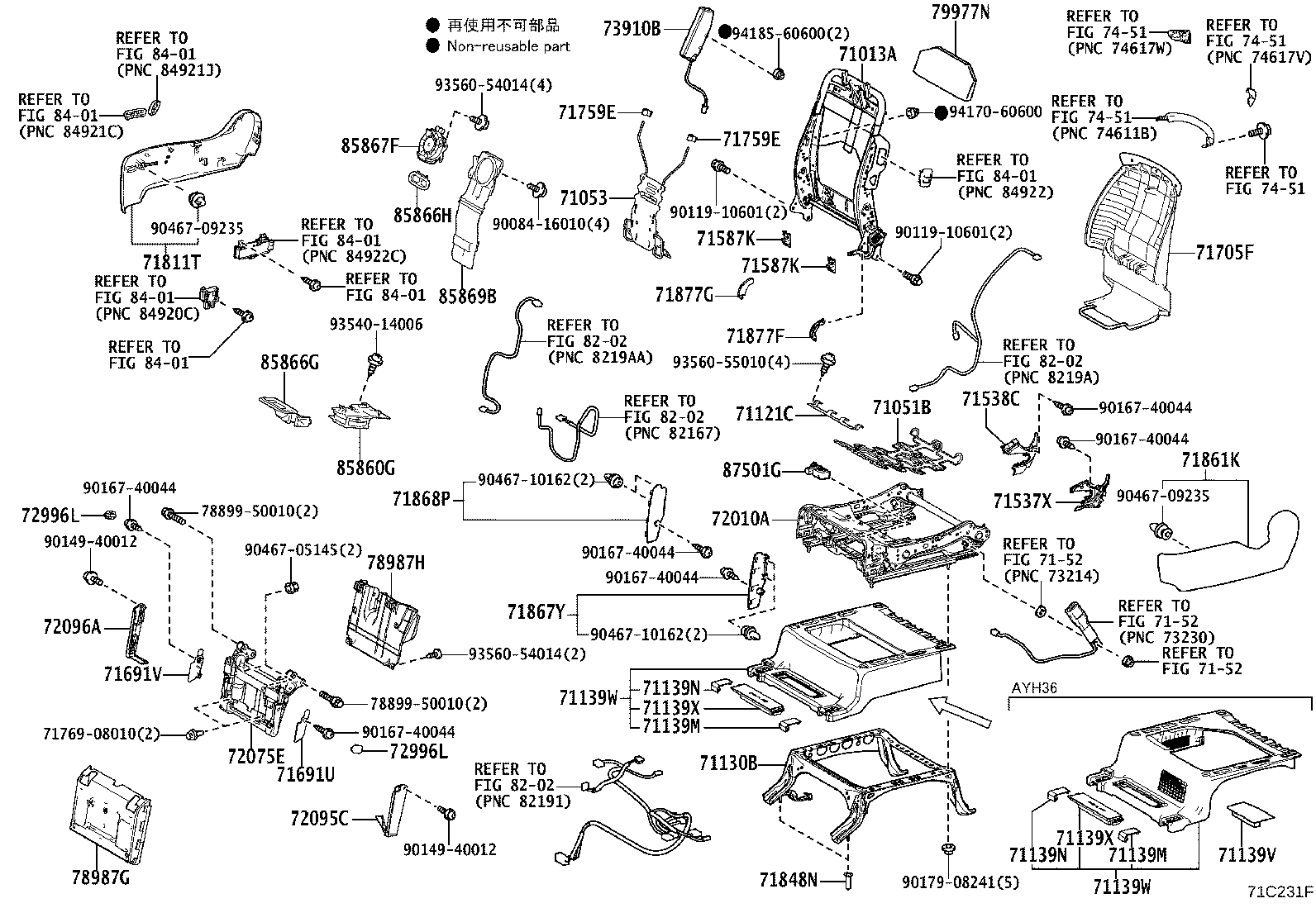

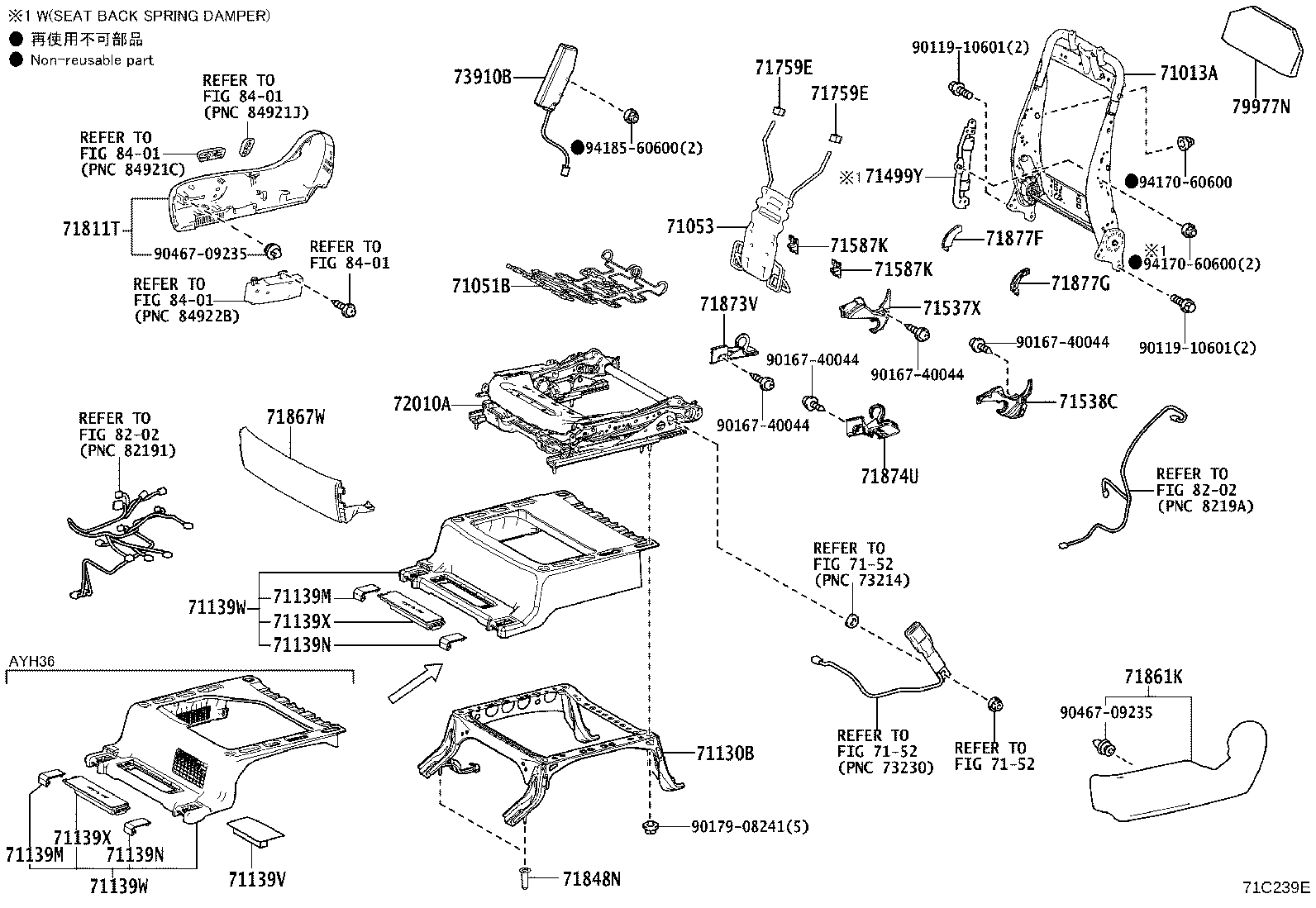

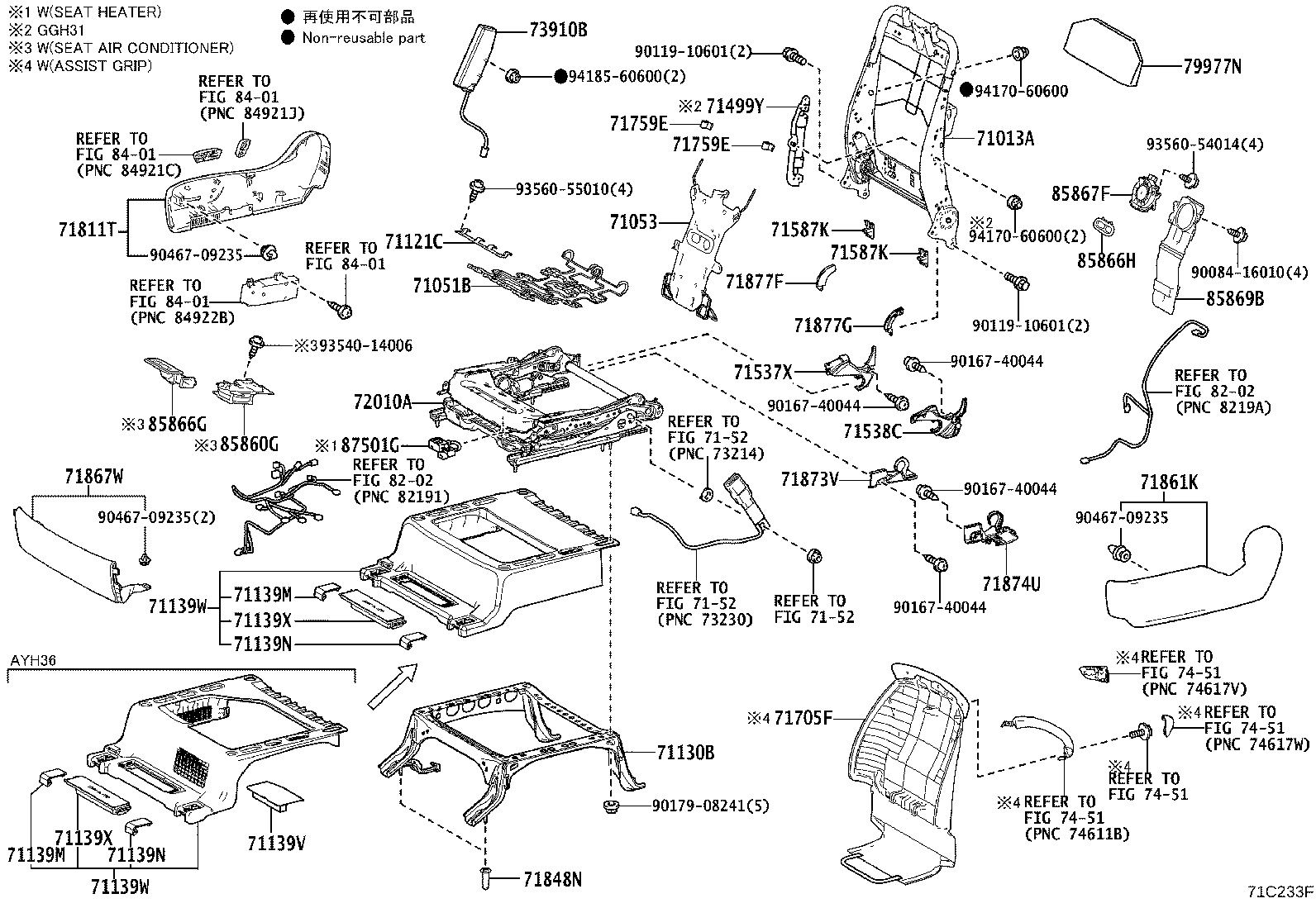

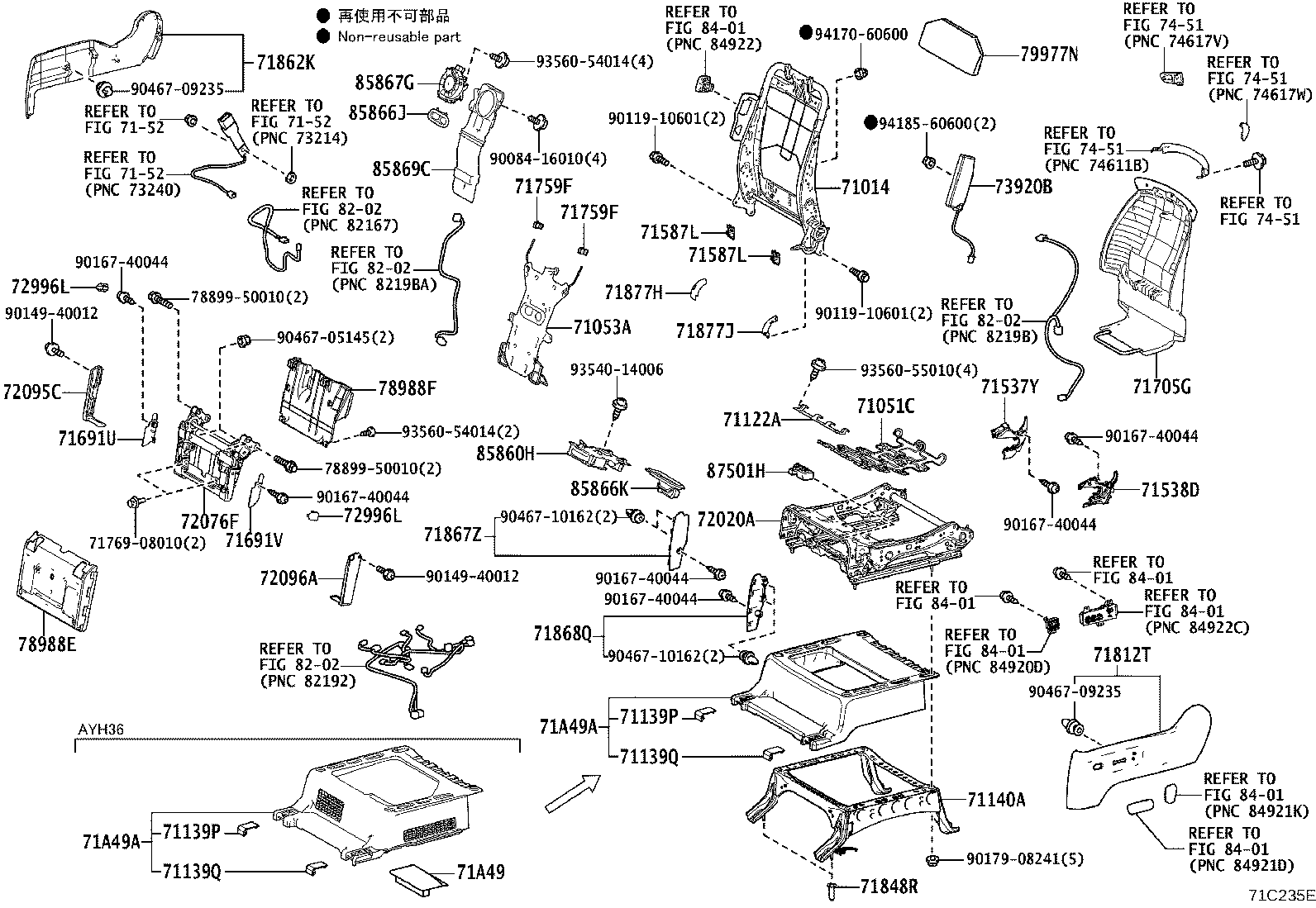

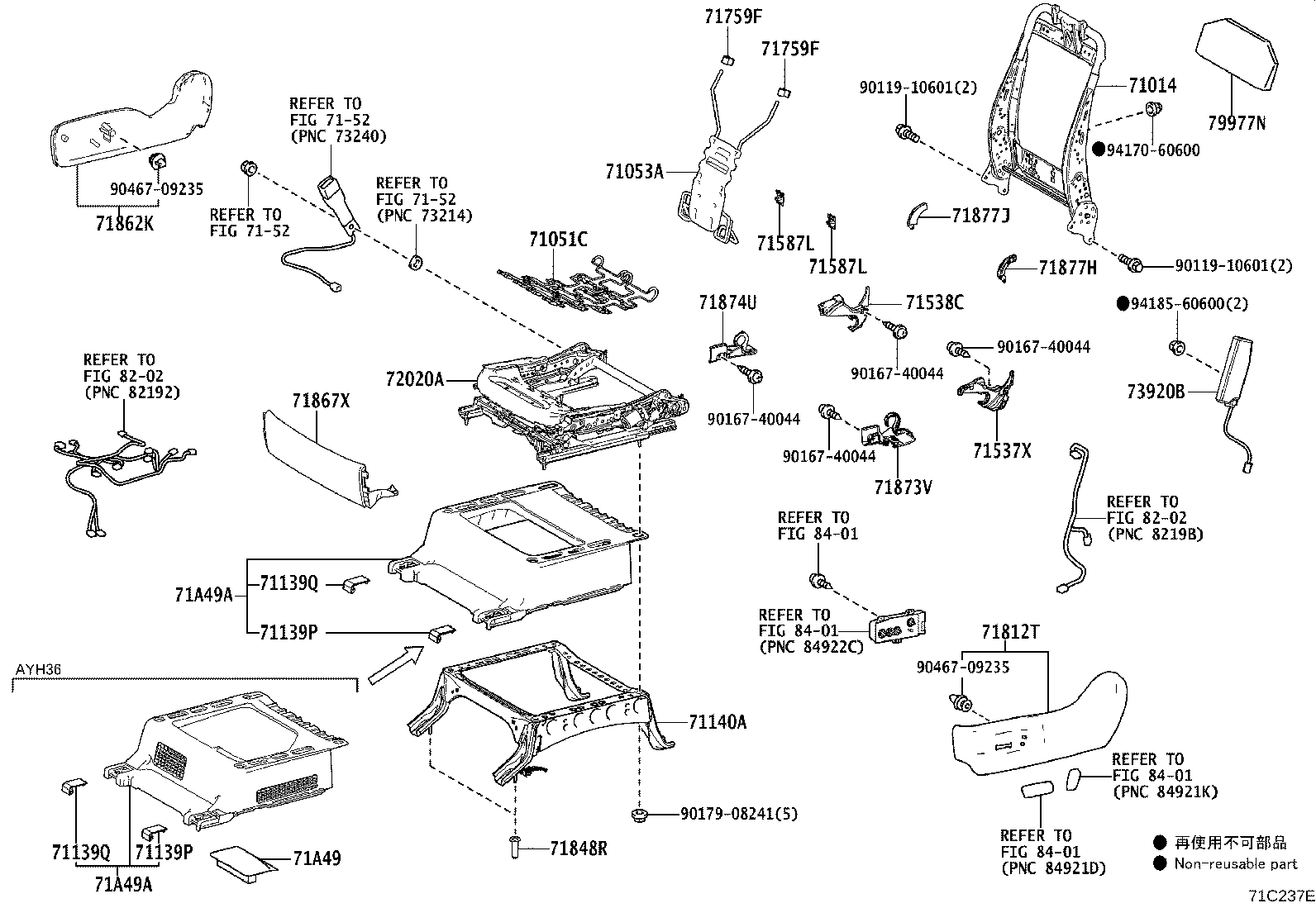

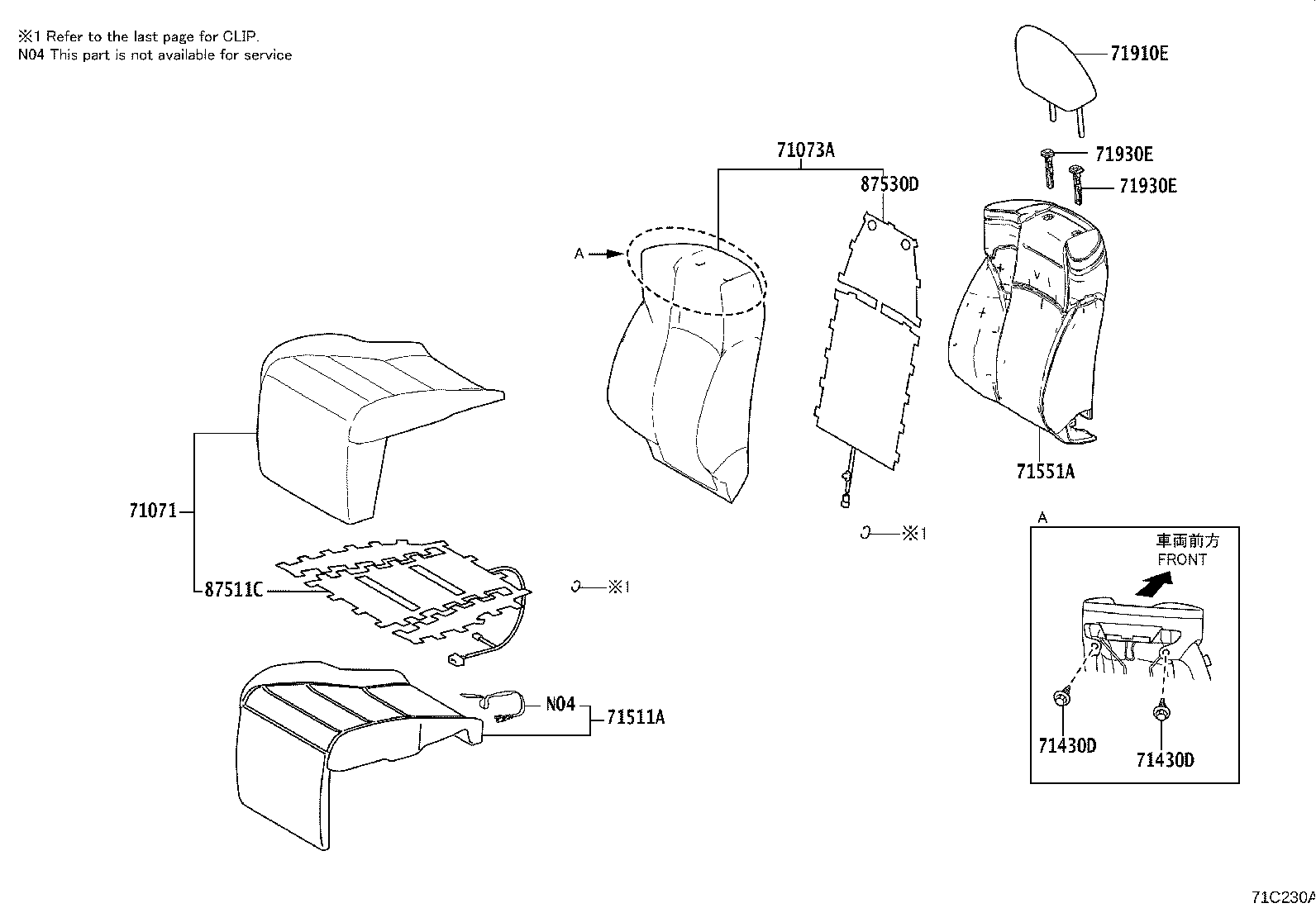

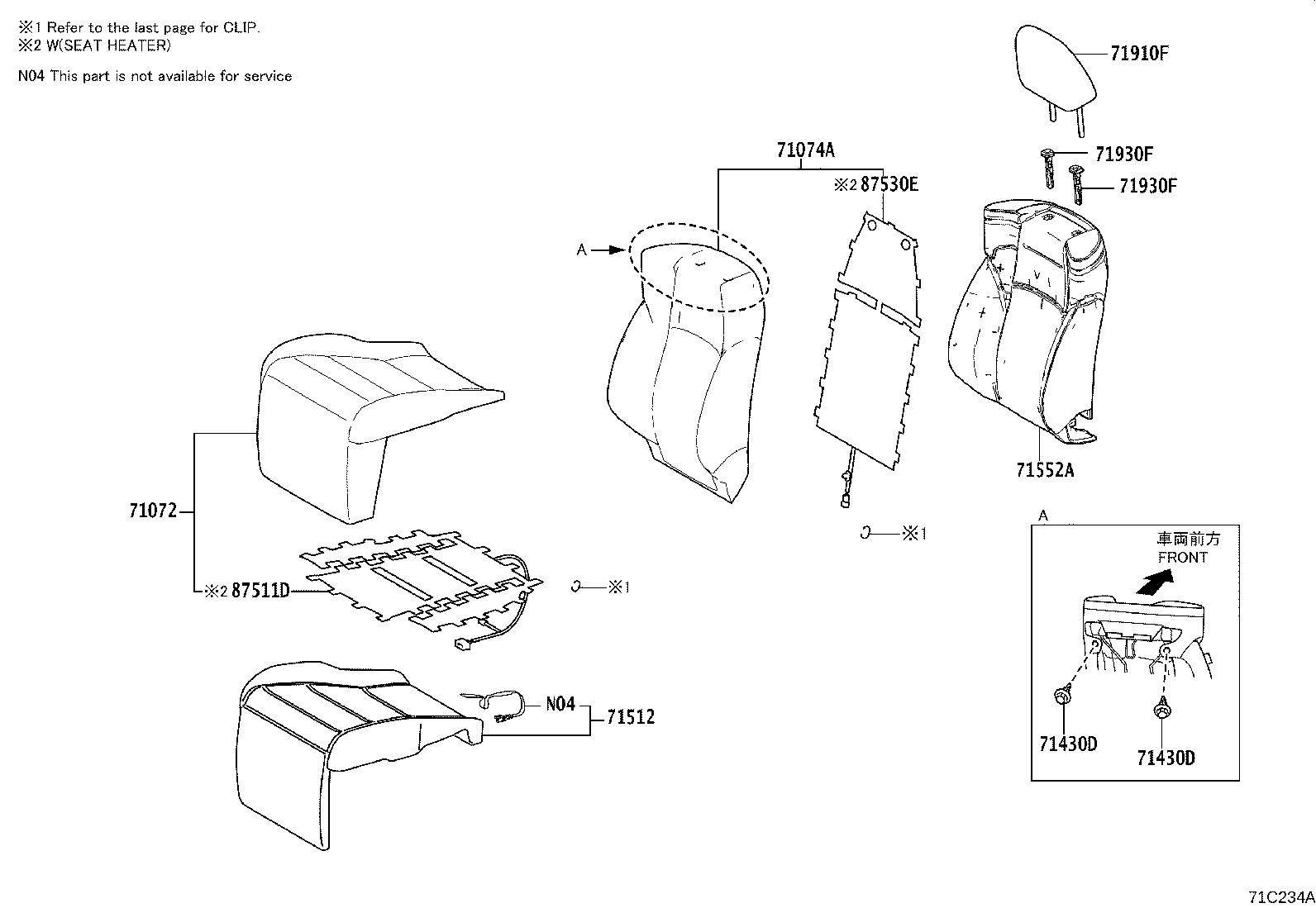

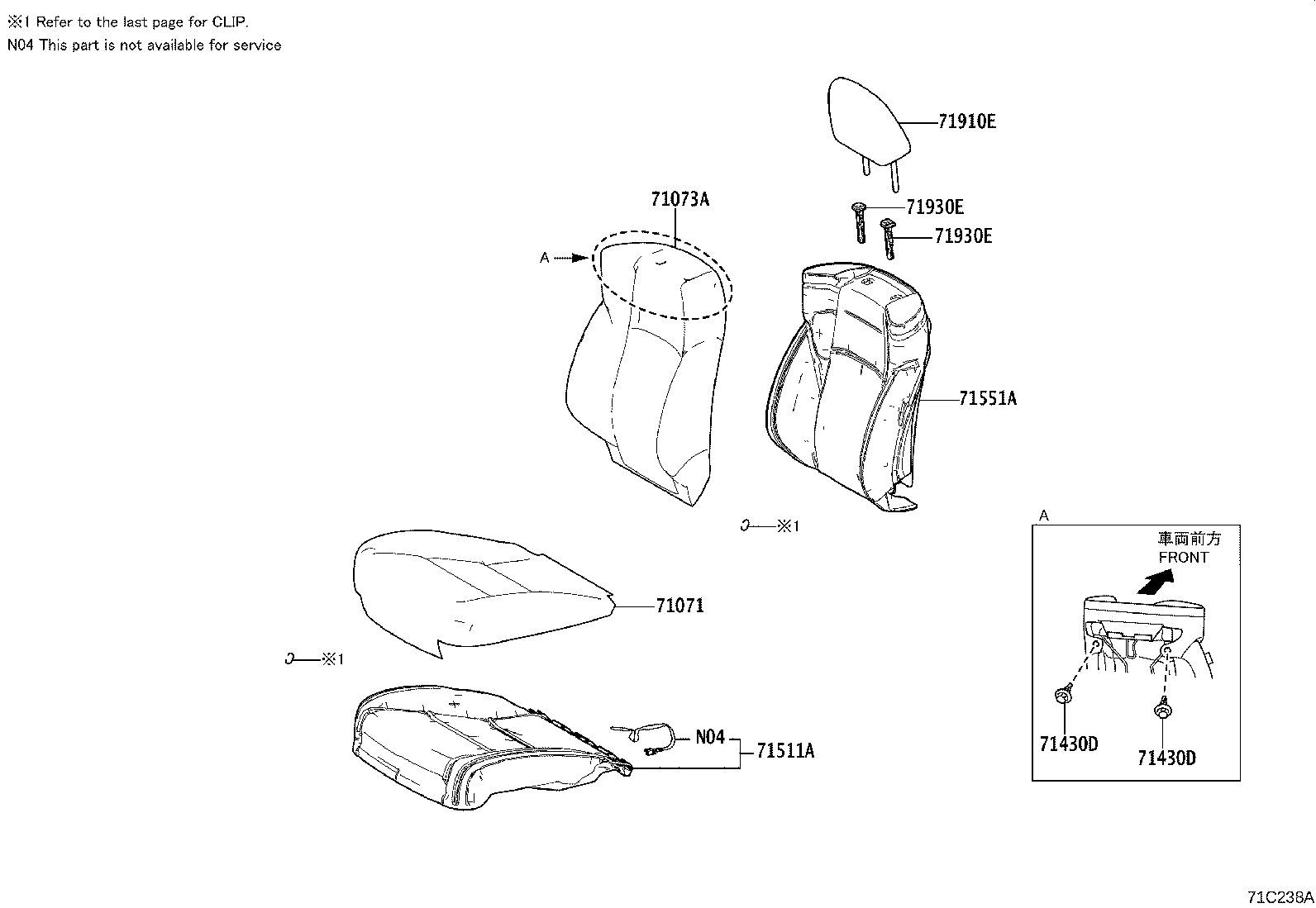

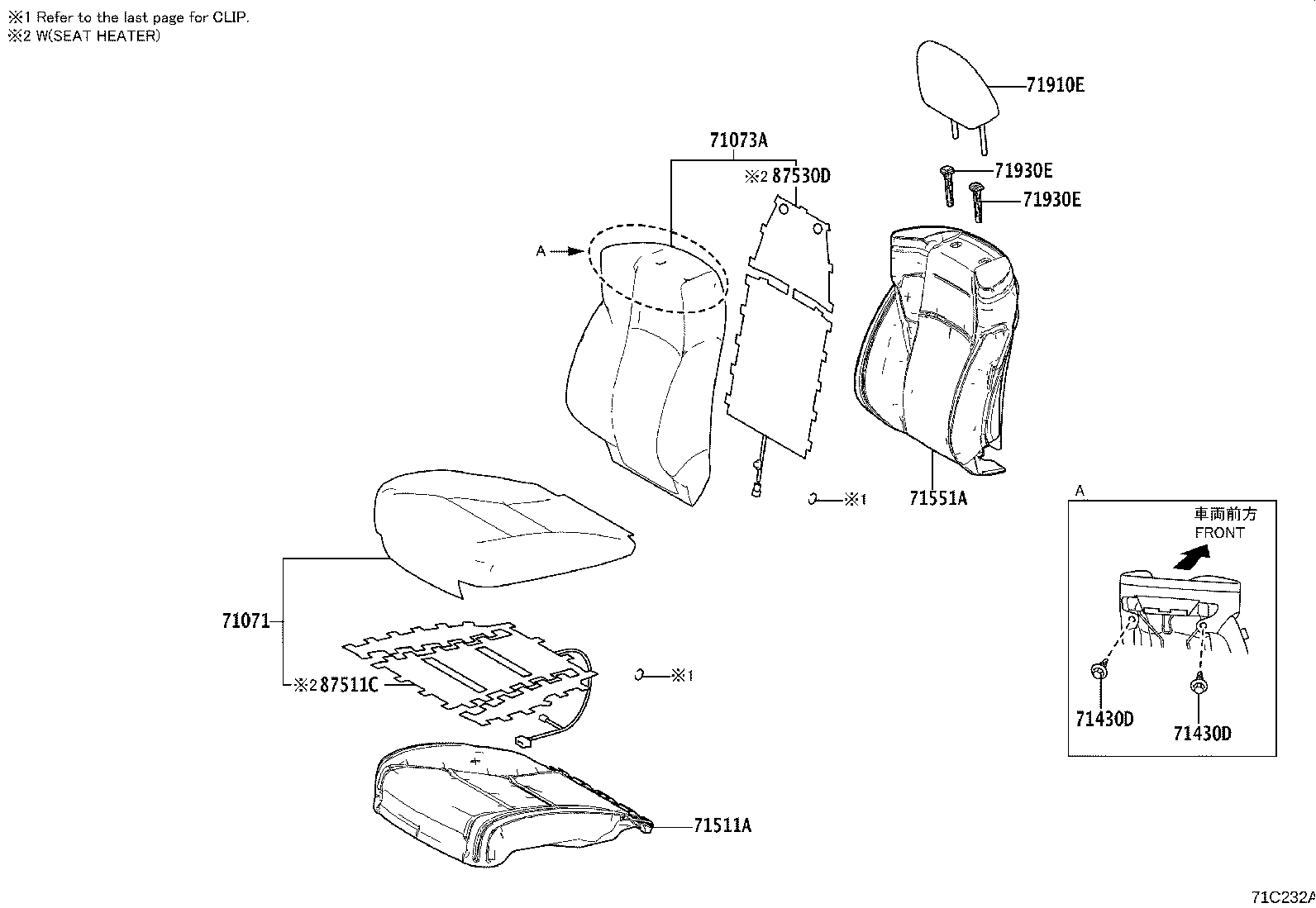

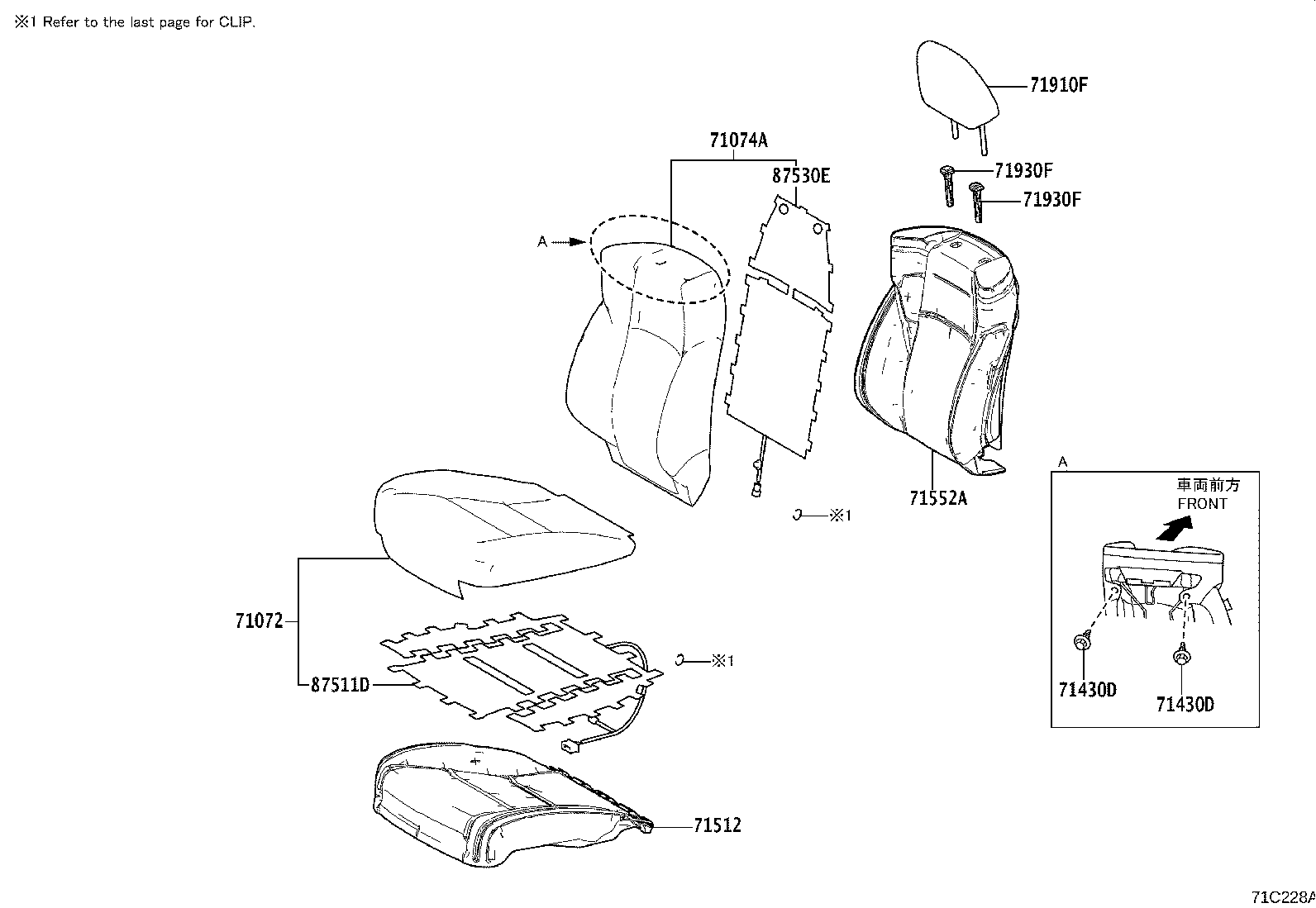

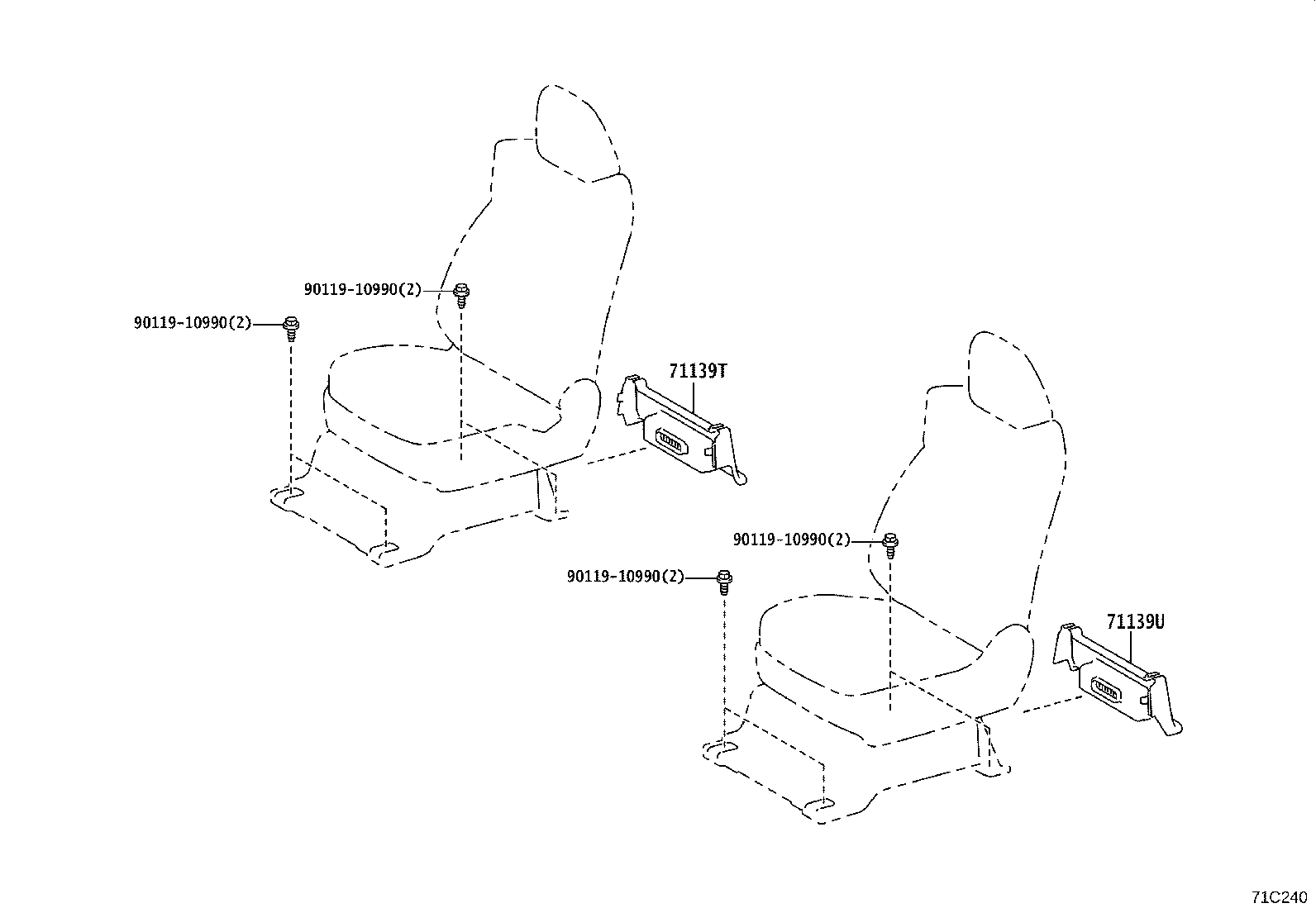

| PNC | Description |
|---|---|
| 71013A | Frame Sub-assy, Front Seatback, RH |
| 71014 | Frame Sub-assy, Front Seatback, LH |
| 71051B | Spring Sub-assy, Front Seat Cushion, RH |
| 71051C | Spring Sub-assy, Front Seat Cushion, LH |
| 71053 | Spring Sub-assy, Front Seatback, RH |
| 71053A | Spring Sub-assy, Front Seatback, LH |
| 71071 | Cover Sub-assy, Front Seat Cushion, RH |
| 71072 | Cover Sub-assy, Front Seat Cushion, LH |
| 71073A | Cover Sub-assy, Front Seatback, RH |
| 71074A | Cover Sub-assy, Front Seatback, LH |
| 71121C | Bracket, Front Seat Cushion, RH |
| 71122A | Bracket, Front Seat Cushion, LH |
| 71130B | Leg Assy, Front Seat, RH |
| 71139M | Cover, Front Seat Leg, RH Outer |
| 71139N | Cover, Front Seat Leg, RH Inner |
| 71139P | Cover, Front Seat Leg, LH Outer |
| 71139Q | Cover, Front Seat Leg, LH Inner |
| 71139T | Cover, Front Seat Leg, Rear RH |
| 71139U | Cover, Front Seat Leg, Rear LH |
| 71139V | Cover, Front Seat Leg NO.1 |
| 71139W | Cover, Front Seat Leg(FOR RH SEAT) |
| 71139X | Cover, Front Seat Leg NO.2 |
| 71140A | Leg Assy, Front Seat, LH |

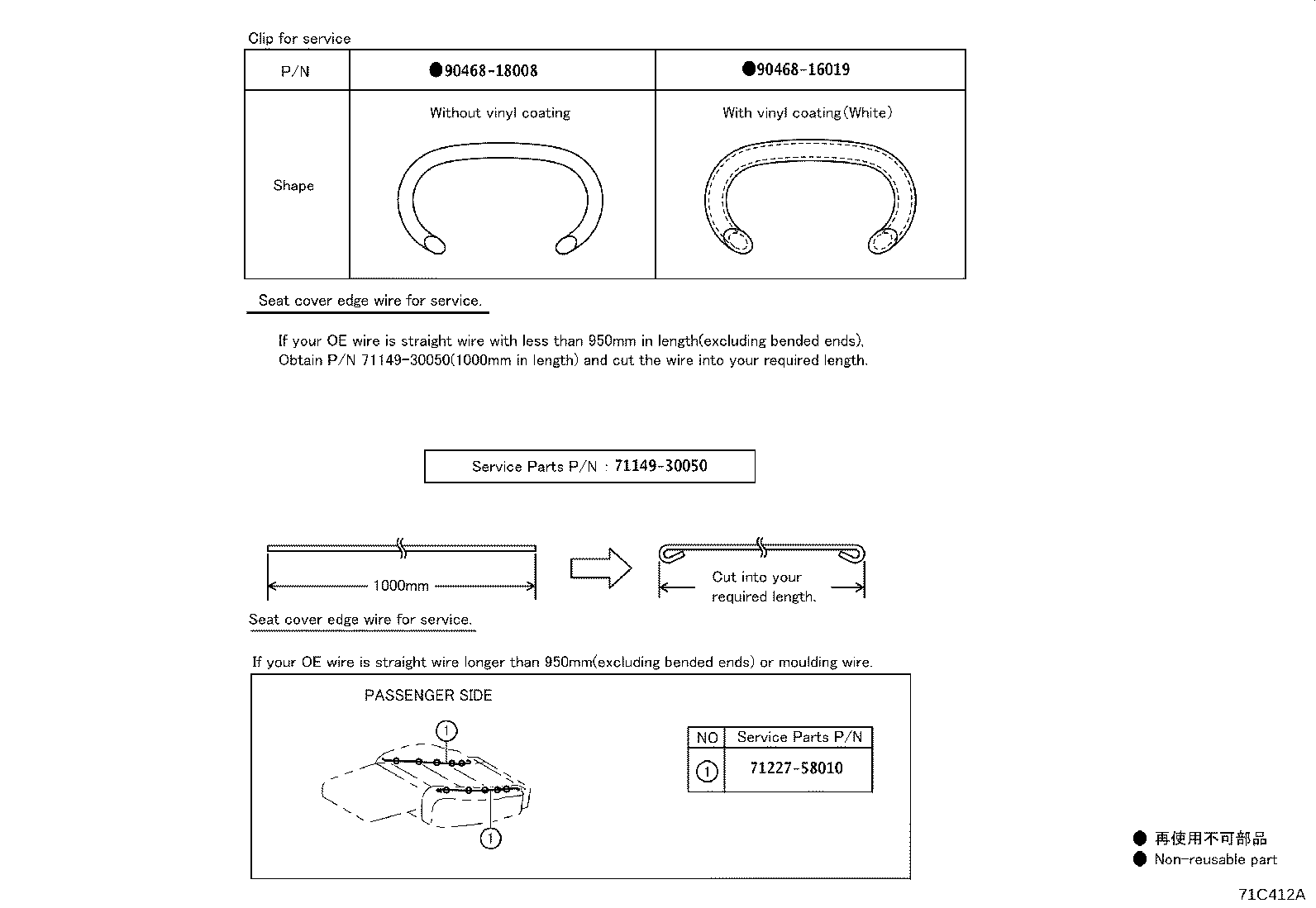

| 71430D | Clip(FOR SEATBACK COVER) |
| 71499Y | Damper, Seatback Spring, RH |
| 71511A | Pad, Front Seat Cushion, RH |
| 71512 | Pad, Front Seat Cushion, LH |
| 71537X | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537Y | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538C | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538D | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551A | Pad, Front Seatback, RH |
| 71552A | Pad, Front Seatback, LH |
| 71587K | Protector, Front Seatback Edge, RH |
| 71587L | Protector, Front Seatback Edge, LH |
| 71691U | Cover, Reclining Adjuster Arm, NO.1 |
| 71691V | Cover, Reclining Adjuster Arm, NO.2 |
| 71705F | Board Sub-assy, Front Seatback, RH |
| 71705G | Board Sub-assy, Front Seatback, LH |
| 71759E | Hook, Front Seatback, RH |
| 71759F | Hook, Front Seatback, LH |
| 71811T | Shield, Front Seat Cushion, RH |
| 71812T | Shield, Front Seat Cushion, LH |
| 71848N | Cap, Front Seat Adjuster Cover, RH NO.1 |
| 71848R | Cap, Front Seat Adjuster Cover, LH NO.1 |
| 71861K | Shield, Front Seat Cushion, Inner RH |
| 71862K | Shield, Front Seat Cushion, Inner LH |
| 71867W | Shield, Front Seat Cushion, Front RH |
| 71867X | Shield, Front Seat Cushion, Front LH |
| 71867Y | Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT) |
| 71867Z | Shield, Front Seat Cushion, Inner NO.1 RH(FOR LH SEAT) |
| 71868P | Shield, Front Seat Cushion, Inner NO.1 LH(FOR RH SEAT) |
| 71868Q | Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT) |
| 71873V | Shield, Front Seat Cushion, Lower RH |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71877F | Cover, Reclining Adjuster Inside, RH(FOR RH SEAT) |
| 71877G | Cover, Reclining Adjuster Inside, LH(FOR RH SEAT) |
| 71877H | Cover, Reclining Adjuster Inside, RH(FOR LH SEAT) |
| 71877J | Cover, Reclining Adjuster Inside, LH(FOR LH SEAT) |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71930E | Support Assy, Front Seat Headrest, RH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71A49 | Cover, Front Seat Leg, NO.1 |
| 71A49A | Cover, Front Seat Leg(FOR LH SEAT) |
| 72010A | Adjuster Assy, Front Seat, RH |
| 72020A | Adjuster Assy, Front Seat, LH |
| 72075E | Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR RH SEAT) |
| 72076F | Arm Sub-assy, Reclining Adjuster, Lwr Inner LH |
| 72095C | Plate Sub-assy, Reclining Adjuster Arm, NO.1 |
| 72096A | Plate Sub-assy, Reclining Adjuster Arm, NO.2 |
| 72996L | Cap, Reclining Adjuster Arm Cover |
| 73910B | Airbag Assy, Front Seat, RH |
| 73920B | Airbag Assy, Front Seat, LH |
| 78987G | Cover, Front Seat Footrest, NO.1(FOR RH SEAT) |
| 78987H | Cover, Front Seat Footrest, NO.2(FOR RH SEAT) |
| 78988E | Cover, Front Seat Footrest, NO.1 |
| 78988F | Cover, Front Seat Footrest, NO.2 |
| 79977N | Felt, Seatback |
| 85860G | Blower Assy, Seat Cushion Climate Control, RH |
| 85860H | Blower Assy, Seat Cushion Climate Control, LH |
| 85866G | Duct, Seat Cushion Climate Control, RH |
| 85866H | Duct, Seatback Climate Control, RH |
| 85866J | Duct, Seatback Climate Control, LH |
| 85866K | Duct, Seat Cushion Climate Control, LH |
| 85867F | Blower, Seatback Climate Control, RH |
| 85867G | Blower, Seatback Climate Control, LH |
| 85869B | Cover, Seatback Climate Control, RH |
| 85869C | Cover, Seatback Climate Control, LH |
| 87501G | Control Sub-assy, Seat Heater, RH |
| 87501H | Control Sub-assy, Seat Heater, LH |
| 87511C | Heater Assy, Front Seat Cushion, RH |
| 87511D | Heater Assy, Front Seat Cushion, LH |
| 87530D | Heater Assy, Front Seatback, RH |
| 87530E | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
