Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

83 part groups · 12 illustrations

Illustrations

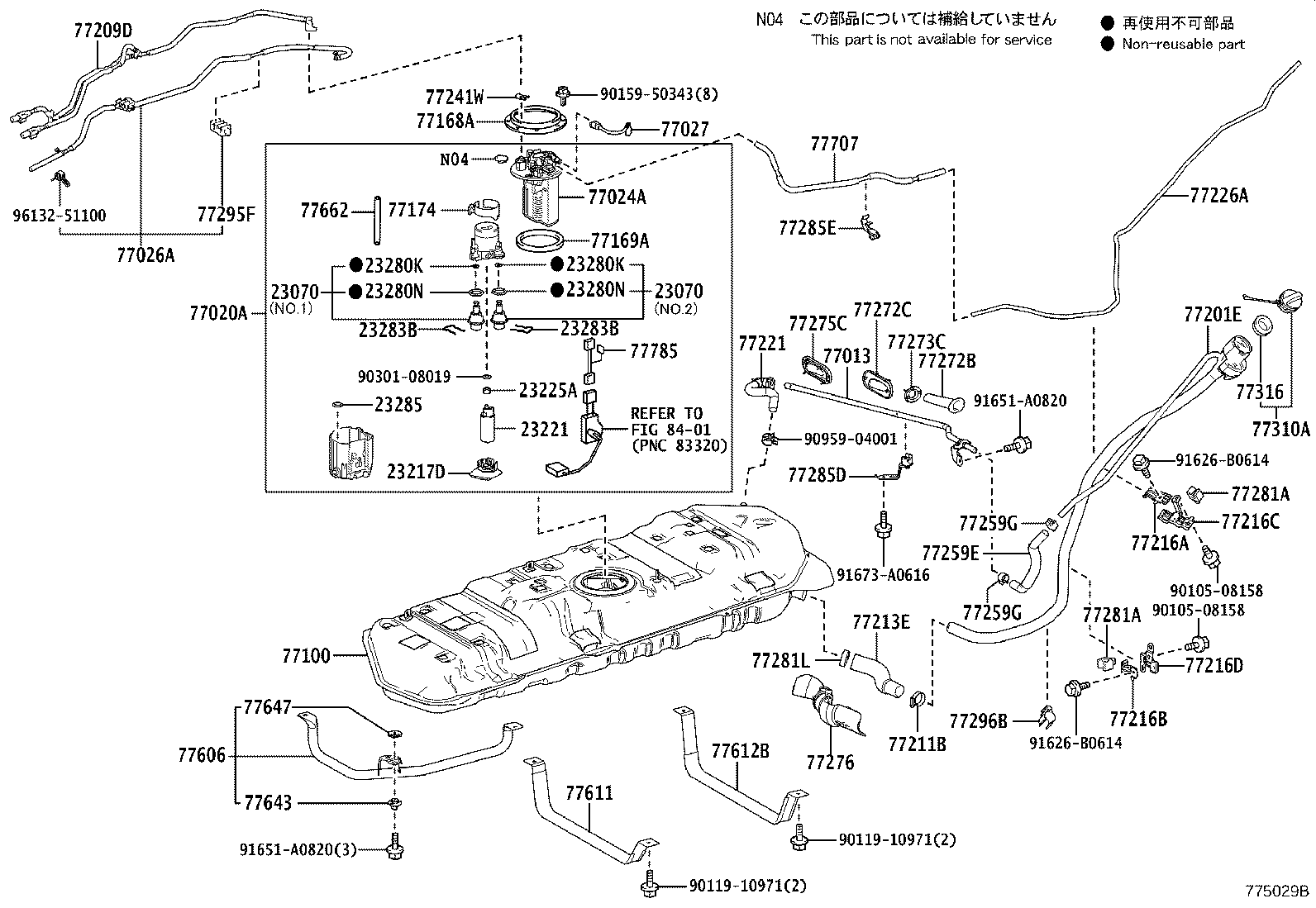

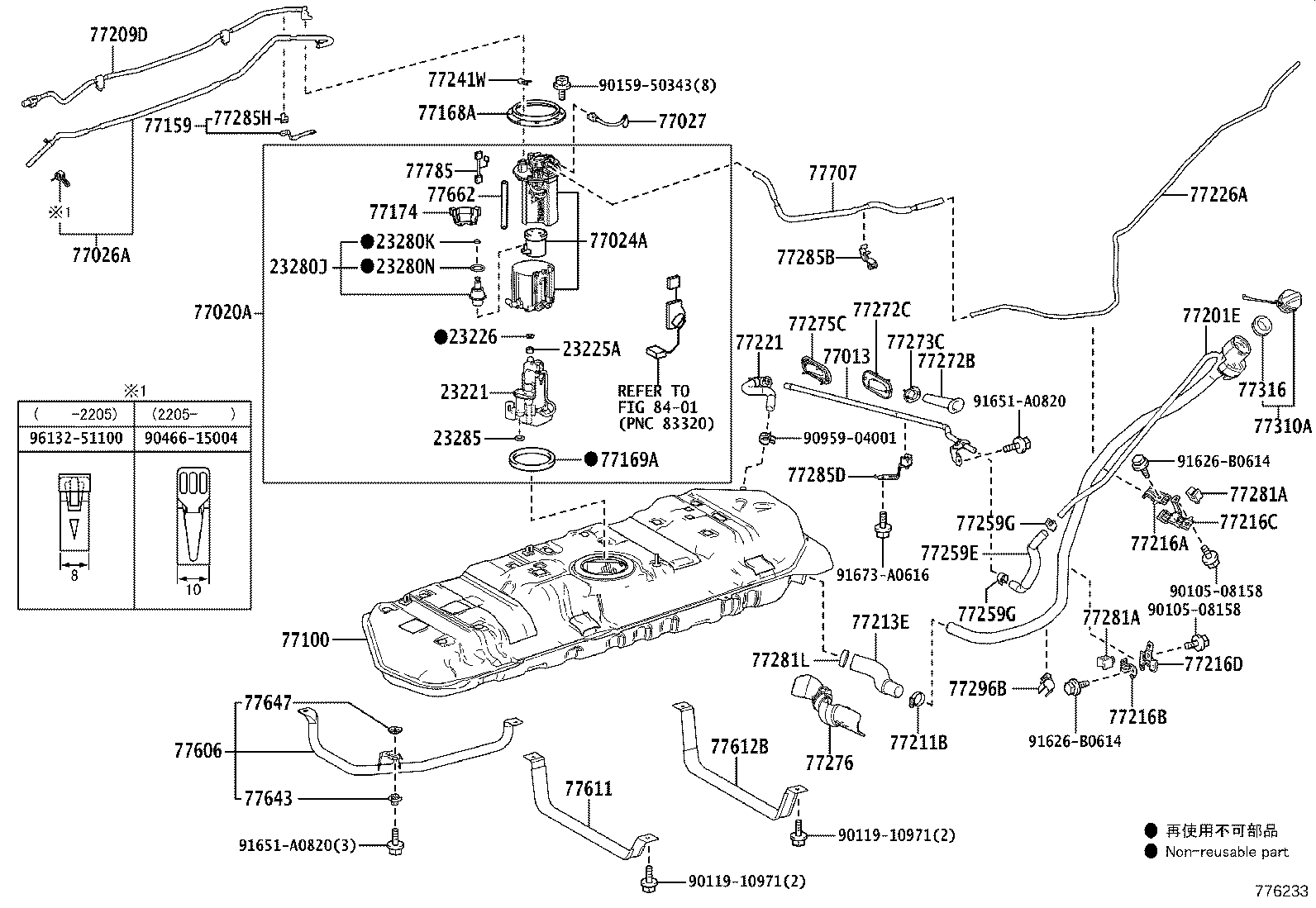

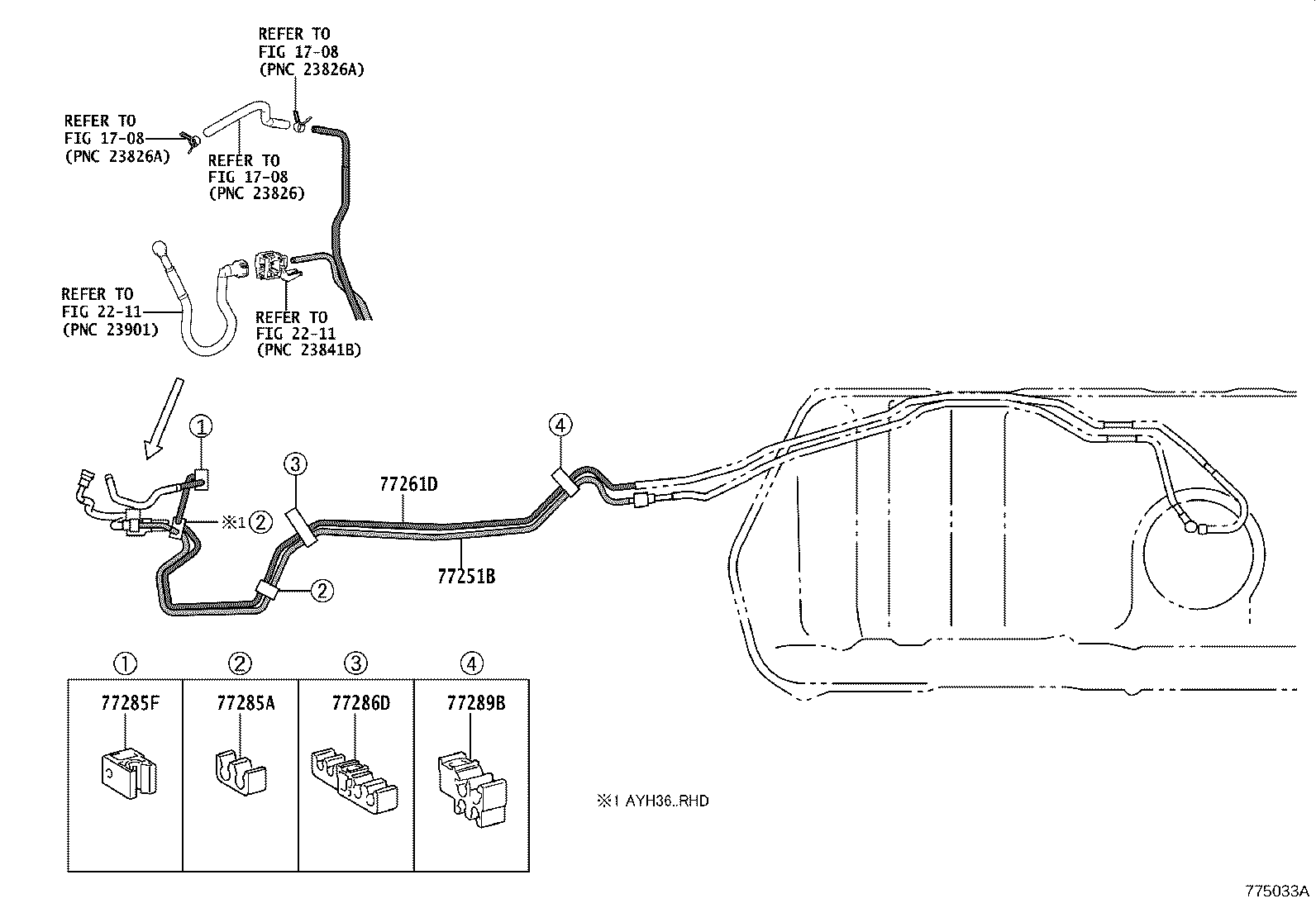

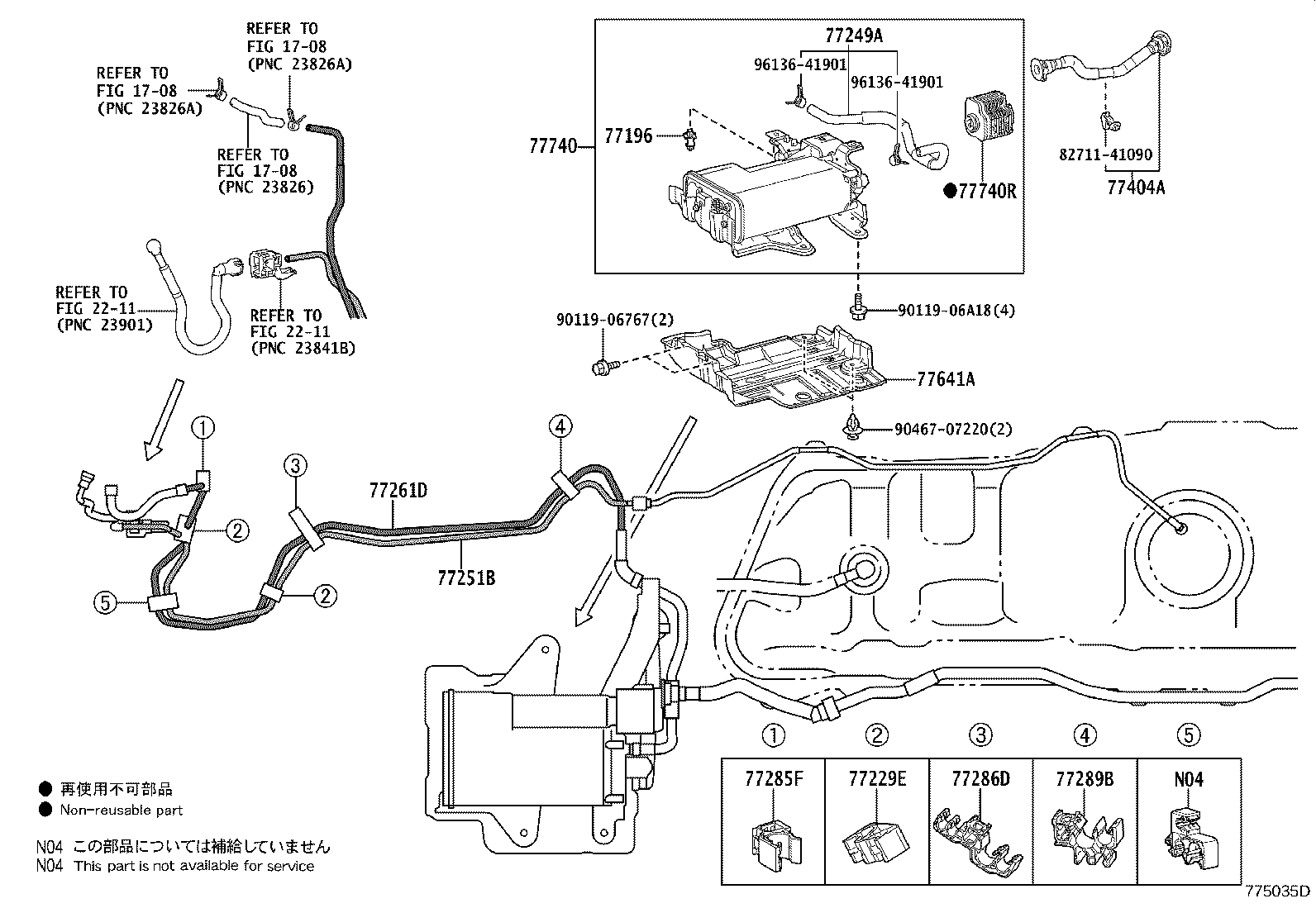

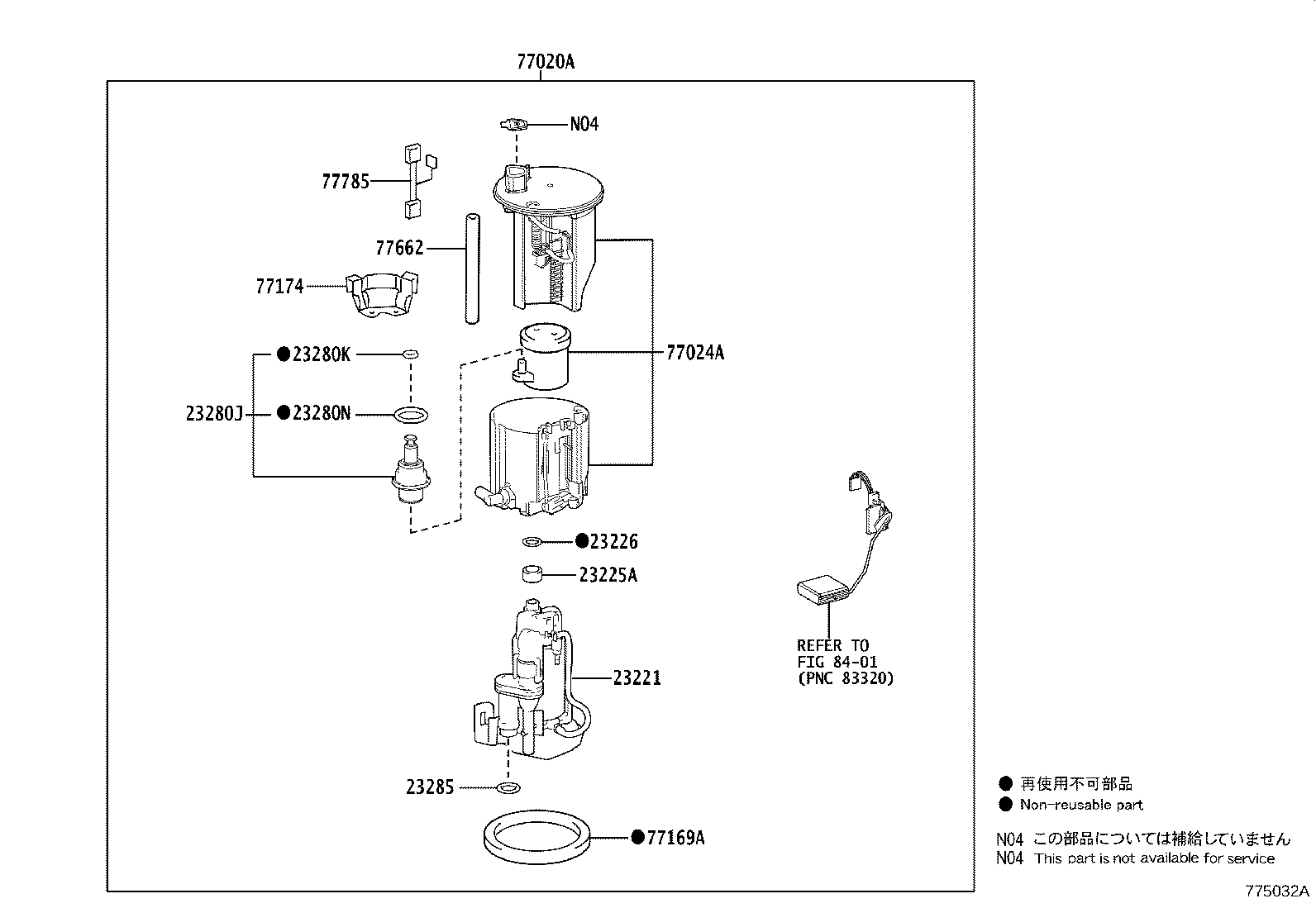

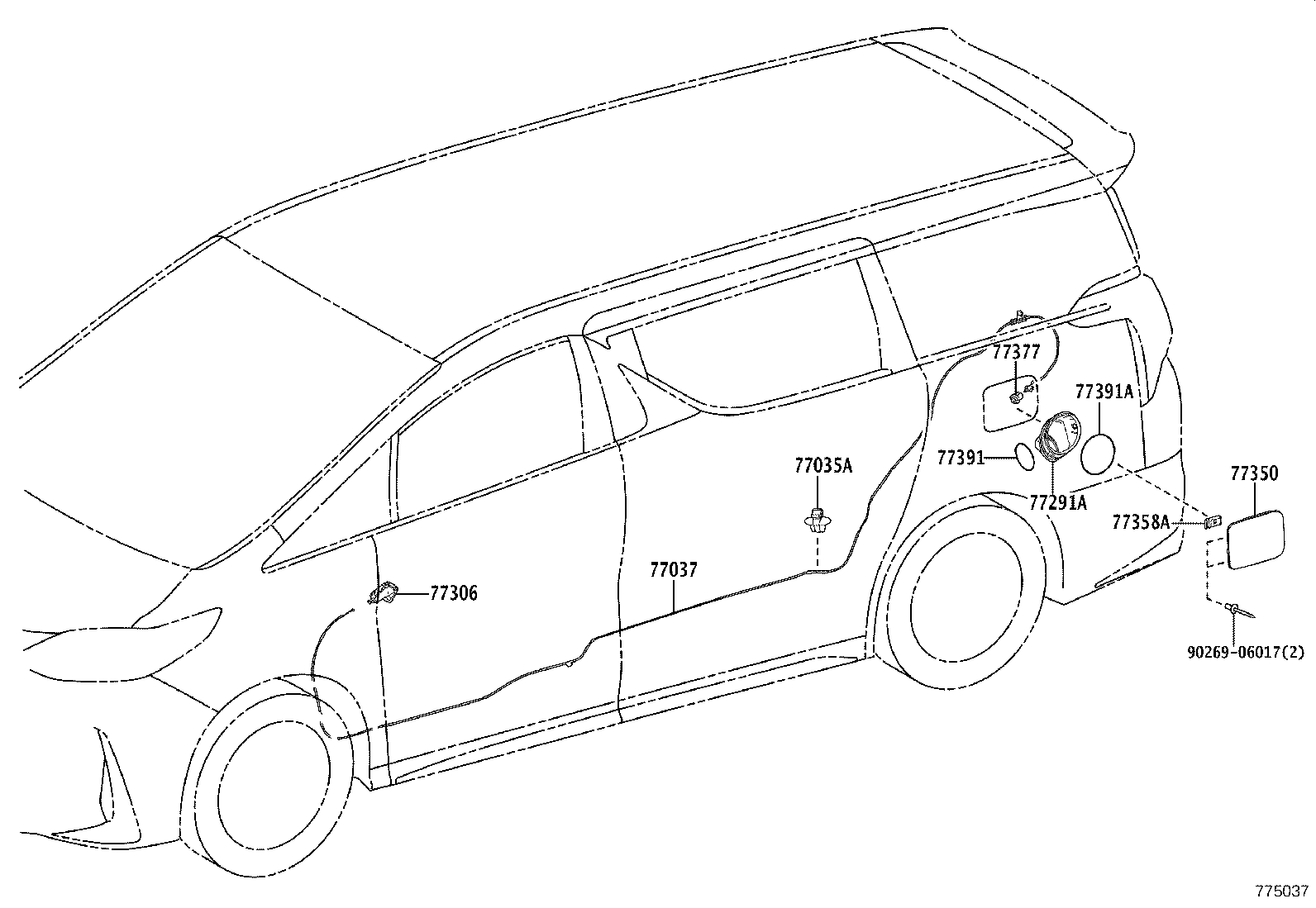

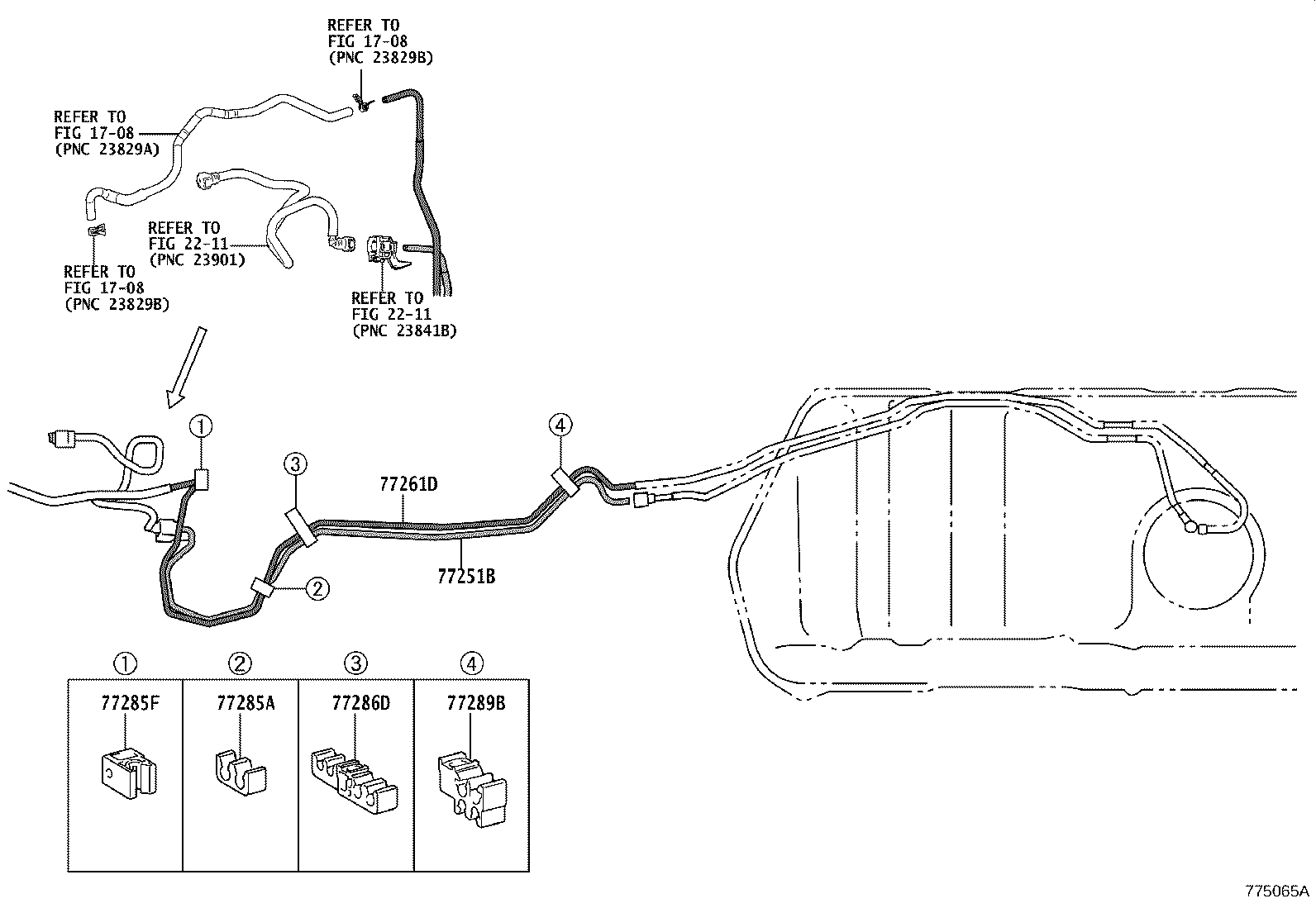

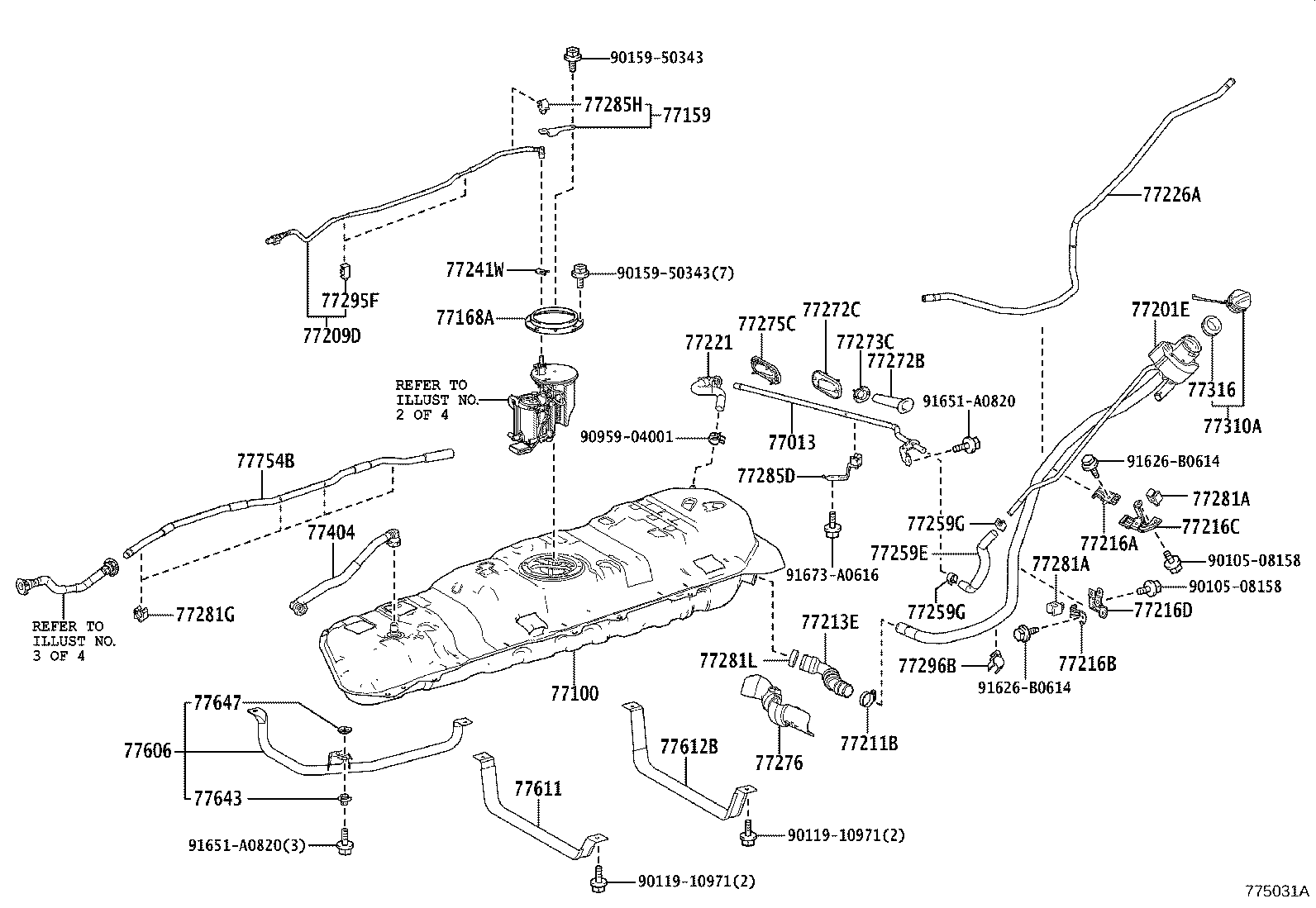

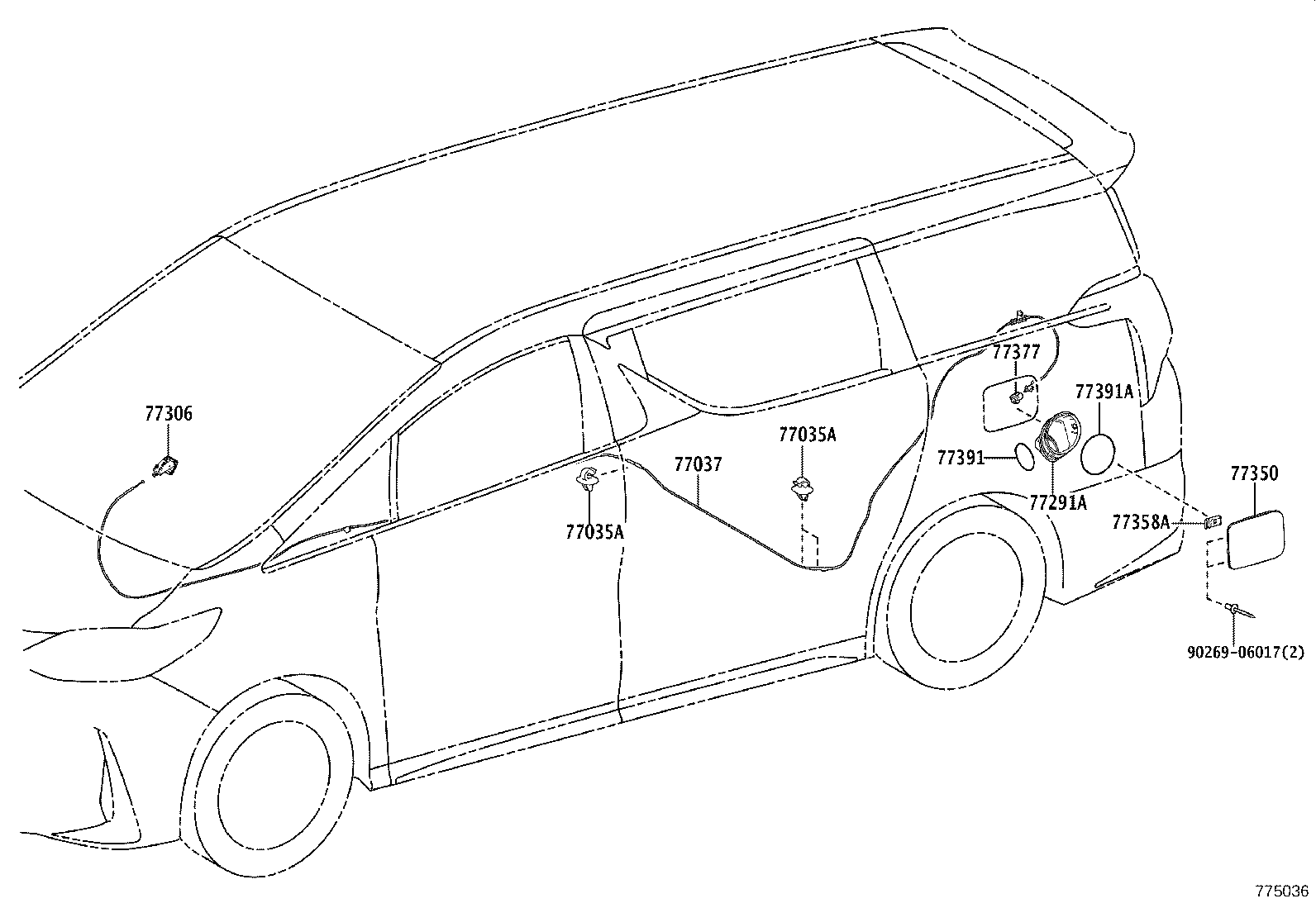

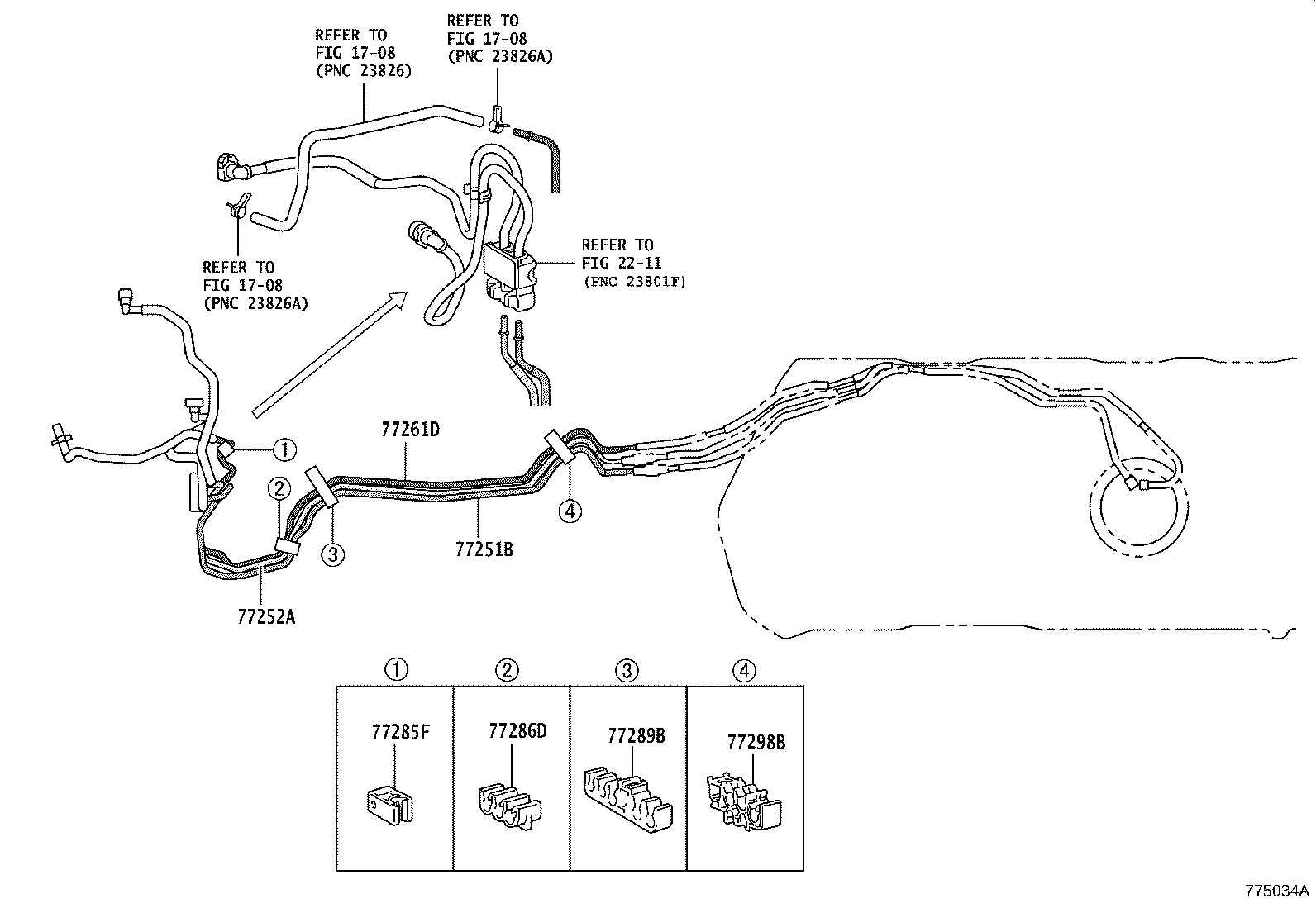

Figure 775028C 775028C 2020-01 → — Figure 775029B 775029B 2020-01 → — Figure 775030E 775030E 2020-01 → 2022-07 Figure 776233 776233 2022-07 → — Figure 775031A 775031A 2020-01 → — Figure 775032A 775032A 2020-01 → — Figure 775065A 775065A 2020-01 → — Figure 775034B 775034B 2020-01 → — Figure 775033A 775033A 2020-01 → — Figure 775035D 775035D 2020-01 → — Figure 775036 775036 2020-01 → — Figure 775037 775037 2020-01 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23217D Filter, Fuel Pump
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23226 Ring, O(FOR FUEL PUMP)
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283B Holder, Fuel Pressure Regulator
23285 Ring, O
77013 Tube Sub-assy, Fuel Tank Breather, NO.2
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77027 Tube Sub-assy, Fuel Evaporation, NO.2
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77159 Plate, Suction Tube Support
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77196 Clamp, Evaporation Vent Tube, NO.1
77201E Pipe Sub-assy, Fuel Tank Filler
77209D Tube Sub-assy, Fuel Tank Main
77211B Clamp (FOR FUEL FILLER PIPE)
77213E Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77216B Support, Fuel Tank Filler Pipe, NO.2
77216C Support, Fuel Tank Filler Pipe NO.3
77216D Support, Fuel Tank Filler Pipe NO.4
77221 Tube, Fuel Tank Breather, NO.1
77226A Tube, Fuel Tank Breather, NO.6
77229E Clamp, Breather Tube
77241W Clip, Tube Joint
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77259E Hose, Fuel
77259G Clip, Fuel Hose
77261D Tube, Fuel Tank TO Canister
77272B Support, Breather Tube, NO.1
77272C Support, Breather Tube, NO.3
77273C Support, Breather Tube, NO.2
77275C Support, Breather Tube, NO.4
77276 Protector, Fuel Hose
77281A Clamp, Fuel Filler Pipe
77281G Clamp, Fuel Hose
77281L Clamp, Fuel Hose
77285A Support, Fuel Return And Main Tube
77285B Clamp, Fuel Tube W/Grommet, NO.1
77285D Clamp, Fuel Tube, NO.1
77285E Clamp, Fuel Tube W/Grommet, NO.1
77285F Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77289B Clamp, Fuel Tube, NO.3
77291A Shield, Fuel Tank Filler Pipe
77295F Grommet, Fuel Hose
77296B Support, Fuel Tube Protector, NO.1
77298B Clamp, Fuel Tube, NO.4
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77358A Stopper, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77612B Band, Fuel Tank, NO.2
77641A Protector, Fuel Tank, NO.1
77643 Retainer, Fuel Tank Protector
77647 Retainer, Fuel Tank Protector, Side
77662 Cover, Fuel Tank Gage
77707 Tube Sub-assy, Charcoal Canister Outlet
77740 Canister Assy, Charcoal
77740R Pump Sub-assy, Leak Detection
77754B Hose, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
