Toyota Lexus LM350/LM300H
2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General
Supported model
Data version 2020-02
Interior Lamp
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63654C | Cover, Roof Console Box, Inner |
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81081 | Lamp Sub-assy, Interior Illumination |
| 81081A | Lamp Sub-assy, Interior Illumination, NO.2 |
| 81230 | Lamp Assy, Courtesy |
| 81240K | Clip, Room Lamp |

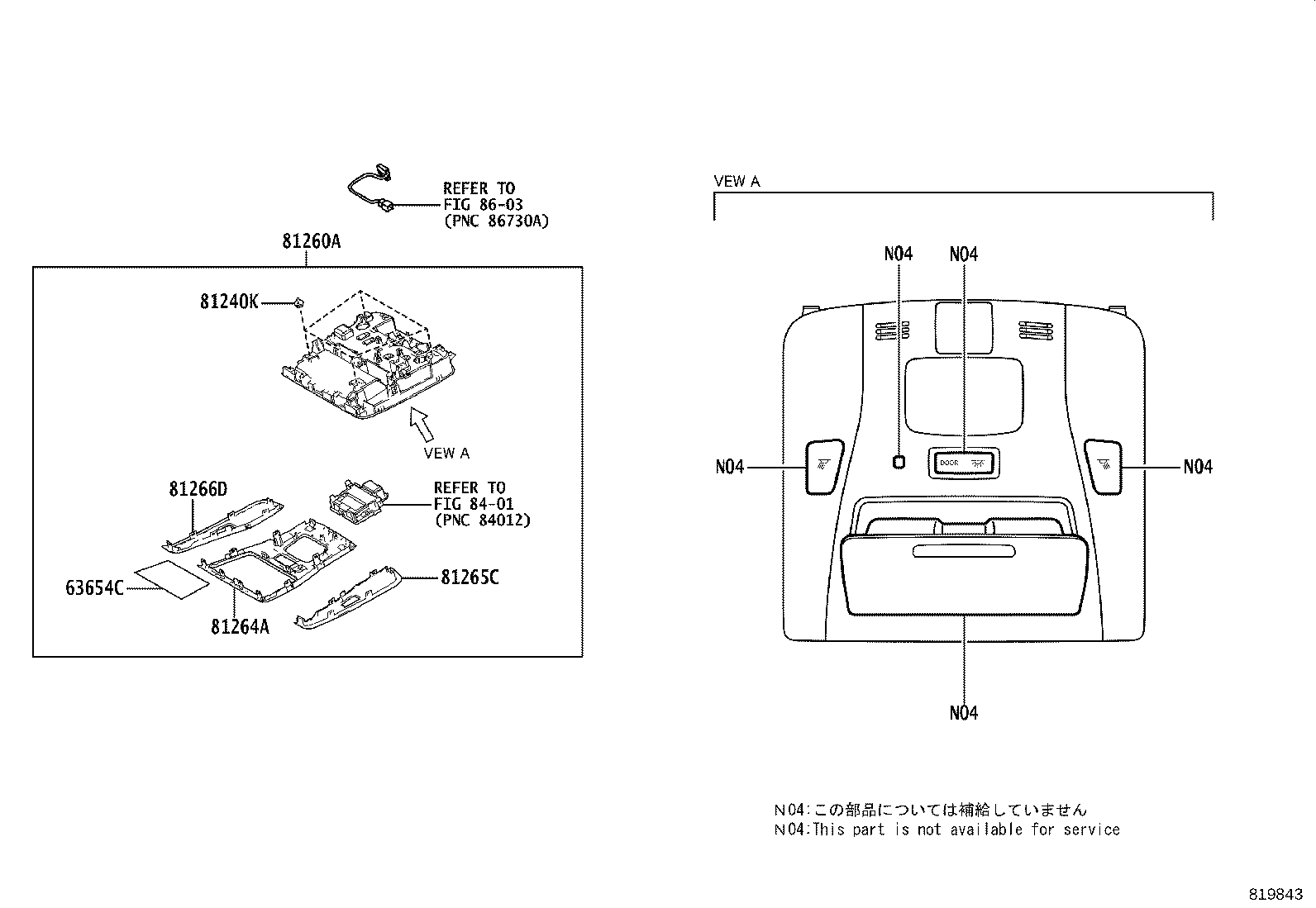

| 81260A | Lamp Assy, Map |
| 81264A | Cover, Map Lamp |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360K | Lamp Assy, Spot, RH |
| 81360M | Lamp Assy, Spot, NO.2 RH |
| 81360T | Lamp Assy, Spot |
| 81361D | Lens, Spot Lamp |
| 81361E | Lens, Spot Lamp, NO.2 |
| 81390C | Lamp Assy, Spot, LH |
| 81390F | Lamp Assy, Spot, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
