Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

171 part groups · 27 illustrations

Illustrations

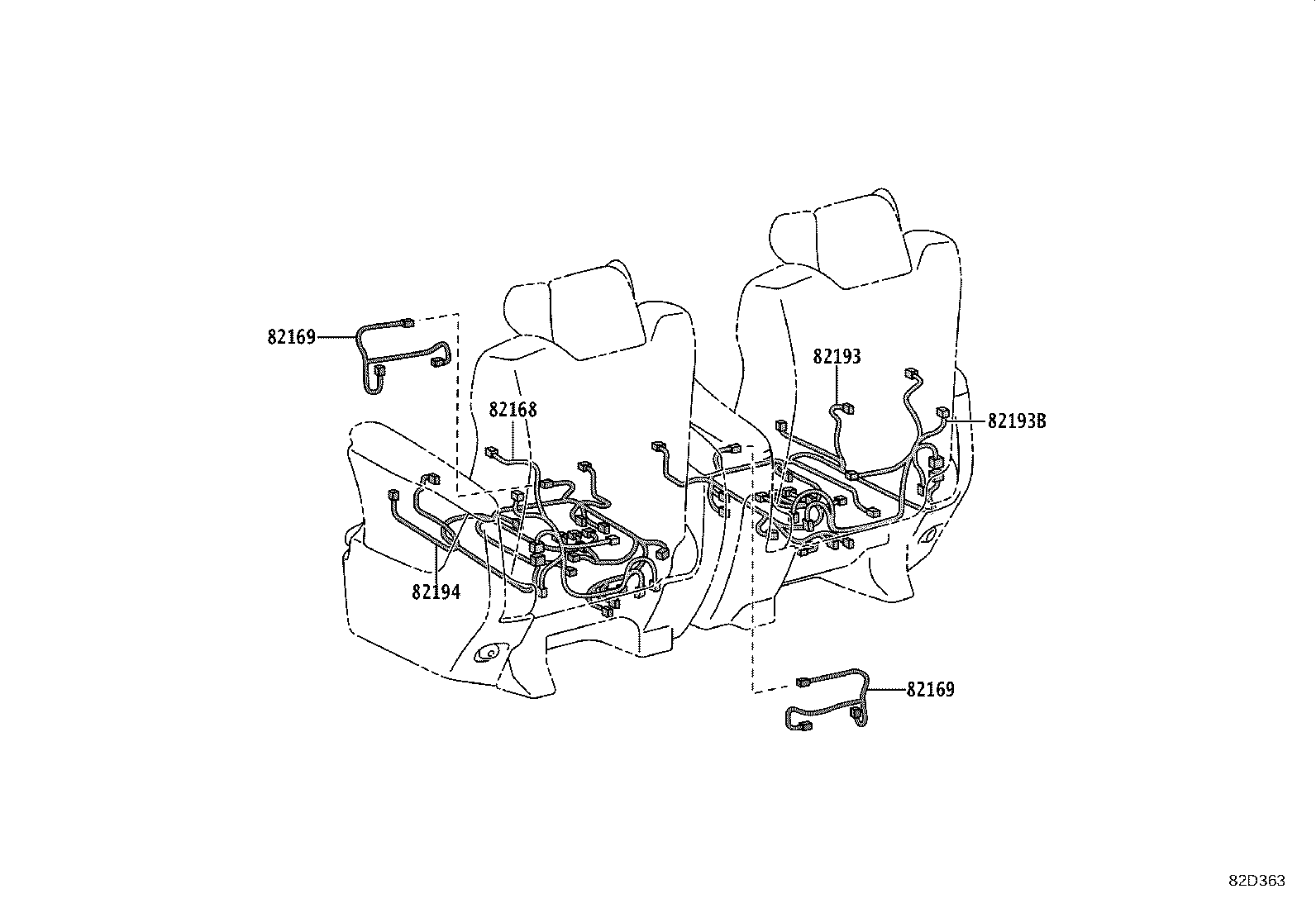

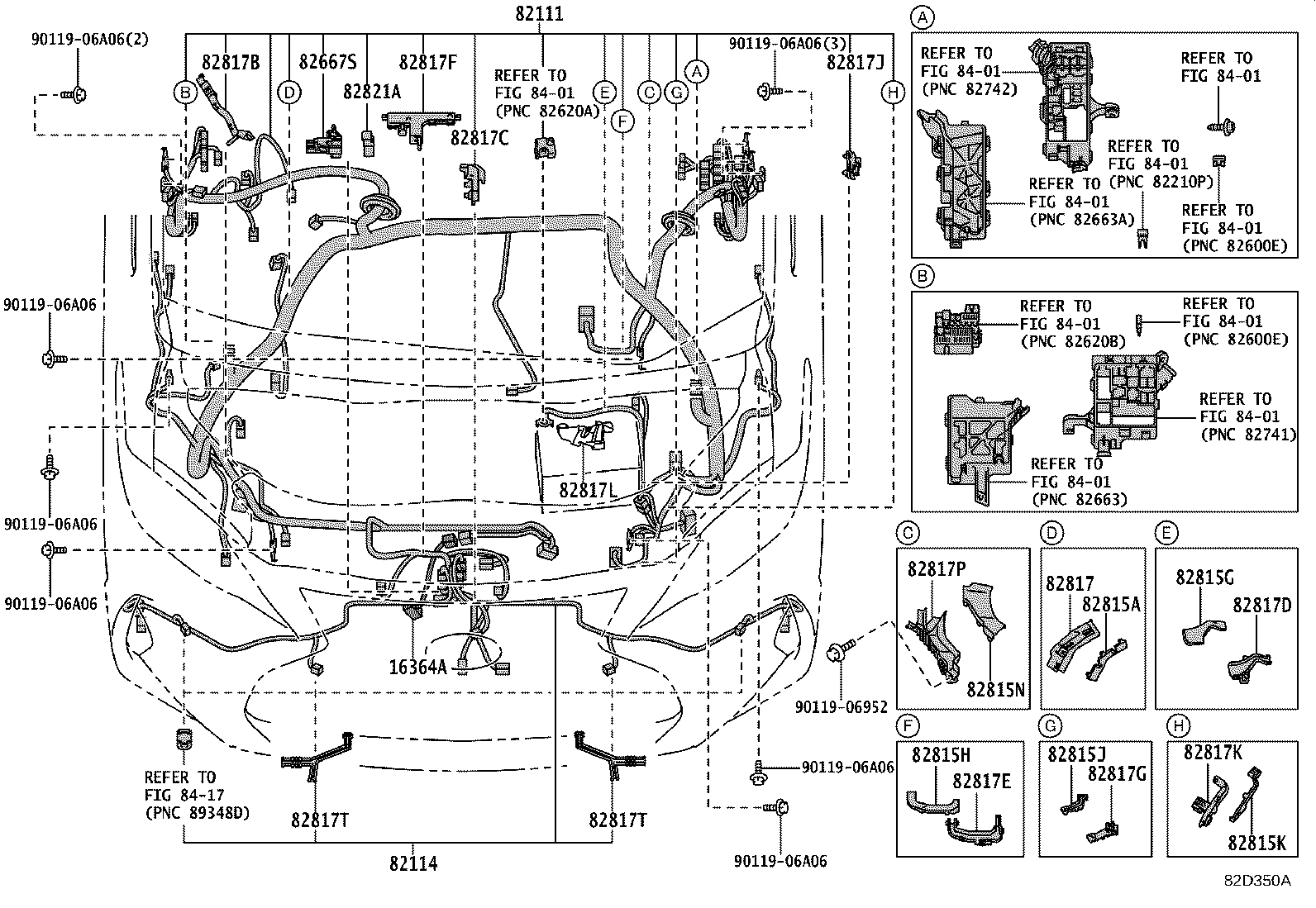

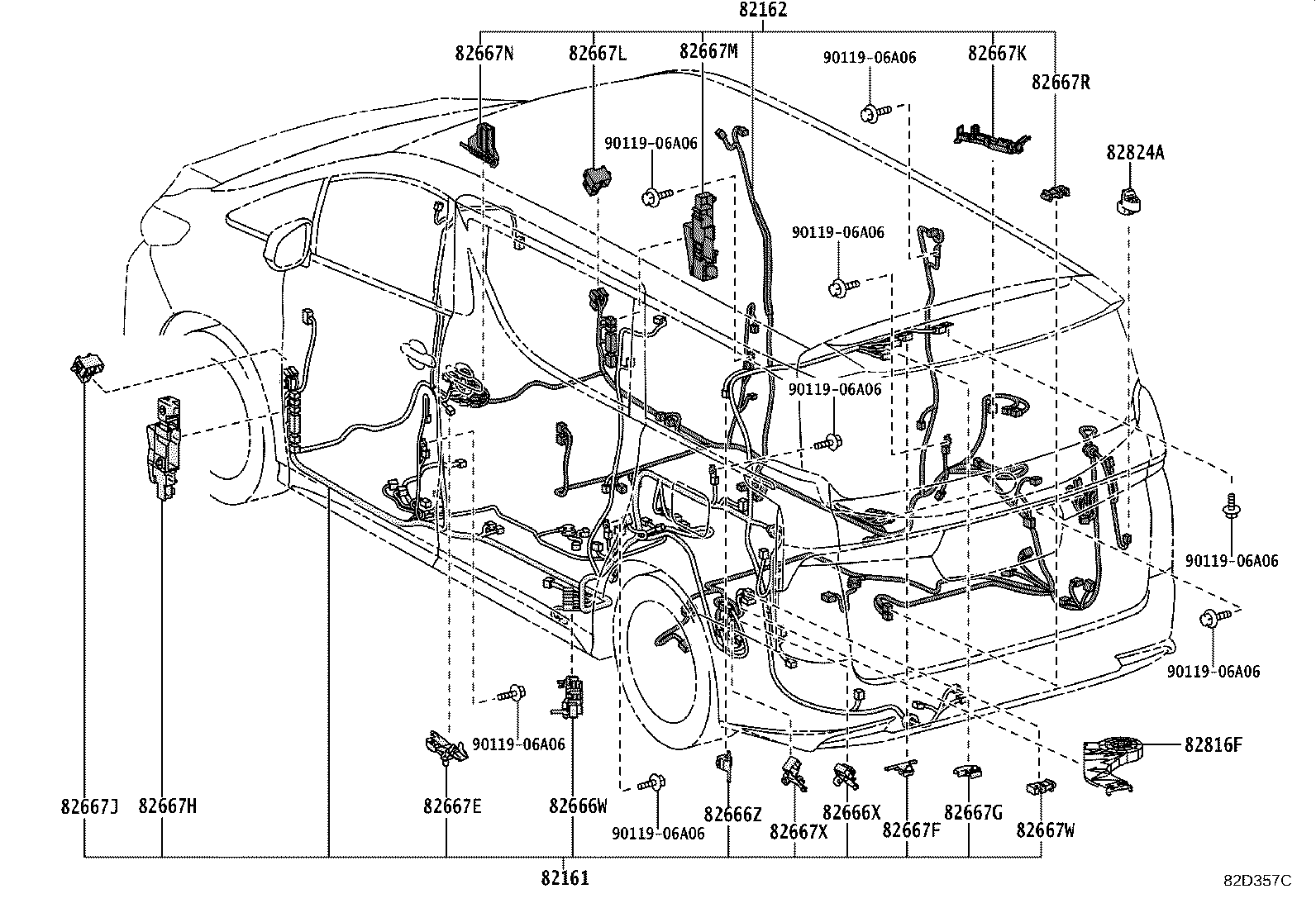

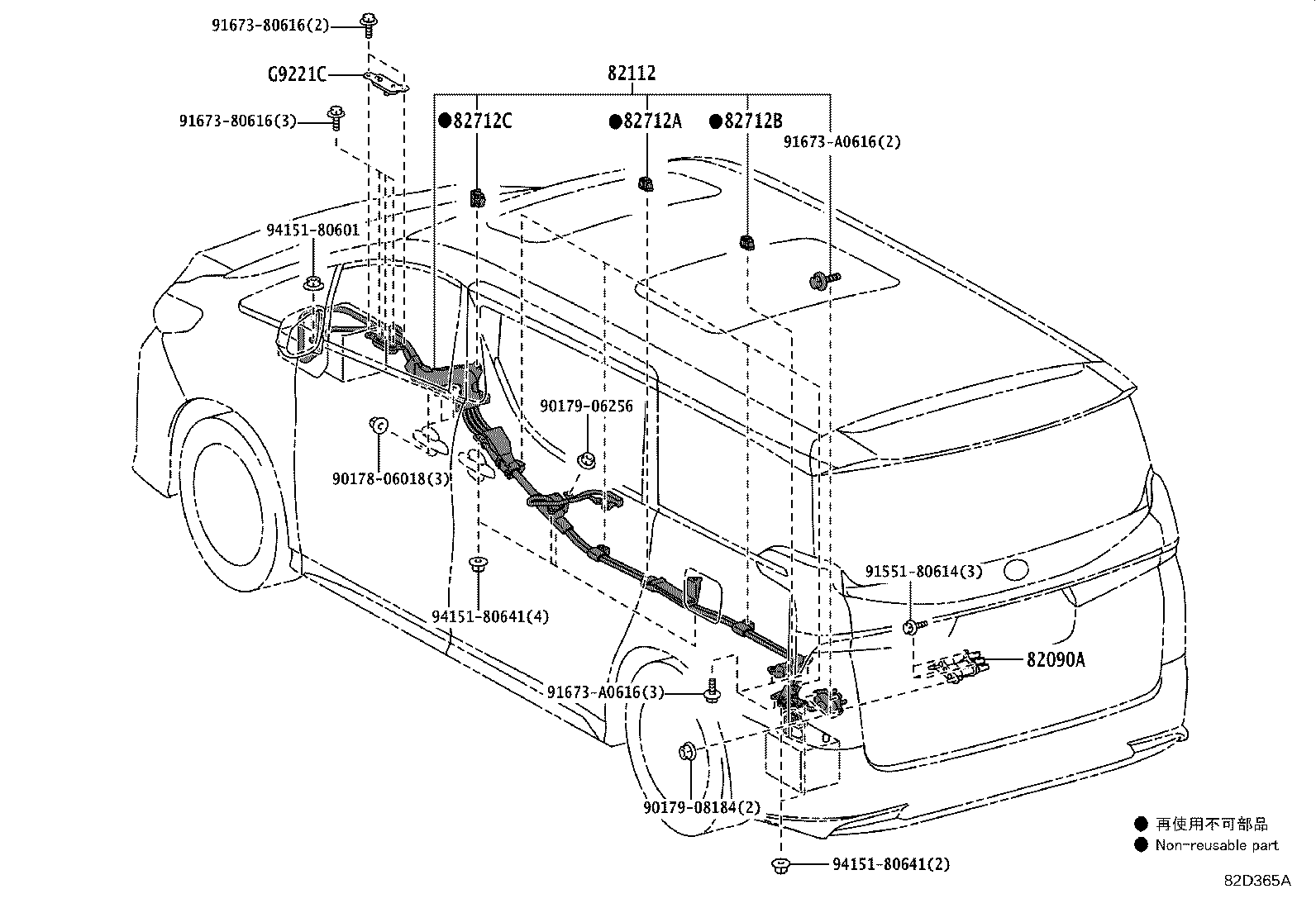

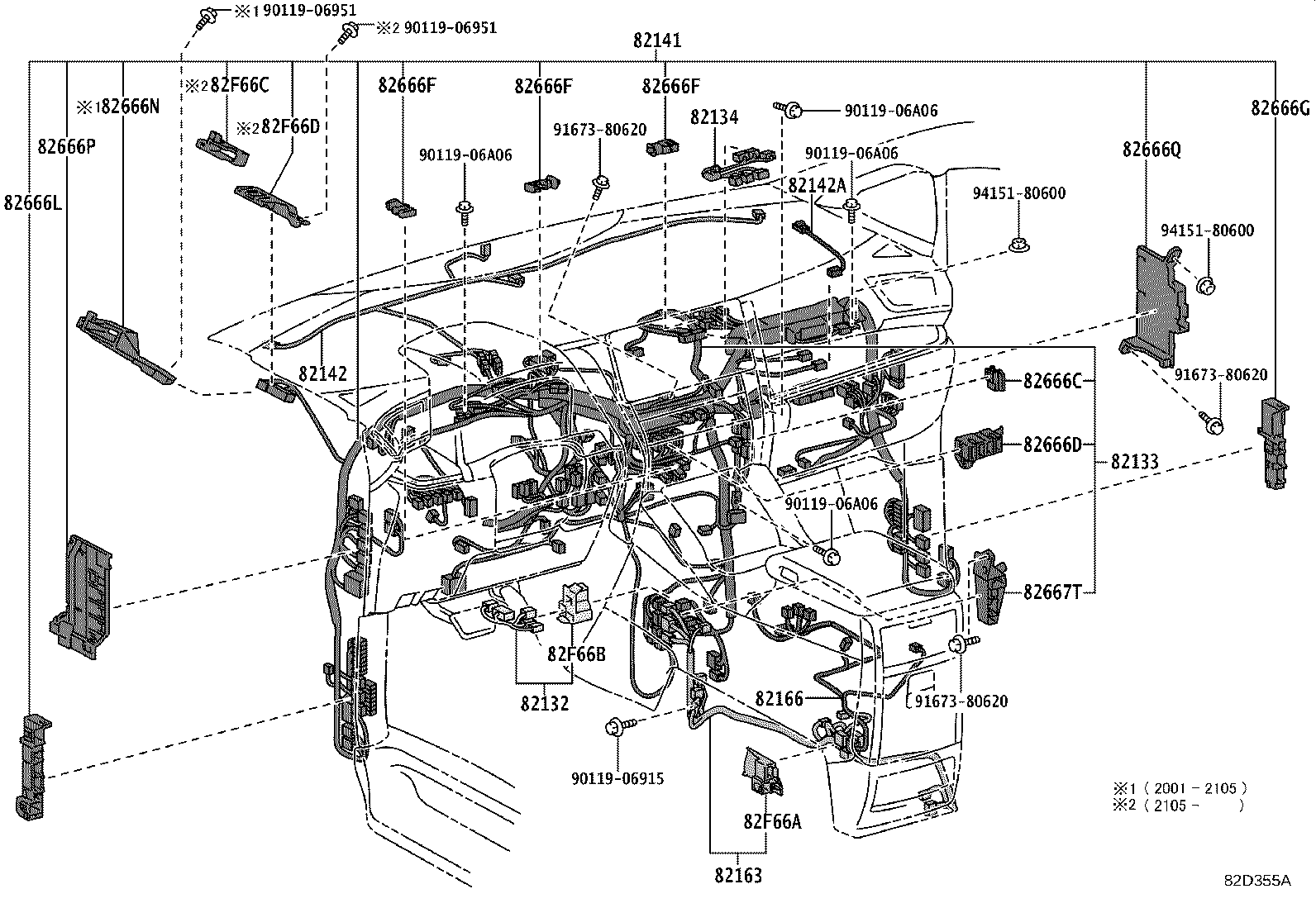

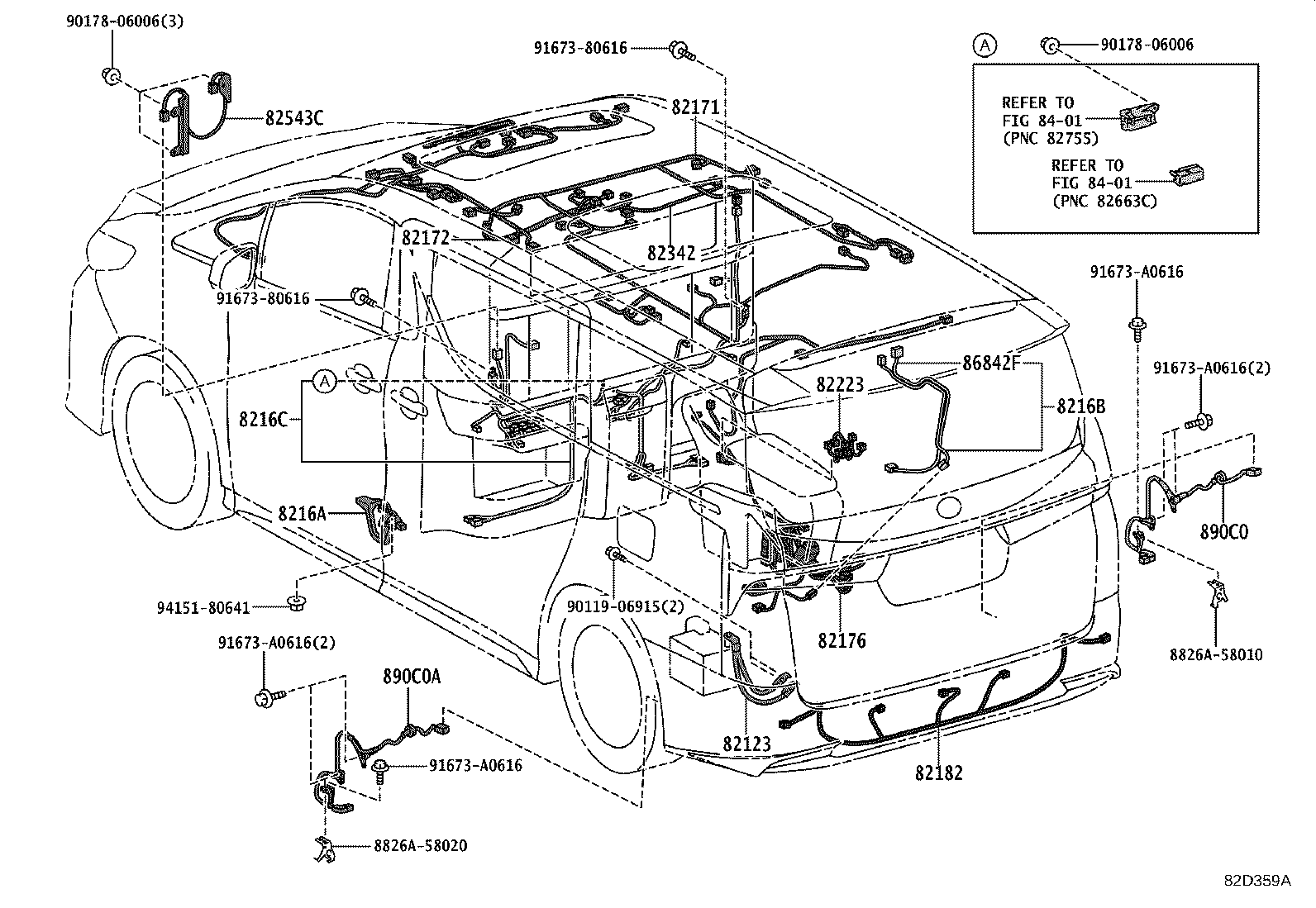

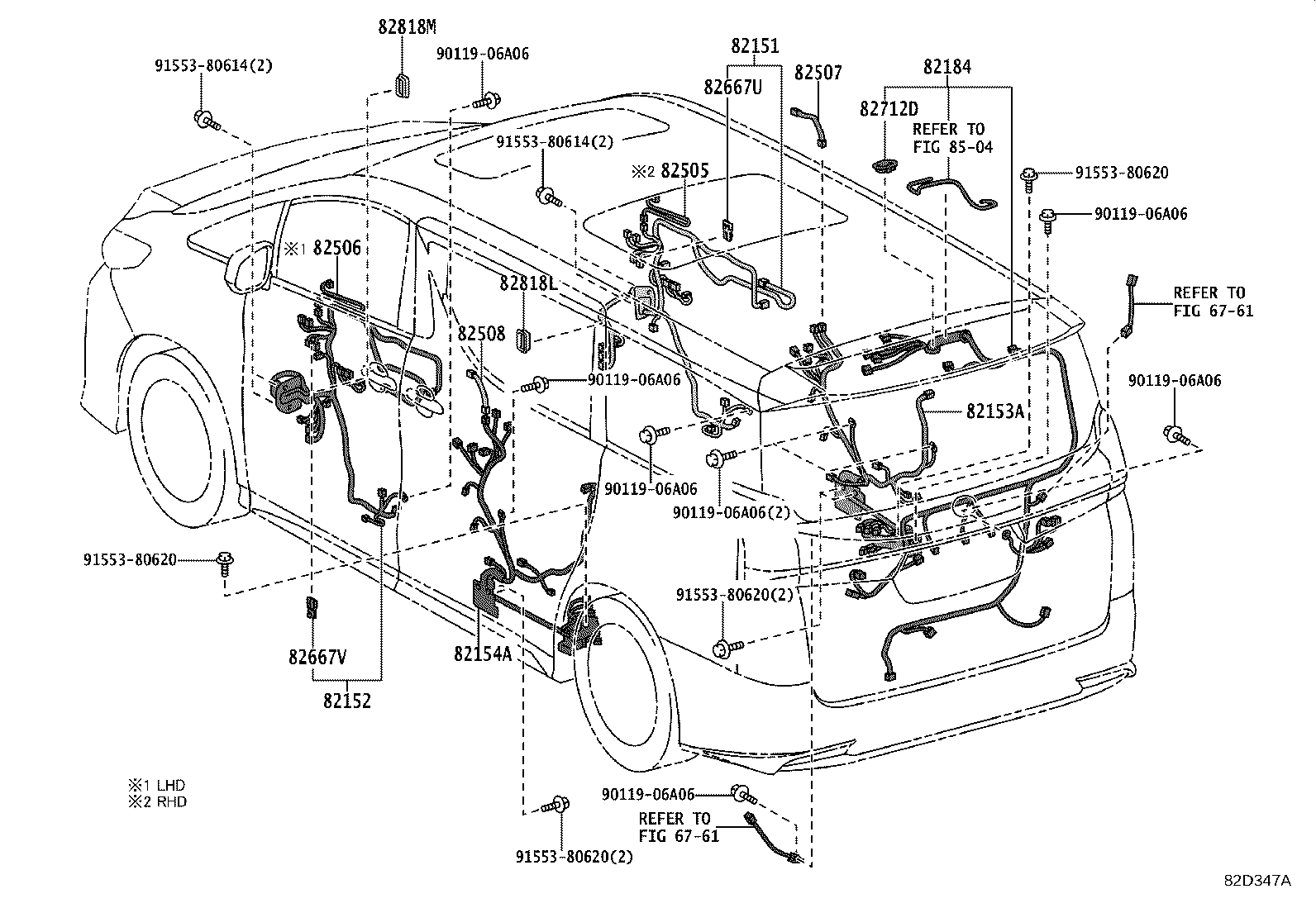

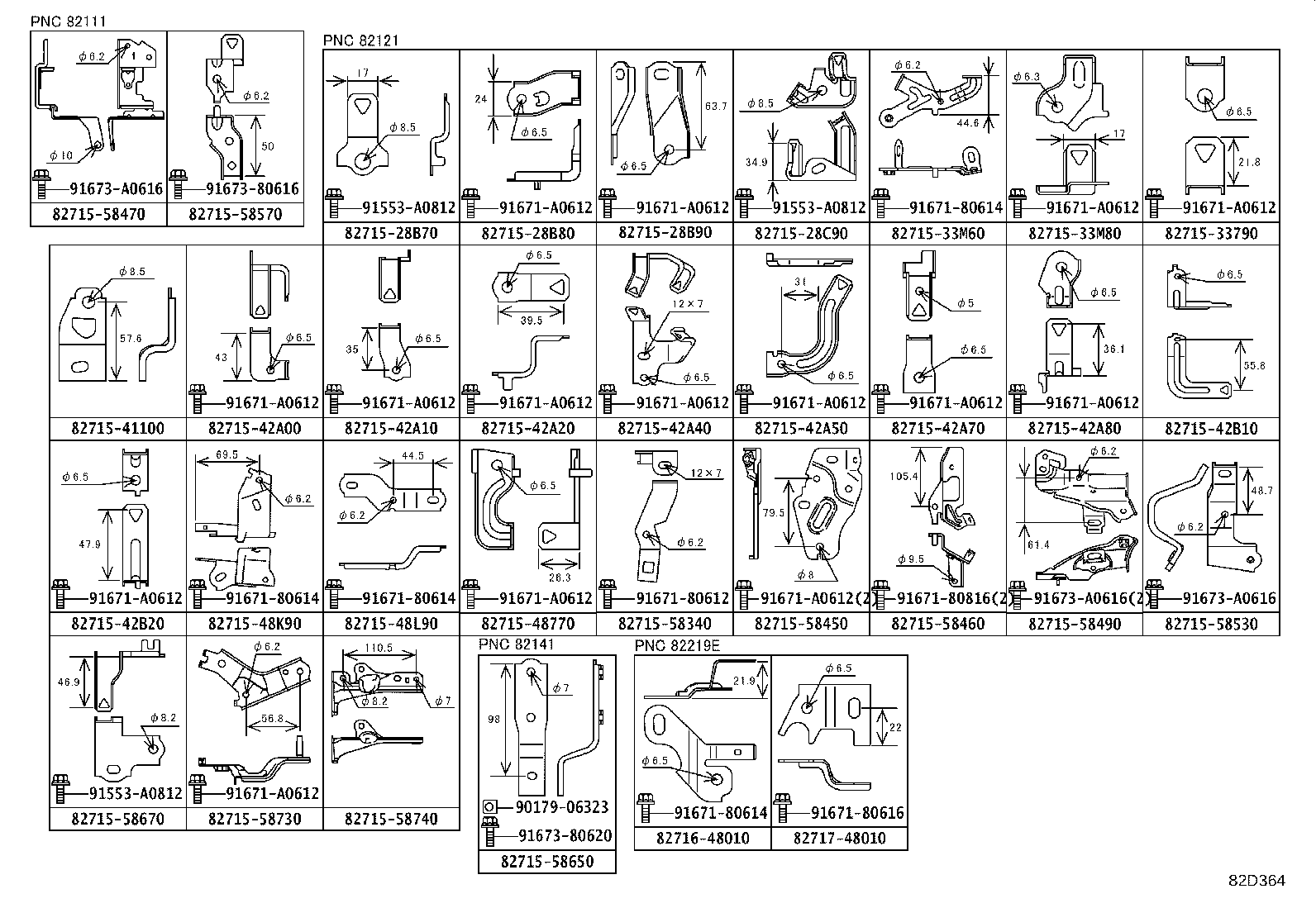

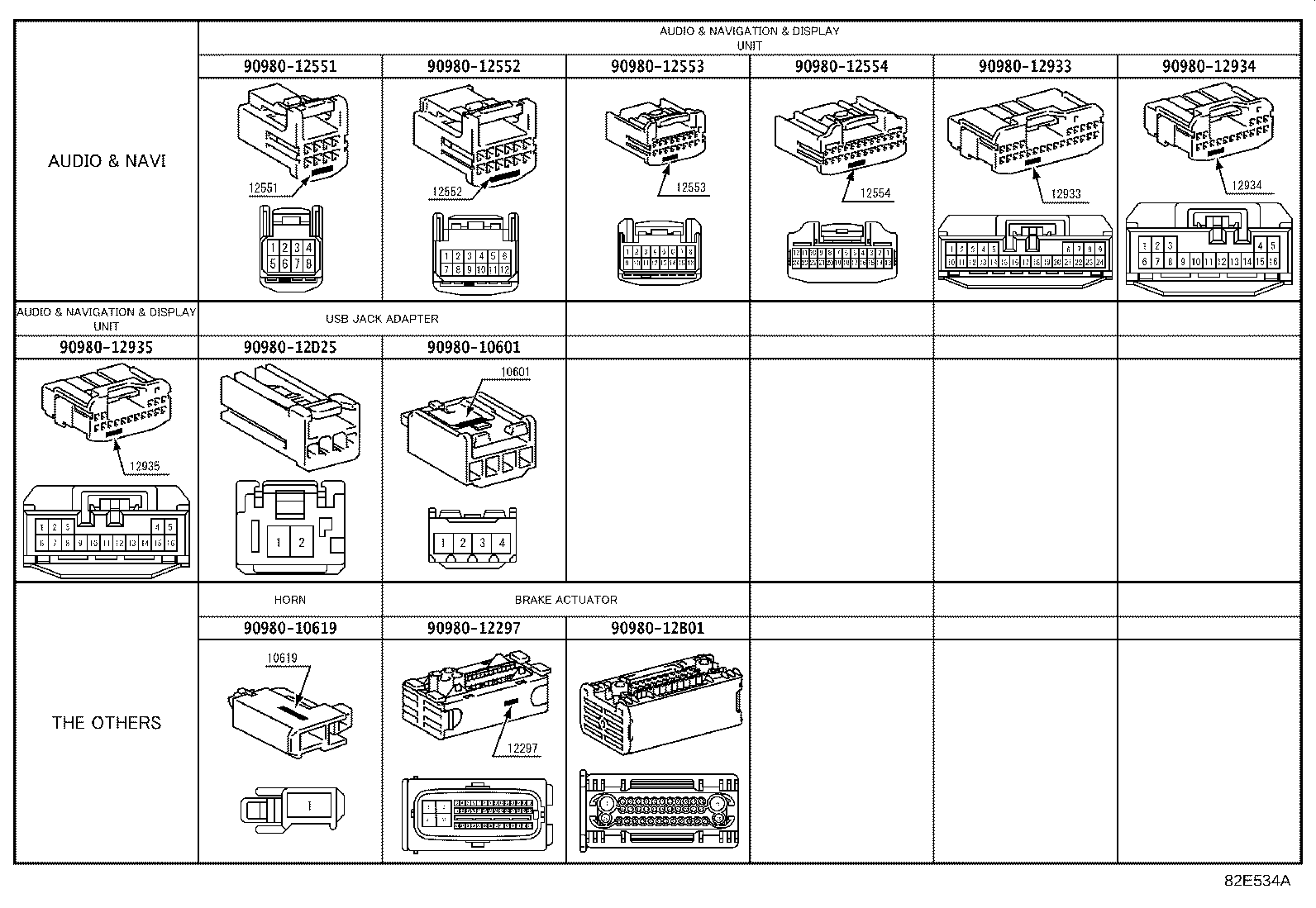

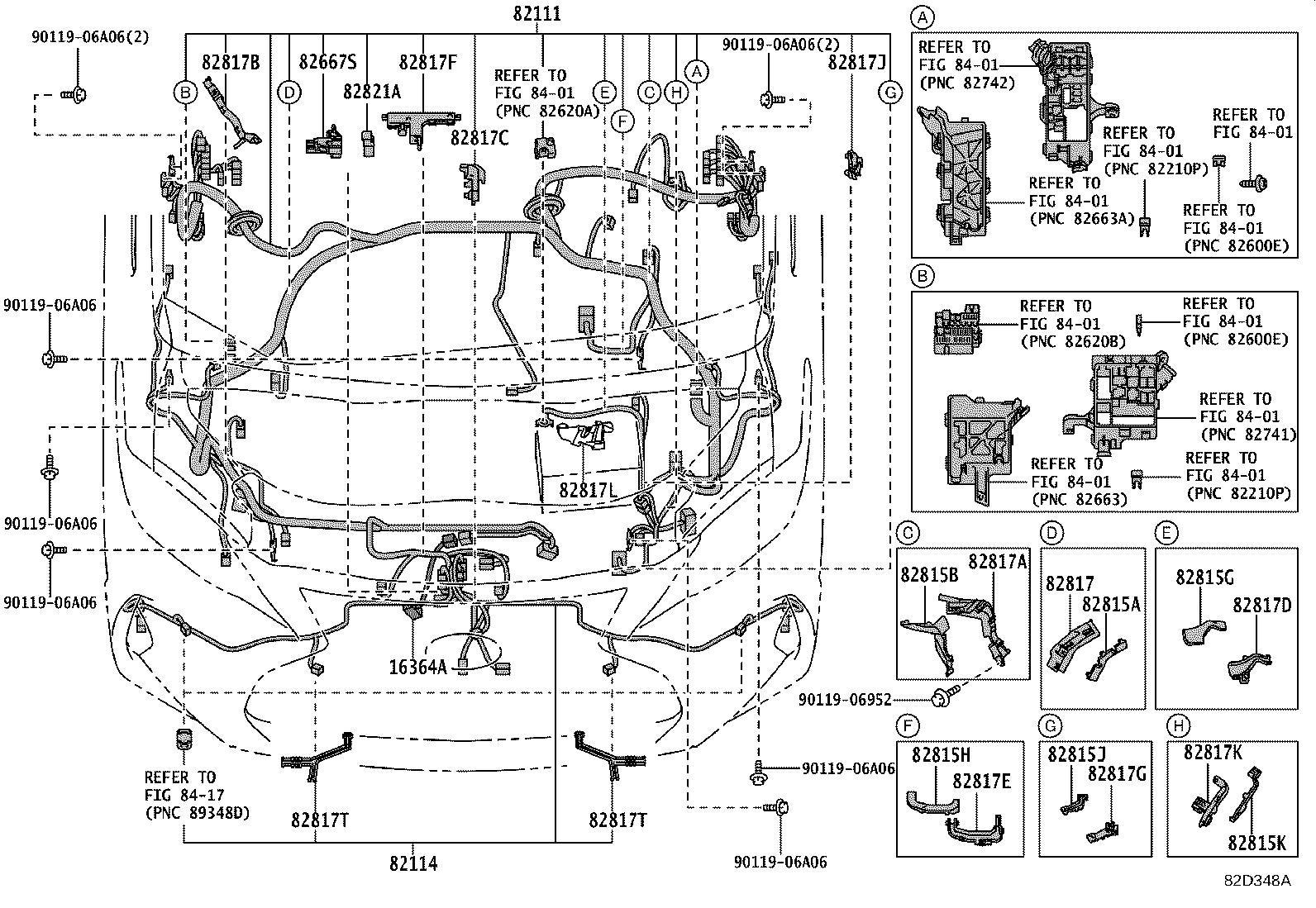

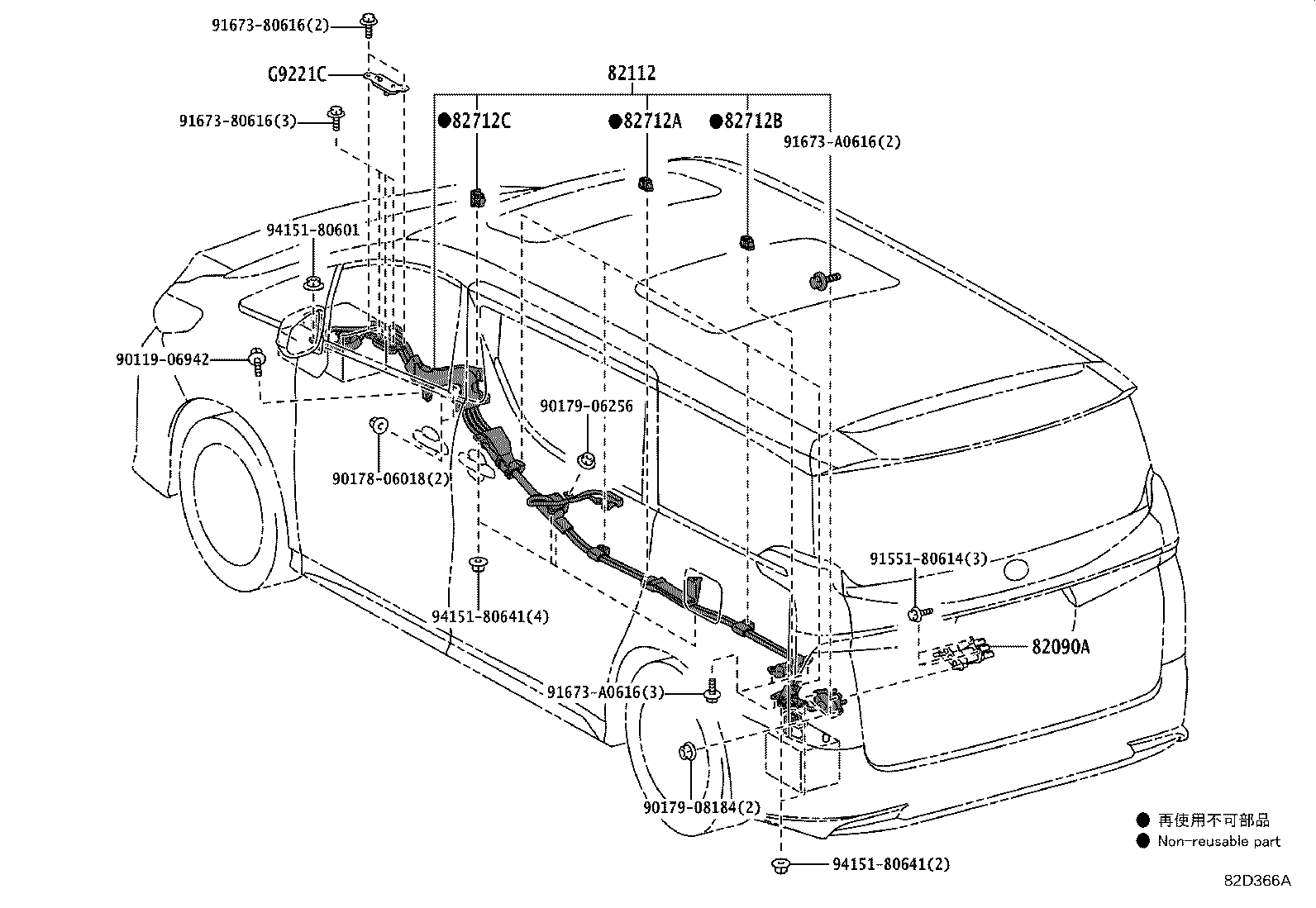

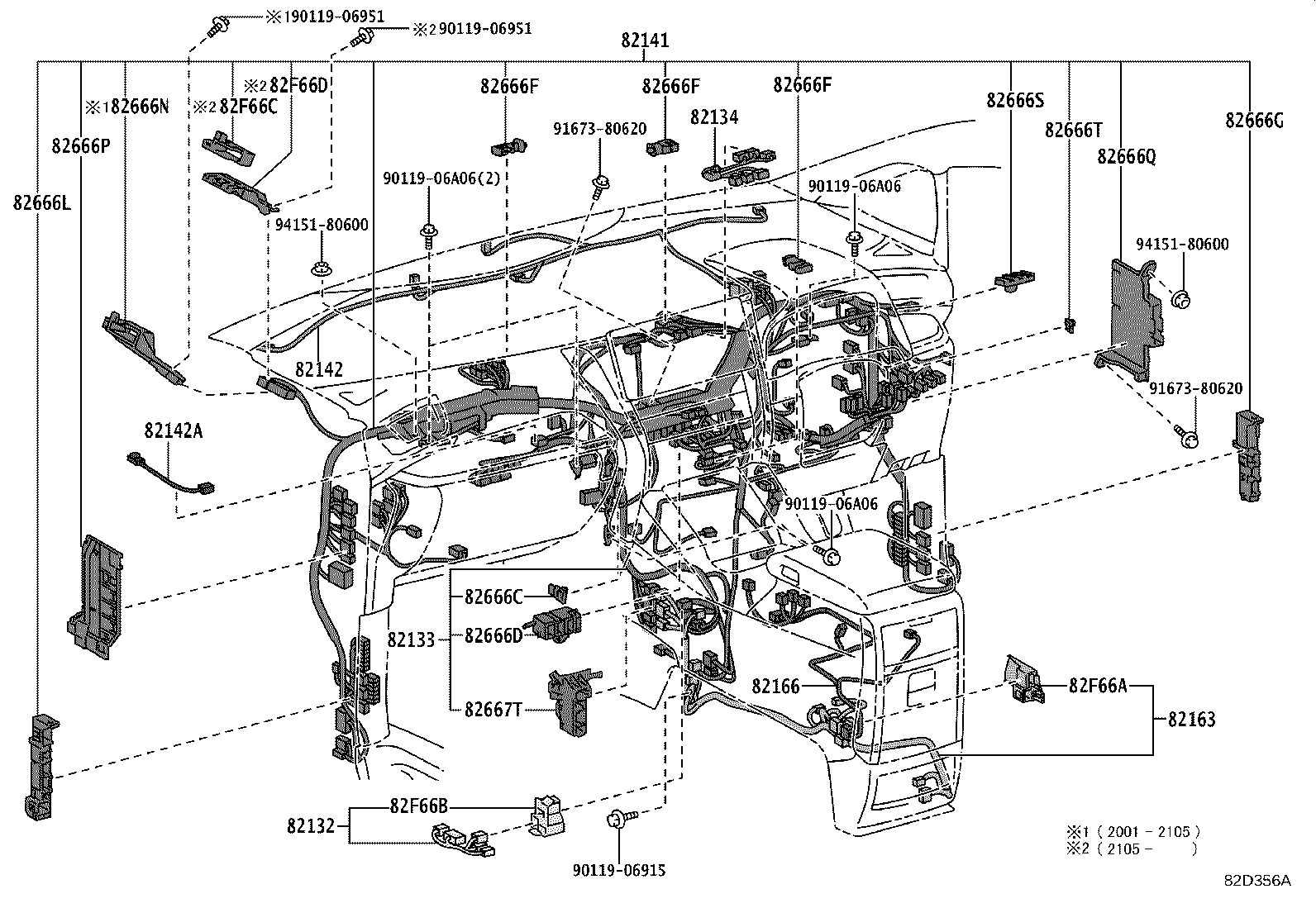

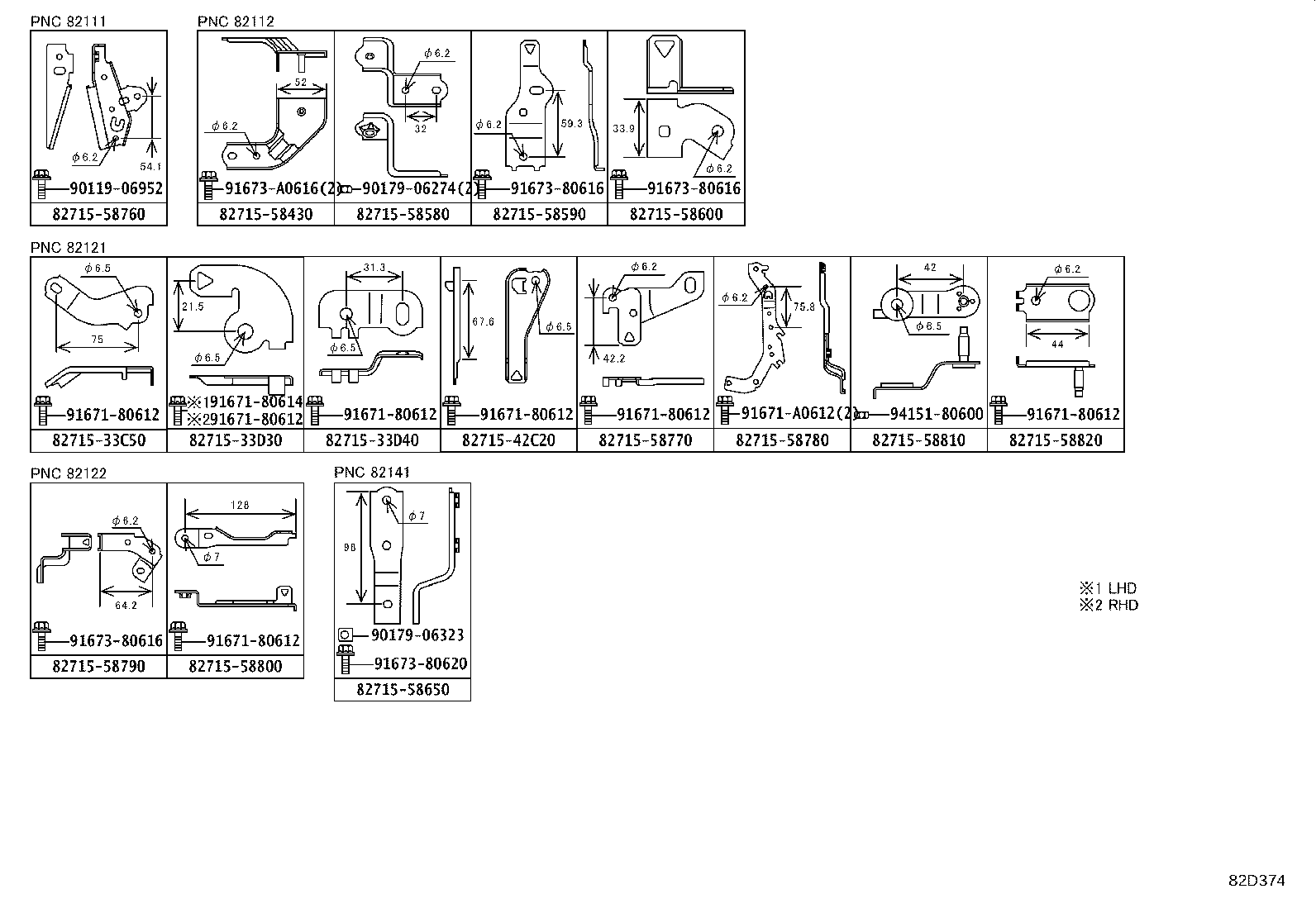

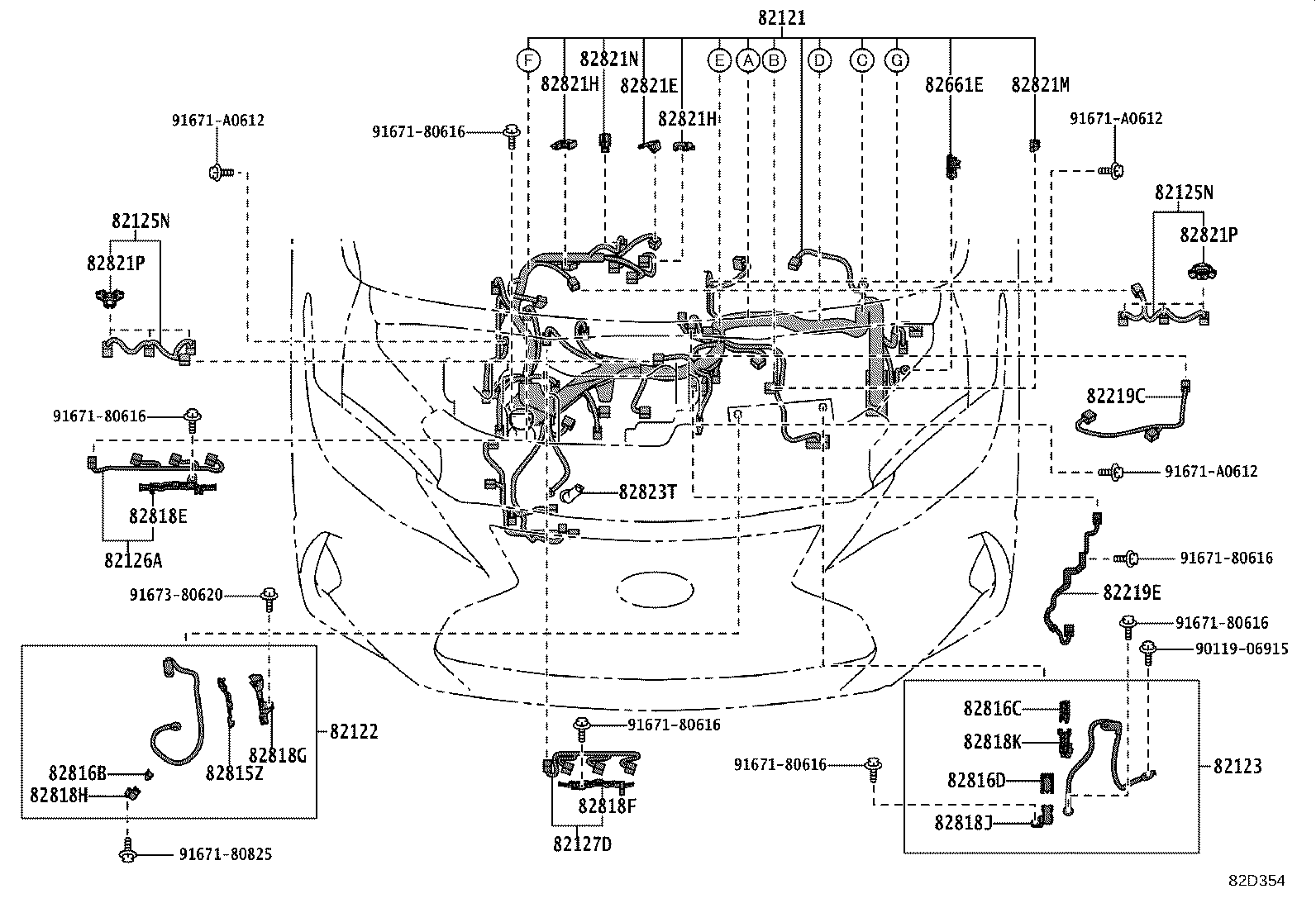

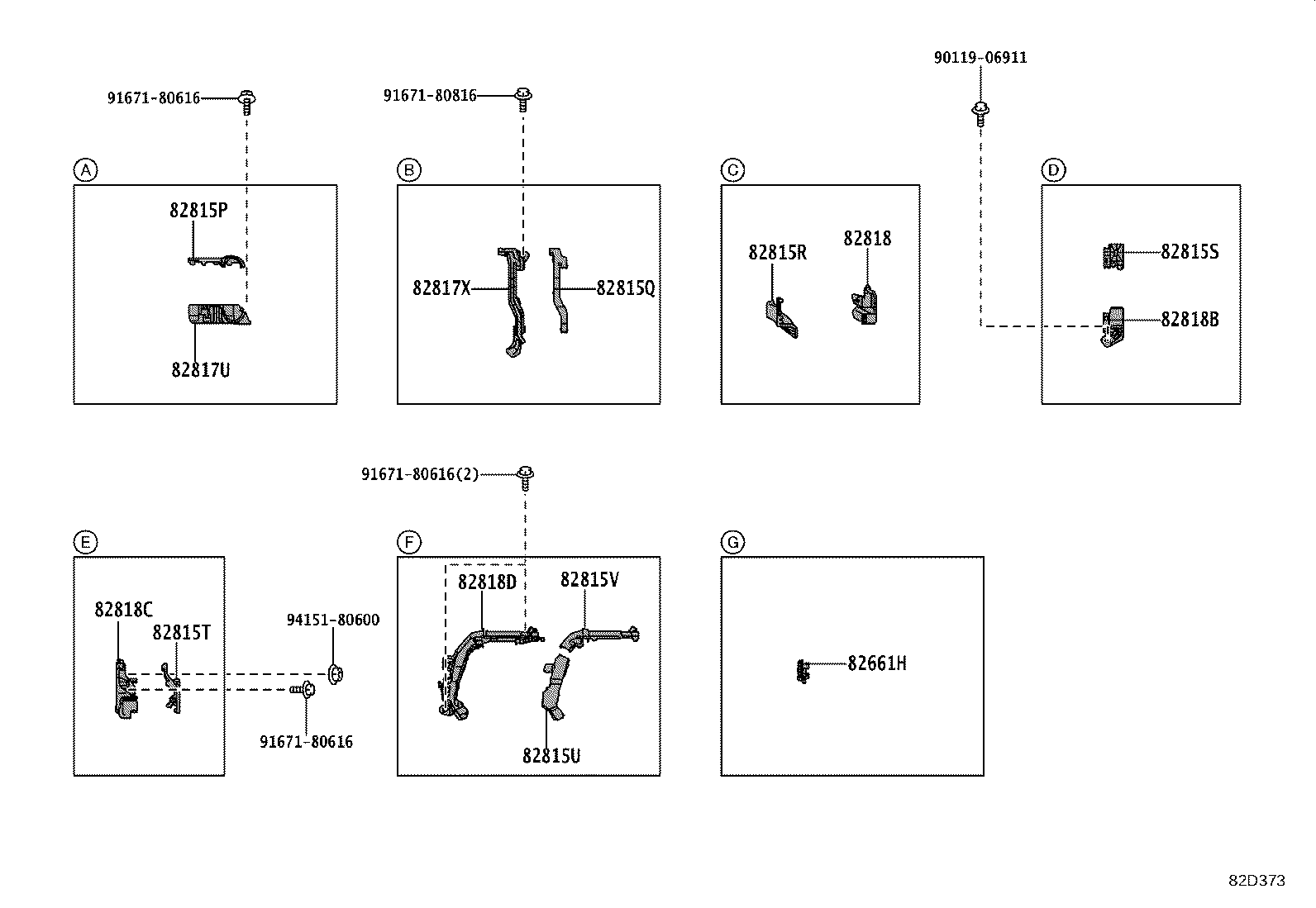

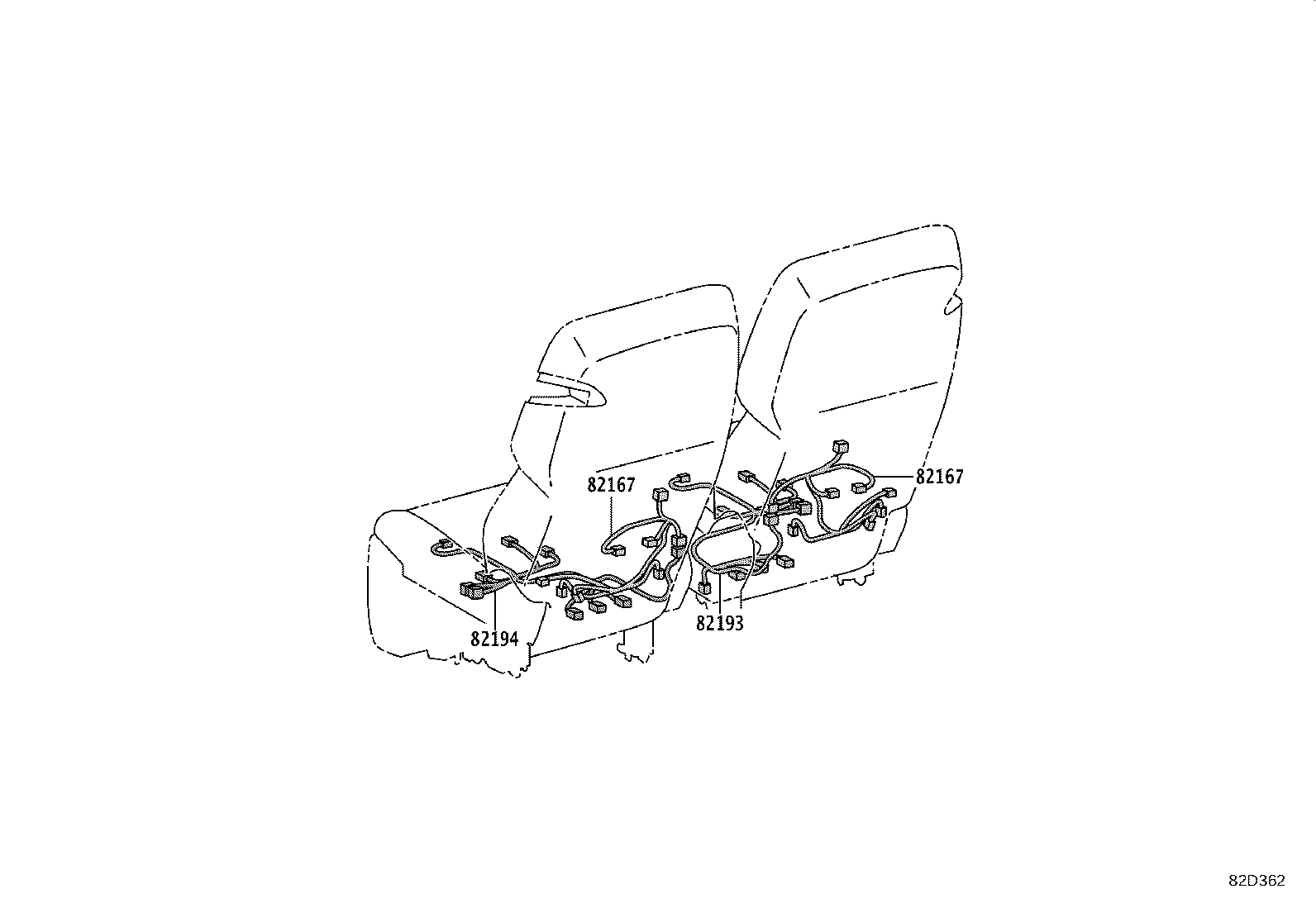

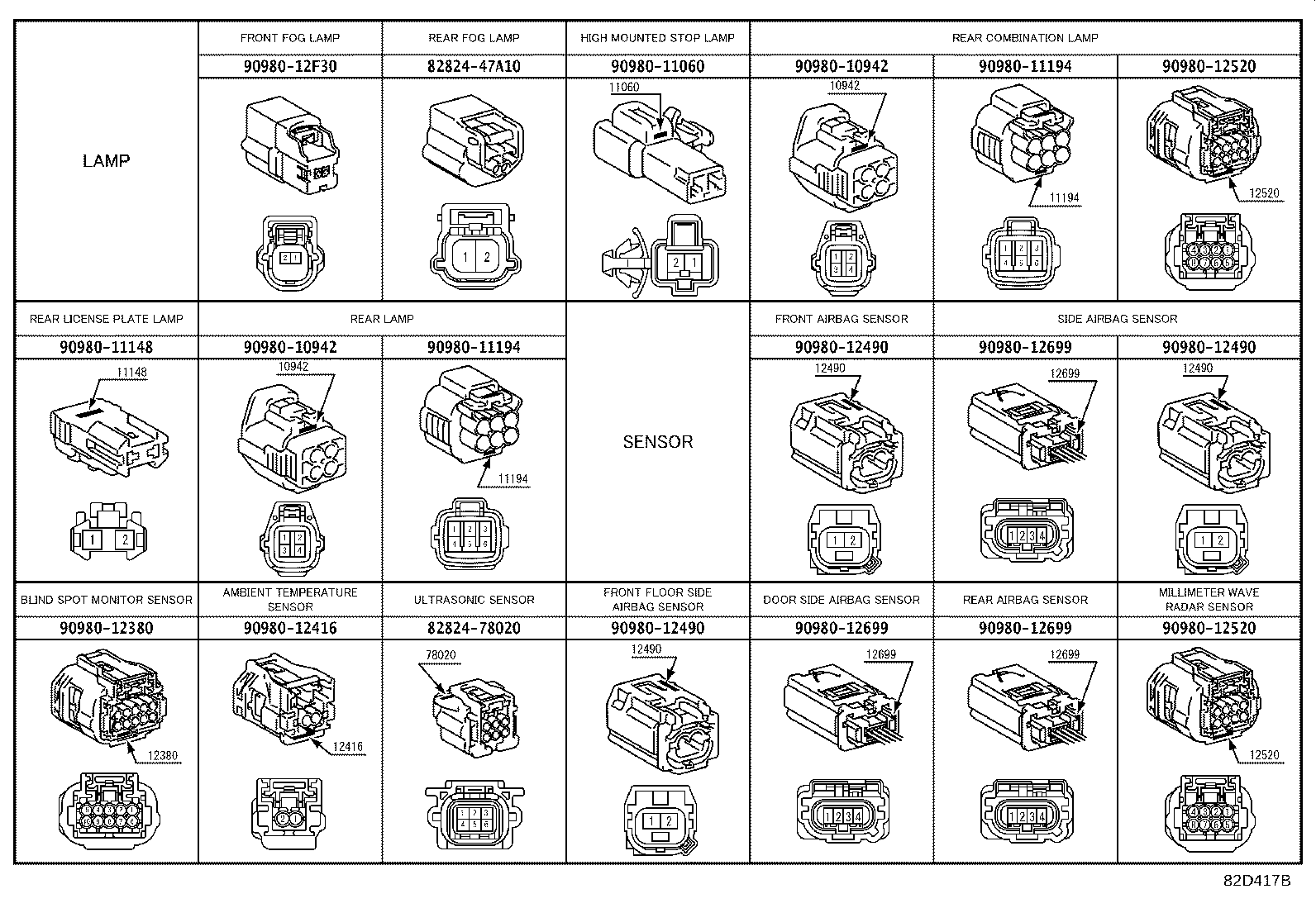

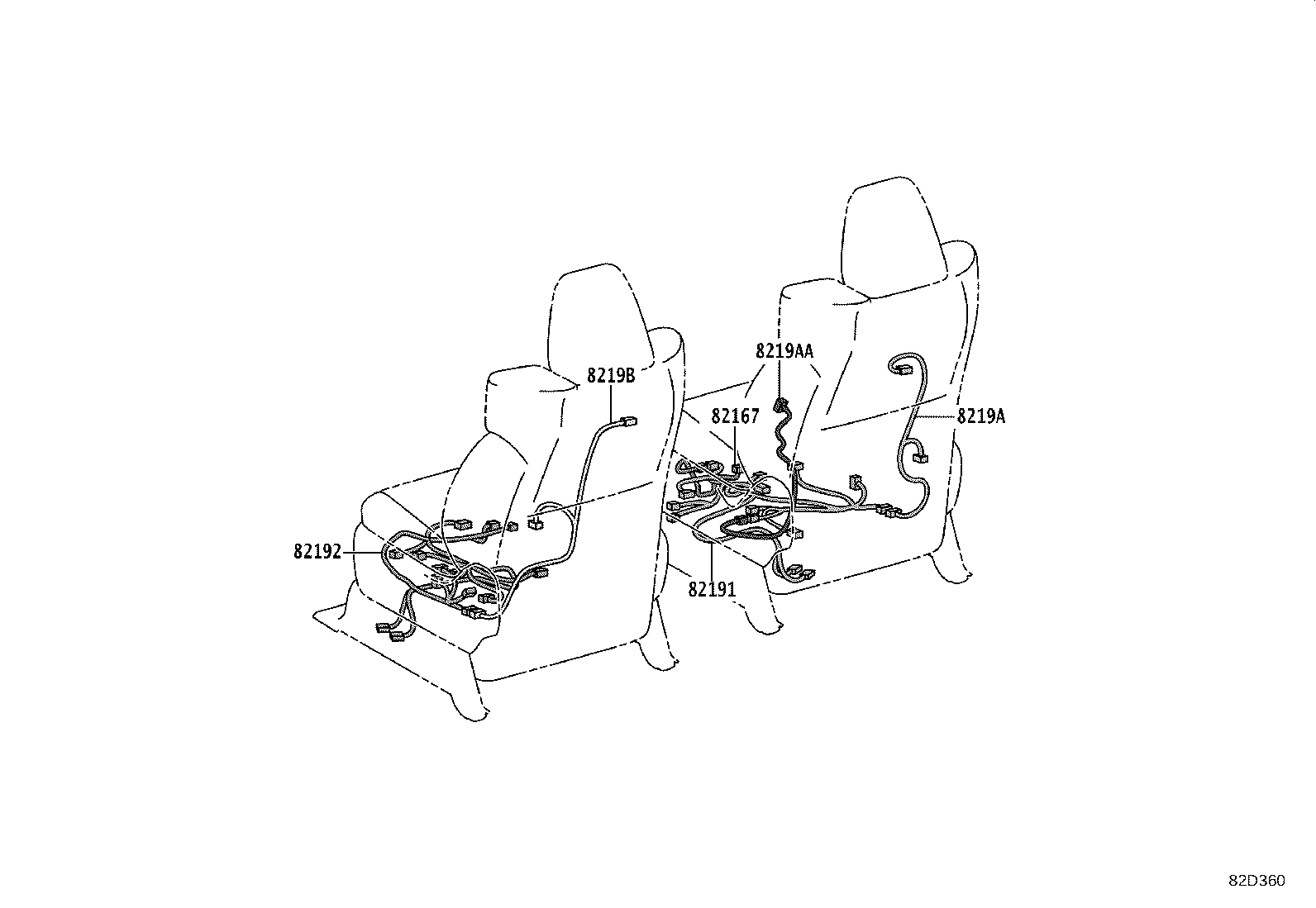

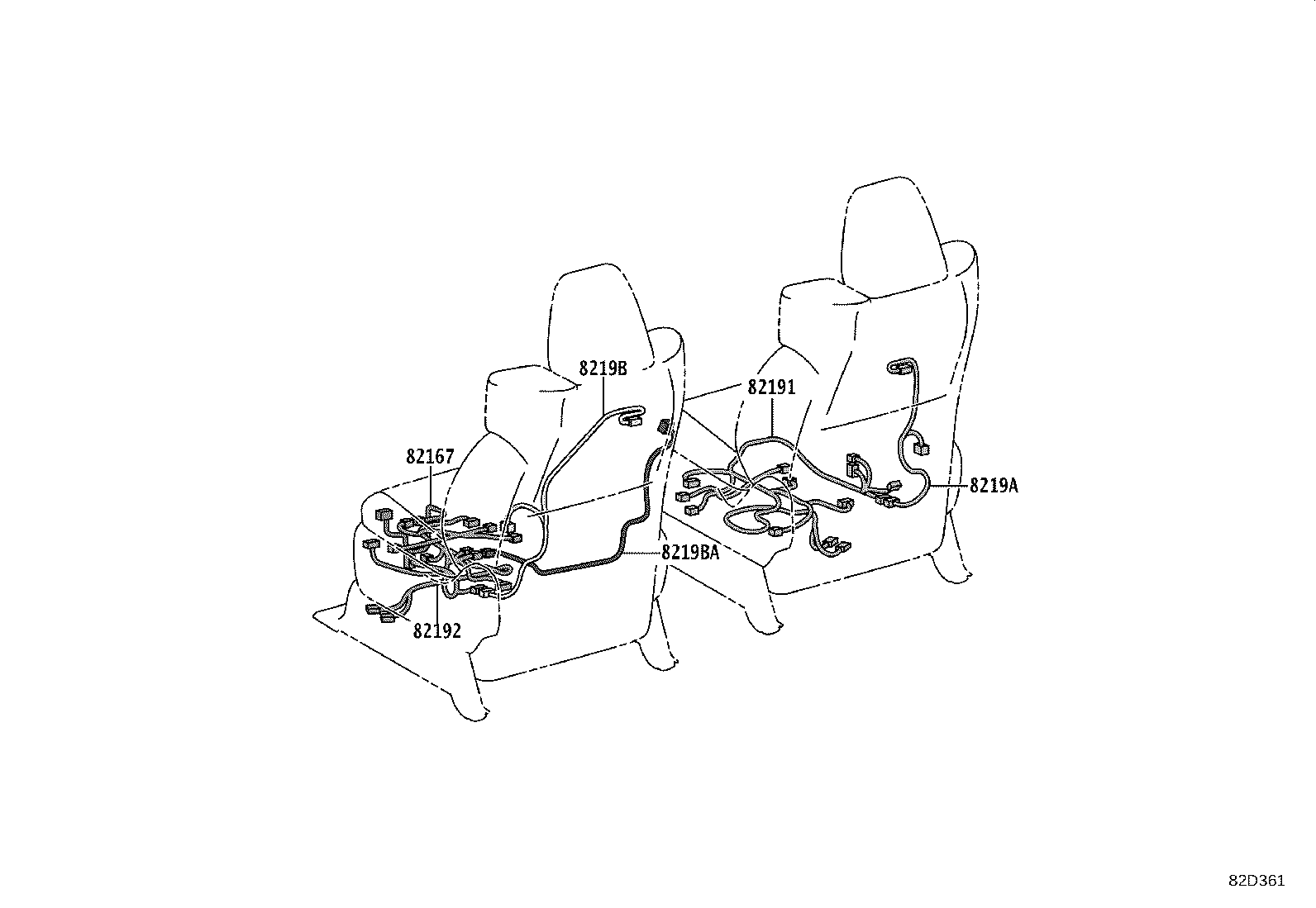

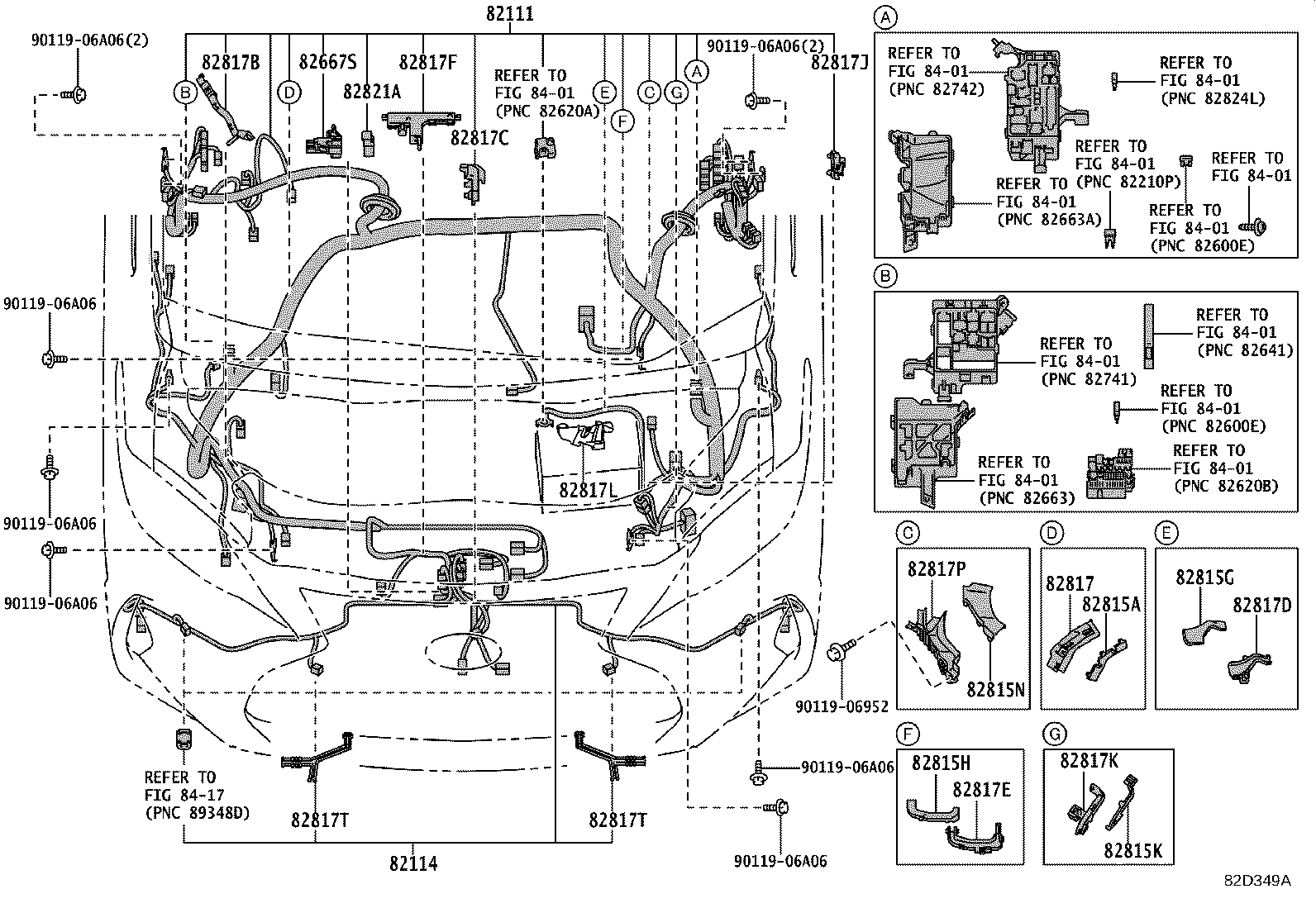

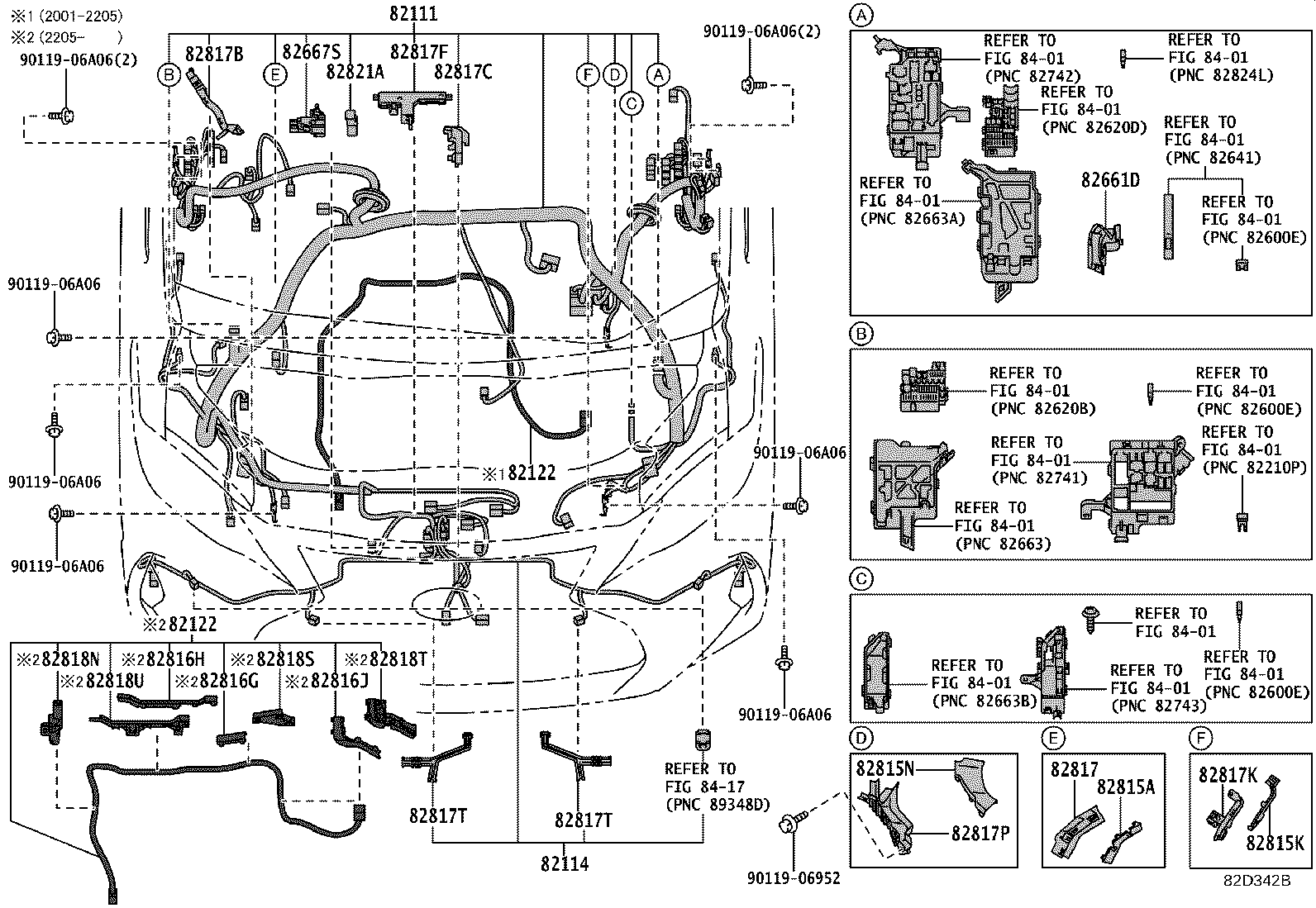

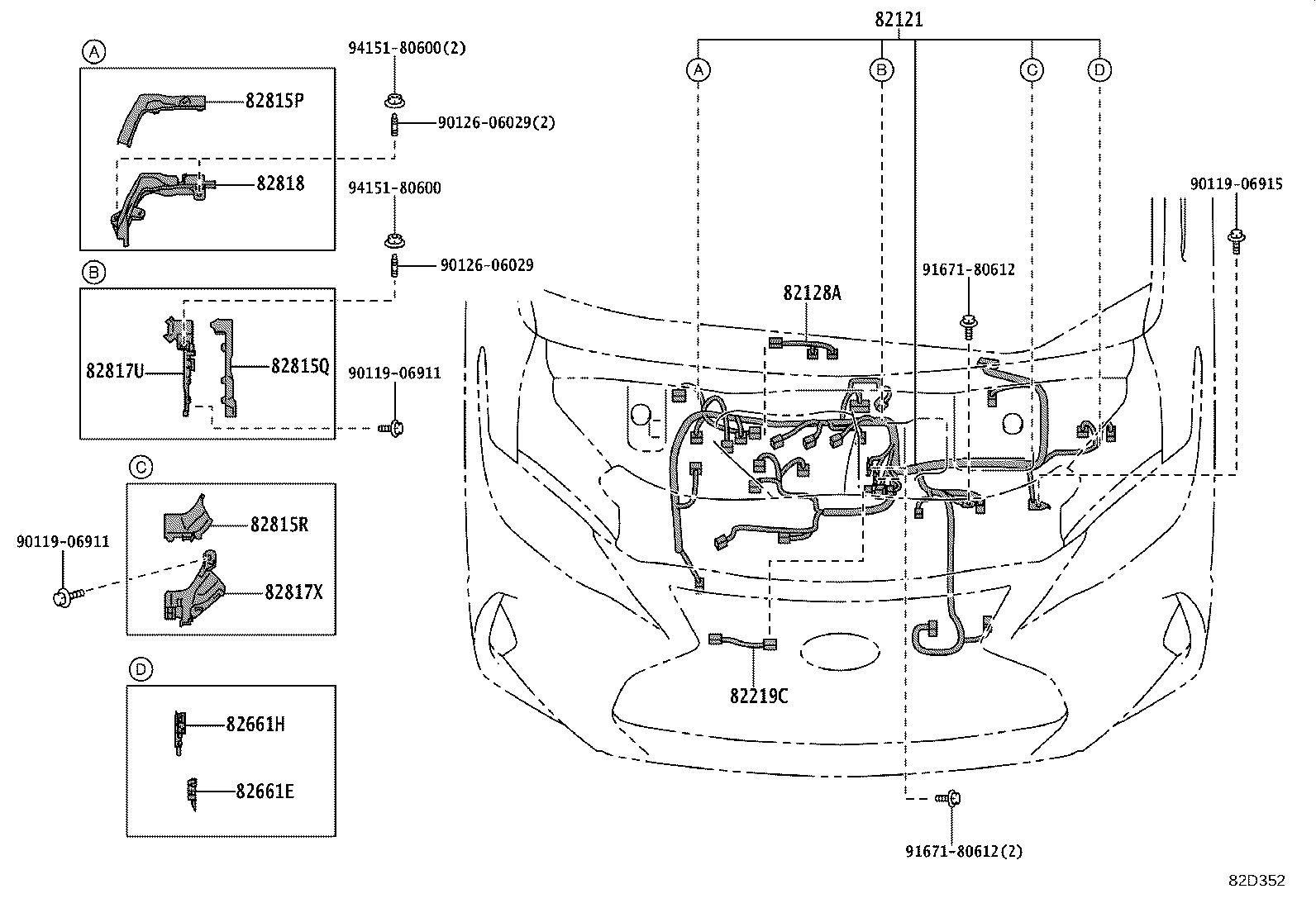

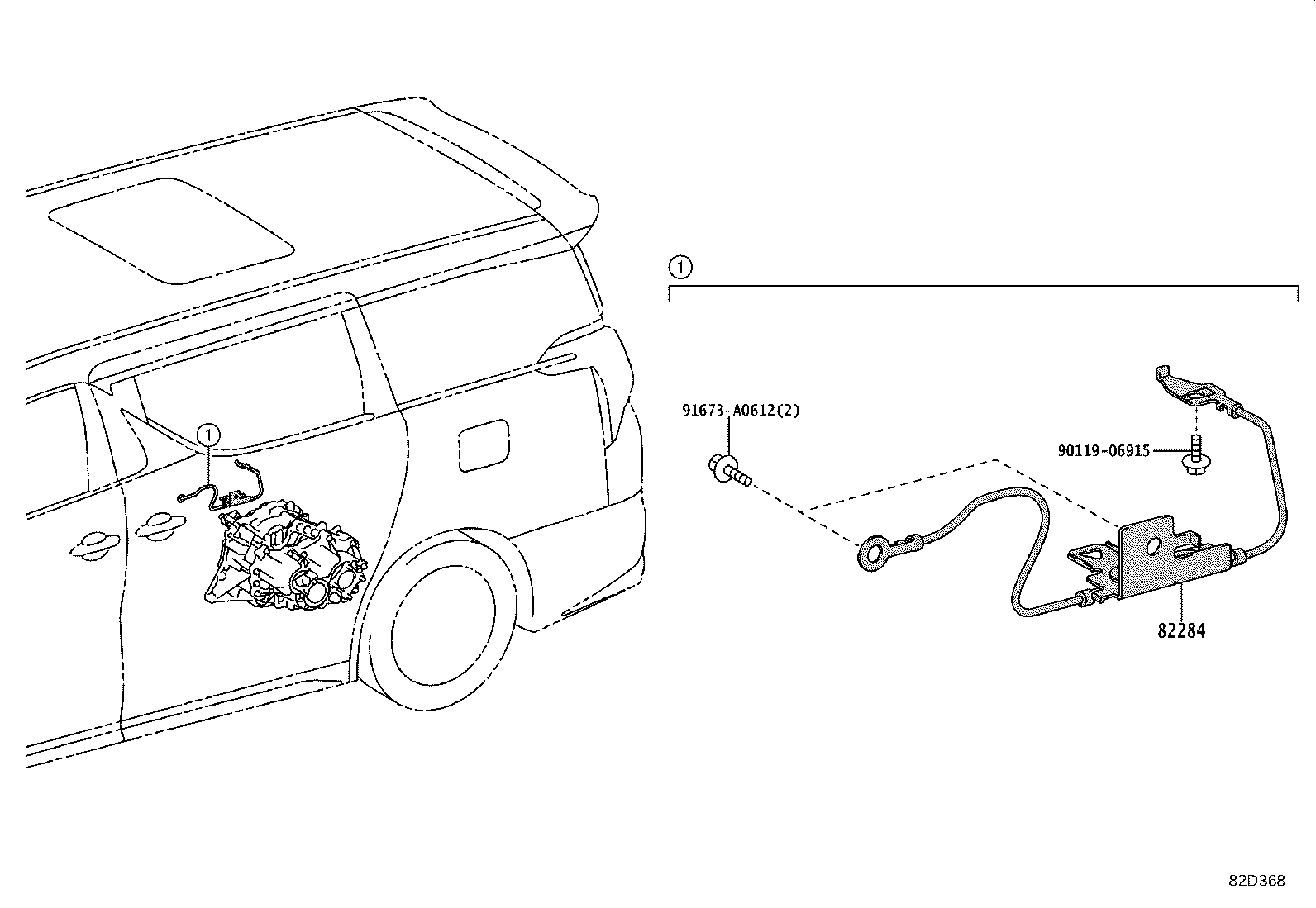

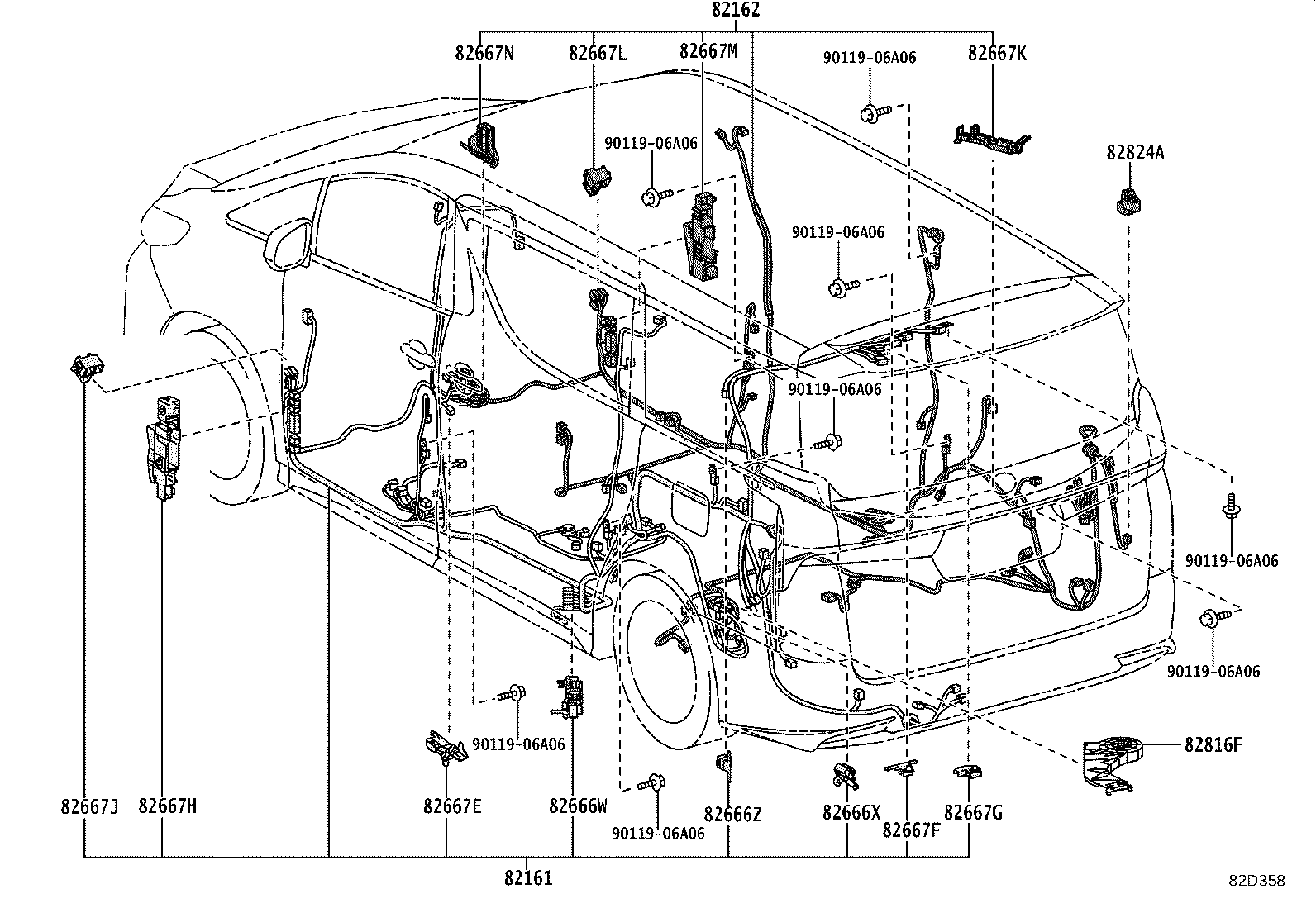

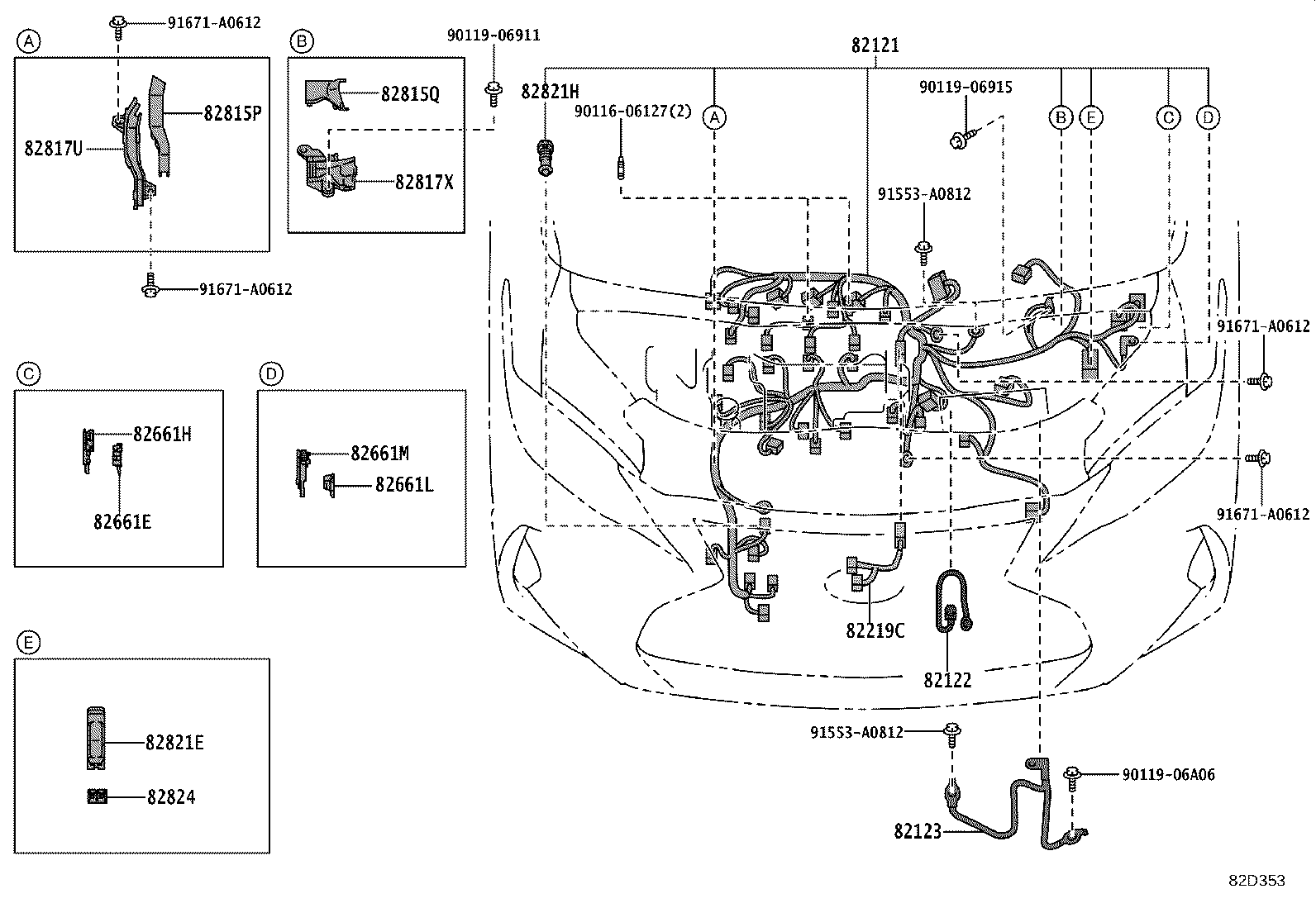

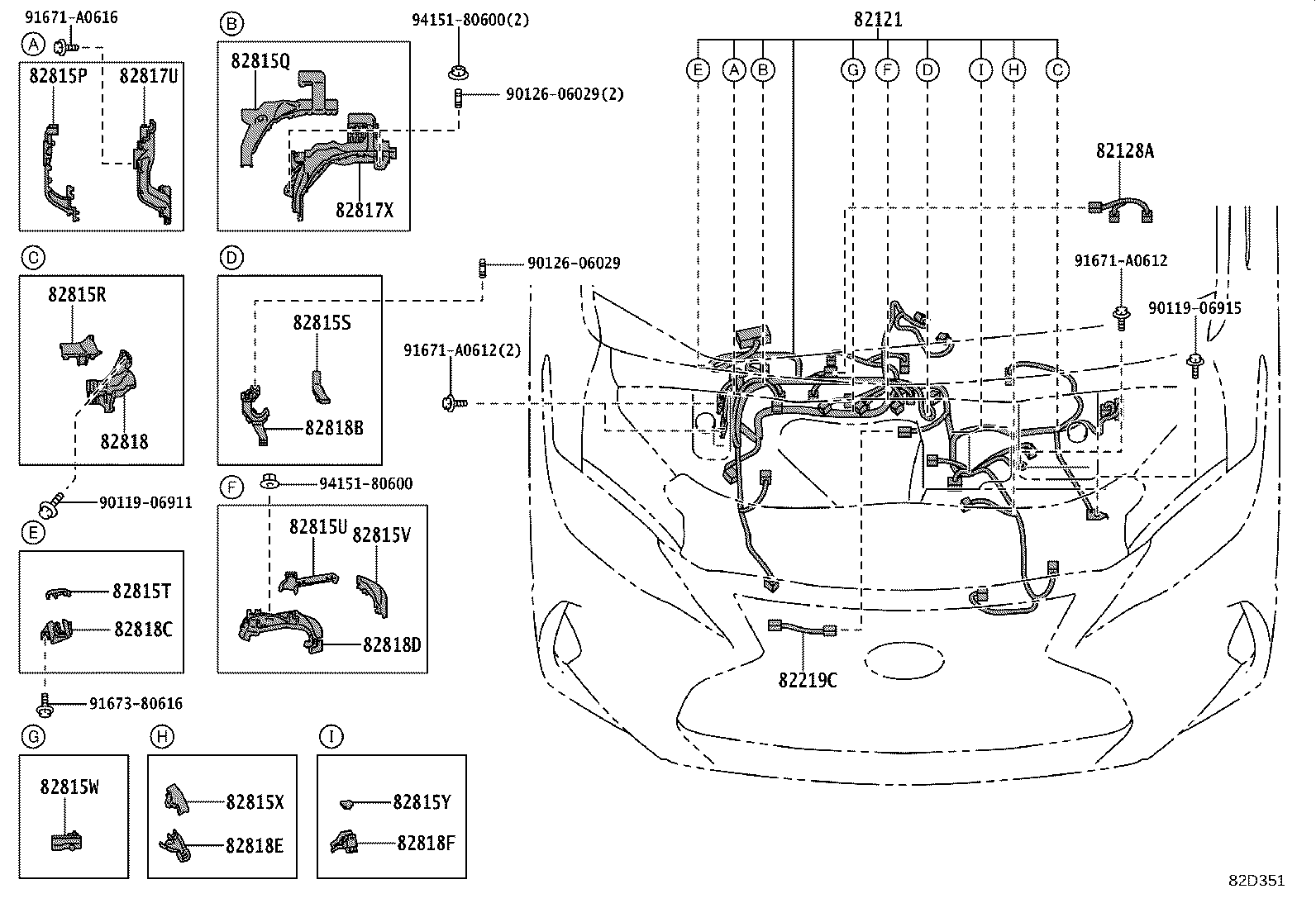

Figure 82D341A 82D341A 2020-01 → — Figure 82D342B 82D342B 2020-01 → — Figure 82D348A 82D348A 2020-01 → — Figure 82D349A 82D349A 2020-01 → — Figure 82D350A 82D350A 2020-01 → — Figure 82D351 82D351 2020-01 → — Figure 82D352 82D352 2020-01 → — Figure 82D353 82D353 2020-01 → — Figure 82D354 82D354 2020-01 → — Figure 82D373 82D373 2020-01 → — Figure 82D355A 82D355A 2020-01 → — Figure 82D356A 82D356A 2020-01 → — Figure 82D347A 82D347A 2020-01 → — Figure 82D358 82D358 2020-01 → — Figure 82D357C 82D357C 2020-02 → — Figure 82D359A 82D359A 2020-01 → — Figure 82D365A 82D365A 2020-01 → — Figure 82D366A 82D366A 2020-01 → — Figure 82D360 82D360 2020-01 → — Figure 82D361 82D361 2020-01 → — Figure 82D363 82D363 2020-01 → — Figure 82D362 82D362 2020-02 → — Figure 82D364 82D364 2020-01 → — Figure 82D374 82D374 2020-01 → — Figure 82D368 82D368 2020-01 → — Figure 82D417B 82D417B 2020-01 → — Figure 82E534A 82E534A 2020-01 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82134 Wire, Cowl, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
8216A Wire, Floor NO.7
8216B Wire, Floor NO.8
8216C Wire, Floor, NO.9
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82176 Wire, Rear Console Box
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82193B Wire, Rear Seat, NO.2
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219AA Wire, Front Seat, RH NO.3
8219B Wire, Front Seat, LH NO.2
8219BA Wire, Front Seat, LH NO.3
82219C Wire, Sensor
82219E Wire, Sensor
82223 Wire, Switch
82284 Wire, Earth
82342 Wire, Clock
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82508 Wiring Sub-assy, Rear Door, LH
82543C Wire, Power Window
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82661L Cover, Relay Block, NO.2
82661M Cover, Relay Block, NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82667F Holder, Connector, NO.21
82667G Holder, Connector, NO.22
82667H Holder, Connector, NO.23
82667J Holder, Connector, NO.24
82667K Holder, Connector, NO.25
82667L Holder, Connector, NO.26
82667M Holder, Connector, NO.27
82667N Holder, Connector, NO.28
82667R Holder, Connector, NO.29
82667S Holder, Connector, NO.30
82667T Holder, Connector, NO.31
82667U Holder, Connector, NO.32
82667V Holder, Connector, NO.33
82667W Holder, Connector, NO.34
82667X Holder, Connector, NO.35
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82712D Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82F66A Holder, Connector, NO.38
82F66B Holder, Connector, NO.39
82F66C Holder, Connector, NO.40
82F66D Holder, Connector, NO.41
86842F Wire, Navigation
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G9221C Cover, Inverter, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
