Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

150 part groups · 20 illustrations

Illustrations

Part groups

PNC	Description

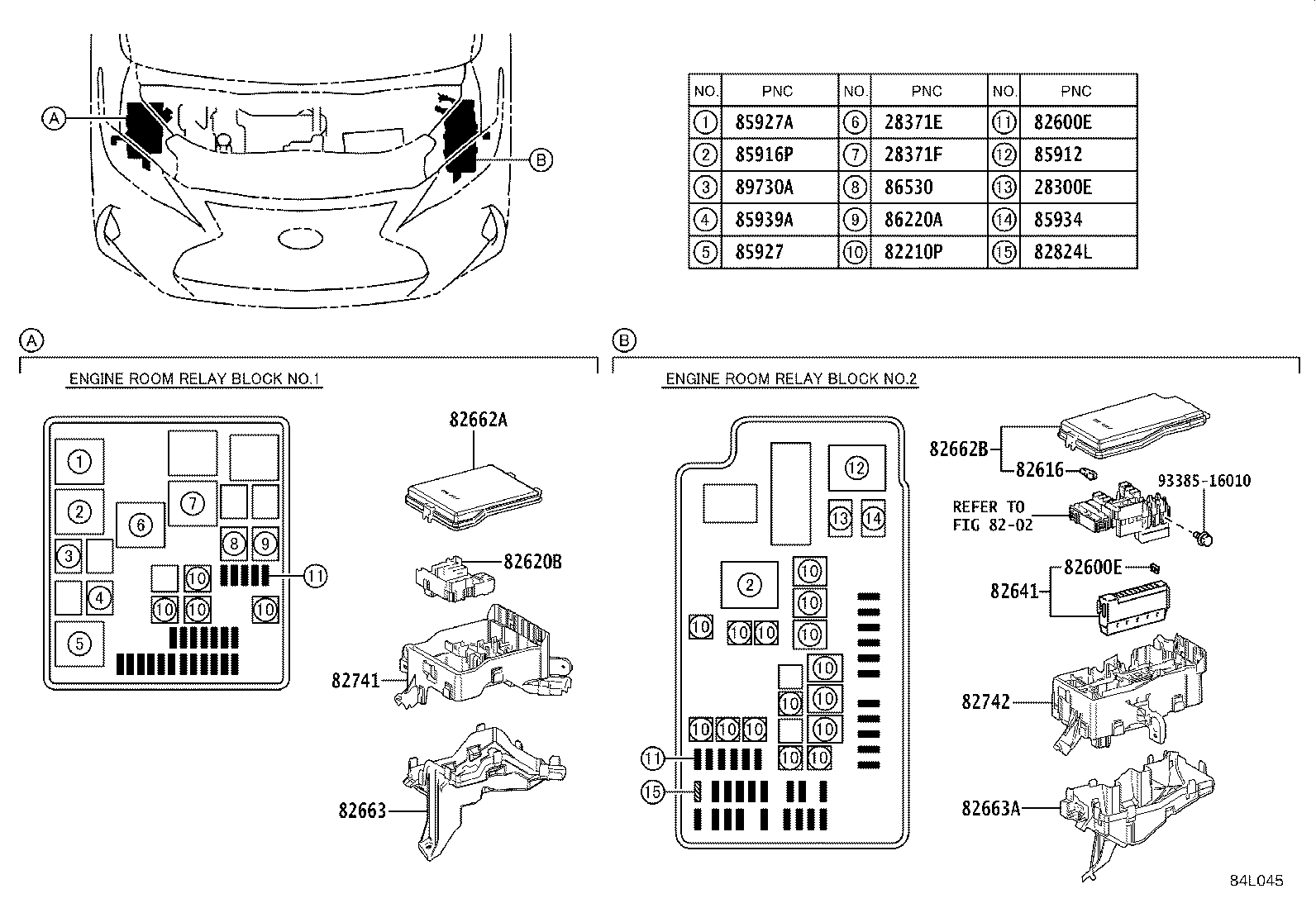

28300E	Relay Assy, Starter, NO.1
28300F	Relay Assy, Starter, NO.2

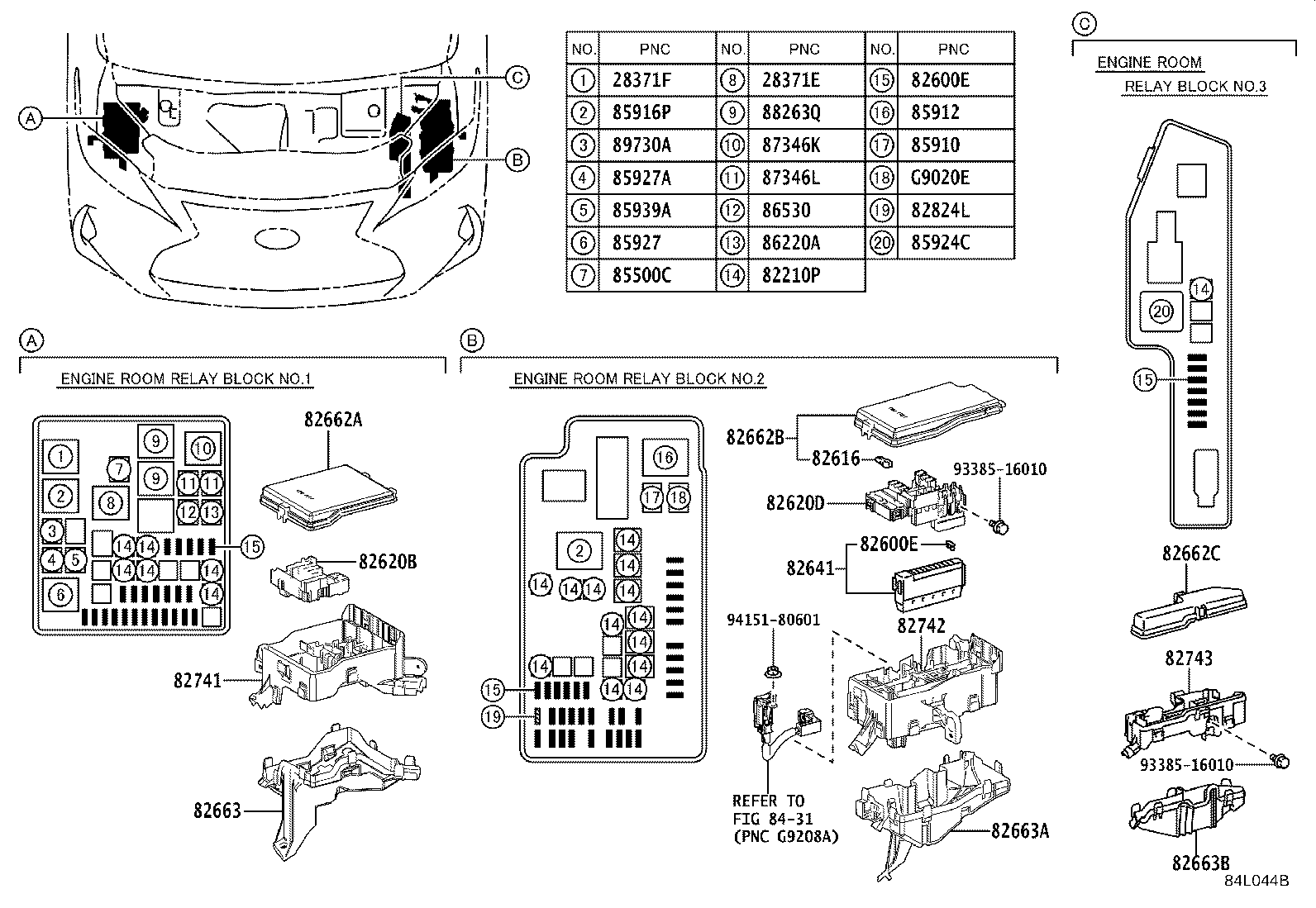

28371C	Relay, Ignition, NO.2
28371E	Relay, Ignition, NO.4
28371F	Relay, Ignition, NO.5

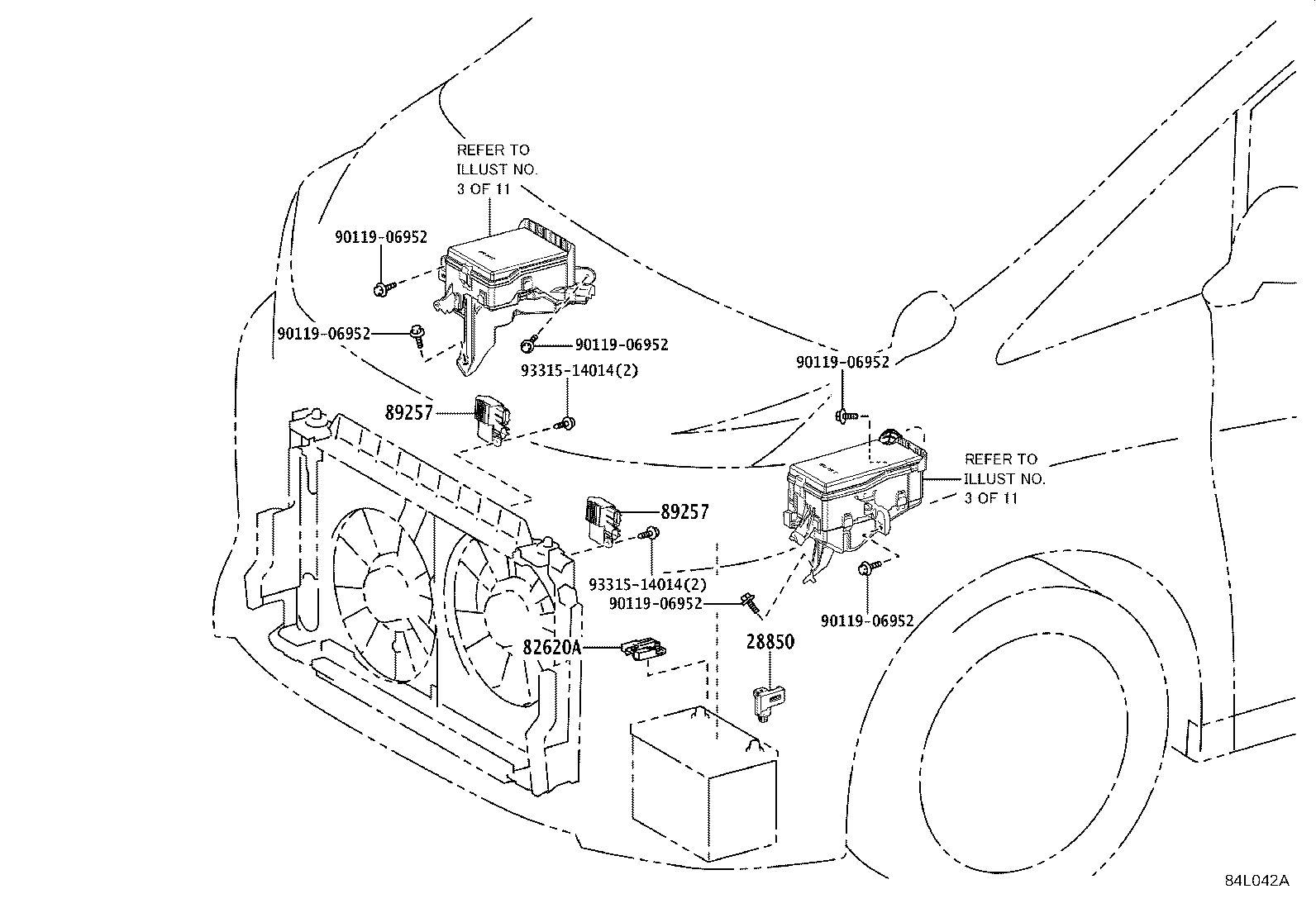

28850	Sensor Assy, Battery Current
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor

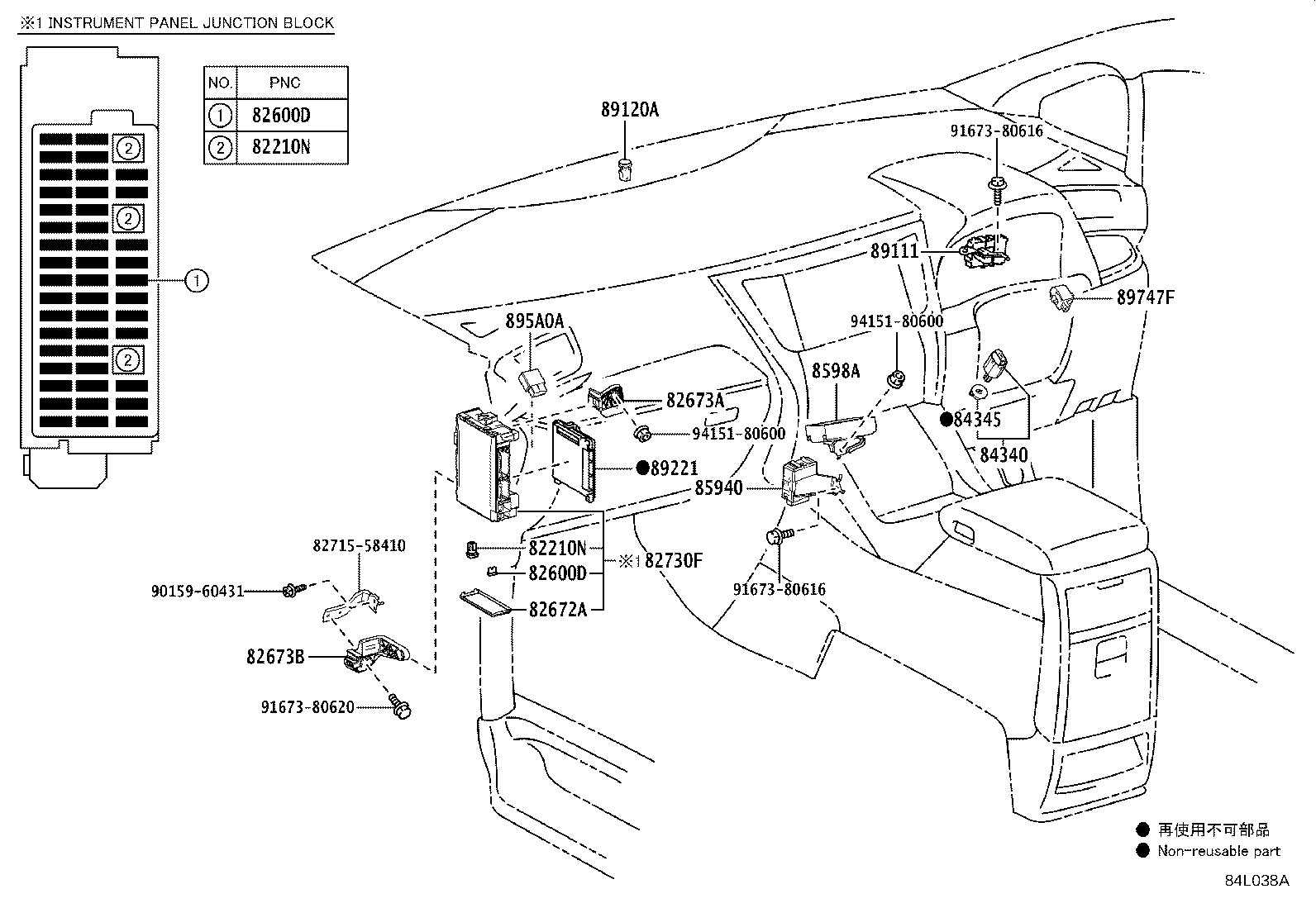

82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link

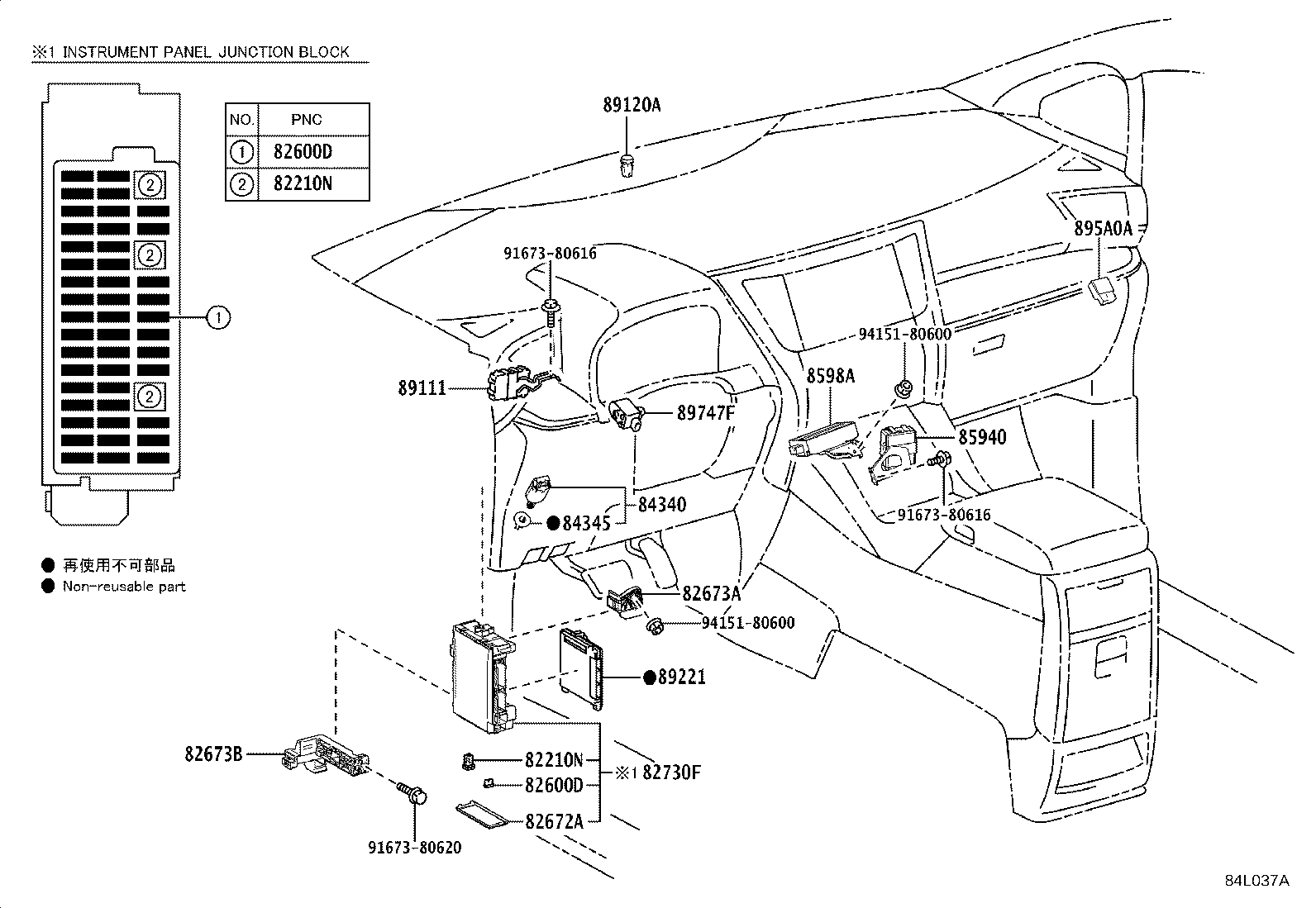

82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82616	Puller, Fuse

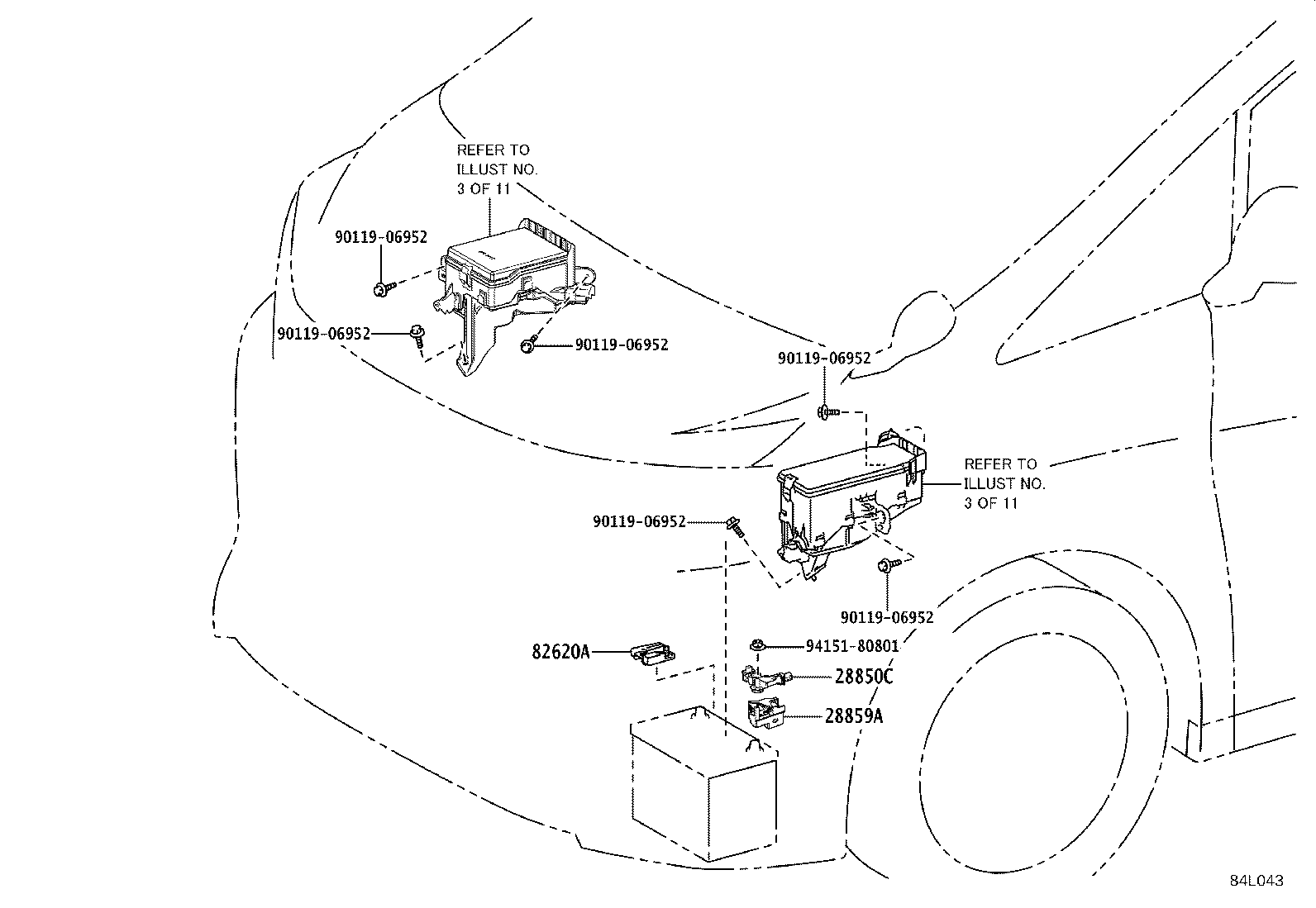

82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link

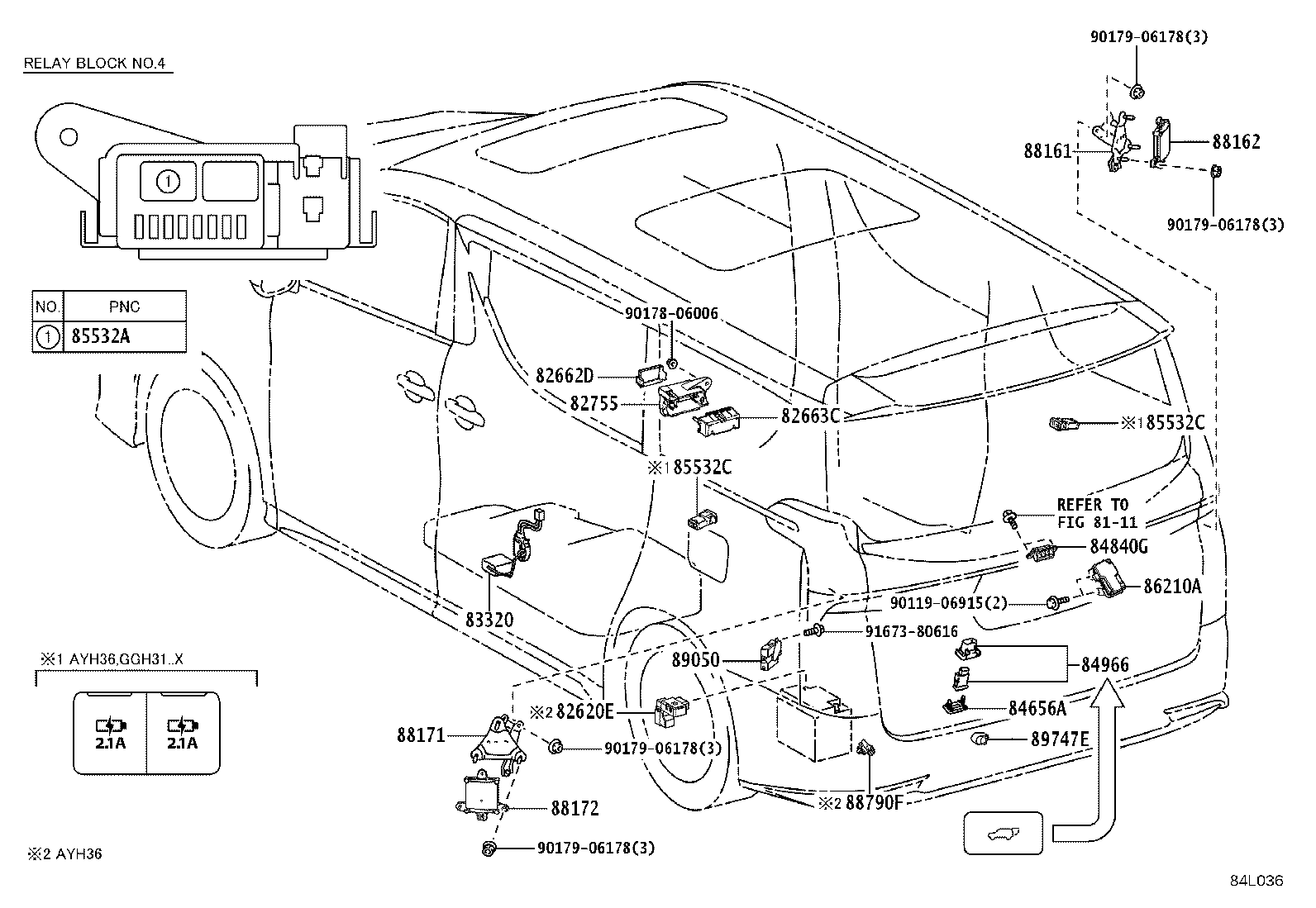

82620E	Block Assy, Fusible Link
82641	Relay, Integration NO.1
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662D	Cover, Relay Block, Upper, NO.4
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663C	Cover, Relay Block Lower, NO.4
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82715	Bracket,Wiring Harness Clamp
82730F	Block Assy, Junction, LH

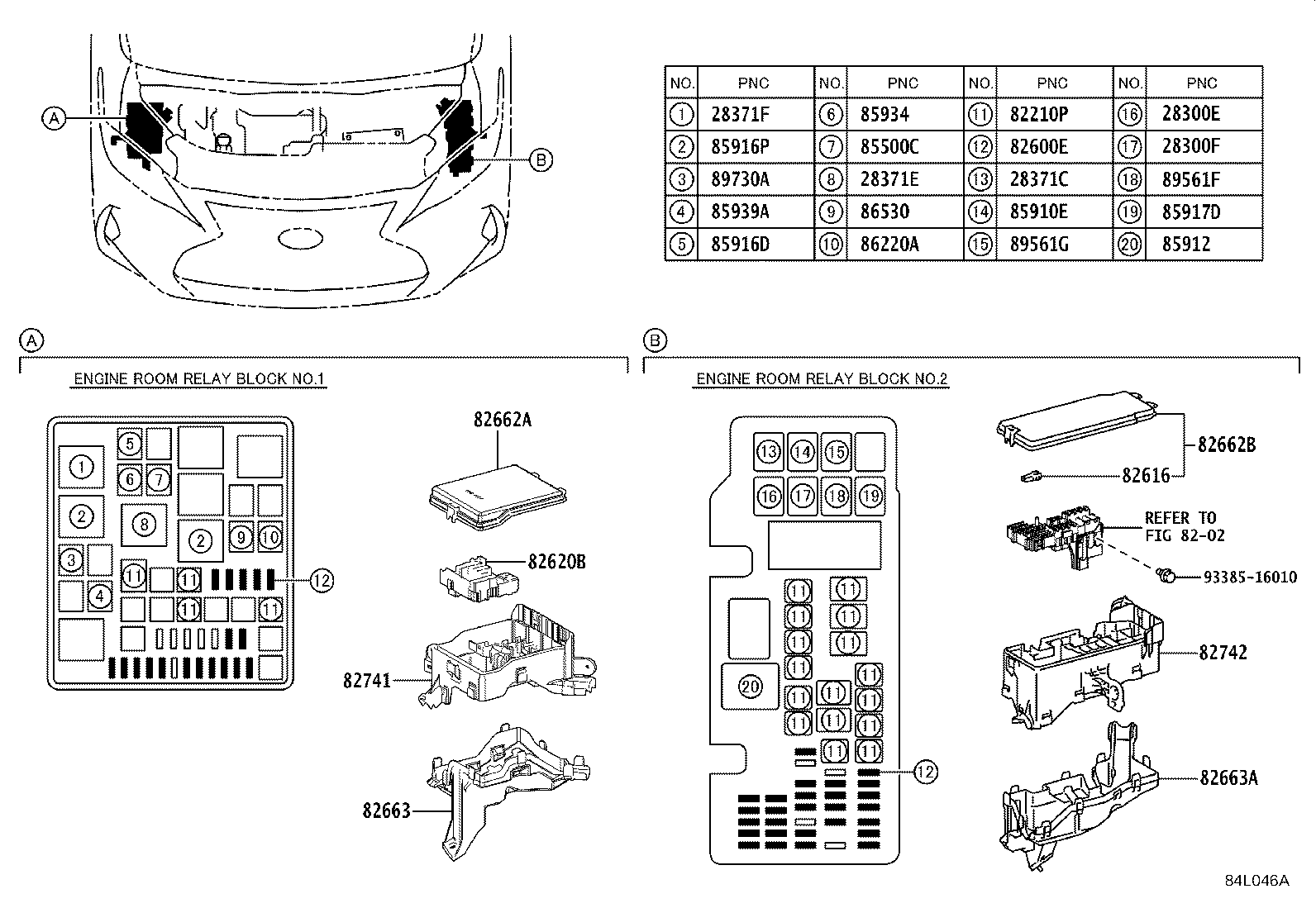

82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82743	Block, Engine Room Relay, NO.3
82755	Block, Center Relay
82824L	Pin, Short
83320	Gage Assy, Fuel Sender

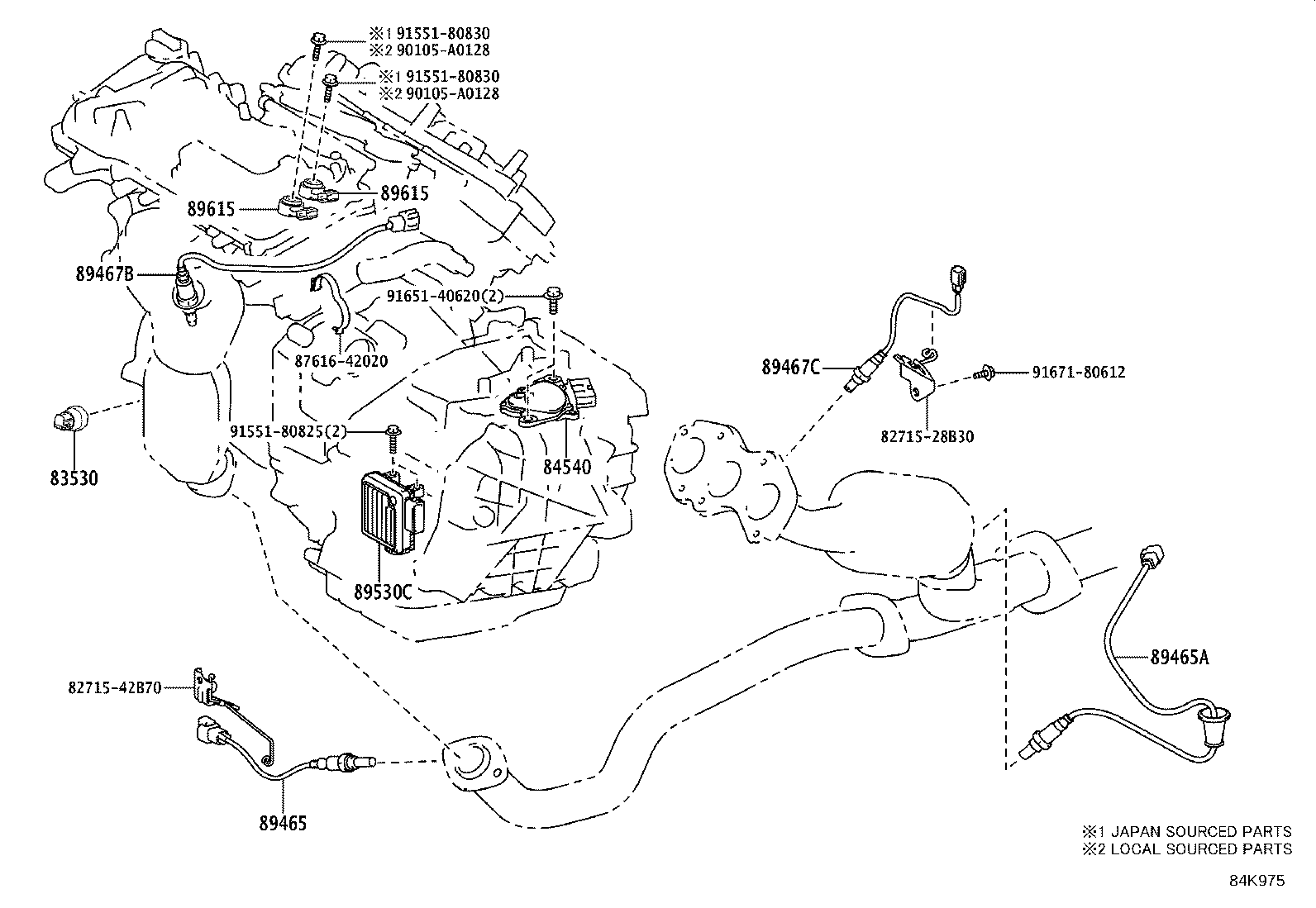

83530	Switch Assy, Oil Pressure (FOR ENGINE)
83910G	Clock Assy

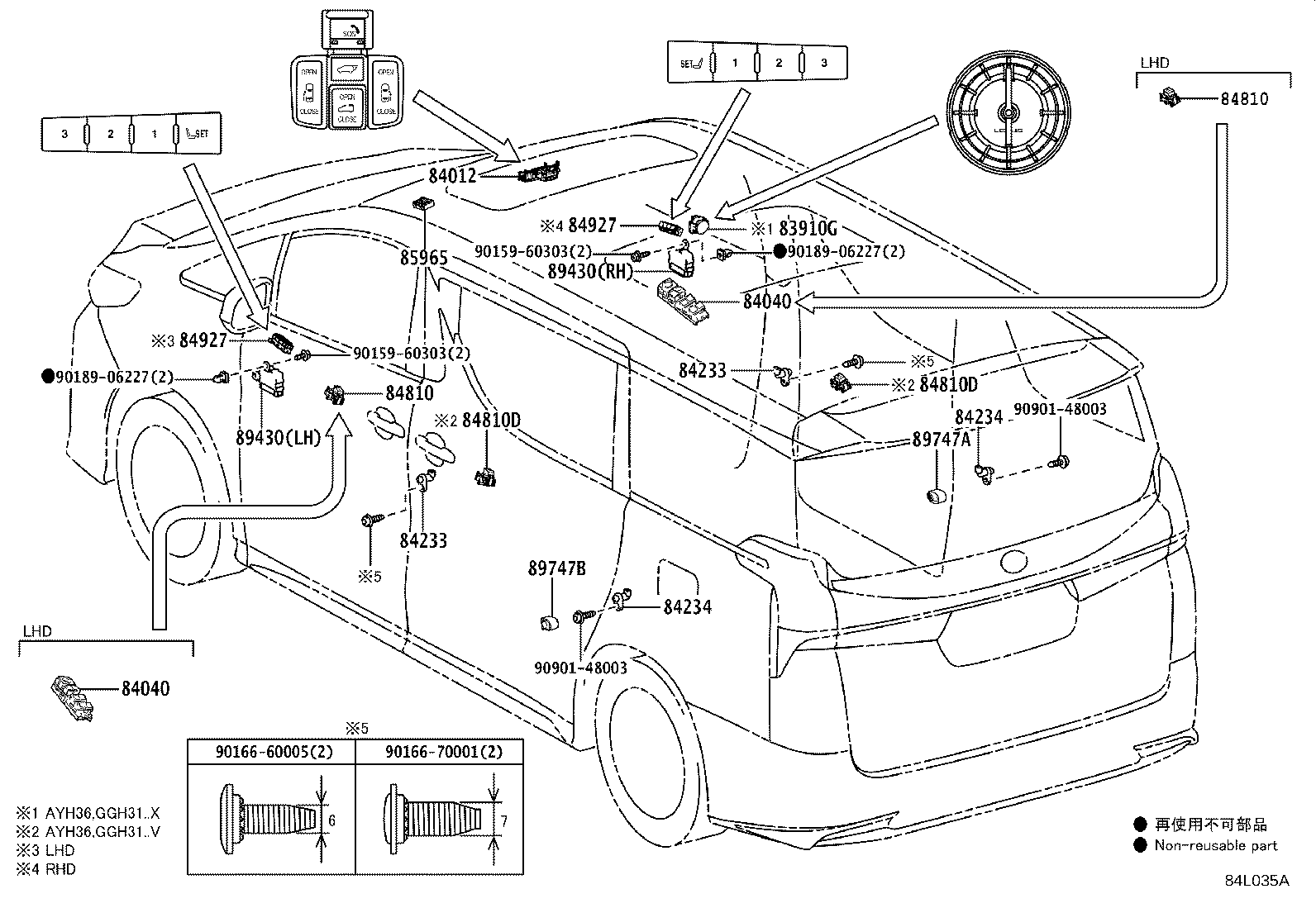

84012	Control & Panel Sub-assy, Integration
84040	Master Switch Assy,Multiplex Network
84140	Switch Assy, Headlamp Dimmer

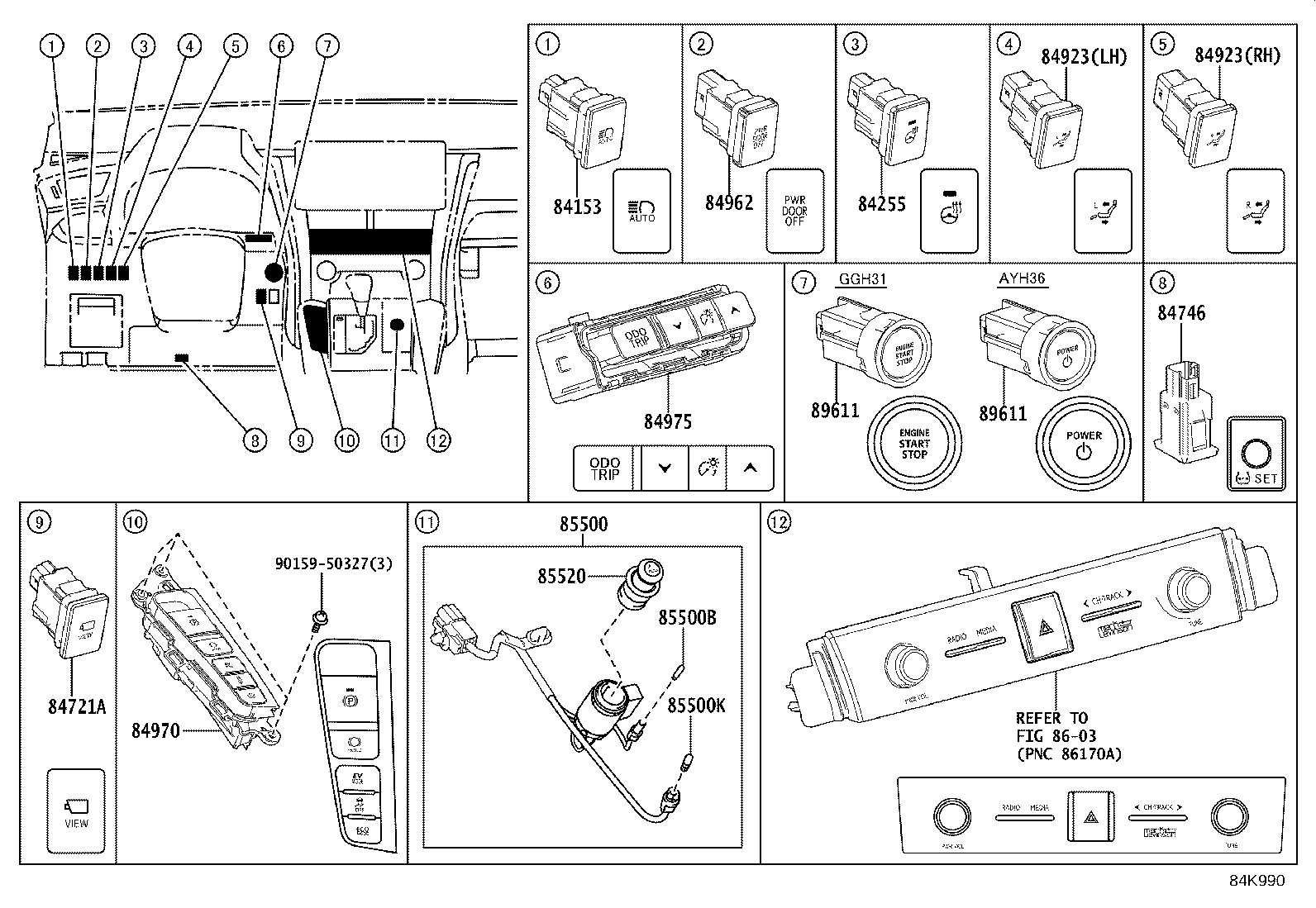

84153	Switch, Auto High Beam
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84255	Switch, Steering Heater
84306	Cable Sub-assy, Spiral
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84523	Wire, Switch NO.1
84540	Switch Assy, Neutral Start
84610F	Switch Assy, Transmission Shift
84650	Switch Assy, Windshield Wiper
84656A	Bezel, Switch
84721A	Switch, Front Wide View
84746	Switch, Tire Pressure Warning

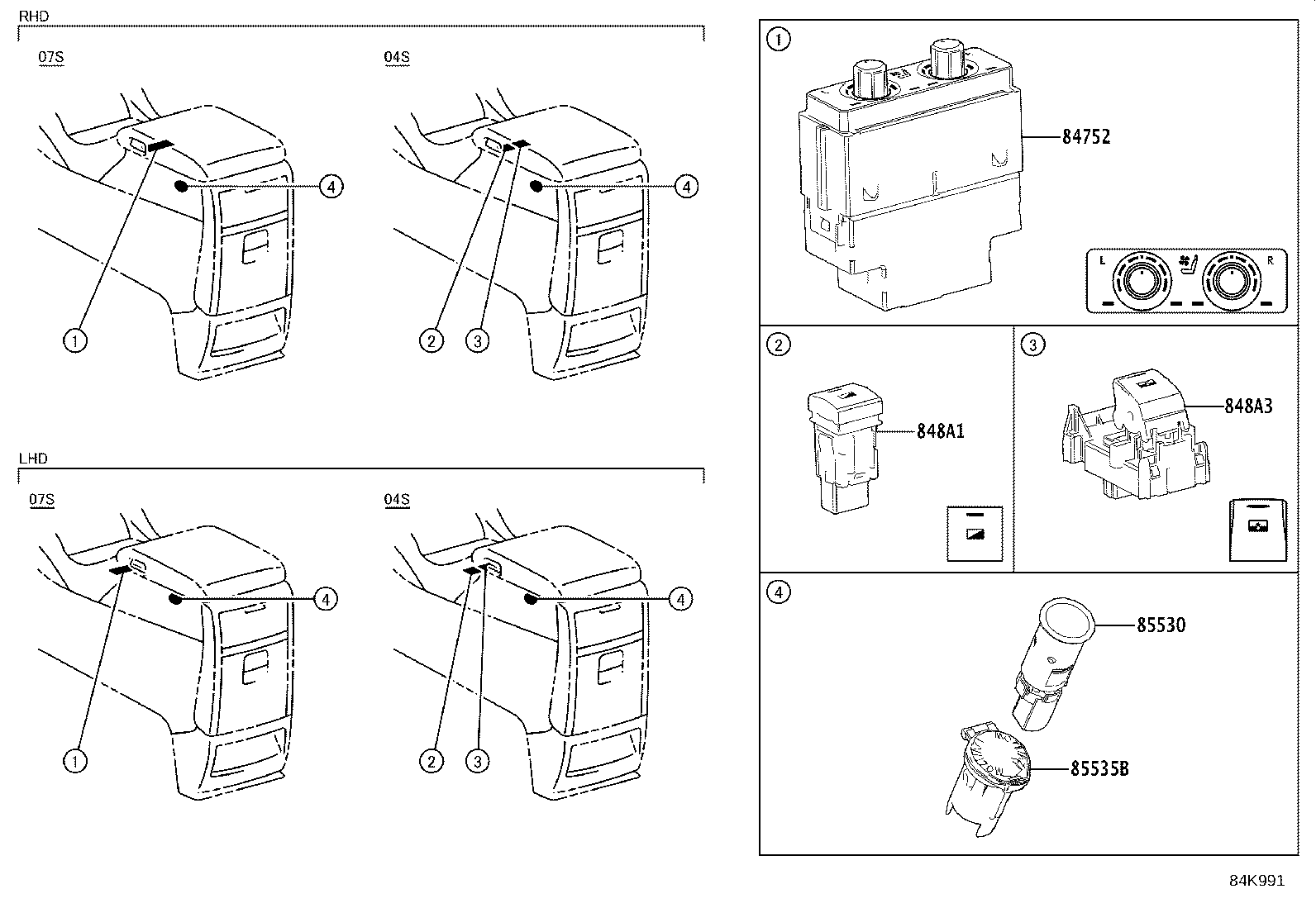

84752	Switch, Refreshing Seat
84810	Switch Assy, Power Window Regulator

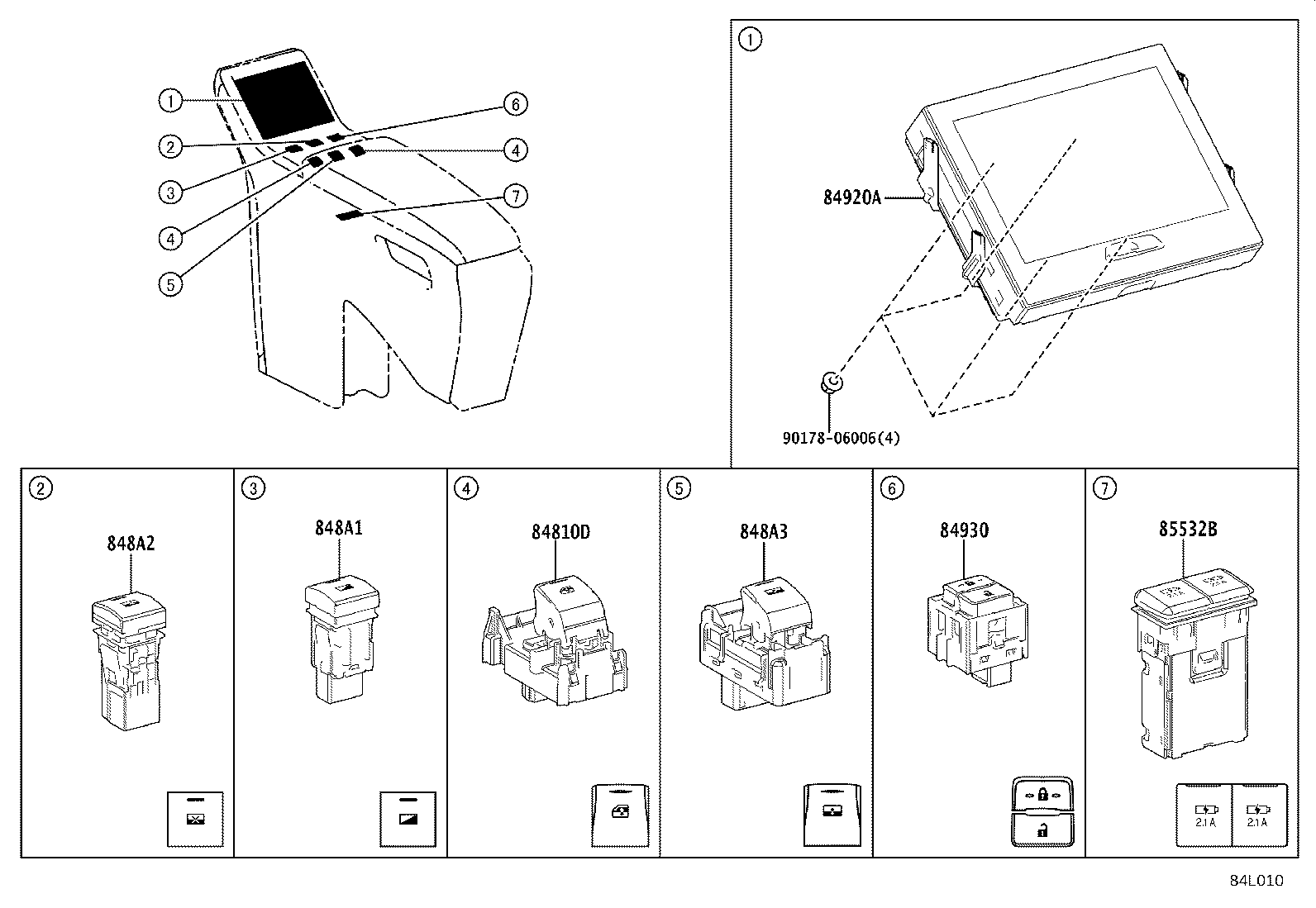

84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
848A1	Switch, Partition Light Dimmer
848A2	Switch, Partition Lift Lock
848A3	Switch, Partition Lift Control
84920A	Switch Assy, Multi-operation Panel

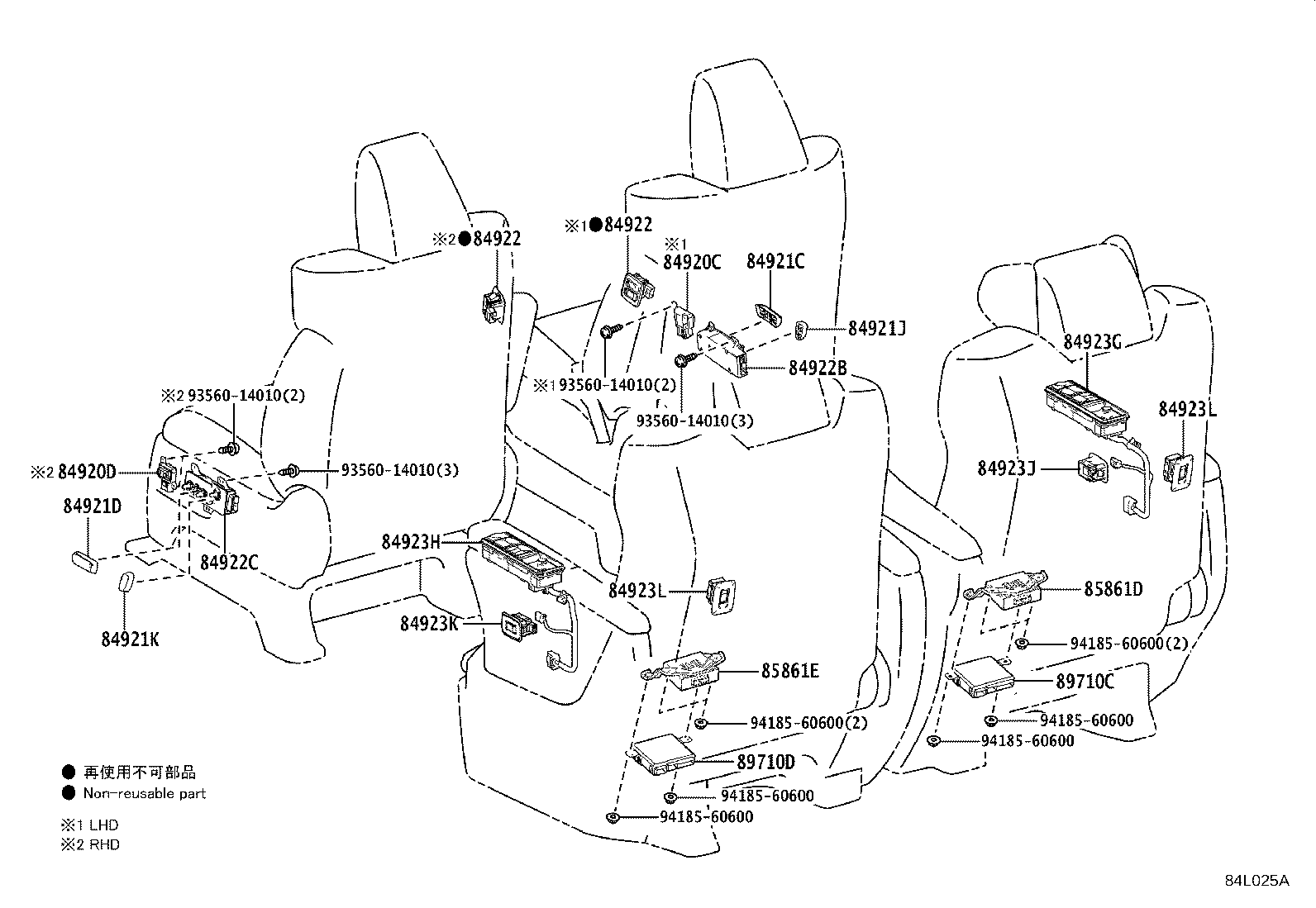

84920C	Switch Assy, Power Seat Front, RH
84920D	Switch Assy, Power Seat Front, LH
84921C	Knob, Power Seat Switch, RH
84921D	Knob, Power Seat Switch, LH
84921J	Knob, Power Seat Switch, RH
84921K	Knob, Power Seat Switch, LH
84922	Switch, Front Power Seat
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84923	Switch, Rear Power Seat

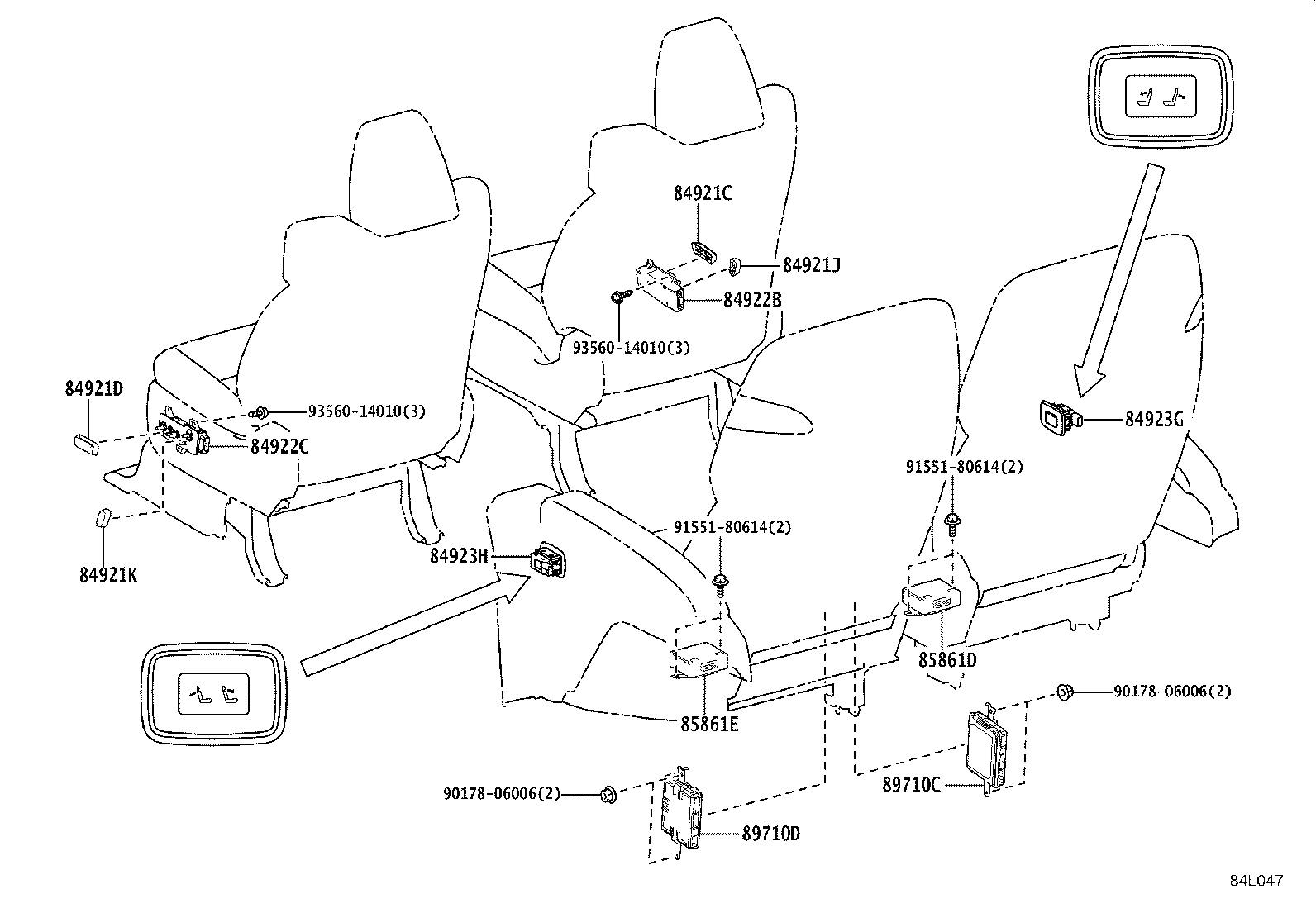

84923G	Switch, Rear Power Seat, NO.1, RH
84923H	Switch, Rear Power Seat, NO.1, LH
84923J	Switch, Rear Power Seat, NO.2, RH
84923K	Switch, Rear Power Seat, NO.2, LH
84923L	Switch, Rear Power Seat, NO.3
84927	Switch, Seat Memory
84930	Switch Assy, Door Control
84962	Switch, Power Slide Door Main
84966	Switch, Power Back Door Control

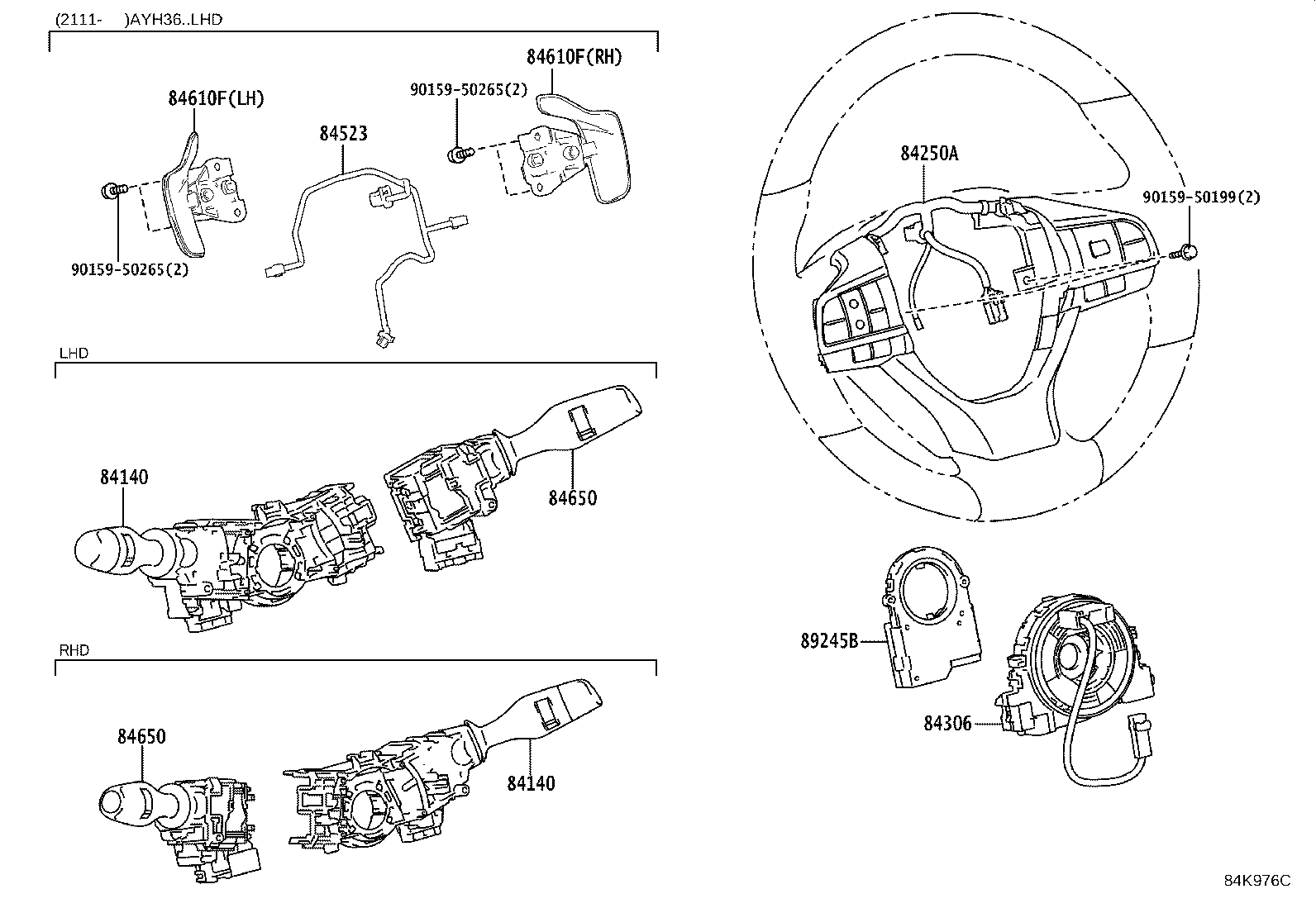

84970	Switch Assy, Combination

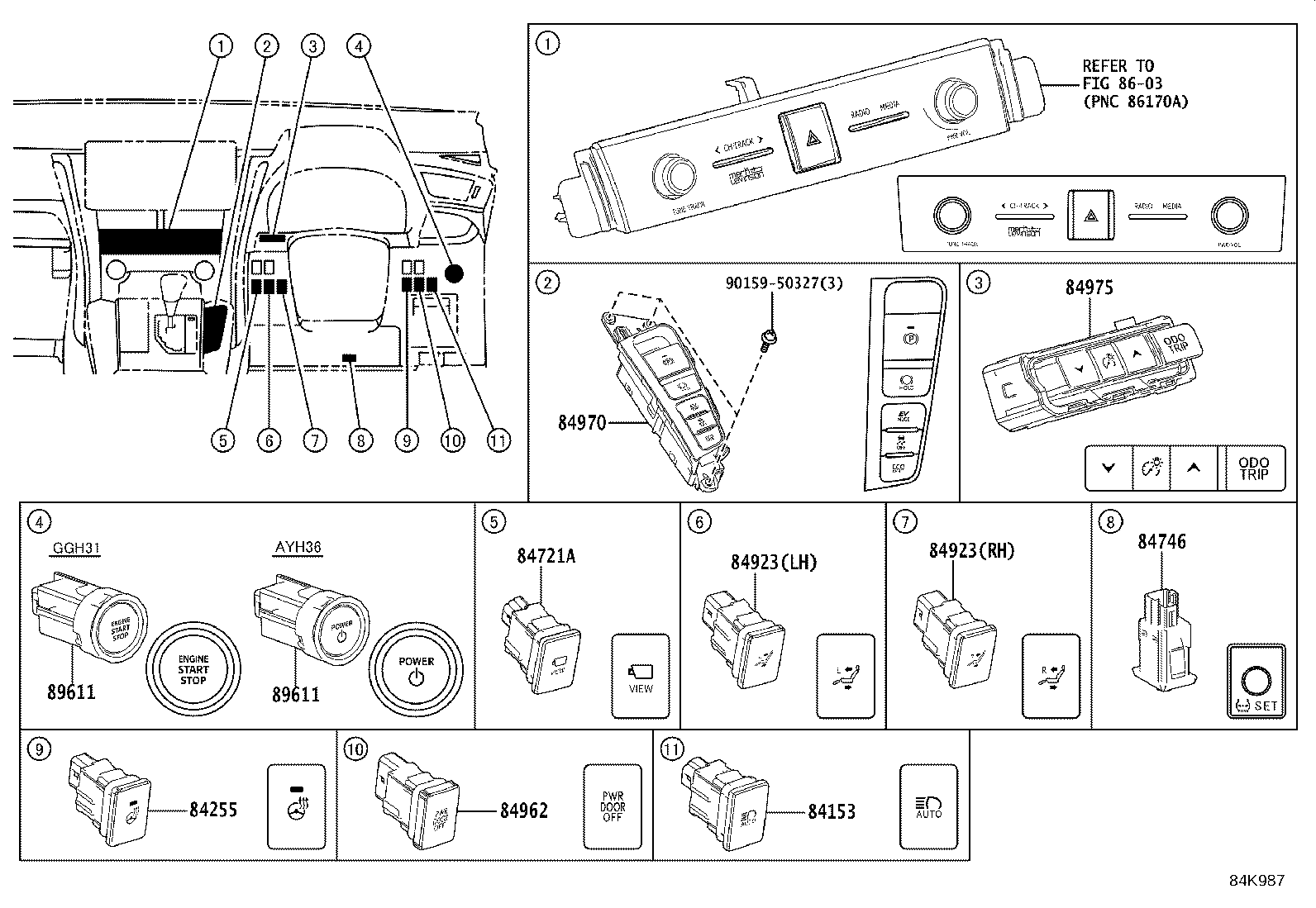

84975	Switch, Trip
85500	Lighter Assy, Cigarette
85500B	Bulb, Cigarette Lighter
85500C	Relay, Cigarette Lighter
85500K	Bulb,Ash Receptacle Lamp
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85532A	Relay, Usb
85532B	Socket, Usb Charger
85532C	Socket, Usb Charger, NO.2
85535B	Cover, Power Outlet Socket, NO.1
85861D	Computer, Seat Climate Control, Rear RH
85861E	Computer, Seat Climate Control, Rear LH
85910	Relay Assy, Circuit Opening
85910E	Relay, Injector
85912	Relay, Defogger
85916D	Relay, Fog Lamp
85916P	Relay, Headlamp
85917D	Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85924C	Relay, Igct
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85934	Relay, Magnet-clutch
85939A	Relay, Steering Heater
85940	Relay Assy, Windshield Wiper
85965	Relay, Room Lamp Control
8598A	Battery, Door Control
86210A	Inverter Assy, Voltage
86220A	Relay, Inverter
86530	Relay Assy, Horn
87346K	Relay, Ptc Heater
87346L	Relay, Ptc Heater
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
88263Q	Relay, Abs Motor
88790F	Thermistor Assy
89050	Computer Assy, Parking Brake
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89245B	Sensor, Steering

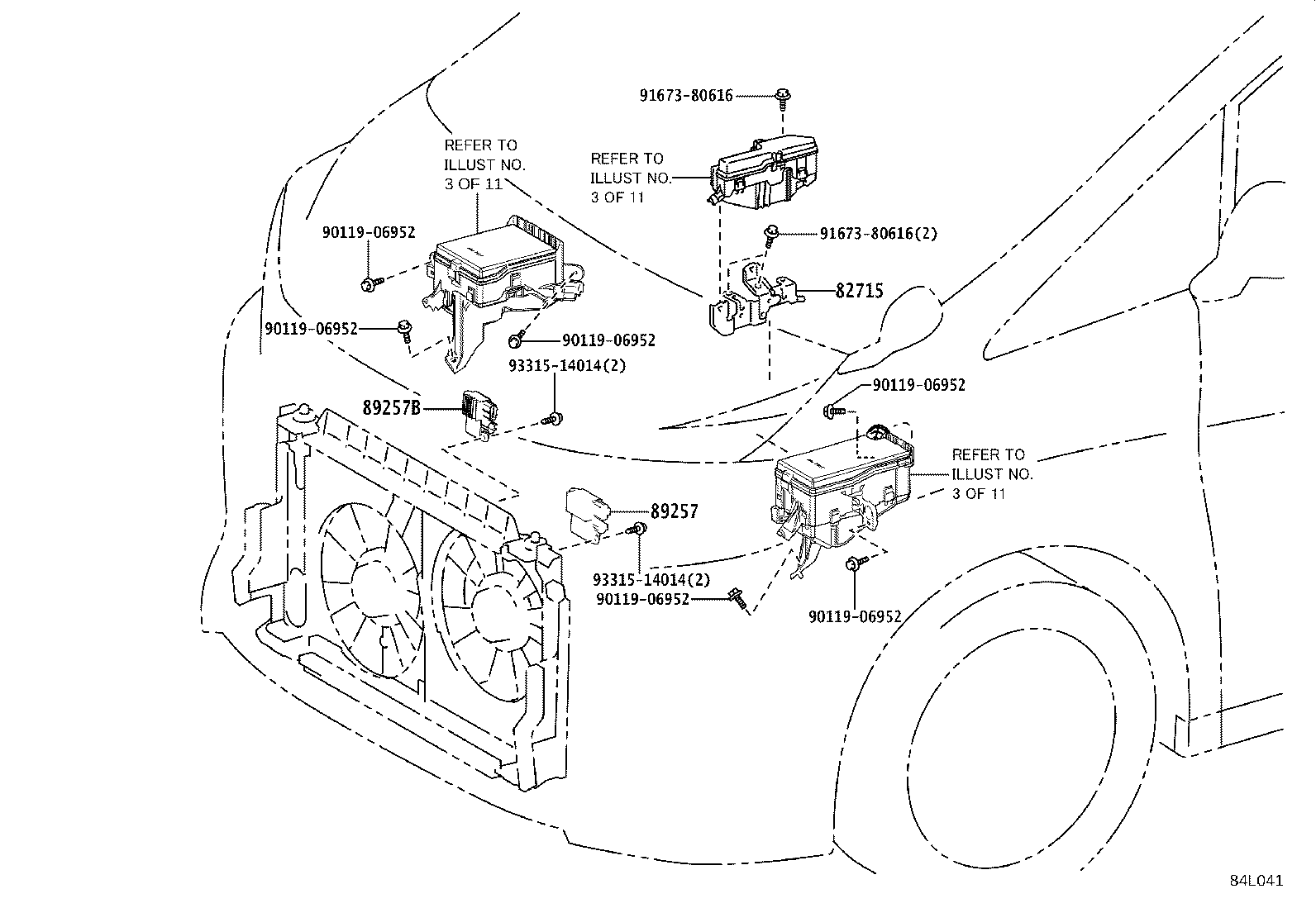

89257	Computer, Cooling Fan
89257B	Computer, Cooling Fan, NO.2
89430	Computer Assy, Outer Mirror Control

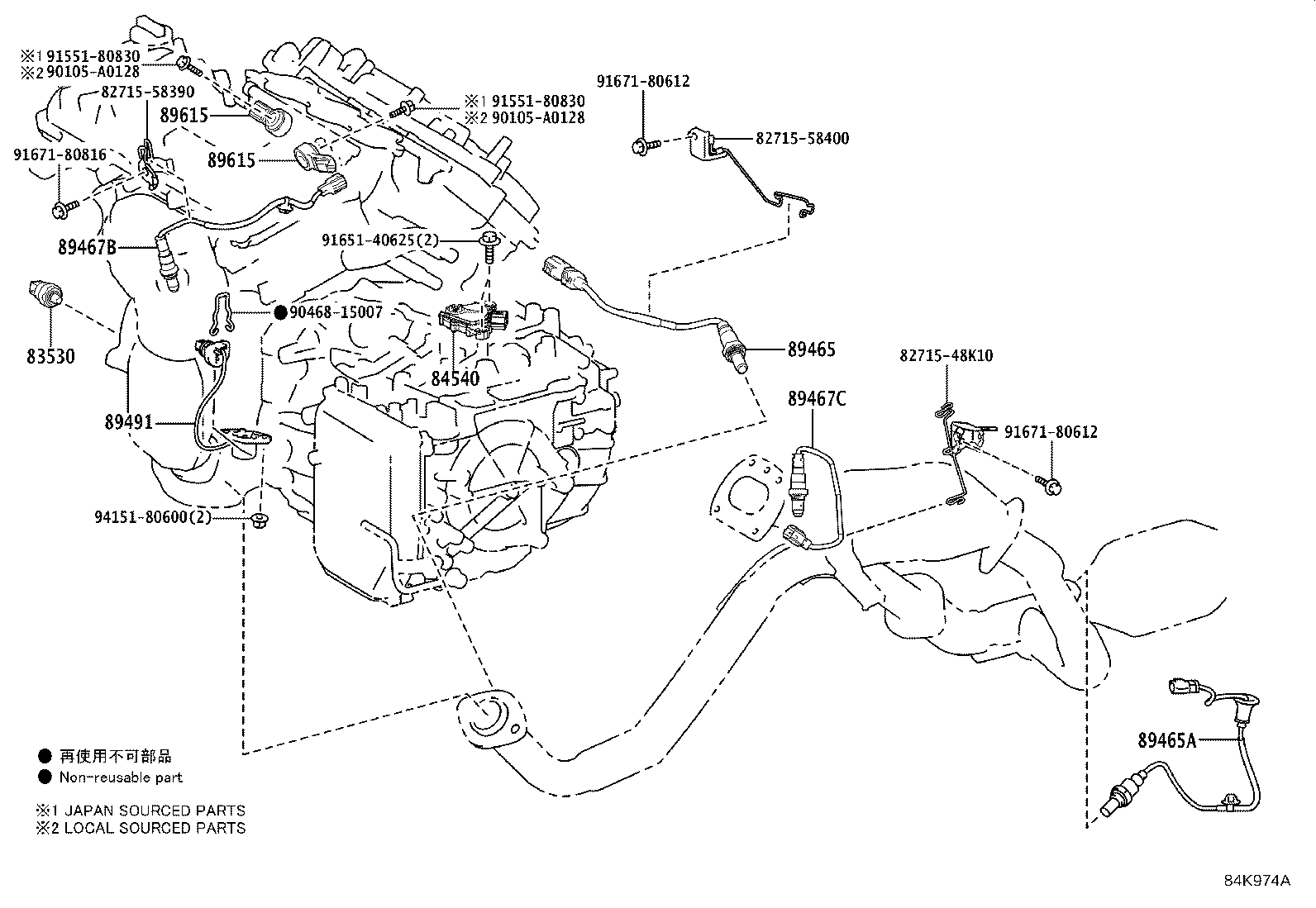

89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89491	Sensor, Engine Oil Level
89530C	Computer Assy, Transmission Control
89561F	Relay, Electronic Fuel Injection Main, NO.1
89561G	Relay, Electronic Fuel Injection Main, NO.2
895A0A	Computer Assy, Stop Lamp Control
89611	Switch, Push Start
89615	Sensor, Knock Control
89710C	Computer Assy, Position Control, RH
89710D	Computer Assy, Position Control, LH
89730A	Relay(FOR SECURITY WARNING)
89747A	Buzzer, Power Slide Door Warning, RH
89747B	Buzzer, Power Slide Door Warning, LH
89747E	Buzzer, Power Back Door Warning
89747F	Buzzer, Blind Spot Monitor
G9020E	Relay, Hybrid Water Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
