Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 3 illustrations

Illustrations

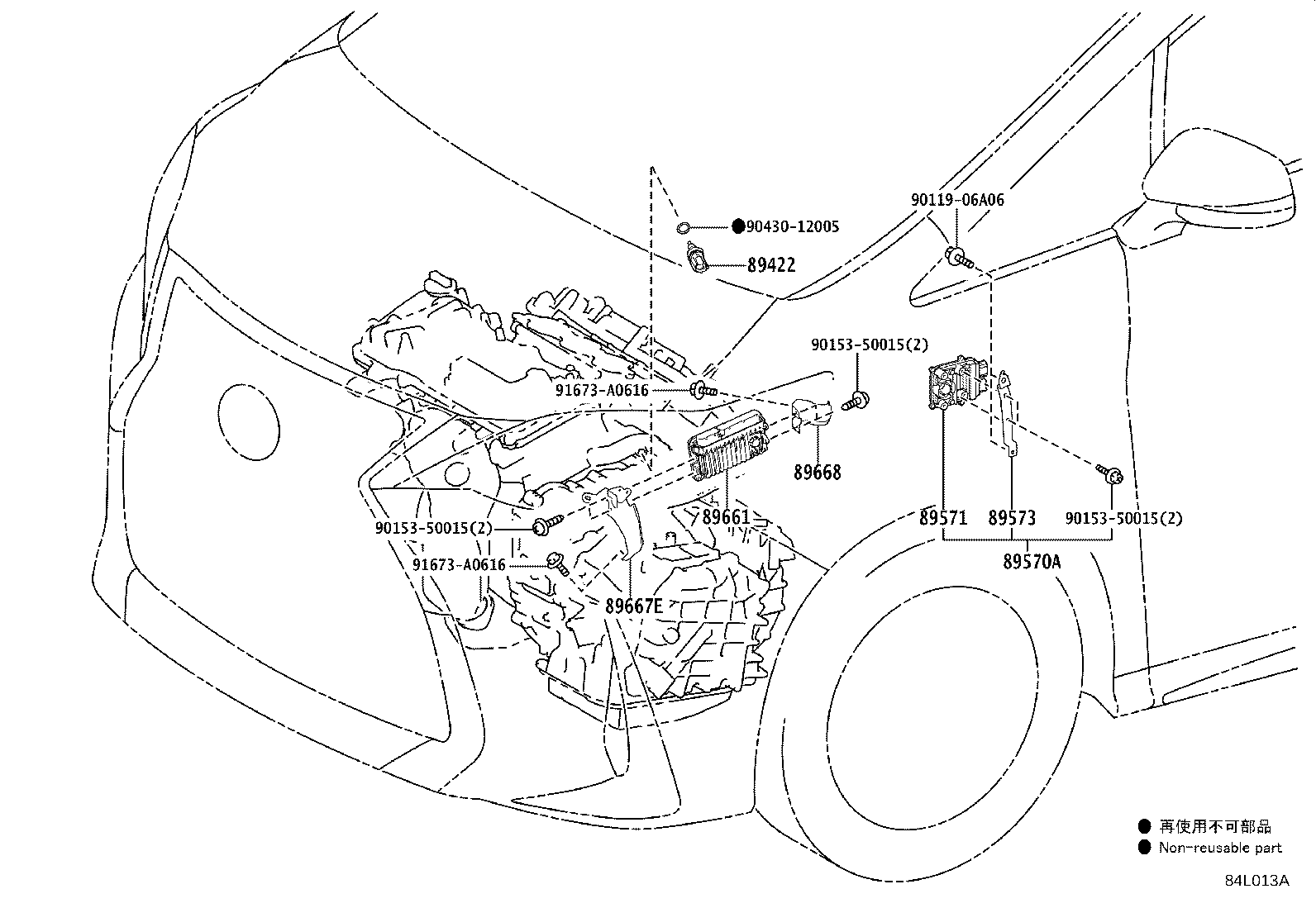

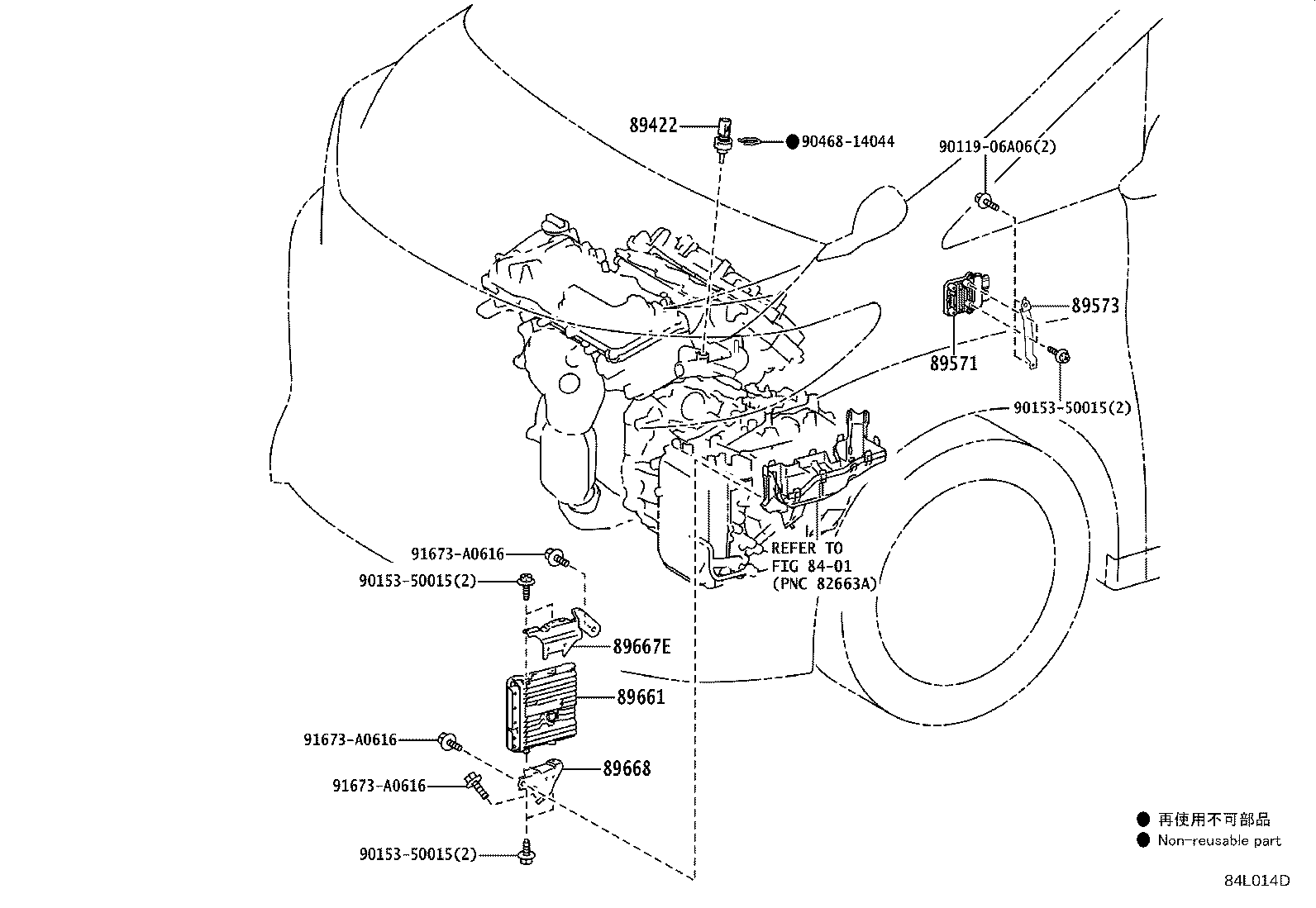

Figure 84L012A 84L012A 2020-01 → — Figure 84L013A 84L013A 2020-01 → — Figure 84L014D 84L014D 2020-01 → —

Part groups

PNCDescription
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
