Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 3 illustrations

Illustrations

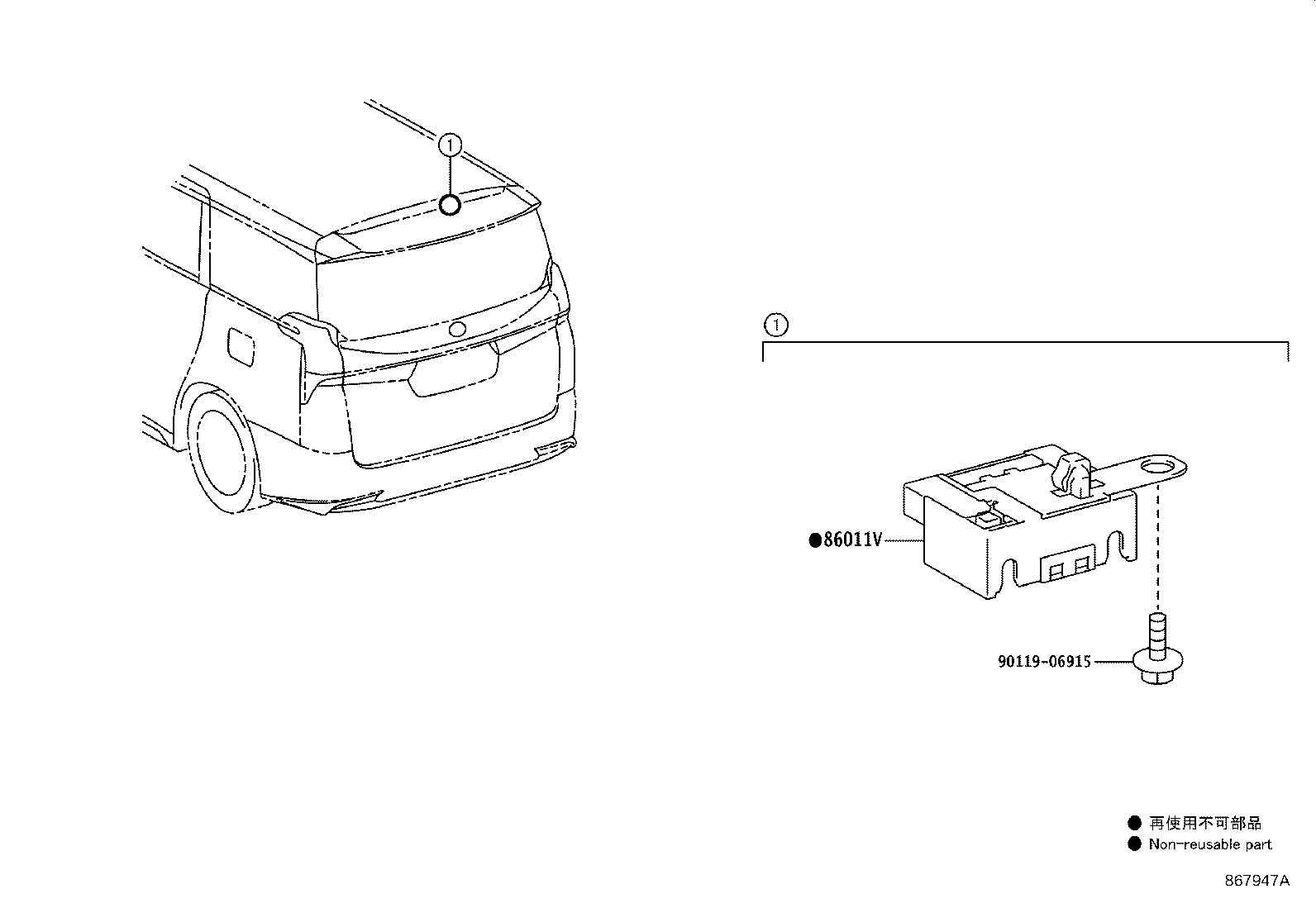

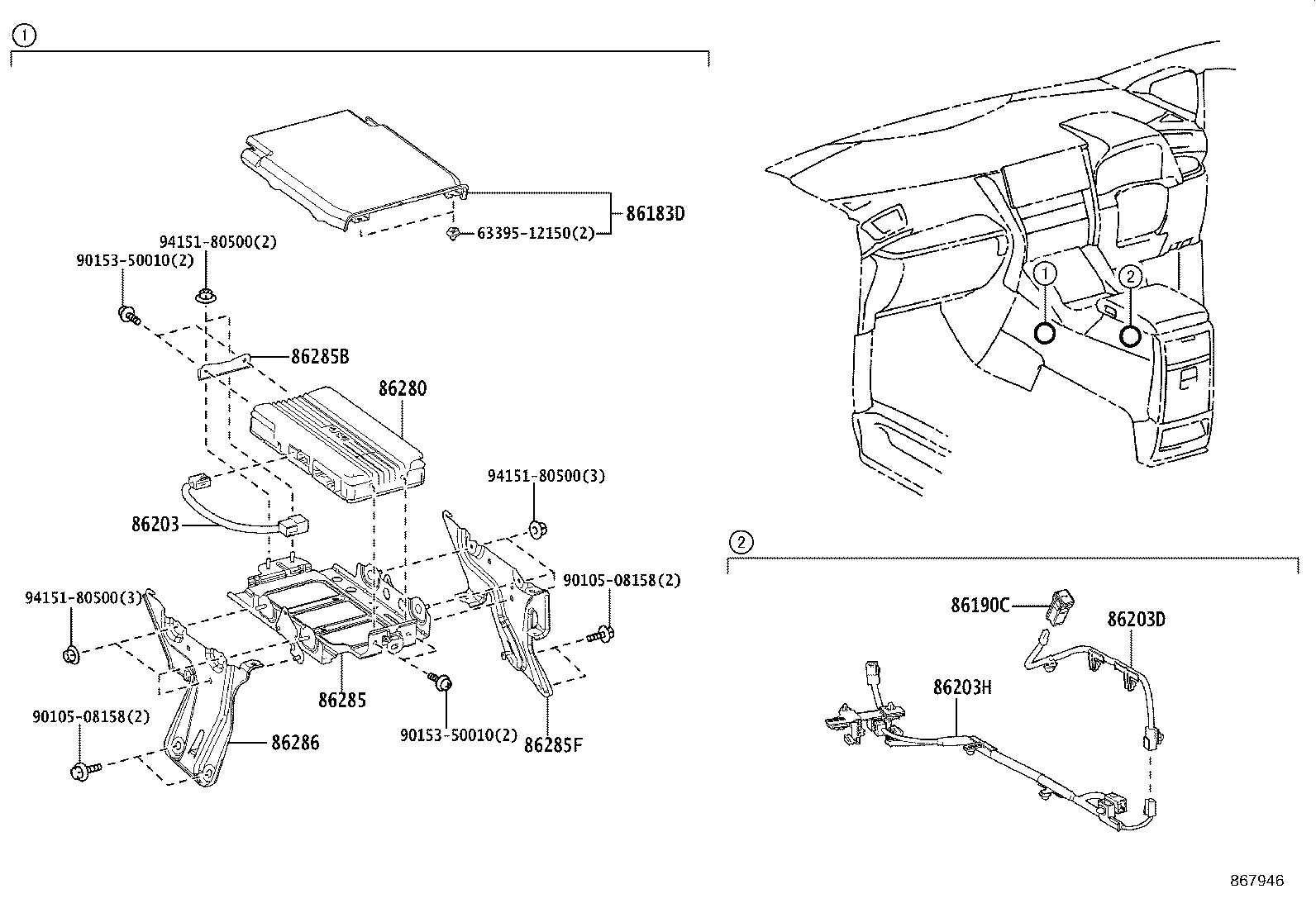

Figure 867945A 867945A 2020-01 → — Figure 867946 867946 2020-01 → — Figure 867947A 867947A 2020-01 → —

Part groups

PNCDescription
86011V Condenser, Radio Setting
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86203 Wire, Radio
86203D Wire, Stereo Component, NO.1
86203H Wire, Stereo Component, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86285F Bracket, Amplifier, NO.2
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
