Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

17 part groups · 2 illustrations

Illustrations

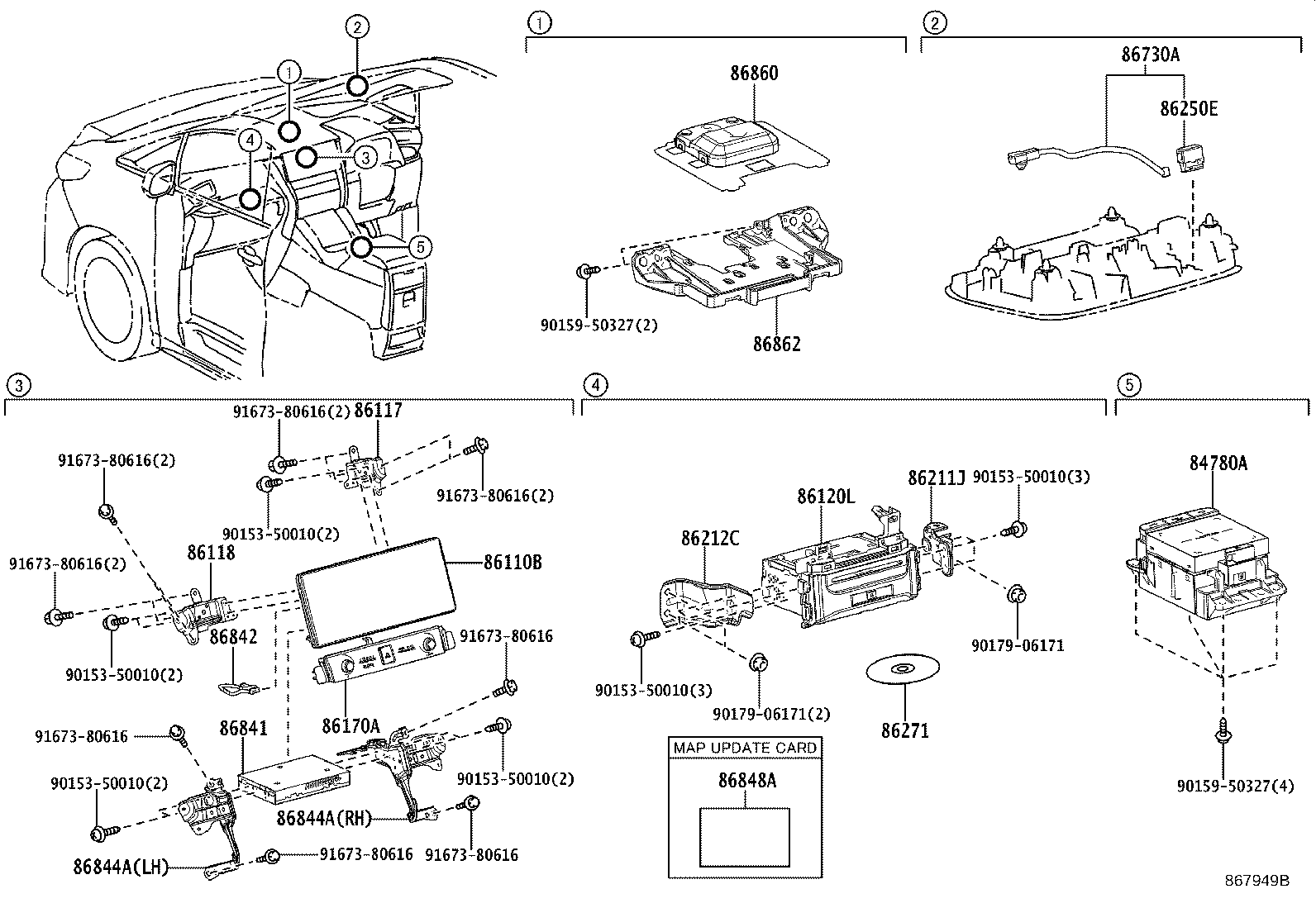

Figure 867948A 867948A 2020-01 → — Figure 867949B 867949B 2020-01 → —

Part groups

PNCDescription
84780A Controller Assy, Remote Operation
86110B Multi-display Assy
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86120L Receiver Assy, Navigation
86170A Switch & Volume Assy
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86844A Bracket, Navigation Computer
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
