Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

11 part groups · 3 illustrations

Illustrations

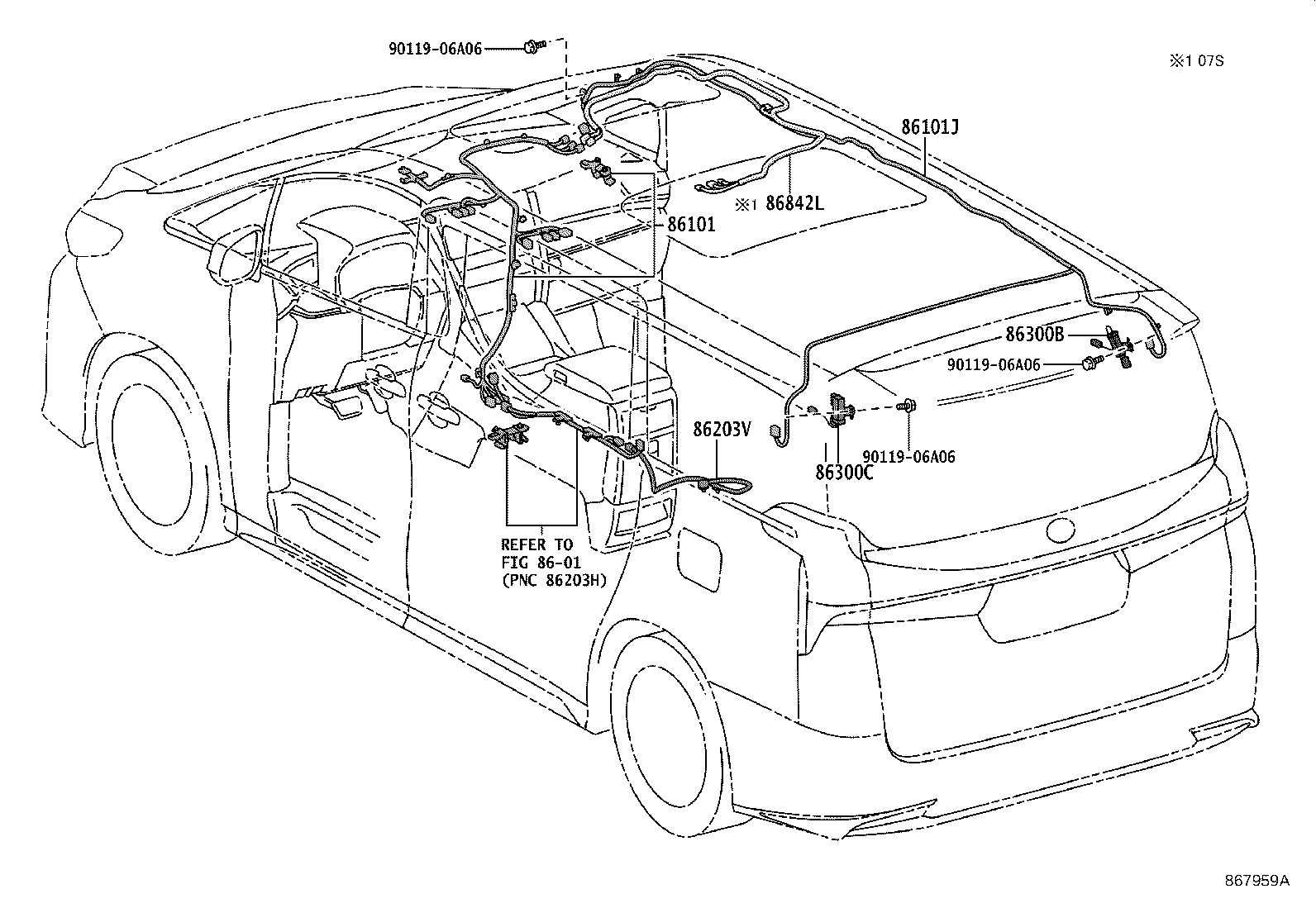

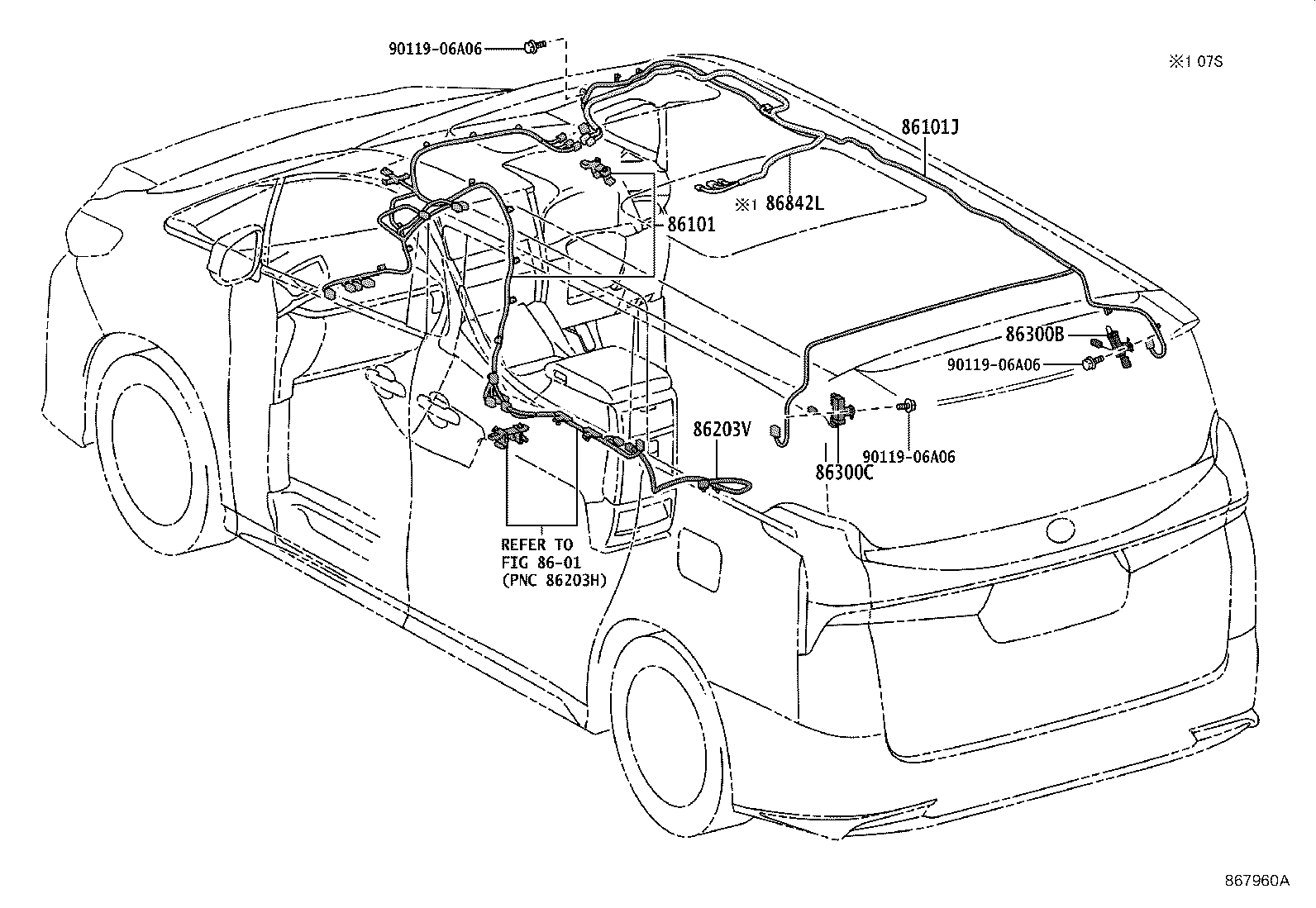

Figure 867958A 867958A 2020-01 → — Figure 867959A 867959A 2020-01 → — Figure 867960A 867960A 2020-01 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86203V Wire Sub Assy, Radio
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86300J Antenna Assy, Roof
86769 Housing, Roof Antenna
86842L Wire, Navigation, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
