Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

24 part groups · 2 illustrations

Illustrations

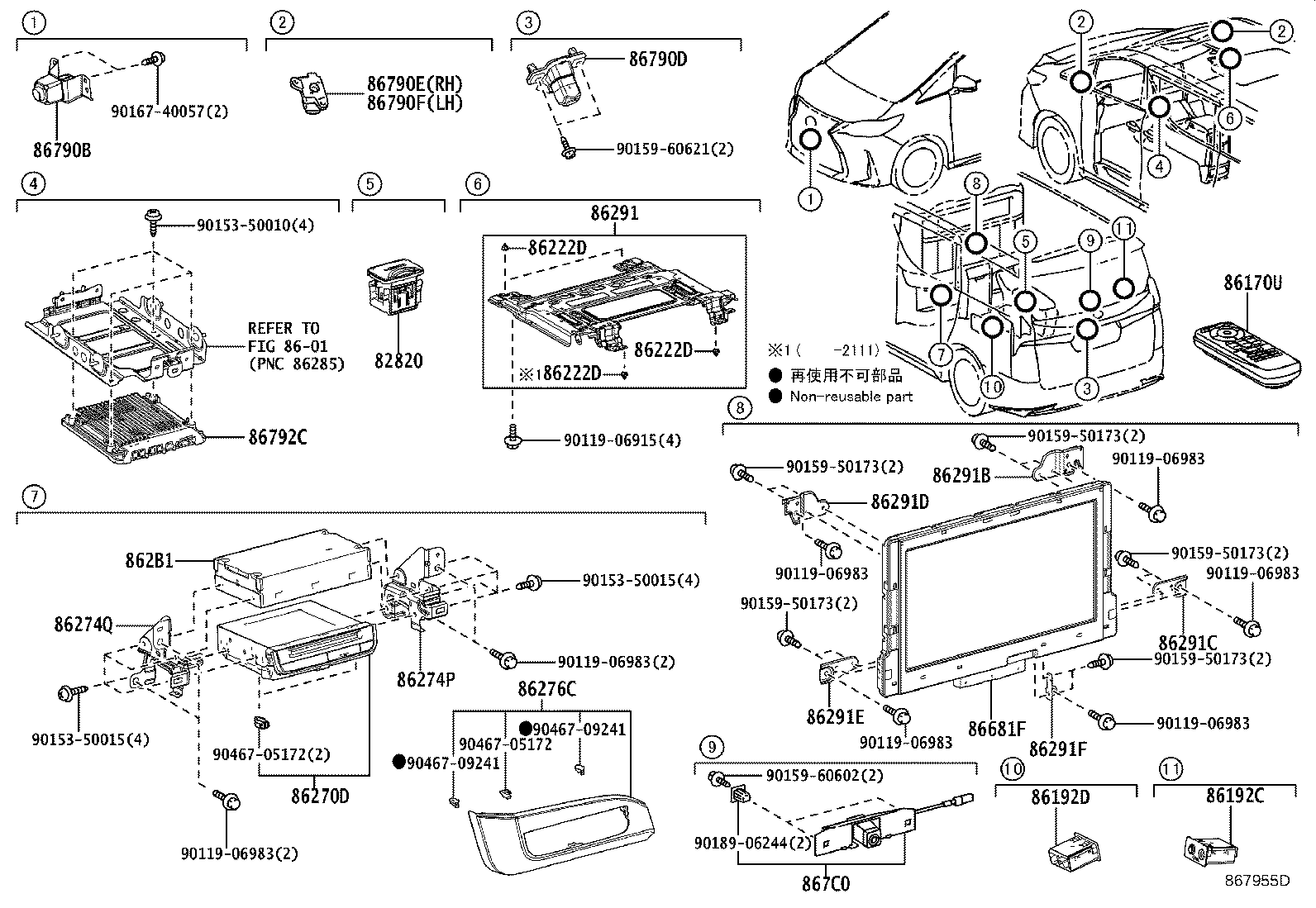

Figure 867954C 867954C 2020-01 → — Figure 867955D 867955D 2020-02 → —

Part groups

PNCDescription
82820 Cover, Connector
86170U Switch & Volume Assy, Rear
86192C Terminal, Headphone, RH
86192D Terminal, Headphone, LH
86222D Clip, Television Bracket
86270D Disc Player Assy
86274P Bracket, Disc Player, NO.1
86274Q Bracket, Disc Player, NO.2
86276C Cover, Disc Player
86291 Bracket, Television
86291B Bracket, Television, NO.1
86291C Bracket, Television, NO.2
86291D Bracket, Television, NO.3
86291E Bracket, Television, NO.4
86291F Bracket, Television, NO.5
862B1 Controller, Multi-display
86680A Display Assy, Television
86681F Display, Multi-information
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
867C0 Camera Assy, Inner Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
