Factory parts data · Europe

Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

31 part groups · 7 illustrations

Illustrations

Figure 87I593B

87I593B 2020-01 → —

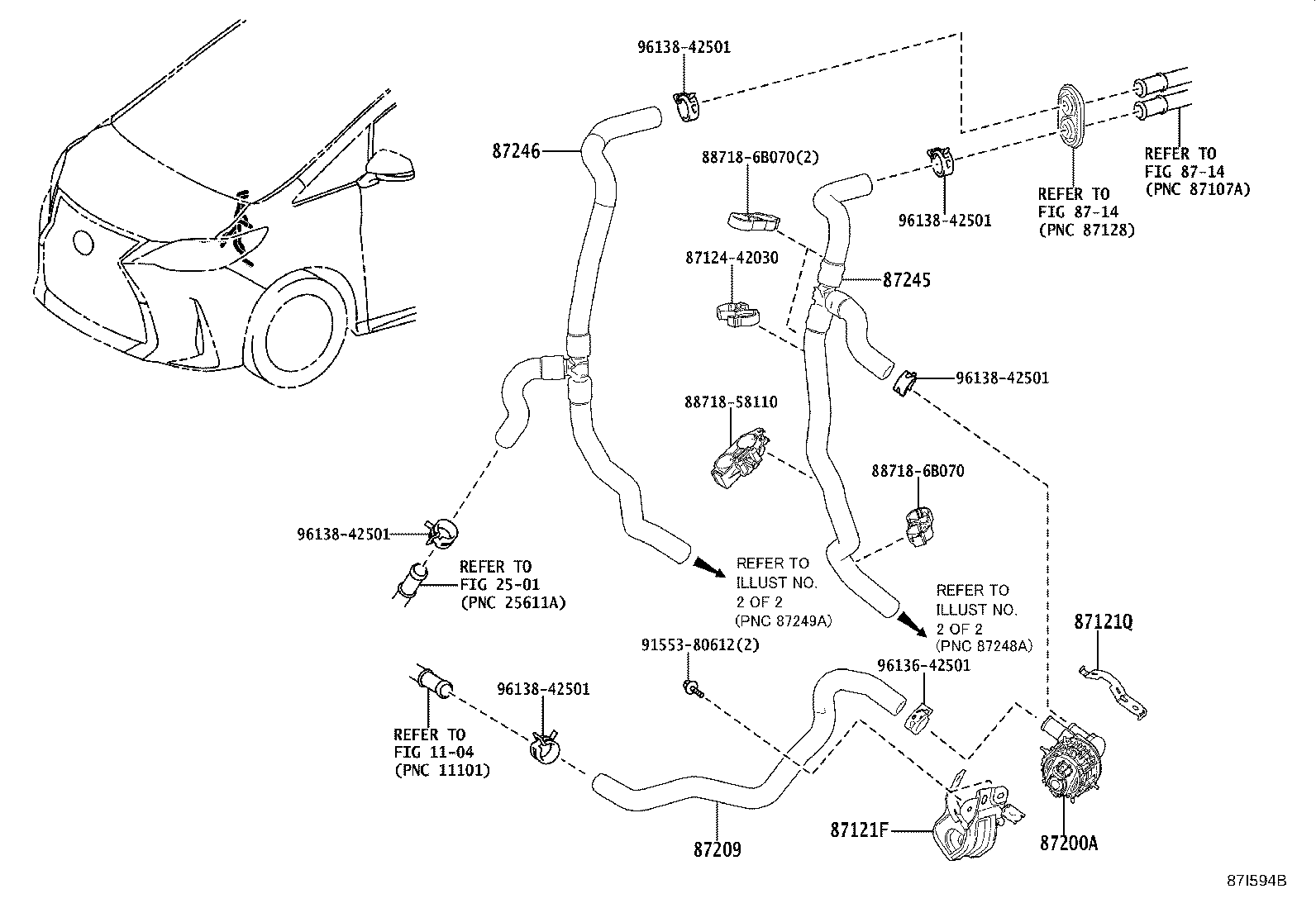

Figure 87I594B

87I594B 2020-01 → —

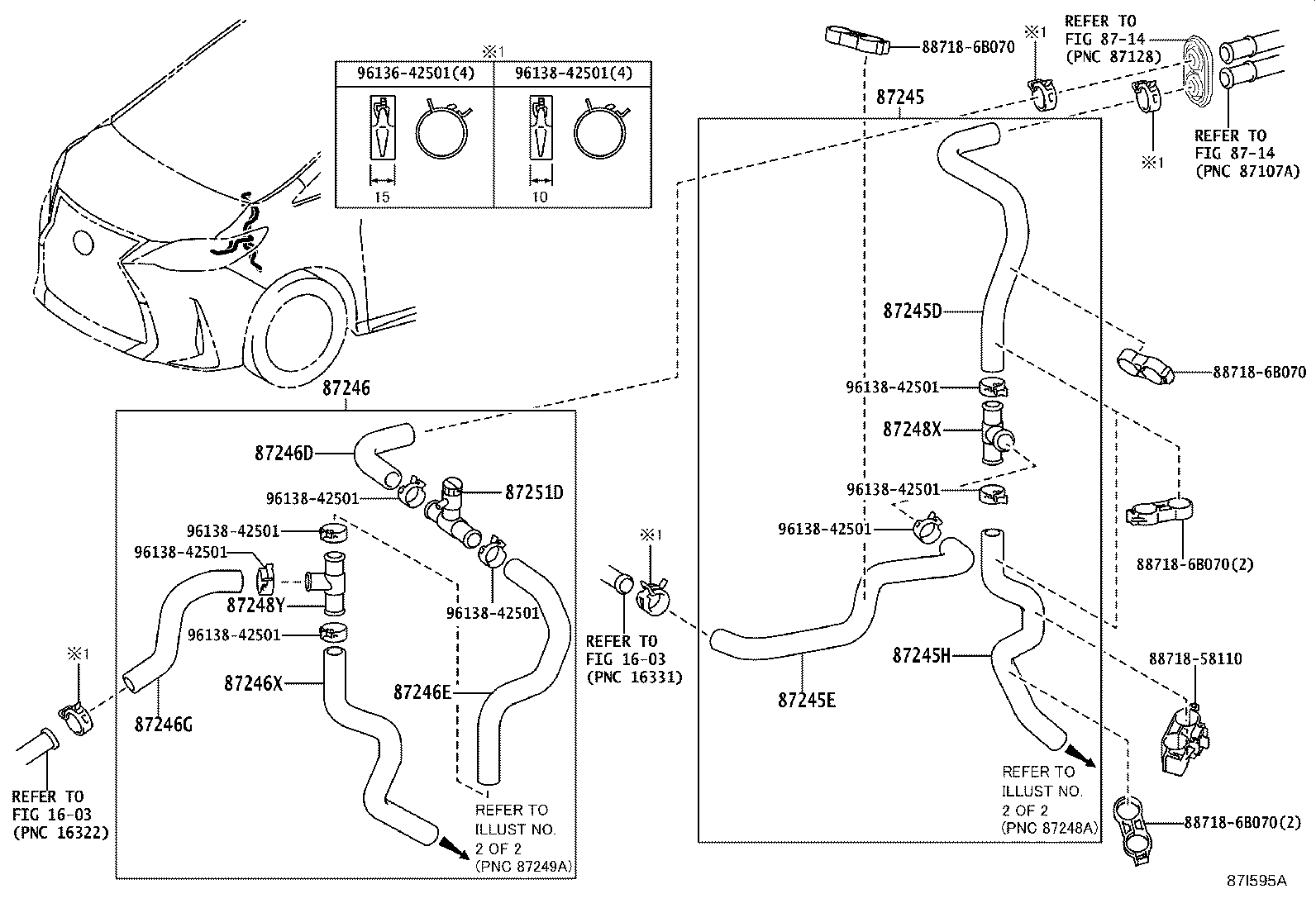

Figure 87I595A

87I595A 2020-01 → —

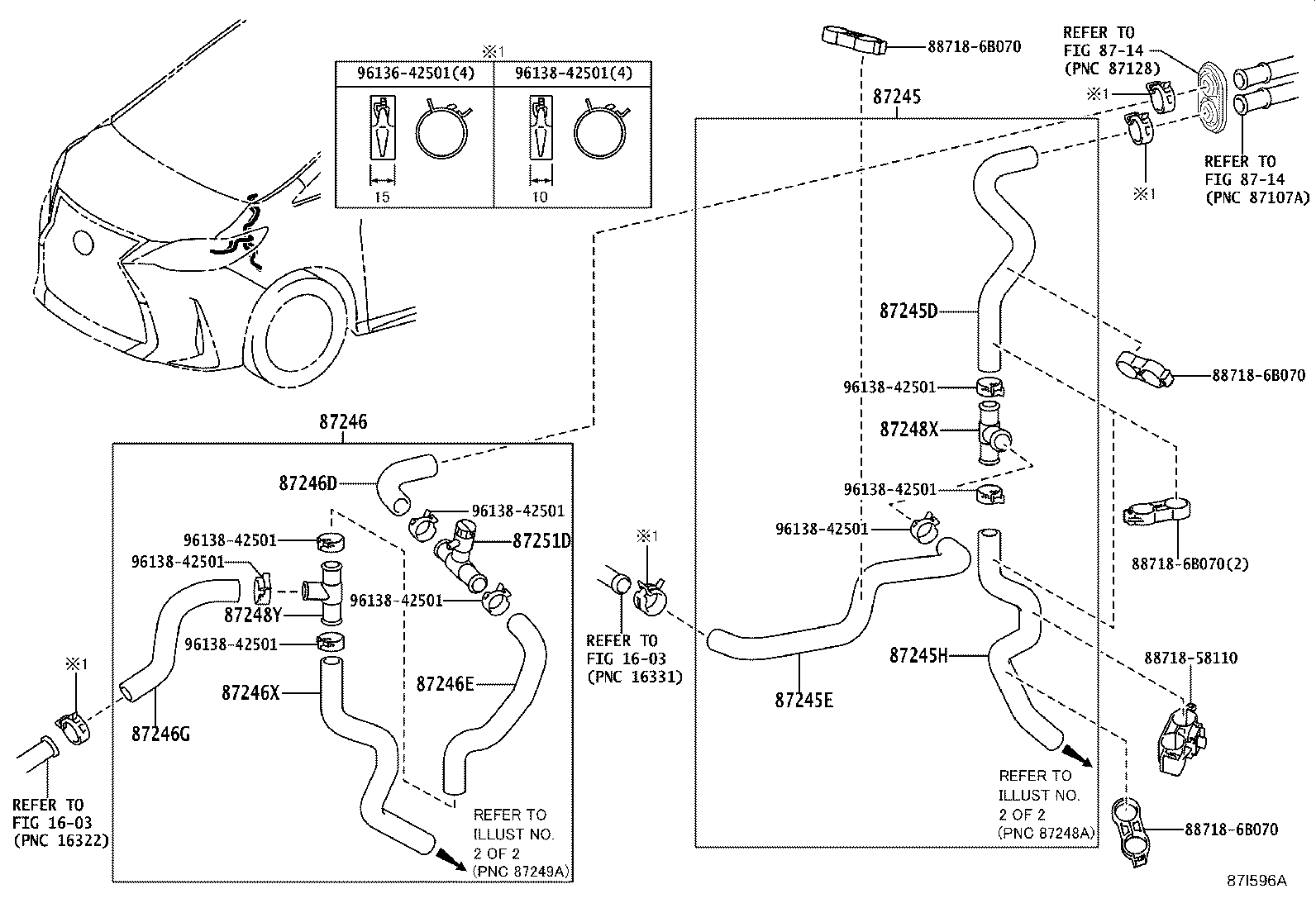

Figure 87I596A

87I596A 2020-01 → —

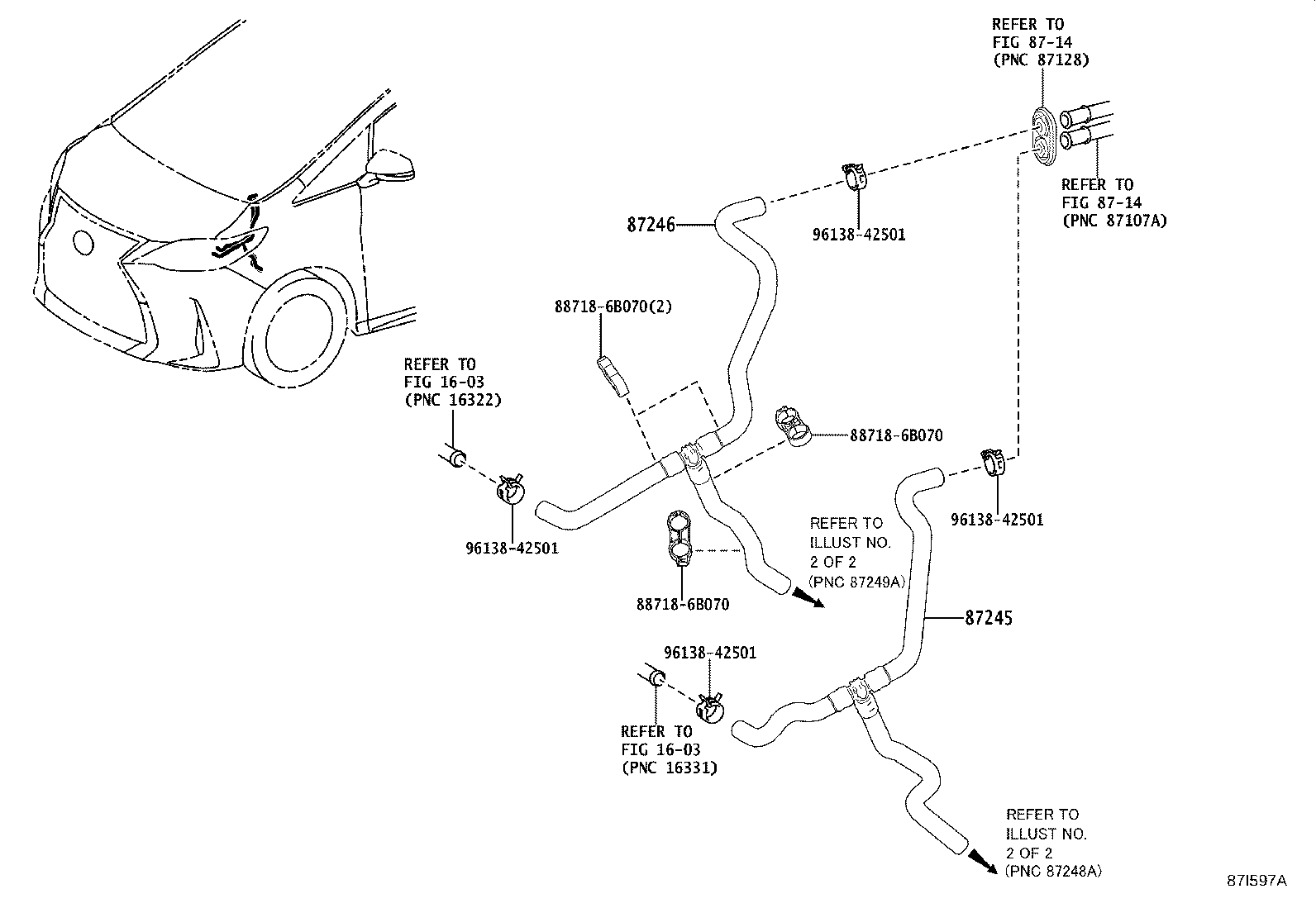

Figure 87I597A

87I597A 2020-01 → —

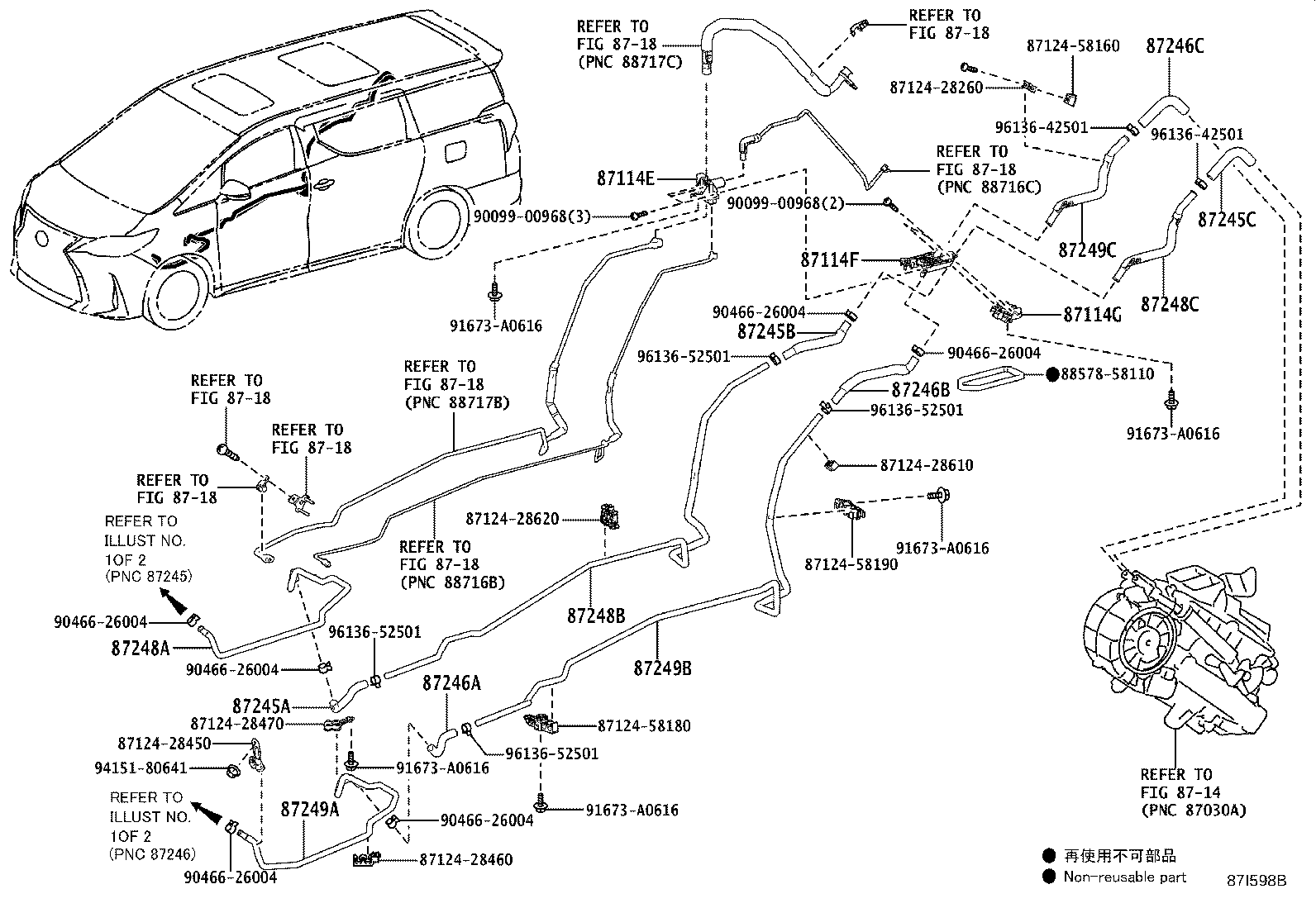

Figure 87I598B

87I598B 2020-01 → —

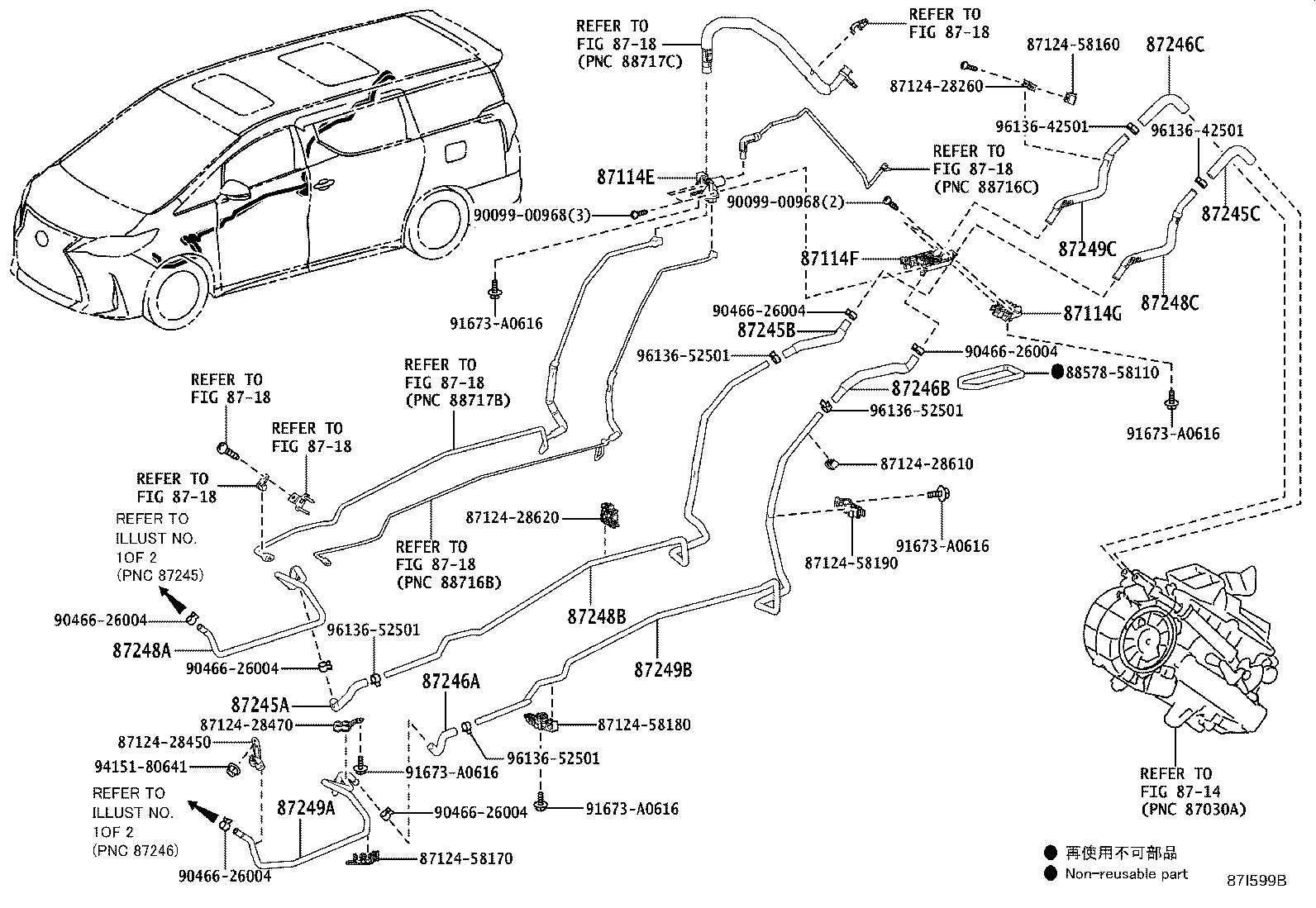

Figure 87I599B

87I599B 2020-01 → —

Part groups

PNC	Description
87114E	Cover, Heater, NO.1
87114F	Cover, Heater, NO.2
87114G	Cover, Heater, NO.3
87121F	Bracket, Heater
87121Q	Bracket, Heater NO.2
87200A	Pump Assy, Water(FOR HEATER)
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245D	Hose, Heater Water, Inlet D
87245E	Hose, Heater Water, Inlet E
87245H	Hose, Heater Water, Inlet H
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87246E	Hose, Heater Water, Outlet E
87246G	Hose, Heater Water, Outlet G
87246X	Hose, Heater Water
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87248X	Pipe, Heater Water
87248Y	Pipe, Heater Water, NO.2
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
