Toyota Lexus LM350/LM300H

2020-01 → present · chassis AYH36,GGH31 · catalogue 714310 · General

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

6 part groups · 3 illustrations

Illustrations

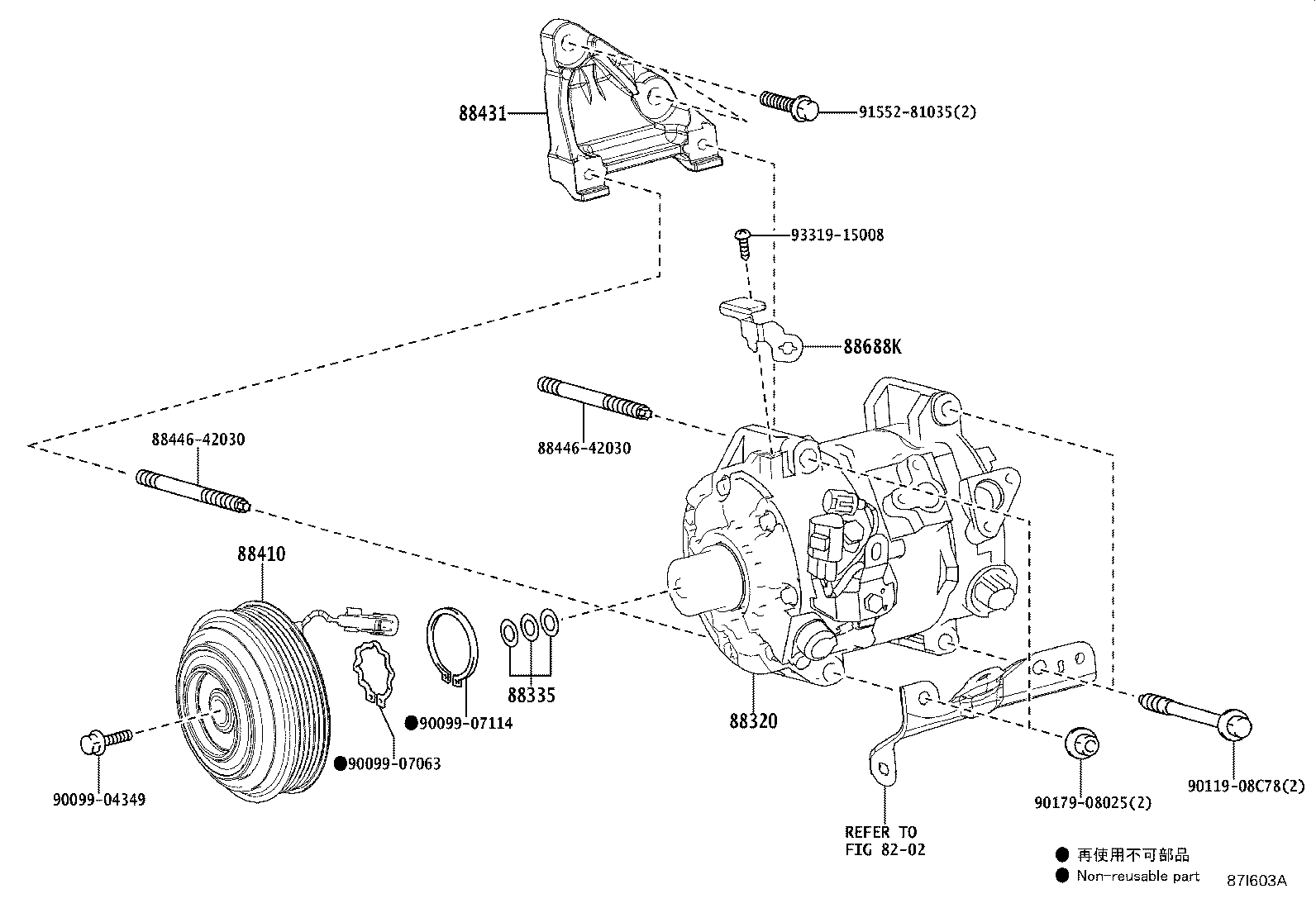

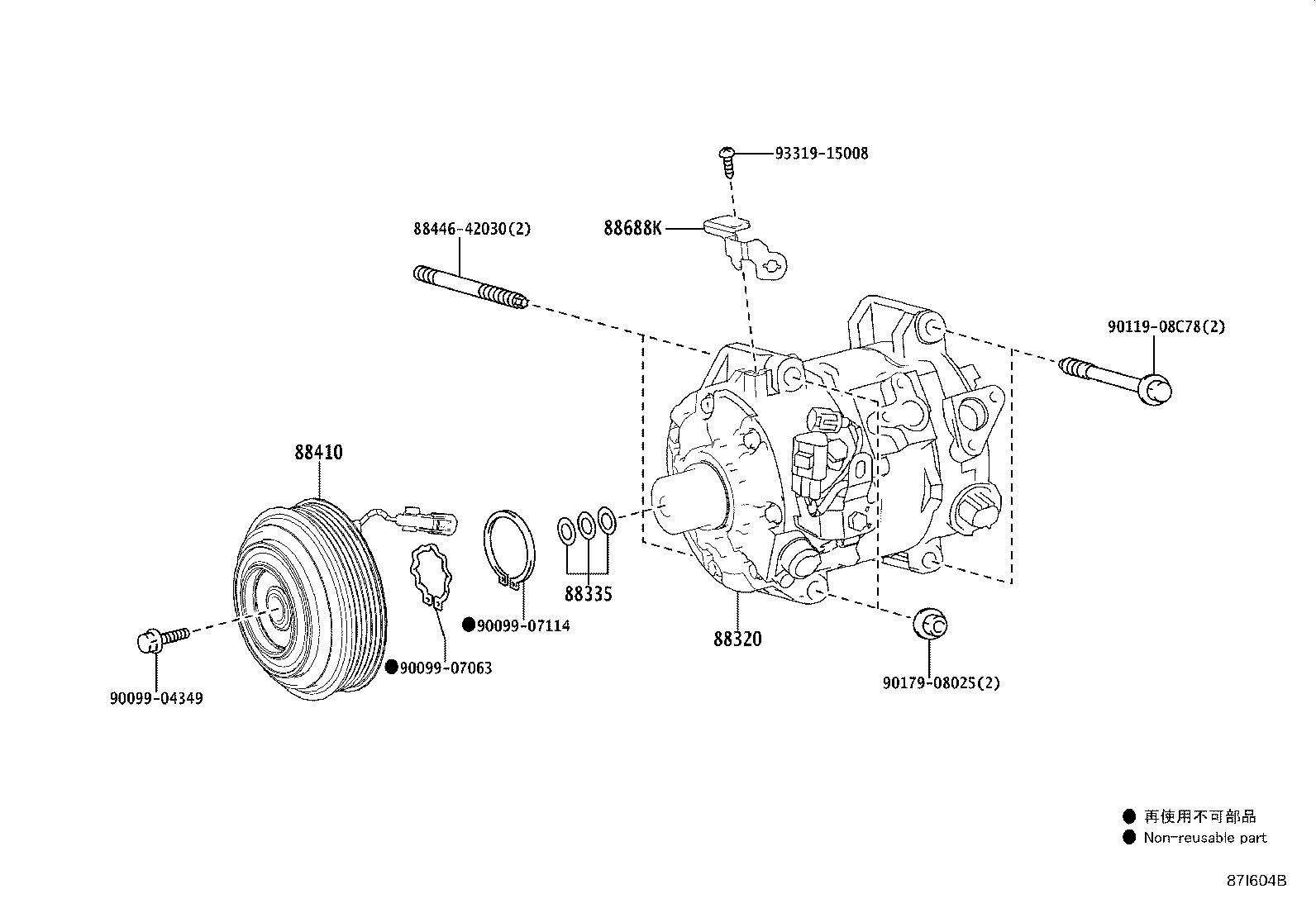

Figure 87I602 87I602 2020-01 → — Figure 87I603A 87I603A 2020-01 → — Figure 87I604B 87I604B 2020-01 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88335 Gasket Kit, Overhaul
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
