Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General
Supported model
Data version 2023-11

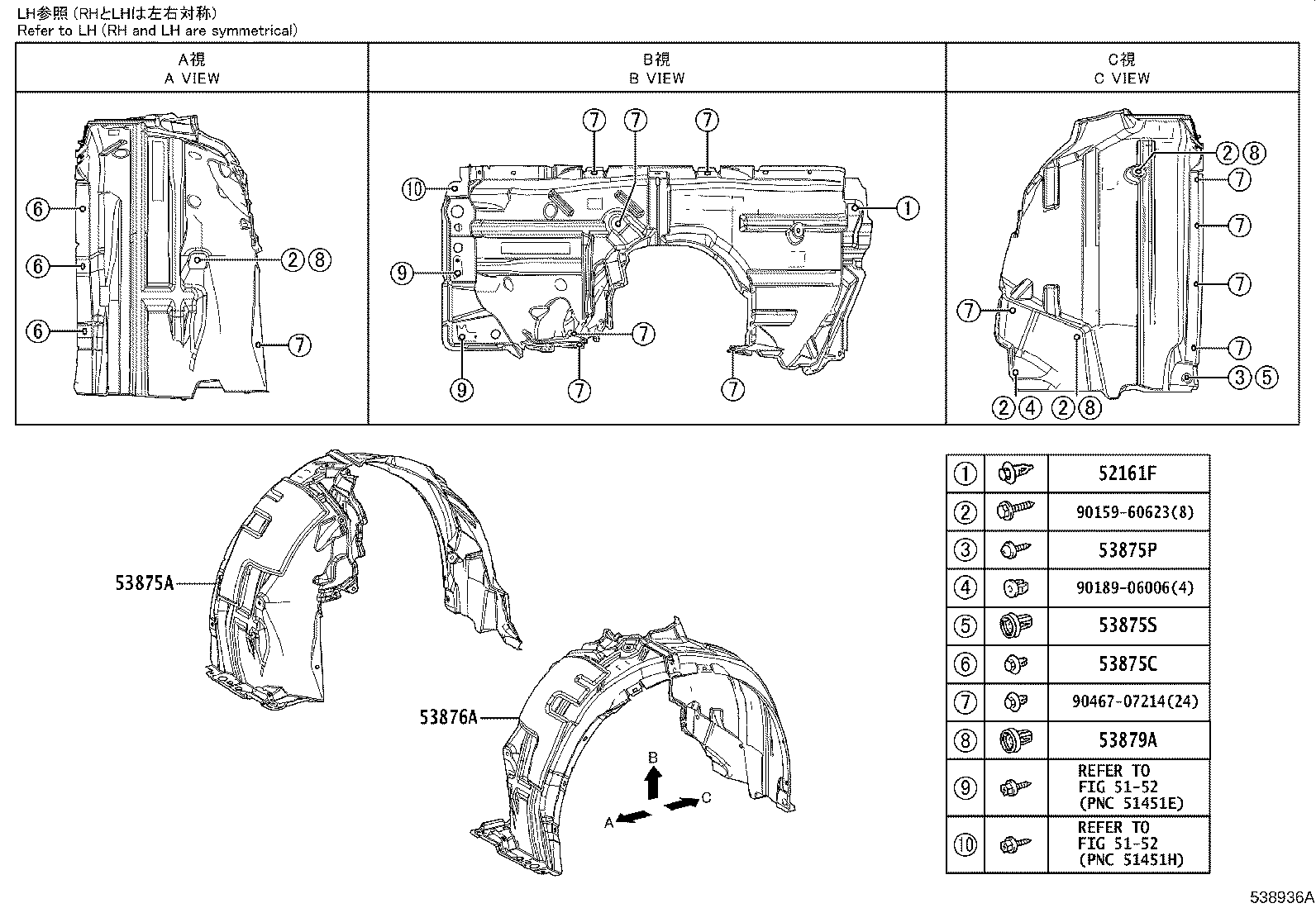

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52161F — Piece, Front Bumper | ||||
| 52161-16010 |
Piece, Front Bumper
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53805-V2040 |
Liner, Front Fender, RH
2023-06 → 2025-07
ended
|
AAWH1#,TAWH15 | — | |
| 53875C — Clip, Front Fender Liner | ||||
| 90467-07214 |
Clip, Front Fender Liner
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 53875P — Screw, NO.1 | ||||
| 90159-60625 |
Screw, NO.1
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 53875S — Grommet, NO.1 | ||||
| 90189-06236 |
Grommet, NO.1
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53806-V2040 |
Liner, Front Fender, LH
2023-06 → 2025-07
ended
|
AAWH1#,TAWH15 | — | |
| 53879A — Retainer, Front Fender Liner | ||||
| 53879-50010 |
Retainer, Front Fender Liner
2023-06 → —
|
AAWH1#,TAWH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
