Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General
Supported model
Data version 2023-11

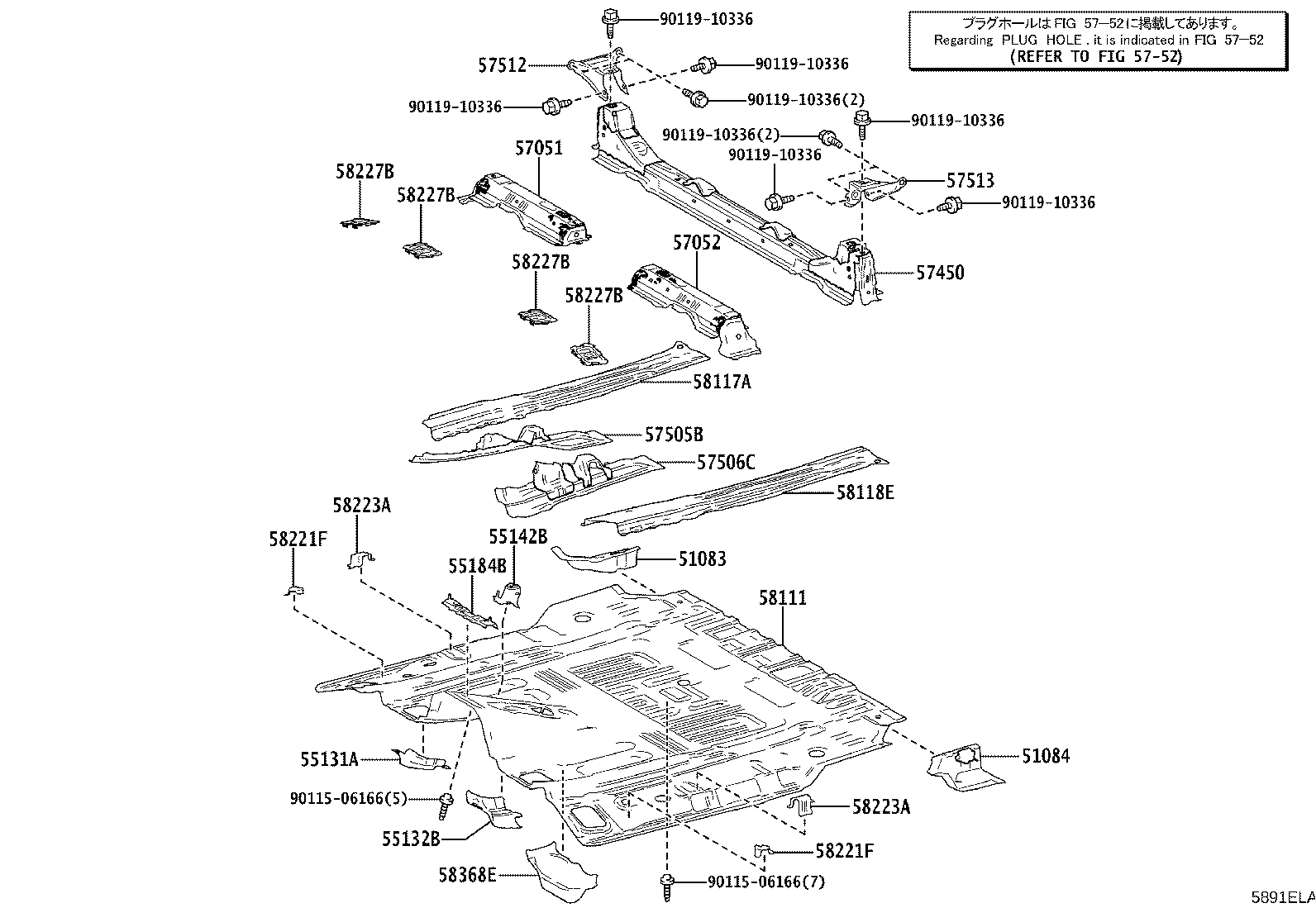

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51083 — Step Sub-assy, RH | ||||
| 51083-V2010 |
Step Sub-assy, RH
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 51084 — Step Sub-assy, LH | ||||
| 51084-V2010 |
Step Sub-assy, LH
2023-11 → —
|
TAWH15 LHD V | — | |
| 55131A — Reinforcement, Dash Panel | ||||
| 55131-V2010 |
Reinforcement, Dash Panel
2023-06 → —
|
AAWH1#,TAWH15 RHD | — | |
| 55131-V2020 |
Reinforcement, Dash Panel
2023-06 → —
|
AAWH15,TAWH15 LHD | — | |
| 55132B — Reinforcement, Dash Panel, LH | ||||
| 55132-V2020 |
Reinforcement, Dash Panel, LH
2023-11 → —
|
TAWH15 LHD V | — | |
| 55142B — Bracket, Dash 3Way Support | ||||
| 55142-V2010 |
Bracket, Dash 3Way Support
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 55184B — Bracket, Dash Panel | ||||
| 55184-V2010 |
Bracket, Dash Panel
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 57051 — Member Sub-assy, Front Floor Cross, RH | ||||
| 57051-V2020 |
Member Sub-assy, Front Floor Cross, RH
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 57052 — Member Sub-assy, Front Floor Cross, LH | ||||
| 57052-V2020 |
Member Sub-assy, Front Floor Cross, LH
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 57450 — Member Assy, Front Floor Cross | ||||
| 57450-V2010 |
Member Assy, Front Floor Cross
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 57505B — Reinforcement Sub-assy, Front Floor Under, RH | ||||
| 57505-V2070 |
Reinforcement Sub-assy, Front Floor Under, RH
2023-06 → 2024-03
ended
|
AAWH1# | — | |
| 57505-V2090 |
Reinforcement Sub-assy, Front Floor Under, RH
2023-11 → 2024-03
ended
|
TAWH15 | — | |
| 57505-V2140 |
Reinforcement Sub-assy, Front Floor Under, RH
2024-04 → —
|
AAWH1# | — | |
| 57505-V2220 |
Reinforcement Sub-assy, Front Floor Under, RH
2024-04 → —
|
TAWH15 | — | |
| 57506C — Reinforcement Sub-assy, Front Floor Under, LH | ||||
| 57506-V2060 |
Reinforcement Sub-assy, Front Floor Under, LH
2023-06 → 2024-03
ended
|
AAWH1# | — | |
| 57506-V2080 |
Reinforcement Sub-assy, Front Floor Under, LH
2023-11 → 2024-03
ended
|
TAWH15 | — | |
| 57506-V2130 |
Reinforcement Sub-assy, Front Floor Under, LH
2024-04 → —
|
AAWH1# | — | |
| 57506-V2180 |
Reinforcement Sub-assy, Front Floor Under, LH
2024-04 → —
|
TAWH15 | — | |
| 57512 — Reinforcement, Front Floor, RH | ||||
| 57511-V2010 |
Reinforcement, Front Floor, RH
2023-06 → 2024-05
ended
|
AAWH1#,TAWH15 | — | |
| 57511-V2011 |
Reinforcement, Front Floor, RH
2024-05 → —
|
AAWH1#,TAWH15 | — | |
| 57513 — Reinforcement, Front Floor, LH | ||||
| 57512-V2010 |
Reinforcement, Front Floor, LH
2023-06 → 2024-05
ended
|
AAWH1#,TAWH15 | — | |
| 57512-V2011 |
Reinforcement, Front Floor, LH
2024-05 → —
|
AAWH1#,TAWH15 | — | |
| 58111 — Pan, Front Floor | ||||
| 58111-V2060 |
Pan, Front Floor
2023-06 → —
|
AAWH1# V | — | |
| 58111-V2902 |
Pan, Front Floor
2023-06 → —
|
AAWH1# X | — | |
| 58111-V2903 |
Pan, Front Floor
2023-11 → —
|
TAWH15 V | — | |
| 58111-V2904 |
Pan, Front Floor
2023-11 → —
|
TAWH15 X | — | |
| 58117A — Reinforcement, Front Floor Side, RH | ||||
| 58117-V2010 |
Reinforcement, Front Floor Side, RH
2023-11 → —
|
TAWH15 LHD V | — | |
| 58118E — Bracket, Jack Set | ||||
| 58118-V2010 |
Bracket, Jack Set
2023-11 → —
|
TAWH15 LHD V | — | |
| 58221F — Reinforcement, Floor Panel, Front RH | ||||
| 58221-V2010 |
Reinforcement, Floor Panel, Front RH
2023-11 → —
|
TAWH15 LHD V | — | |
| 58223A — Reinforcement, Floor Side Panel, RH | ||||
| 58223-V2010 |
Reinforcement, Floor Side Panel, RH
2023-11 → —
|
TAWH15 LHD V | — | |
| 58227B — Plate, Front Floor Panel Side, RH | ||||
| 58227-V2010 |
Plate, Front Floor Panel Side, RH
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 58368E — Bracket, Fuel Tube, NO.2 | ||||
| 58368-V2010 |
Bracket, Fuel Tube, NO.2
2023-11 → —
|
TAWH15 LHD V | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
