Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General
Supported model
Data version 2023-11

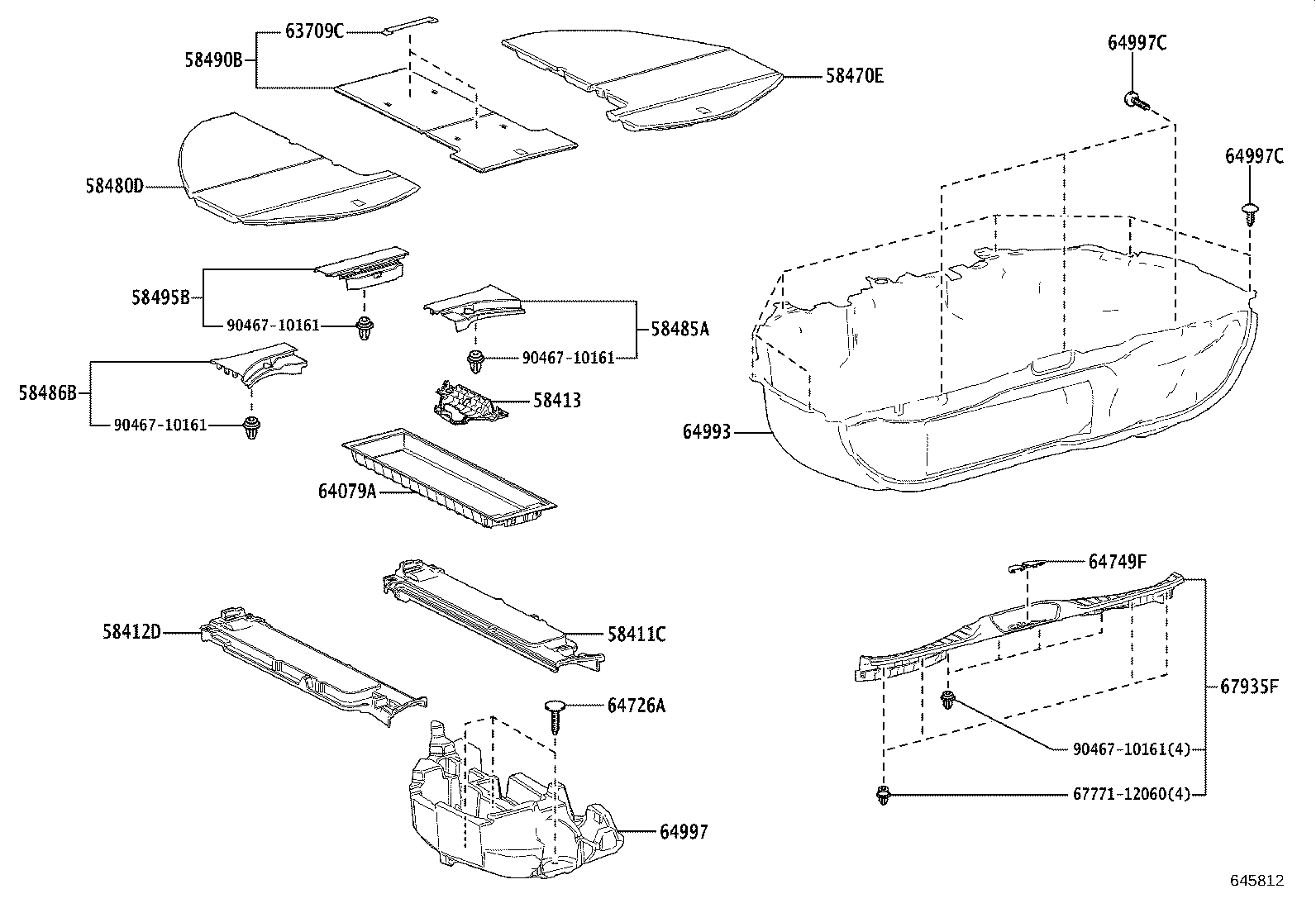

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58411C — Cover, Deck Rail, NO.1 | ||||
| 58411-V2010-C0 note |
Cover, Deck Rail, NO.1
2023-06 → —
|
AAWH1#,TAWH15 V | — | |
| 58411-V2020-C0 note |
Cover, Deck Rail, NO.1
2023-06 → —
|
AAWH1#,TAWH15 X | — | |
| 58412D — Cover, Deck Rail, NO.2 | ||||
| 58412-V2010-C0 note |
Cover, Deck Rail, NO.2
2023-06 → —
|
AAWH1#,TAWH15 V | — | |
| 58412-V2020-C0 note |
Cover, Deck Rail, NO.2
2023-06 → —
|
AAWH1#,TAWH15 X | — | |
| 58413 — Cover, Deck Rail | ||||
| 58413-V2010-C0 note |
Cover, Deck Rail
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 58470E — Board Assy, Rear Floor, NO.1 | ||||
| 58470-V2030-C1 note |
Board Assy, Rear Floor, NO.1
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 58480D — Board Assy, Rear Floor, NO.2 | ||||
| 58480-V2020-C1 note |
Board Assy, Rear Floor, NO.2
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 58485A — Plate, Rear Floor Board, Upper NO.1 | ||||
| 58485-V2010-C0 note |
Plate, Rear Floor Board, Upper NO.1
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 58486B — Plate, Rear Floor Board, Upper NO.2 | ||||
| 58486-V2010-C0 note |
Plate, Rear Floor Board, Upper NO.2
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 58490B — Board Assy, Rear Floor, NO.3 | ||||
| 58490-V2020-C2 note |
Board Assy, Rear Floor, NO.3
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 58495B — Plate, Rear Floor Board, Upper NO.3 | ||||
| 58495-V2010-C0 note |
Plate, Rear Floor Board, Upper NO.3
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 63709C — Band Sub-assy, Room Rack | ||||
| 63709-V2010 |
Band Sub-assy, Room Rack
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 64079A — Box Sub-assy, Utility | ||||
| 64079-V2010-C0 note |
Box Sub-assy, Utility
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 64726A — Clip, Luggage Trim, Rear | ||||
| 64726-10020-C2 note |
Clip, Luggage Trim, Rear
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 64749F — Cover, Back Door Striker | ||||
| 64749-V2010-C0 note |
Cover, Back Door Striker
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 64993 — Box, Deck Floor, Rear | ||||
| 64993-V2090 |
Box, Deck Floor, Rear
2023-06 → —
|
AAWH1#,TAWH15 X | — | |
| 64993-V2100 |
Box, Deck Floor, Rear
2023-06 → —
|
AAWH1#,TAWH15 V | — | |
| 64997 — Box, Deck Floor, LH | ||||
| 64997-V2060 |
Box, Deck Floor, LH
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 64997C — Clip(FOR DECK FLOOR BOX) | ||||
| 90467-05164-C7 note |
Clip(FOR DECK FLOOR BOX)
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 67935F — Plate, Back Door Scuff | ||||
| 67935-V2010-C0 note |
Plate, Back Door Scuff
2023-06 → —
|
AAWH1#,TAWH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
