Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General
Supported model
Data version 2023-11

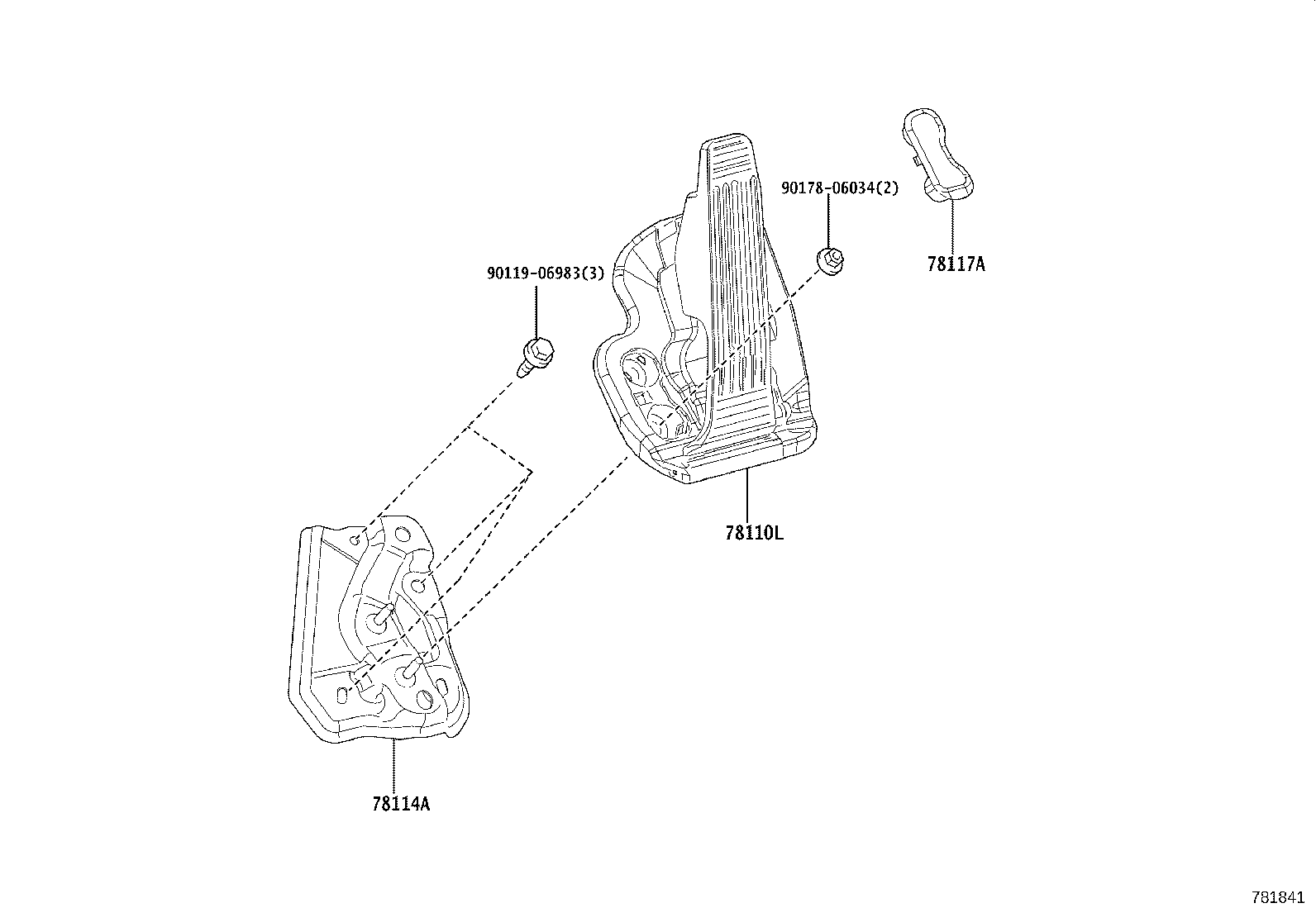

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78110L — Sensor Assy, Accelerator Pedal | ||||
| 78110-47080 |
Sensor Assy, Accelerator Pedal
2023-06 → —
|
AAWH1# ARL,CHI,GEN,PHL,RUS,TWN | — | |
| 78110-48130 |
Sensor Assy, Accelerator Pedal
2023-06 → —
|
TAWH15;AAWH1# EUR | — | |
| 78110-48130 note |
Sensor Assy, Accelerator Pedal
2023-06 → —
|
AAWH15 RUS | — | |
| 78110-48130 note |
Sensor Assy, Accelerator Pedal
2023-06 → —
|
AAWH15 RUS | — | |
| 78114A — Bracket, Accelerator Pedal Support | ||||
| 78114-V2030 |
Bracket, Accelerator Pedal Support
2023-06 → —
|
AAWH1#,TAWH15 RHD | — | |
| 78117A — Cover, Accelerator Pedal | ||||
| 78117-42010 |
Cover, Accelerator Pedal
2023-06 → —
|
AAWH1#,TAWH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
