Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General
Supported model
Data version 2023-11

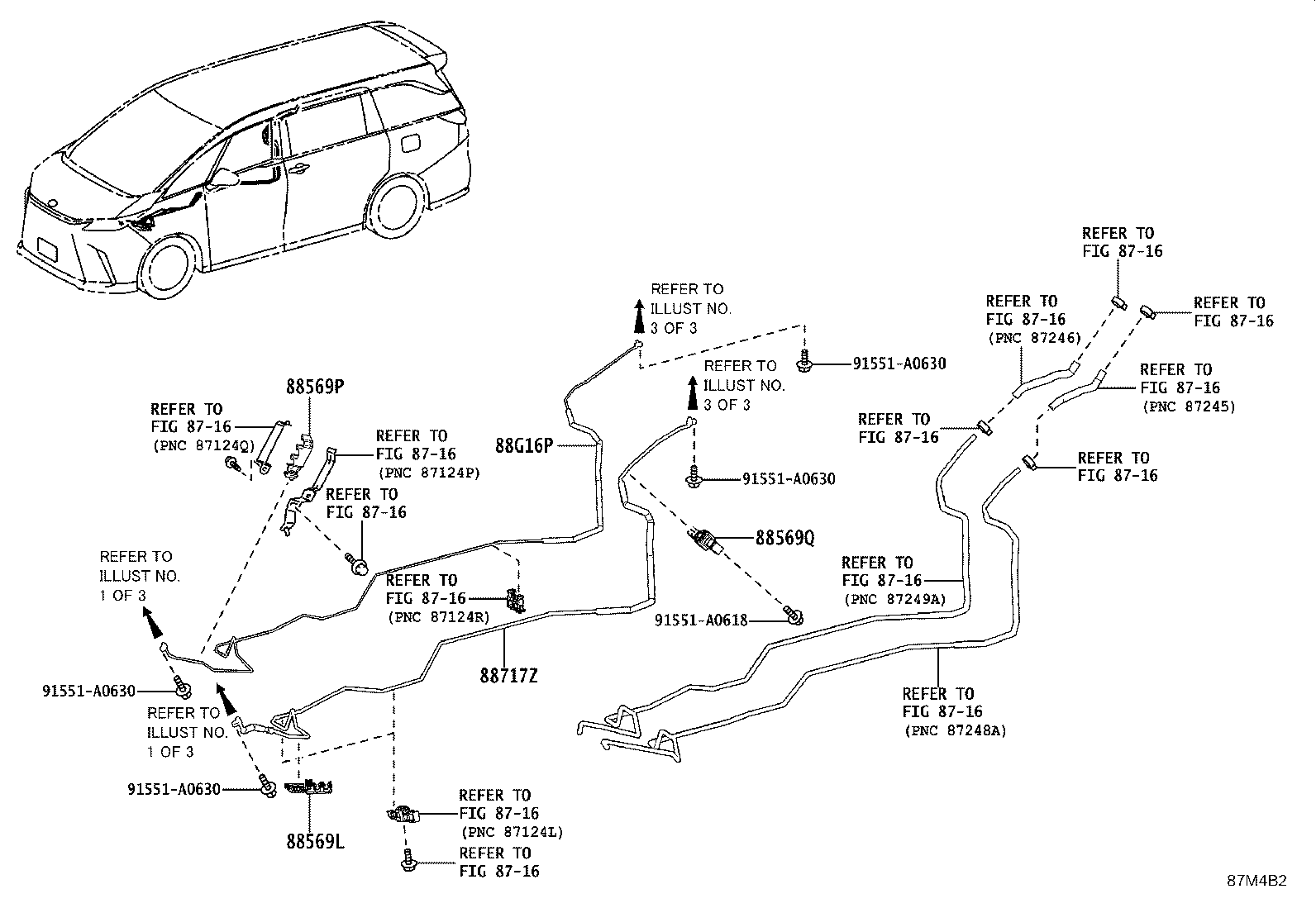

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88569L — Clamp, Cooler, NO.3 | ||||
| 88718-26C20 |
Clamp, Cooler, NO.3
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 88569P — Clamp, Cooler, NO.4 | ||||
| 88718-48660 |
Clamp, Cooler, NO.4
2023-06 → —
|
AAWH1# | — | |
| 88718-48660 |
Clamp, Cooler, NO.4
2023-11 → —
|
TAWH15 | — | |
| 88569Q — Clamp, Cooler, NO.5 | ||||
| 88718-60B50 |
Clamp, Cooler, NO.5
2023-06 → —
|
AAWH1#,TAWH15 | — | |
| 88717Z — Tube, Suction, NO.2 | ||||
| 88717-V2030 |
Tube, Suction, NO.2
2023-06 → —
|
AAWH1# | — | |
| 88717-V2040 |
Tube, Suction, NO.2
2023-11 → —
|
TAWH15 | — | |
| 88G16P — Tube, Liquid, NO.3 | ||||
| 88716-V2070 |
Tube, Liquid, NO.3
2023-06 → —
|
AAWH1# | — | |
| 88716-V2080 |
Tube, Liquid, NO.3
2023-11 → —
|
TAWH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
