Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

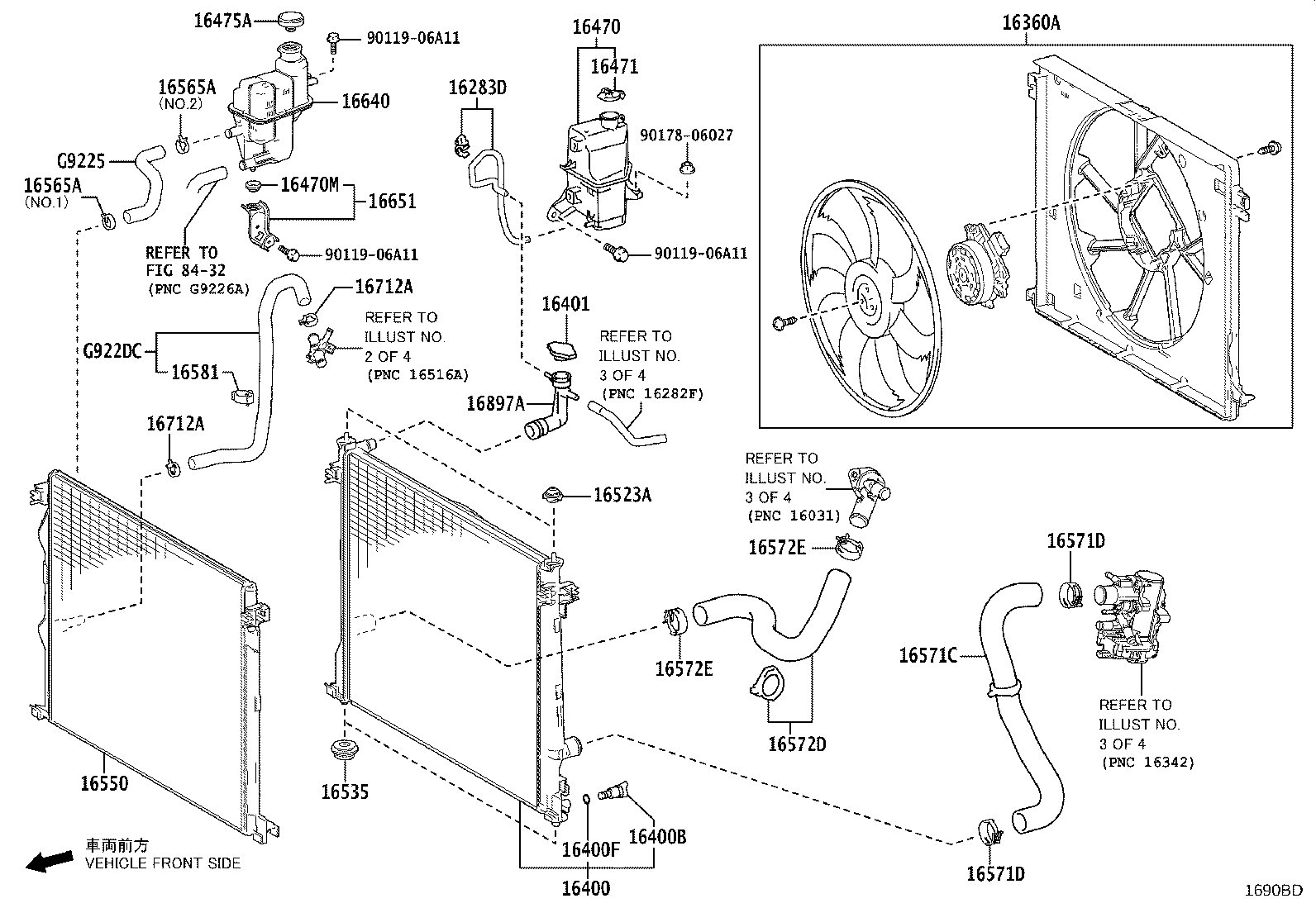

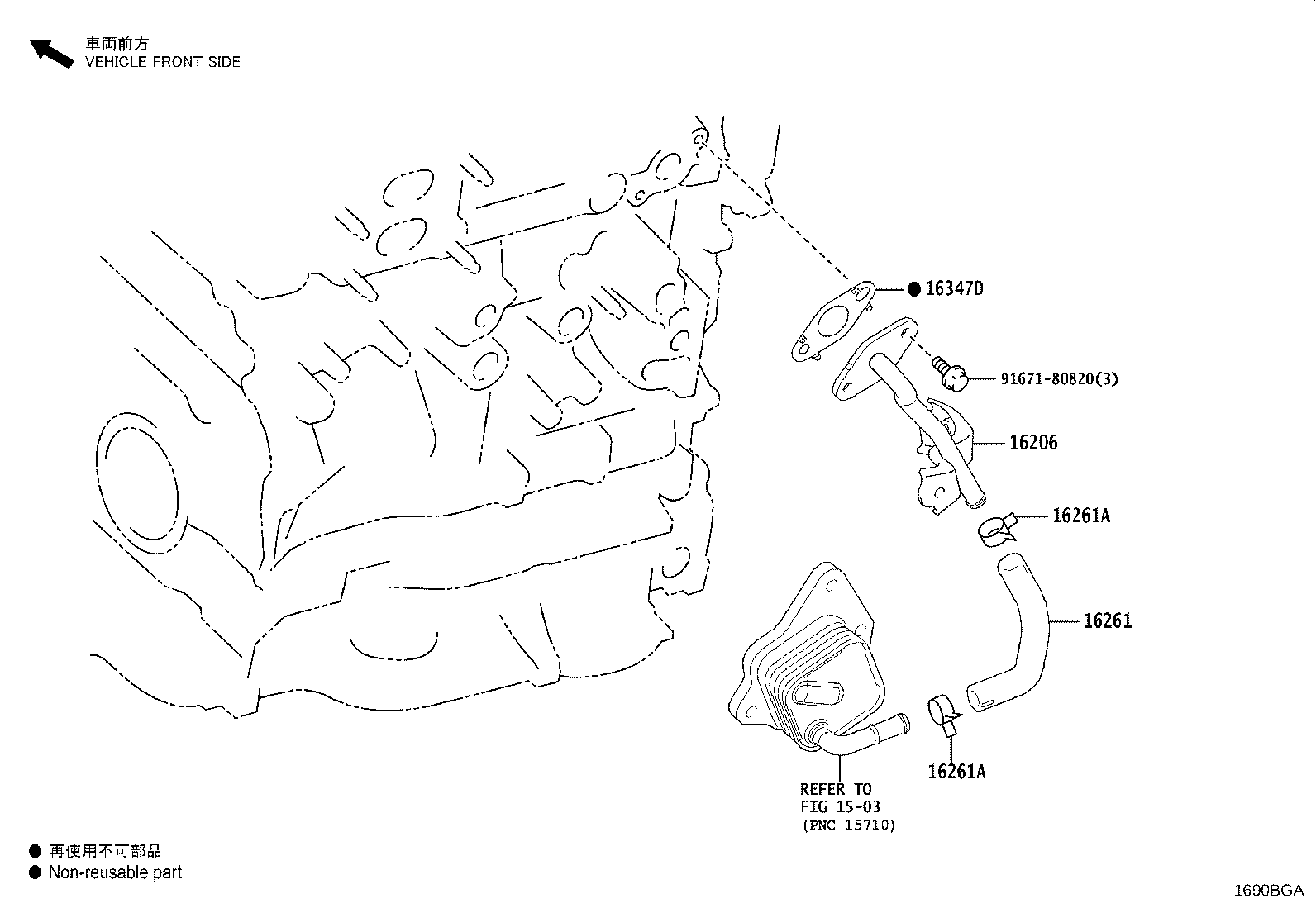

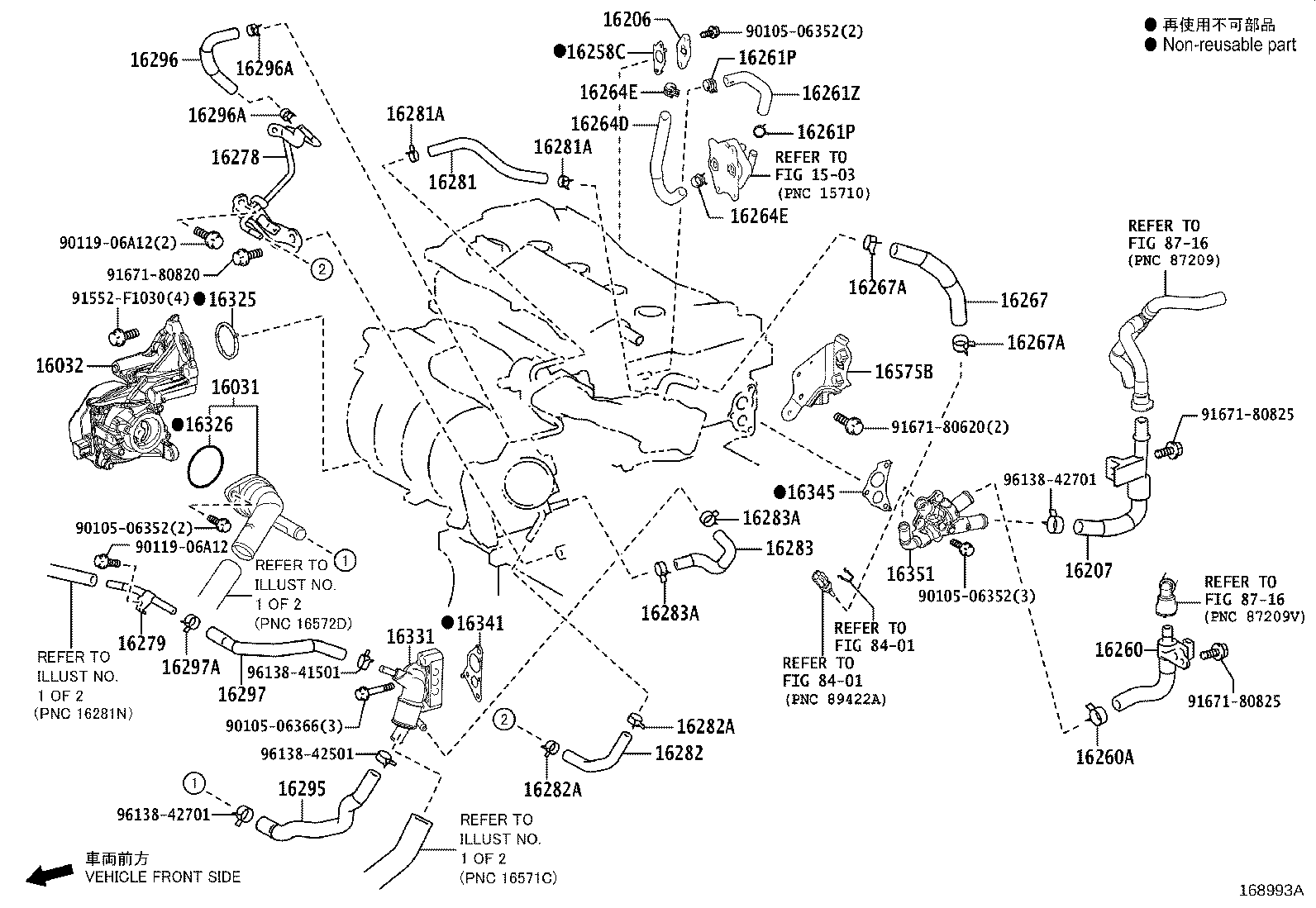

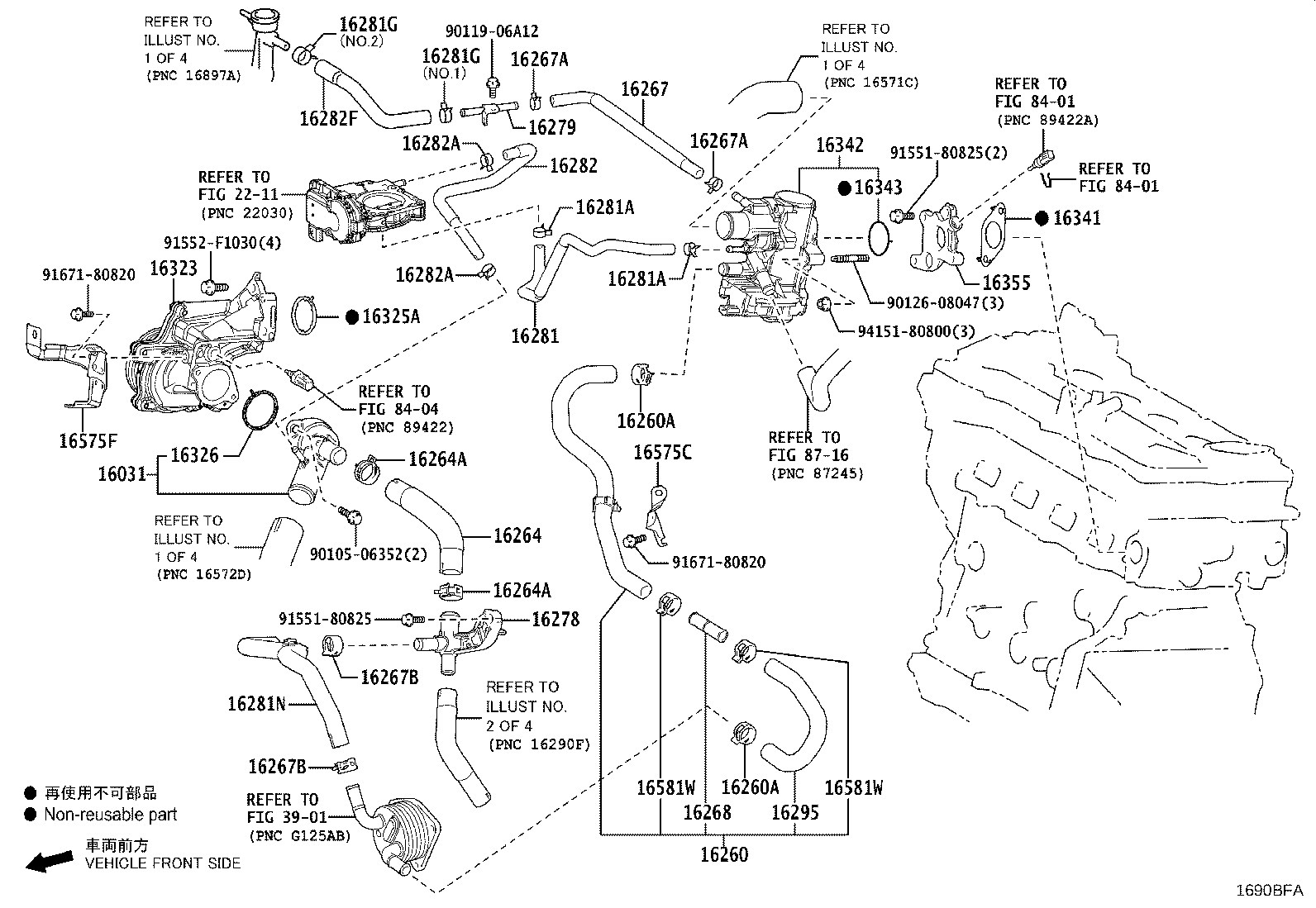

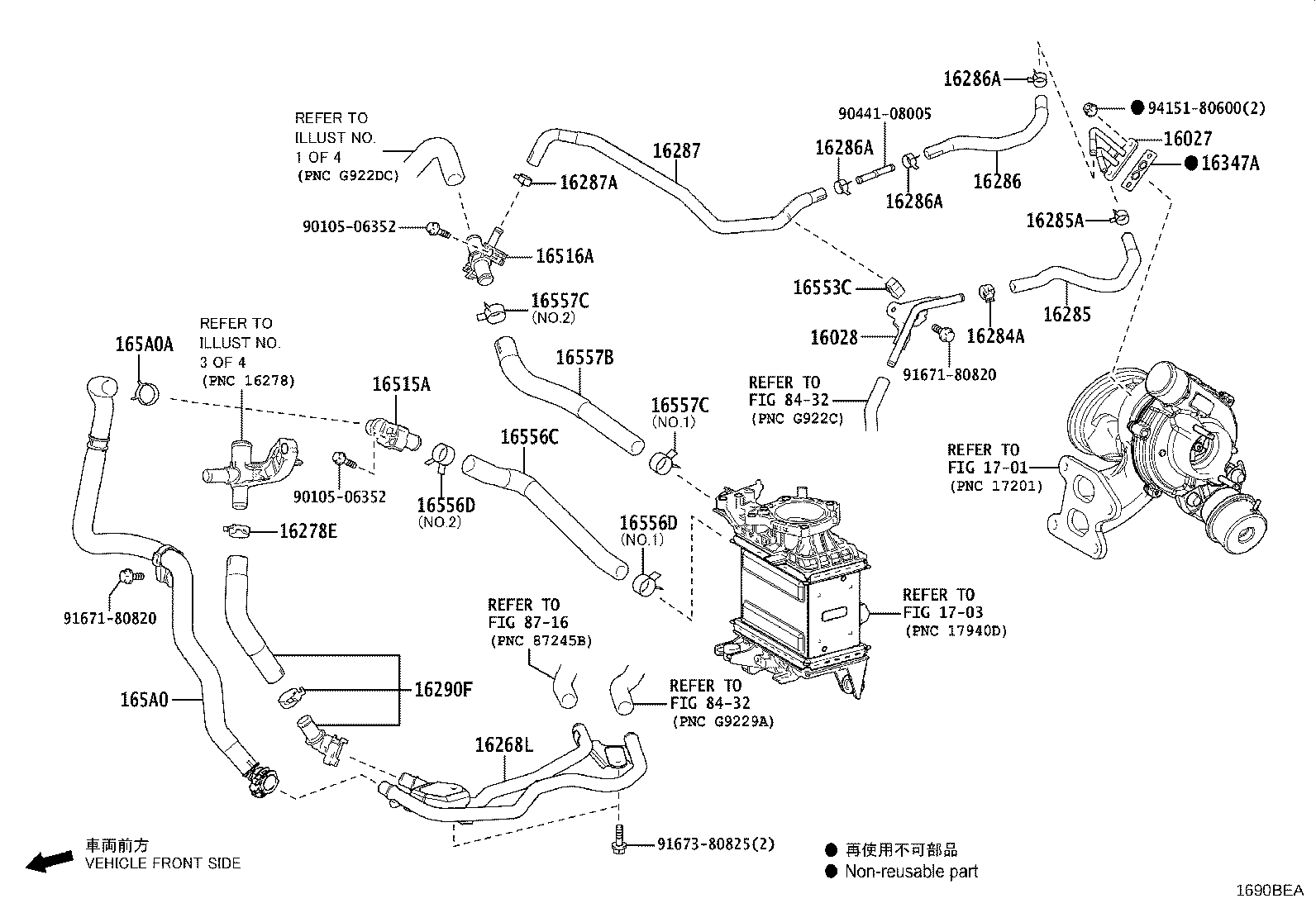

Radiator & Water Outlet

100 part groups · 6 illustrations

Illustrations

Part groups

PNC	Description
16027	Pipe Sub-assy, Turbo Water, NO.1
16028	Pipe Sub-assy, Turbo Water, NO.2
16031	Water Inlet Sub-assy, W/Thermostat
16032	Housing Sub-assy, Water Inlet W/Water Pump
16206	Pipe Sub-assy, Water By-pass
16207	Pipe Sub-assy, Water By-pass, NO.2
16258C	Gasket(FOR WATER BY-PASS PIPE)
16260	Hose Assy, Water By-pass
16260A	Clip(FOR WATER BY-PASS HOSE ASSY)
16261	Hose, Water By-pass
16261A	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261P	Clip(FOR WATER BY-PASS HOSE NO.2)
16261Z	Hose, Water By-pass, NO.1
16264	Hose, Water By-pass, NO.2
16264A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D	Hose, Water By-pass, NO.2
16264E	Clip(FOR WATER BY-PASS HOSE NO.2)
16267	Hose, Water By-pass, NO.3
16267A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B	Clip(FOR WATER BY-PASS HOSE)
16268	Pipe, Water By-pass, NO.1
16268L	Pipe, Water By-pass
16278	Pipe, Water By-pass, NO.2
16278E	Clip(FOR WATER BY-PASS HOSE)
16279	Pipe, Water By-pass, NO.3
16281	Hose, Water By-pass, NO.4
16281A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281G	Clip(FOR WATER BY-PASS HOSE NO.5)
16281N	Hose, Water By-pass, NO.4
16282	Hose, Water By-pass, NO.5
16282A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16282F	Hose, Water By-pass, NO.5
16283	Hose, Water By-pass, NO.6
16283A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283D	Hose, Water By-pass, NO.6
16284A	Clip(FOR TURBO WATER HOSE NO.1)
16285	Hose, Turbo Water, NO.2
16285A	Clip(FOR TURBO WATER HOSE NO.2)
16286	Hose, Turbo Water, NO.3
16286A	Clip(FOR TURBO WATER HOSE NO.3)
16287	Hose, Turbo Water, NO.4
16287A	Clip(FOR TURBO WATER HOSE NO.4)
16290F	Hose Assy, Water By-pass, NO.3
16295	Hose, Water By-pass, NO.7
16296	Hose, Water By-pass, NO.8
16296A	Clip(FOR WATER BY-PASS HOSE NO.8)
16297	Hose, Water By-pass, NO.9
16297A	Clip(FOR WATER BY-PASS HOSE NO.9)
16323	Housing, Water Inlet
16325	Gasket, Water Inlet Housing, NO.1
16325A	Gasket, Water Inlet Housing
16326	Gasket, Water Inlet Housing, NO.2
16331	Outlet, Water
16341	Gasket, Water Outlet
16342	Valve, Water Control
16343	Gasket, Water Outlet Housing
16345	Gasket, Water Outlet Pipe
16347A	Gasket(FOR TURBO WATER PIPE)
16347D	Gasket, Water By-pass
16351	Outlet, Water By-pass
16355	Joint, Water By-pass, Front
16360A	Fan Assy, W/Motor
16400	Radiator Assy
16400B	Plug, Radiator Drain Cock
16400F	Packing(FOR RADIATOR DRAIN COCK)
16401	Cap Sub-assy, Radiator
16470	Tank Assy, Radiator Reserve
16470M	Grommet
16471	Cap Sub-assy, Reserve Tank
16475A	Cap, Reserve Tank
16515A	Pipe, Intercooler Cooling Water, NO.1
16516A	Pipe, Intercooler Cooling Water, NO.2
16523A	Cushion, Radiator Support
16535	Support, Radiator, Lower
16550	Radiator Assy, Intercooler Cooling
16553C	Clamp, Hose
16556C	Hose, Intercooler Cooling Water, NO.6
16556D	Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16557B	Hose, Intercooler Cooling Water, NO.7
16557C	Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
16565A	Clip
16571A	Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C	Hose, Radiator, NO.1
16571D	Clip, Radiator Hose, NO.1
16572A	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D	Hose, Radiator, NO.2
16572E	Clip, Radiator Hose, NO.2
16575B	Bracket, Water Hose Clamp, NO.2
16575C	Bracket, Water Hose Clamp, NO.1
16575F	Bracket, Water Hose Clamp, NO.3
16581	Clamp, Hose(FOR WATER HOSE)
16581W	Clamp, Hose(FOR WATER HOSE)
165A0	Hose Assy, Intercooler Cooling Water, NO.1
165A0A	Clip, Hose
16640	Tank Assy, Intercooler Reserve
16651	Bracket, Intercooler Reserve Tank
16712A	Clip
16897A	Neck, Filler
G9225	Hose, Inverter Cooling, NO.1
G922DC	Hose, Inverter Cooling Outlet, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
