Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General
Supported model
Data version 2023-11

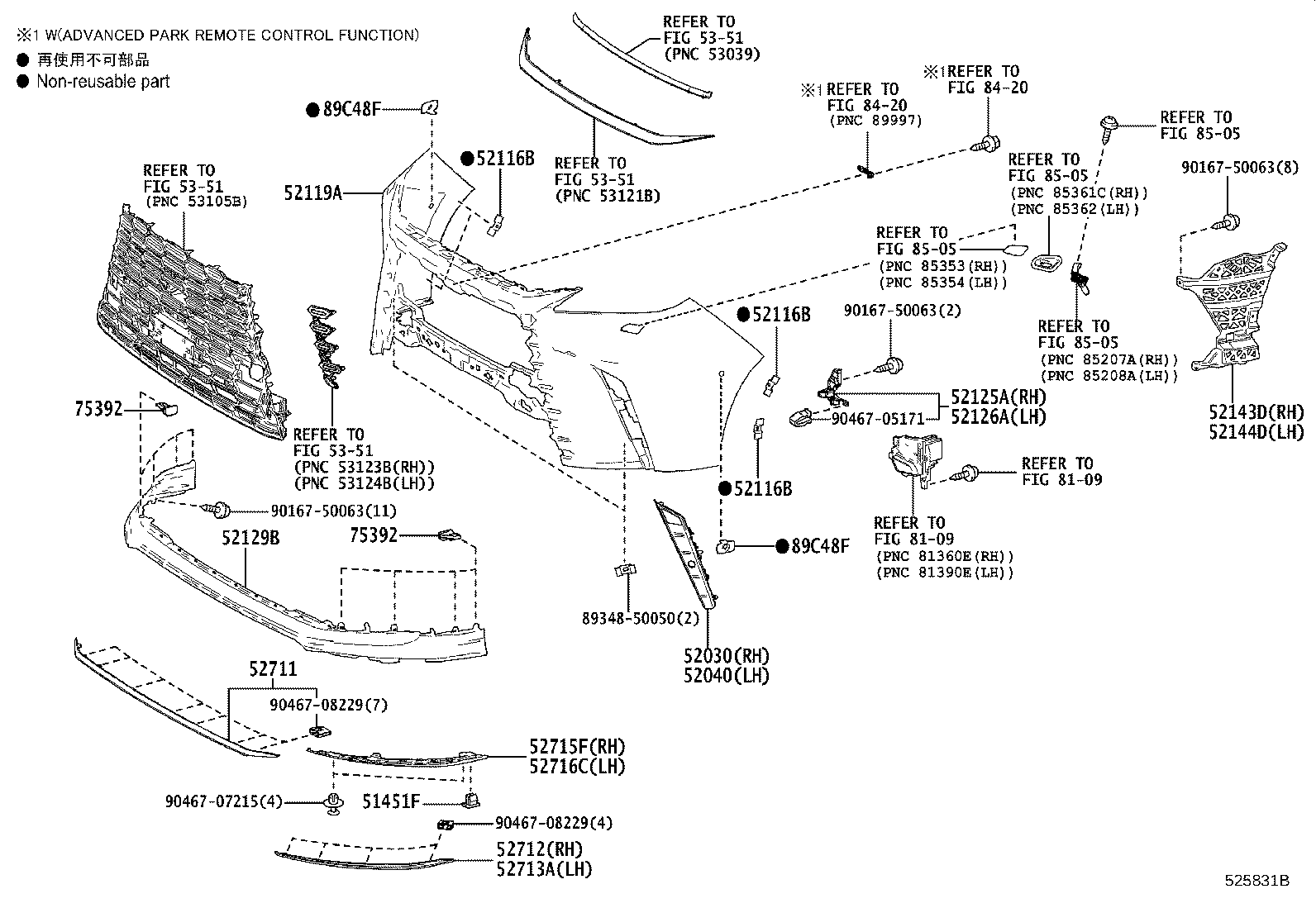

Front Bumper & Bumper Stay
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51451F | Grommet, NO.1 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52102 | Bracket Sub-assy, Front Bumper, RH |
| 52103 | Bracket Sub-assy, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52116B | Retainer, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126A | Bracket, Fog Lamp Mounting, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52143D | Bracket, Front Bumper Side, RH |
| 52144D | Bracket, Front Bumper Side, LH |
| 52145C | Bracket, Front Bumper Side Mounting, RH |
| 52146B | Bracket, Front Bumper Side Mounting, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52671 | Extension, Front Bumper Arm |
| 52671C | Clip, Front Bumper Arm Extension, NO.1 |
| 52671D | Clip, Front Bumper Arm Extension, NO.2 |
| 52711 | Moulding, Front Bumper |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 52715F | Insert, Front Bumper Moulding, RH |
| 52716C | Insert, Front Bumper Moulding, LH |
| 75392 | Retainer, Outside Moulding |
| 89C48F | Retainer, Ultrasonic Sensor, Front Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
