Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General

Supported model Data version 2023-11

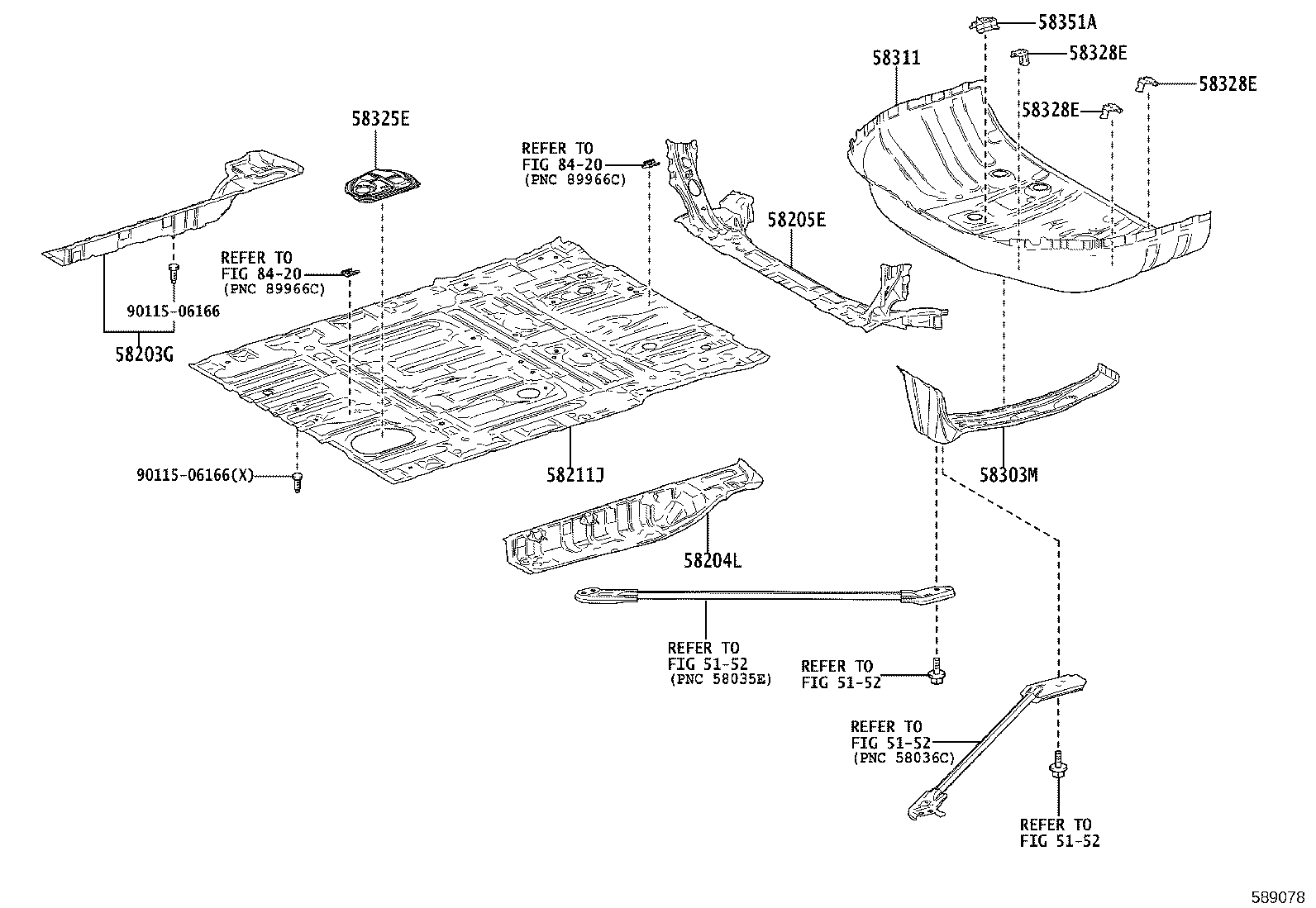

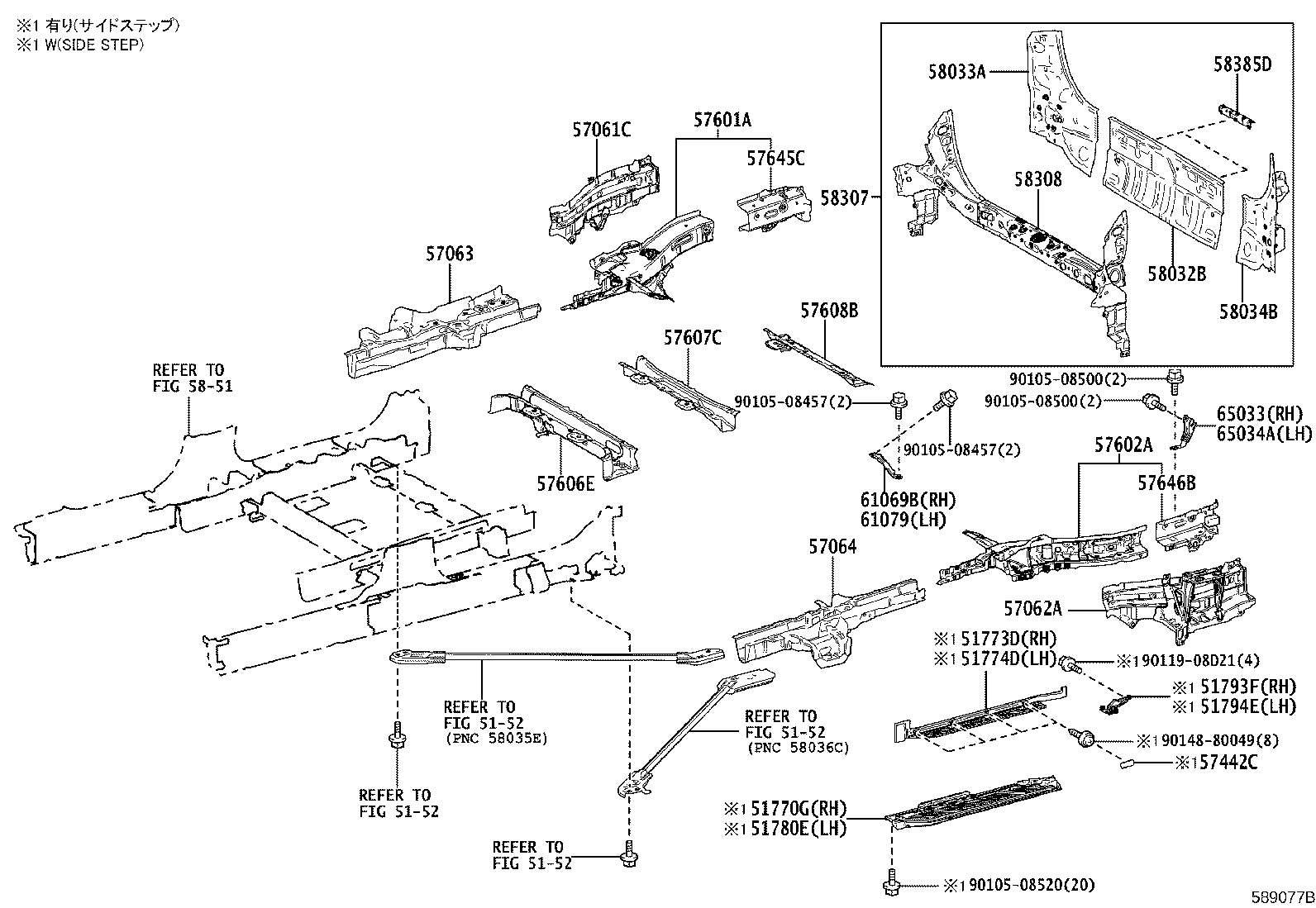

Rear Floor Panel & Rear Floor Member

37 part groups · 3 illustrations

PNC	Description
51770G	Step Assy, Power Lift, RH
51773D	Cover, Step Plate, RH
51774D	Cover, Step Plate, LH
51780E	Step Assy, Power Lift, LH
51793F	Bracket, Side Step, NO.1 RH
51794E	Bracket, Side Step, NO.1 LH
57061C	Member Sub-assy, Under Rear, RH
57062A	Member Sub-assy, Under Rear, LH
57063	Bracket Sub-assy, Fuel Tank Mounting, Rear RH
57064	Bracket Sub-assy, Fuel Tank Mounting, Rear LH
57442C	Plug, Step Panel Hole
57601A	Member Sub-assy, Rear Floor Side, RH
57602A	Member Sub-assy, Rear Floor Side, LH
57606E	Member Sub-assy, Rear Floor Cross, NO.2
57607C	Member Sub-assy, Rear Floor Cross, NO.3
57608B	Member Sub-assy, Rear Floor Cross, NO.4
57645C	Reinforcement, Rear Floor Side Member, Rear NO.3 RH
57646B	Reinforcement, Rear Floor Side Member, Rear NO.3 LH
58032B	Panel Sub-assy, Rear Floor, Center
58033A	Reinforce Sub-assy, Body Lower Back, RH
58034B	Reinforce Sub-assy, Body Lower Back, LH
58203G	Reinforcement Sub-assy, Center Floor Panel, RH.
58204L	Reinforcement Sub-assy, Center Floor Panel, LH
58205E	Reinforce Sub-assy, Rear Seat Hinge
58211J	Pan, Center Floor
58303M	Reinforce Sub-assy, Rear Bumper Arm Support
58307	Panel Sub-assy, Body Lower Back
58308	Panel Sub-assy, Body Lower Back, Inner
58311	Pan, Rear Floor
58325E	Cover, Rear Floor Service Hole
58328E	Bracket, Jack Rest
58351A	Bracket, Spare Wheel Carrier
58385D	Bracket, Rear Bumper Cover
61069B	Brace Sub-assy, Quarter Wheel House, NO.1 RH
61079	Brace Sub-assy, Quarter Wheel House, NO.1 LH
65033	Brace Sub-assy, Floor Front Corner, RH
65034A	Brace Sub-assy, Floor Front Corner, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
