Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General
Supported model
Data version 2023-11

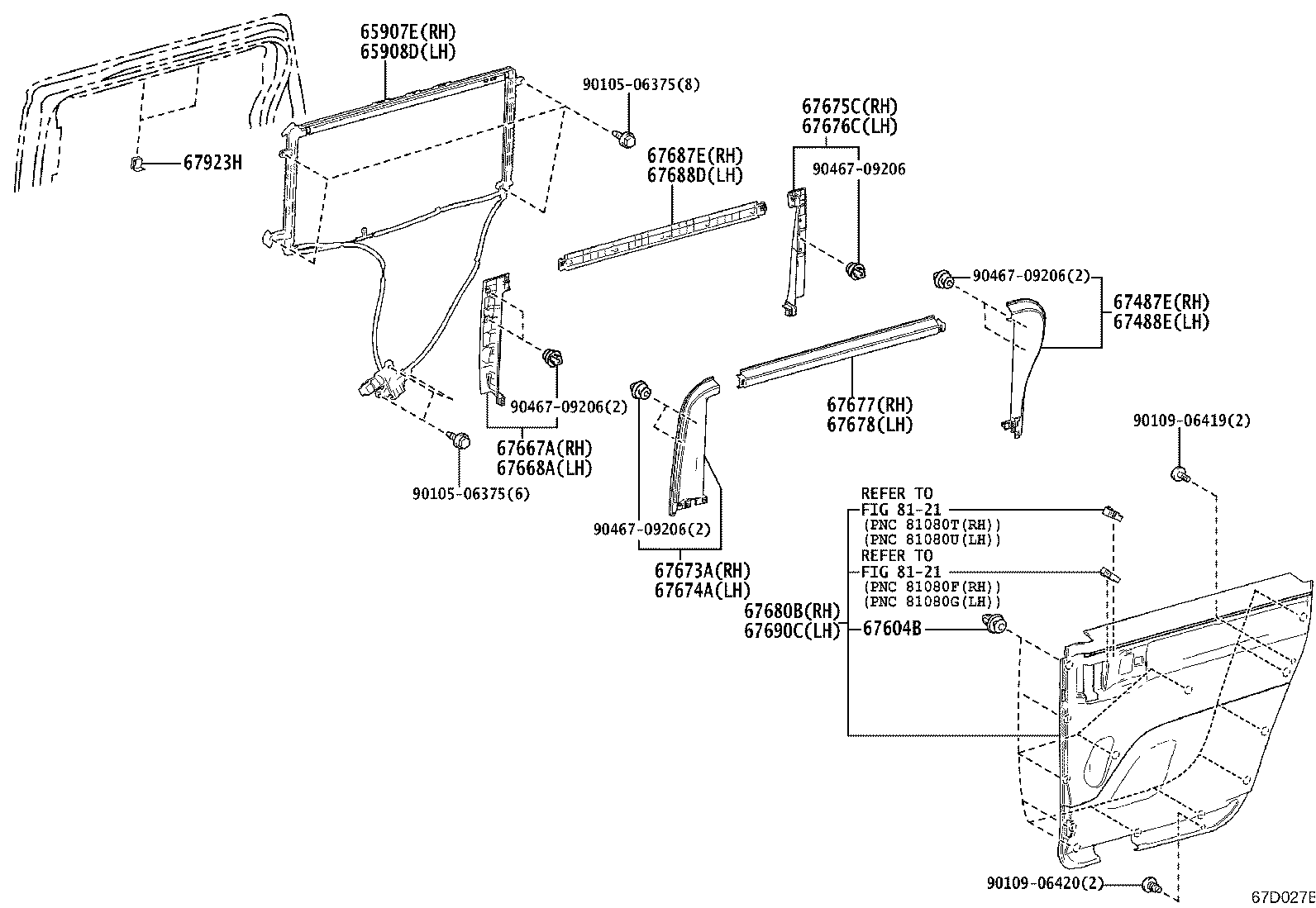

Rear Door Panel & Glass
92 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332B | Weatherstrip, Rear Door Opening Trim, LH |
| 62345D | Weatherstrip, Slide Door, NO.3 RH |
| 62346C | Weatherstrip, Slide Door, NO.3 LH |
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 67007 | Panel Sub-assy, Slide Door, RH |
| 67008 | Panel Sub-assy, Slide Door, LH |
| 67113A | Panel, Slide Door, Outer RH |
| 67114A | Panel, Slide Door, Outer LH |
| 67405D | Guide Sub-assy, Slide Door Window, Front RH |
| 67406D | Guide Sub-assy, Slide Door Window, Front LH |
| 67407J | Guide Sub-assy, Slide Door Window, Rear RH |
| 67408B | Guide Sub-assy, Slide Door Window, Rear LH |
| 67487C | Seal, Rear Door Rear Guide, RH |
| 67487E | Garnish, Rear Door Rear Guide Bracket, RH |
| 67487G | Clip, Rear Door Rear Guide Seal |
| 67488C | Seal, Rear Door Rear Guide, LH |
| 67488E | Garnish, Rear Door Rear Guide Bracket, LH |
| 67521 | Cover Sub-assy, Slide Door Panel, RH |
| 67522 | Cover Sub-assy, Slide Door Panel, LH |
| 67525C | Cover, Slide Door Panel, Lower RH |
| 67525D | Cover, Slide Door Panel, Lower LH |
| 67604B | Clip(FOR SLIDE DOOR TRIM BOARD) |
| 67667A | Garnish, Slide Door Window, RH |
| 67668A | Garnish, Slide Door Window, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67675C | Garnish, Rear Door Frame, NO.2 RH |
| 67676C | Garnish, Rear Door Frame, NO.2 LH |
| 67677 | Cover, Side Trim Board, Rear RH |
| 67678 | Cover, Side Trim Board, Rear LH |
| 67680B | Board Assy, Slide Door Trim, RH |
| 67687E | Cover, Side Trim Board, Rear RH |
| 67688D | Cover, Side Trim Board, Rear LH |
| 67690C | Board Assy, Slide Door Trim, LH |
| 67787G | Cover, Slide Door Trim, Ctr RH |
| 67789 | Cover, Slide Door Trim, Ctr LH |
| 67812 | Pad, Rear Door Silencer |
| 67837C | Seal, Rear Door Dust Proof |
| 67841G | Cover, Slide Door Service Hole, RH |
| 67842G | Cover, Slide Door Service Hole, LH |
| 67843B | Cover, Rear Door Service Hole, NO.2 RH |
| 67843D | Clip, Rear Door Service Hole |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67847B | Seal, Rear Door Vent, RH NO.1 |
| 67848A | Seal, Rear Door Vent, LH NO.1 |
| 67851E | Cover, Slide Door Service Hole, RH |
| 67852E | Cover, Slide Door Service Hole, LH |
| 67856J | Weatherstrip, Slide Door, Rear RH |
| 67857N | Protector, Slide Door Rail, RH |
| 67857R | Weatherstrip, Slide Door, Rear LH |
| 67858F | Protector, Slide Door Rail, LH |
| 67867P | Retainer, Slide Door Weatherstrip, NO.1 |
| 67867Q | Retainer, Slide Door Weatherstrip, NO.2 |
| 67867Y | Retainer, Slide Door Vent Seal, RH |
| 67867Z | Retainer, Slide Door Vent Seal, LH |
| 67869L | Clip, Rear Door Weatherstrip |
| 67869M | Clip, Door Weatherstrip |
| 67869N | Clip, Rear Door Weatherstrip, RH |
| 67869P | Clip, Rear Door Weatherstrip, LH |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67872A | Weatherstrip, Slide Door, NO.1 LH |
| 67873L | Weatherstrip, Rear Door, NO.5 RH |
| 67874C | Weatherstrip, Rear Door, NO.5 LH |
| 67887D | Weatherstrip, Slide Door, NO.2 RH |
| 67888B | Weatherstrip, Slide Door, NO.2 LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 67897M | Weatherstrip, Slide Door, NO.4 RH |
| 67898H | Weatherstrip, Slide Door, NO.4 LH |
| 67923H | Retainer, Door Corner Seal |
| 68103A | Glass Sub-assy, Slide Door, RH |
| 68104A | Glass Sub-assy, Slide Door, LH |
| 68142E | Run, Slide Door Glass, RH |
| 68152E | Run, Slide Door Glass, LH |
| 68173C | Weatherstrip, Slide Door Glass, Inner RH |
| 68174C | Weatherstrip, Slide Door Glass, Inner LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 75726A | Cover, Rear Door Belt Moulding End, Front RH |
| 75727A | Cover, Rear Door Belt Moulding End, Front LH |
| 75728A | Cover, Rear Door Belt Moulding End, Rear RH |
| 75729A | Cover, Rear Door Belt Moulding End, Rear LH |
| 75895U | Tape, Moulding, NO.1, RH |
| 75895V | Tape, Moulding, NO.1, LH |
| 84250C | Clip (FOR POWER SLIDE DOOR SENSOR, RH) |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
| 84260L | Clip (FOR POWER SLIDE DOOR SENSOR, LH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
