Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

288 part groups · 24 illustrations

Illustrations

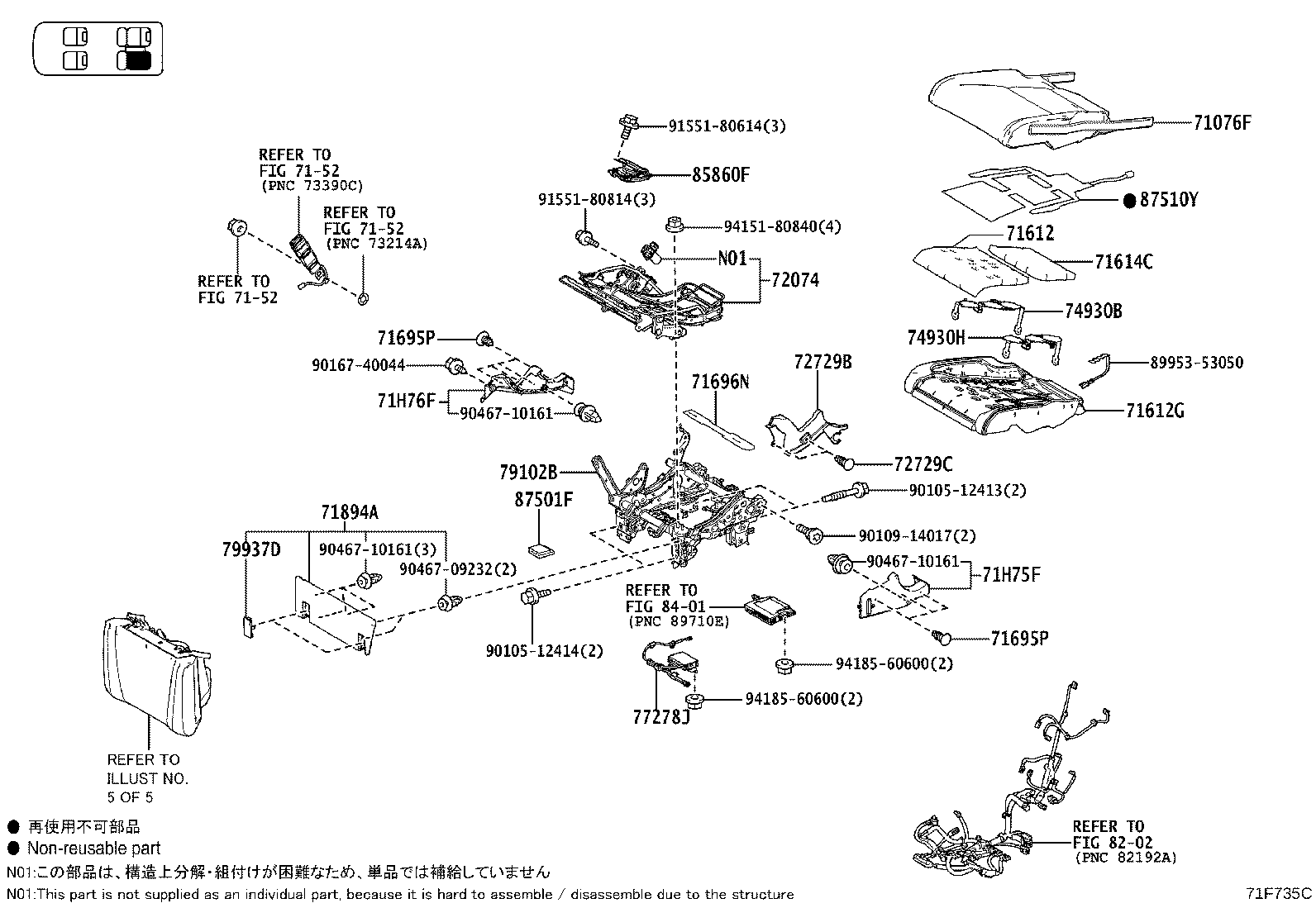

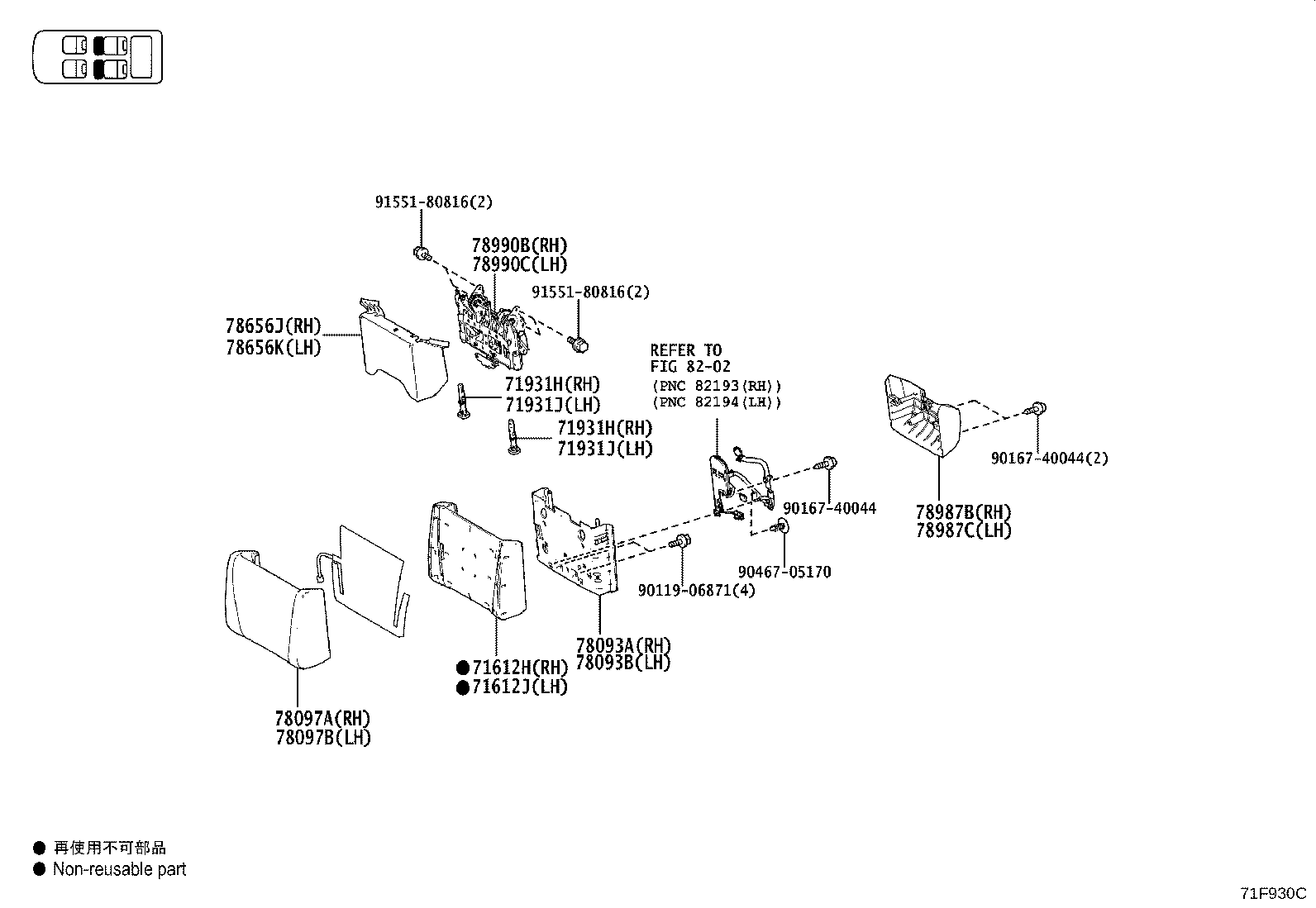

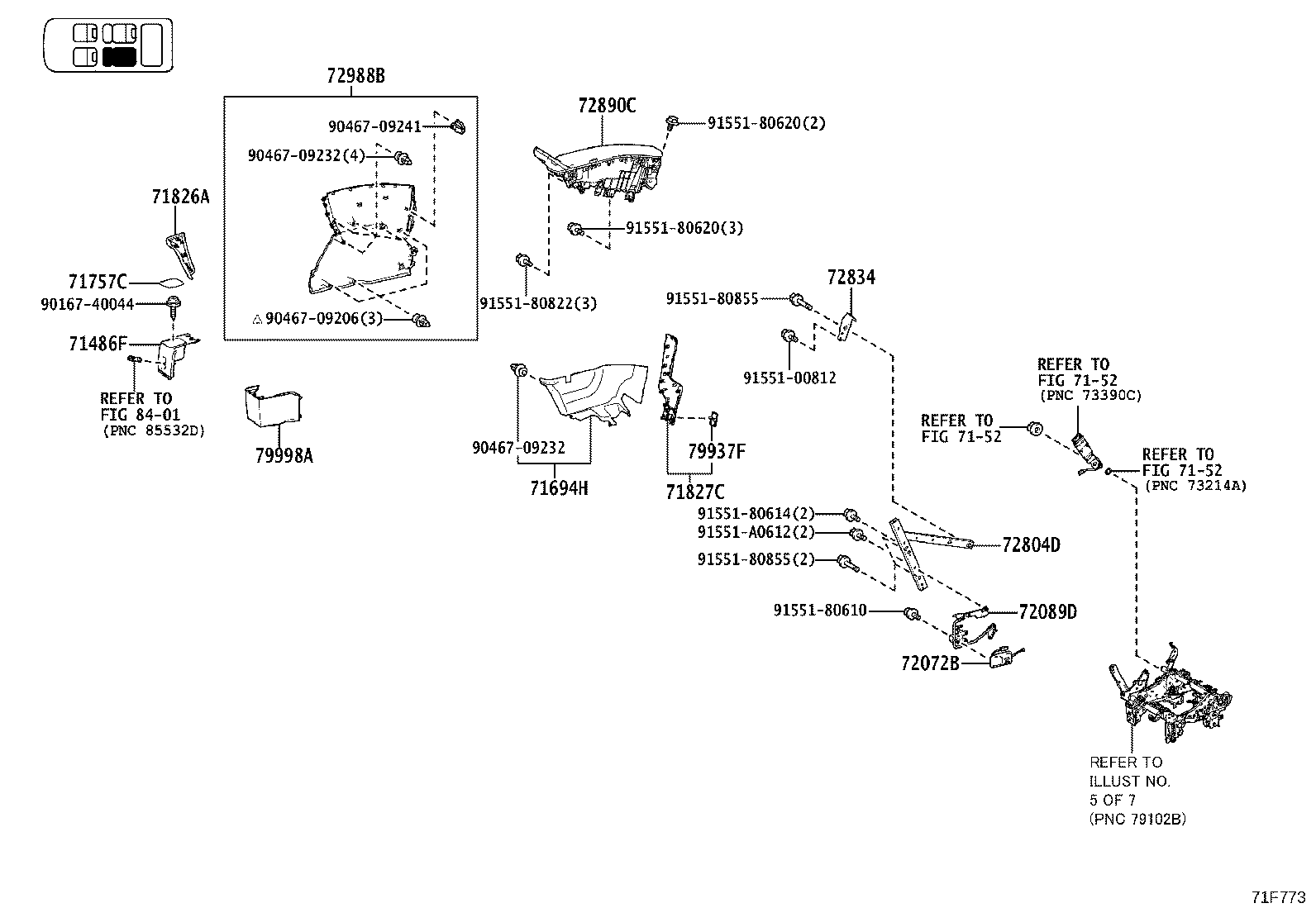

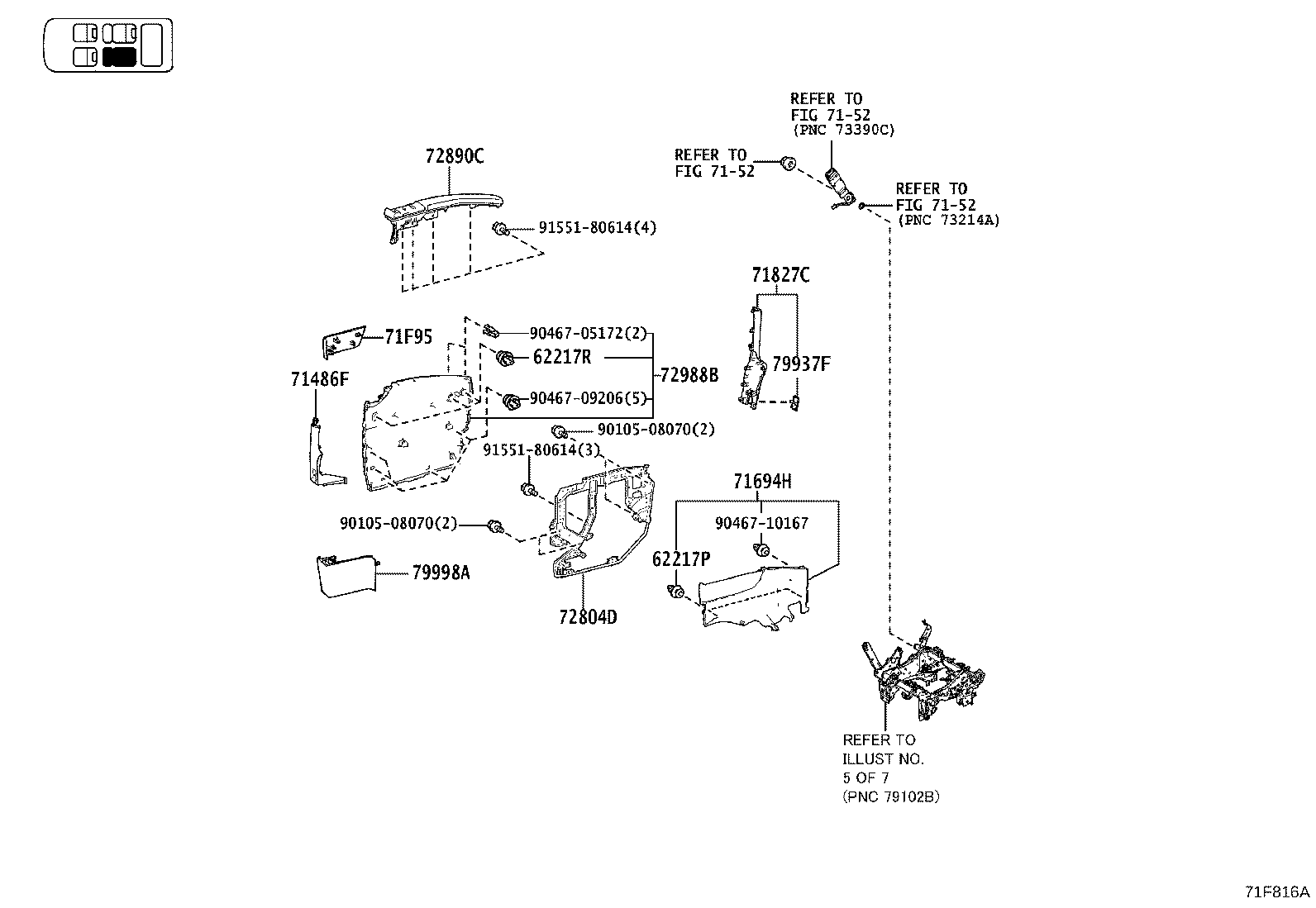

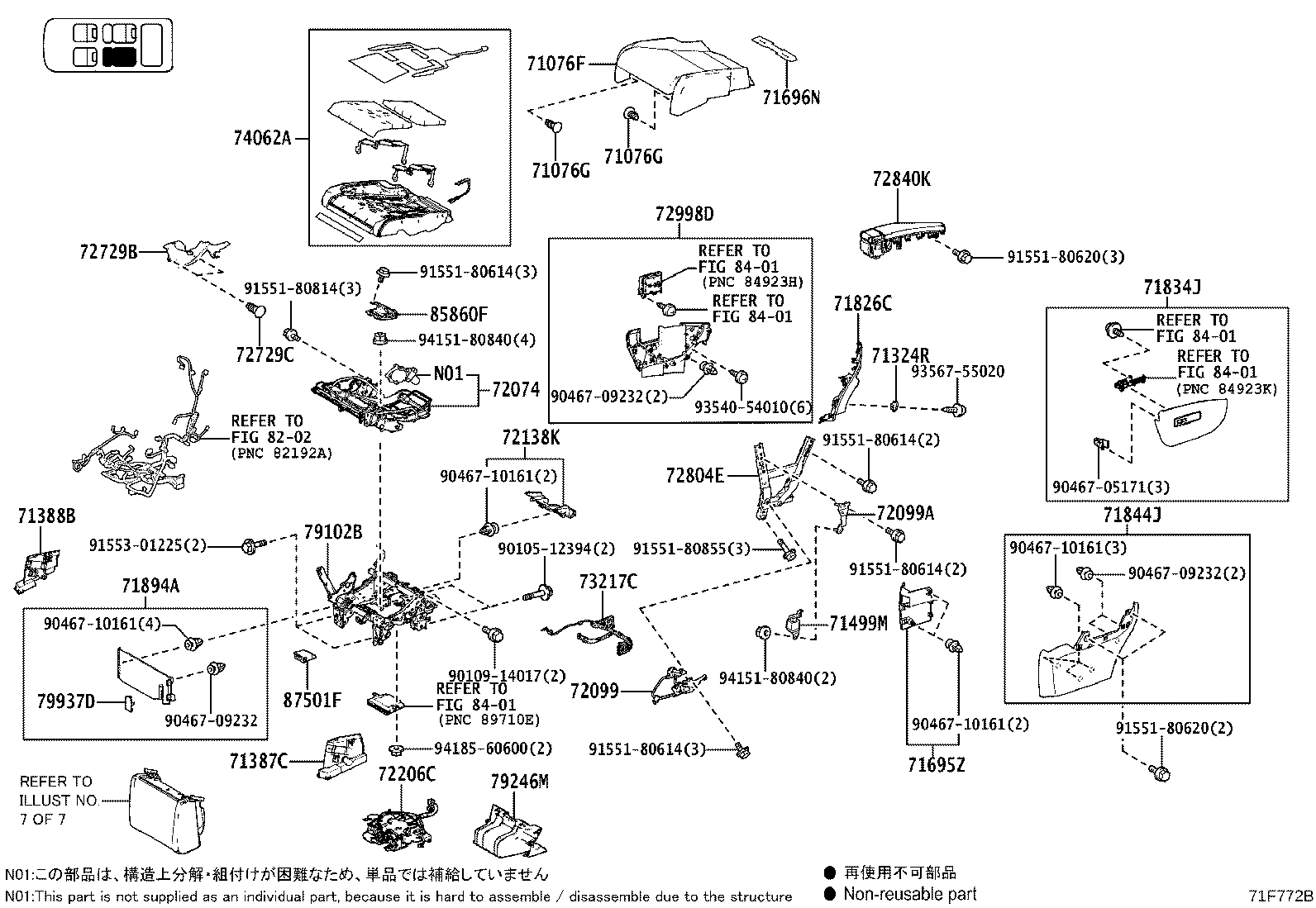

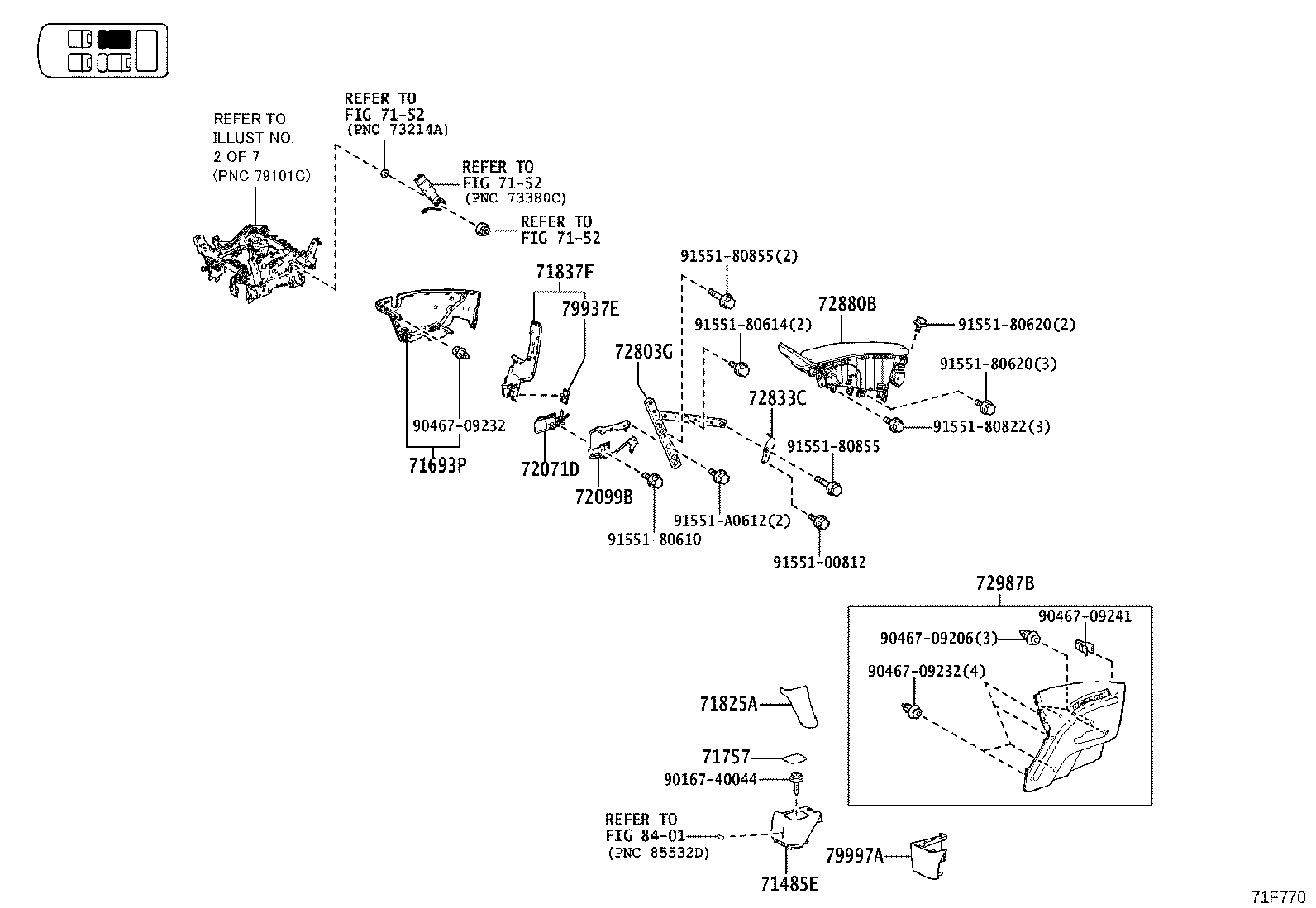

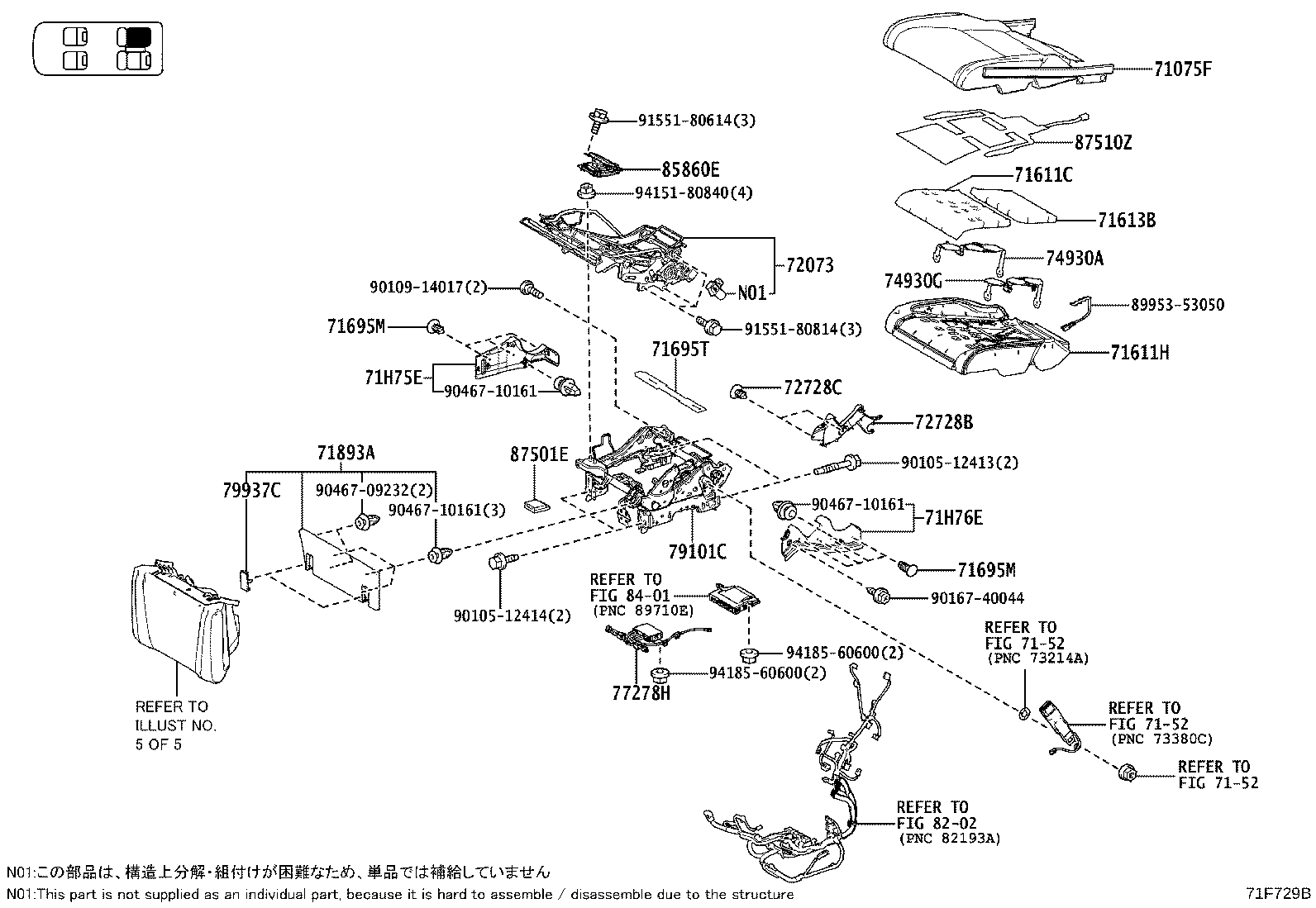

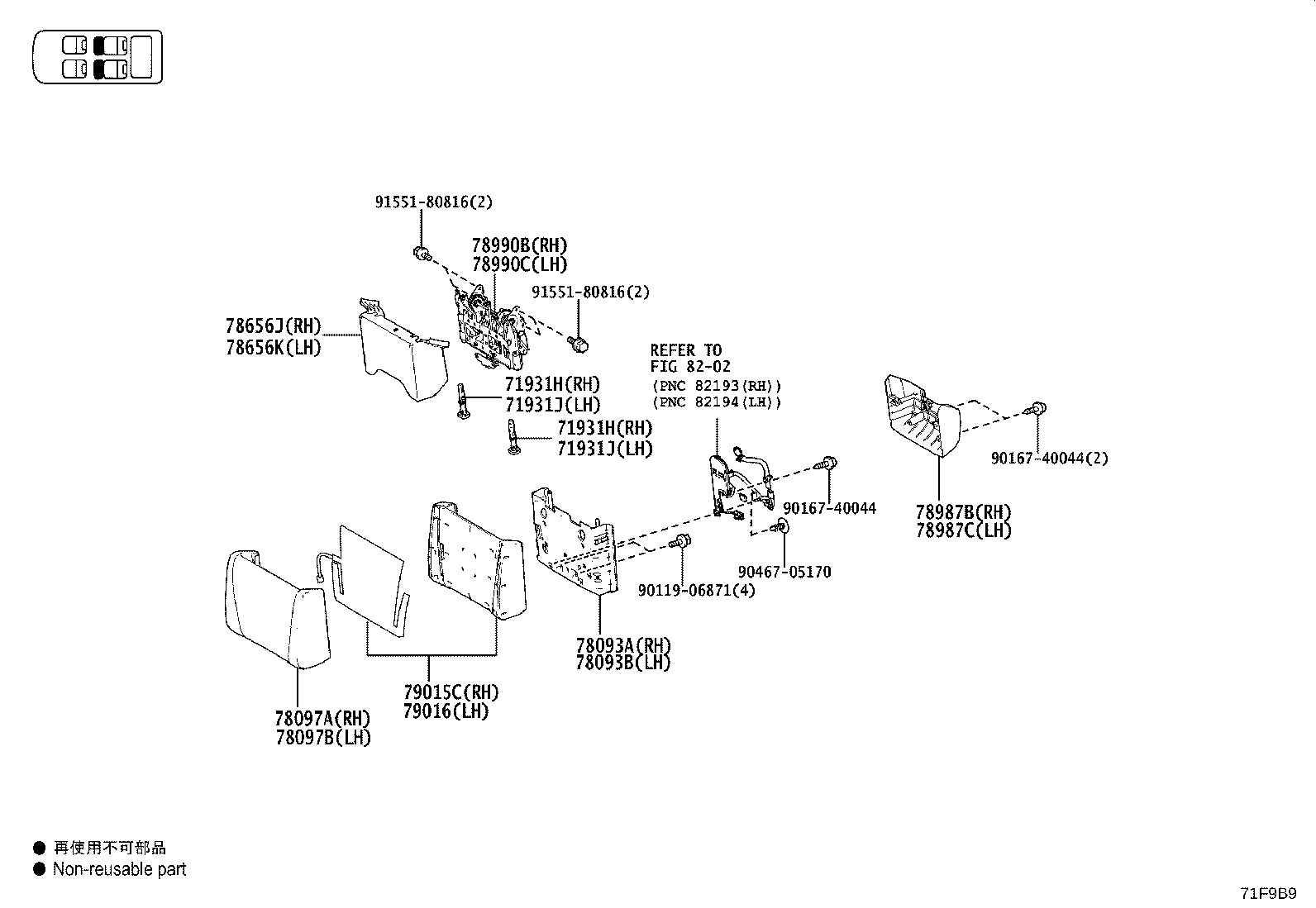

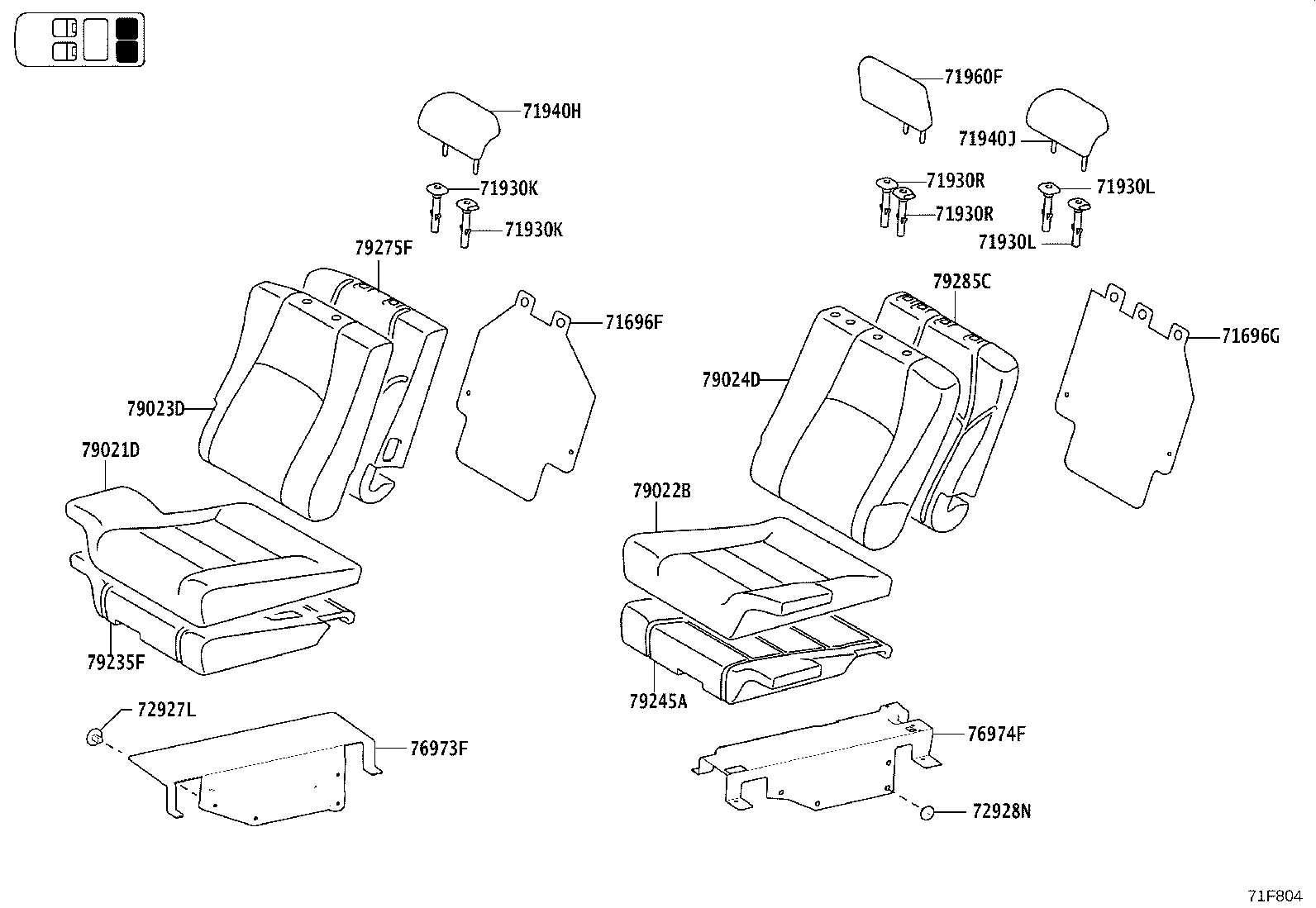

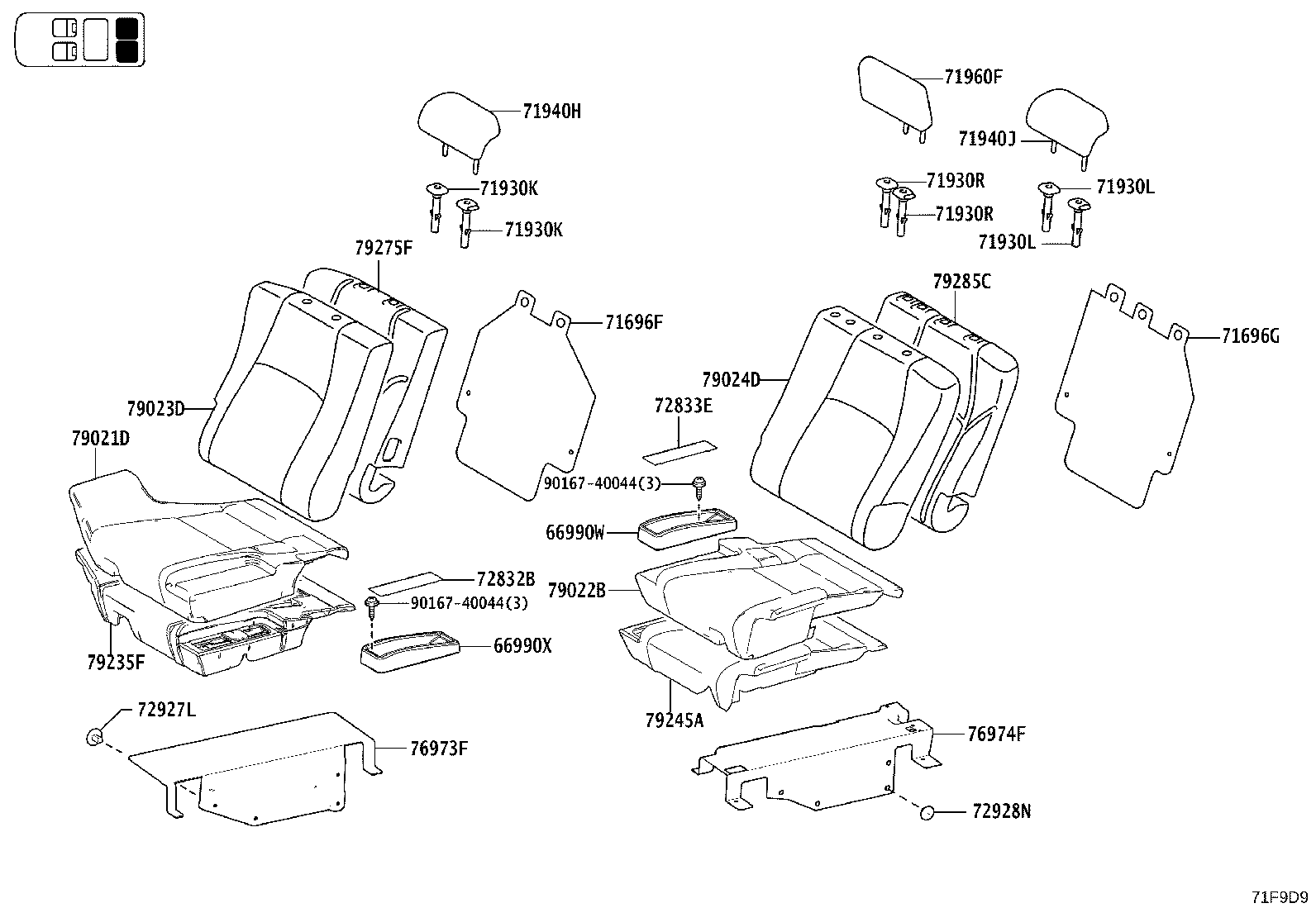

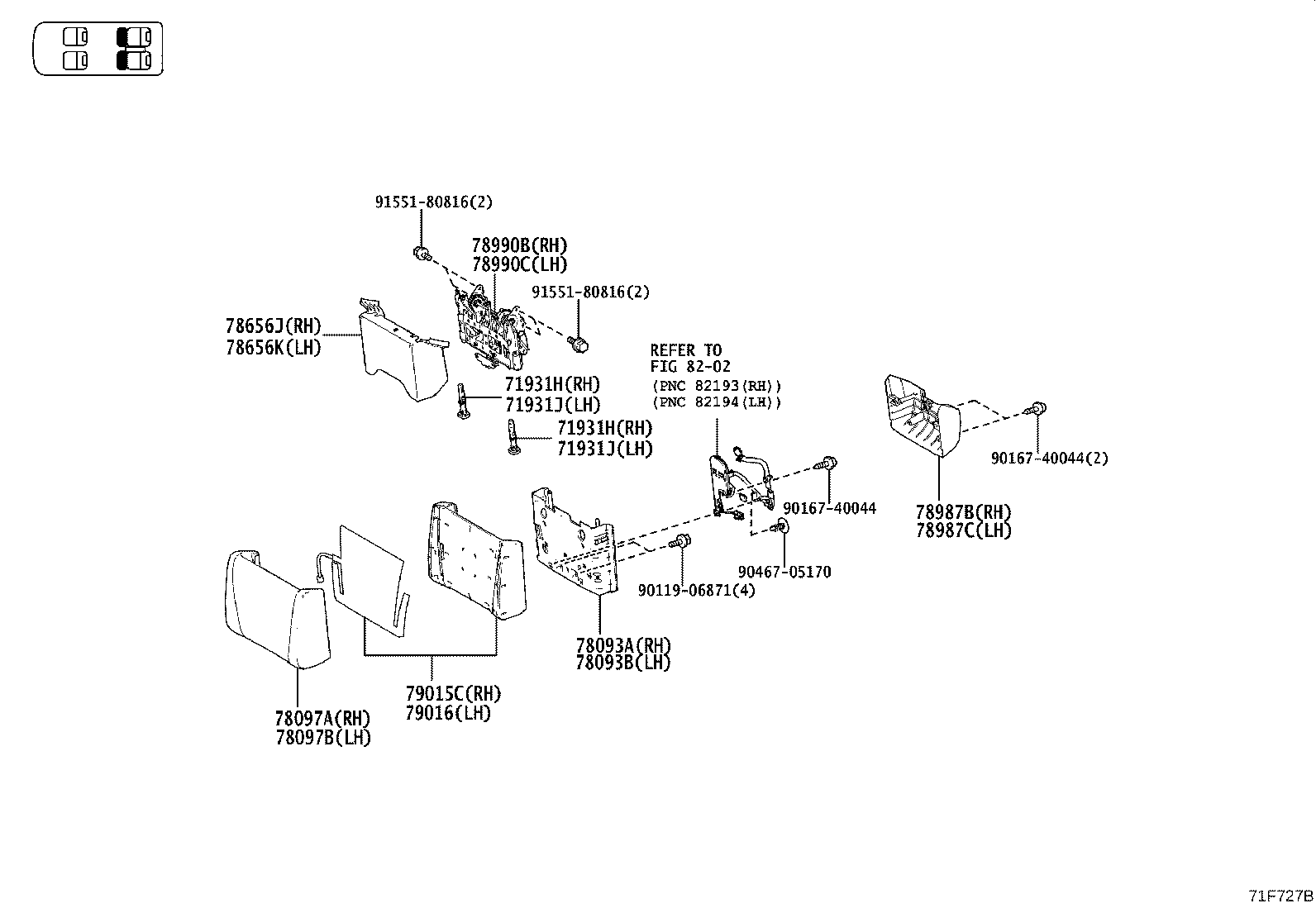

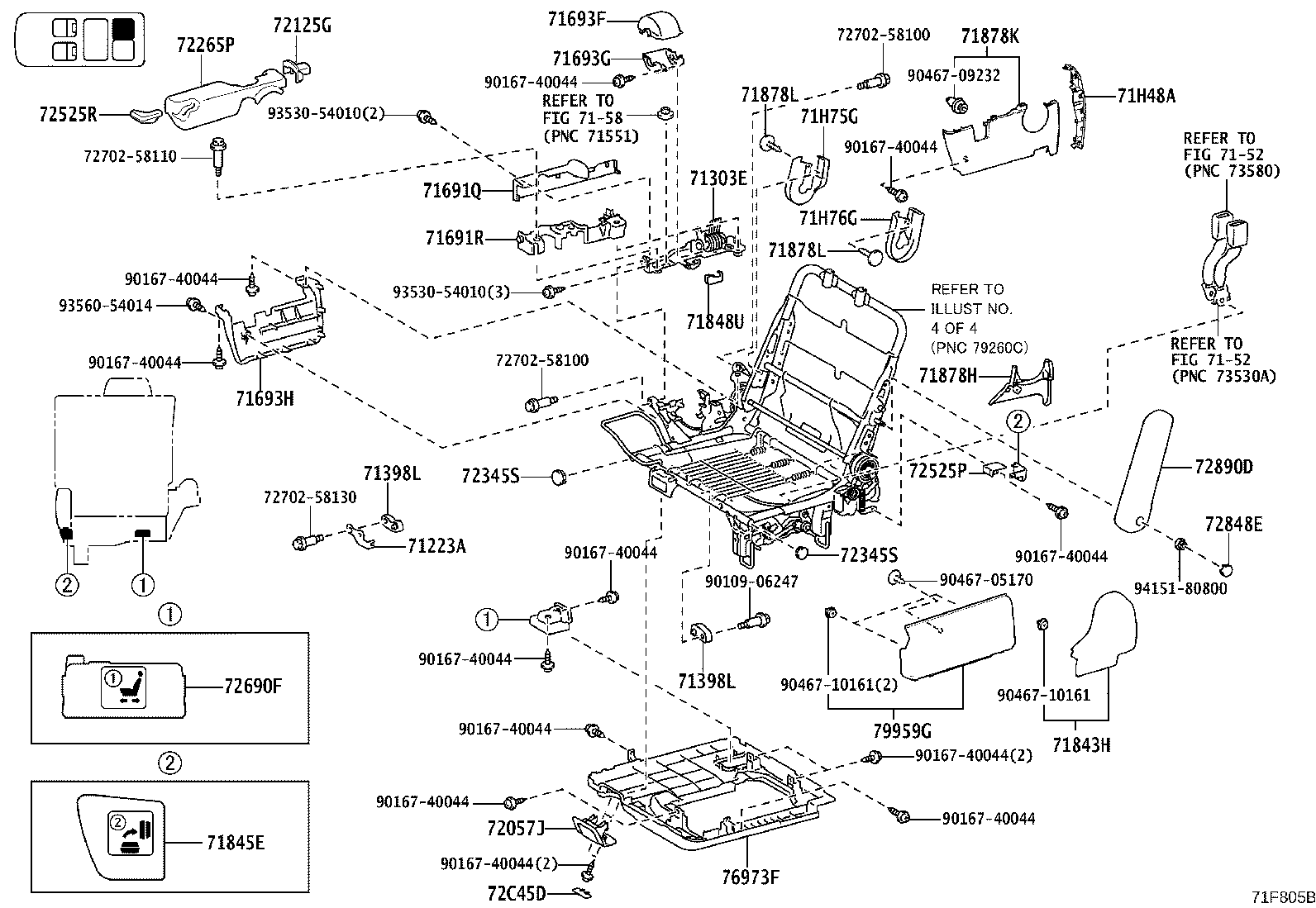

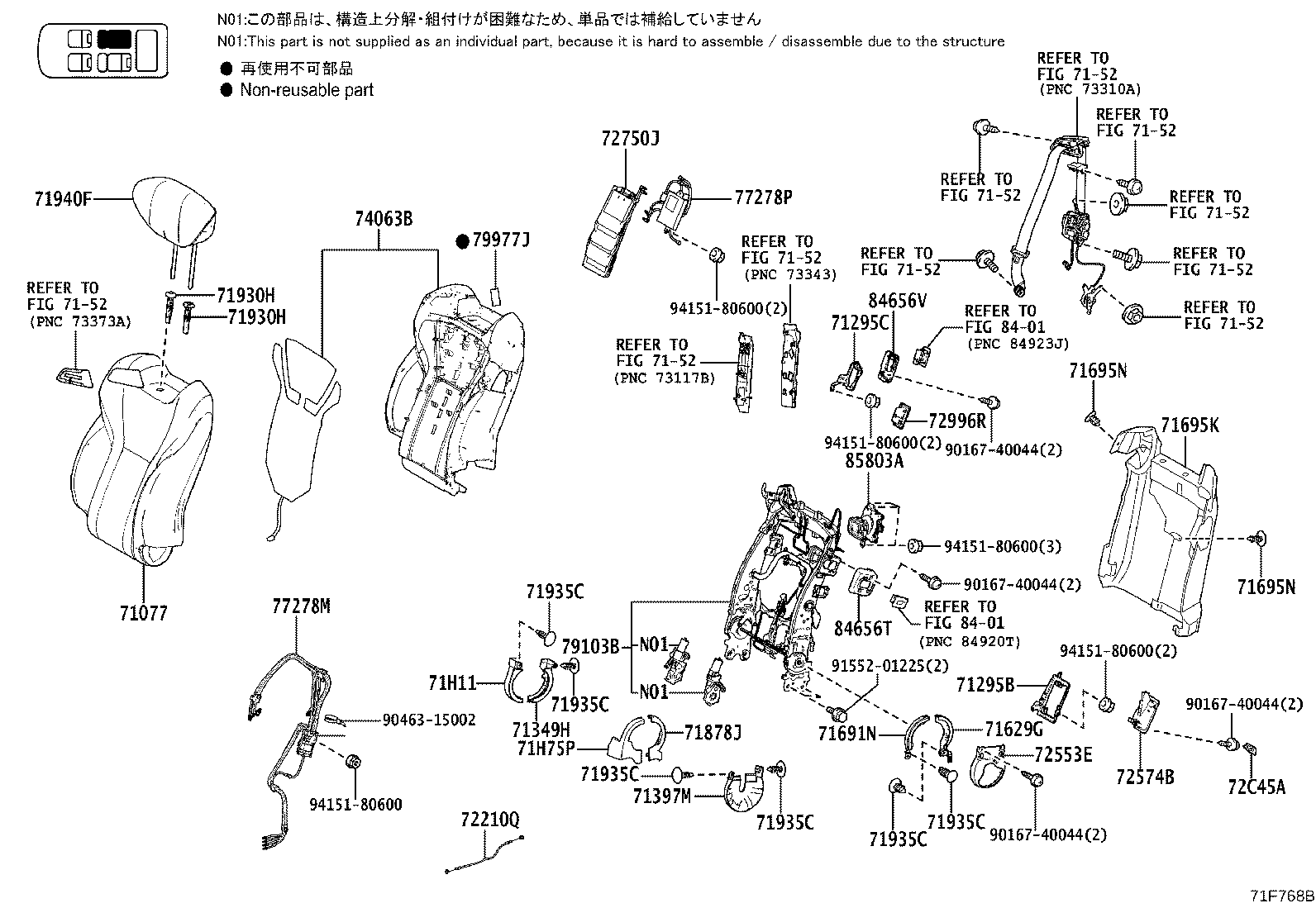

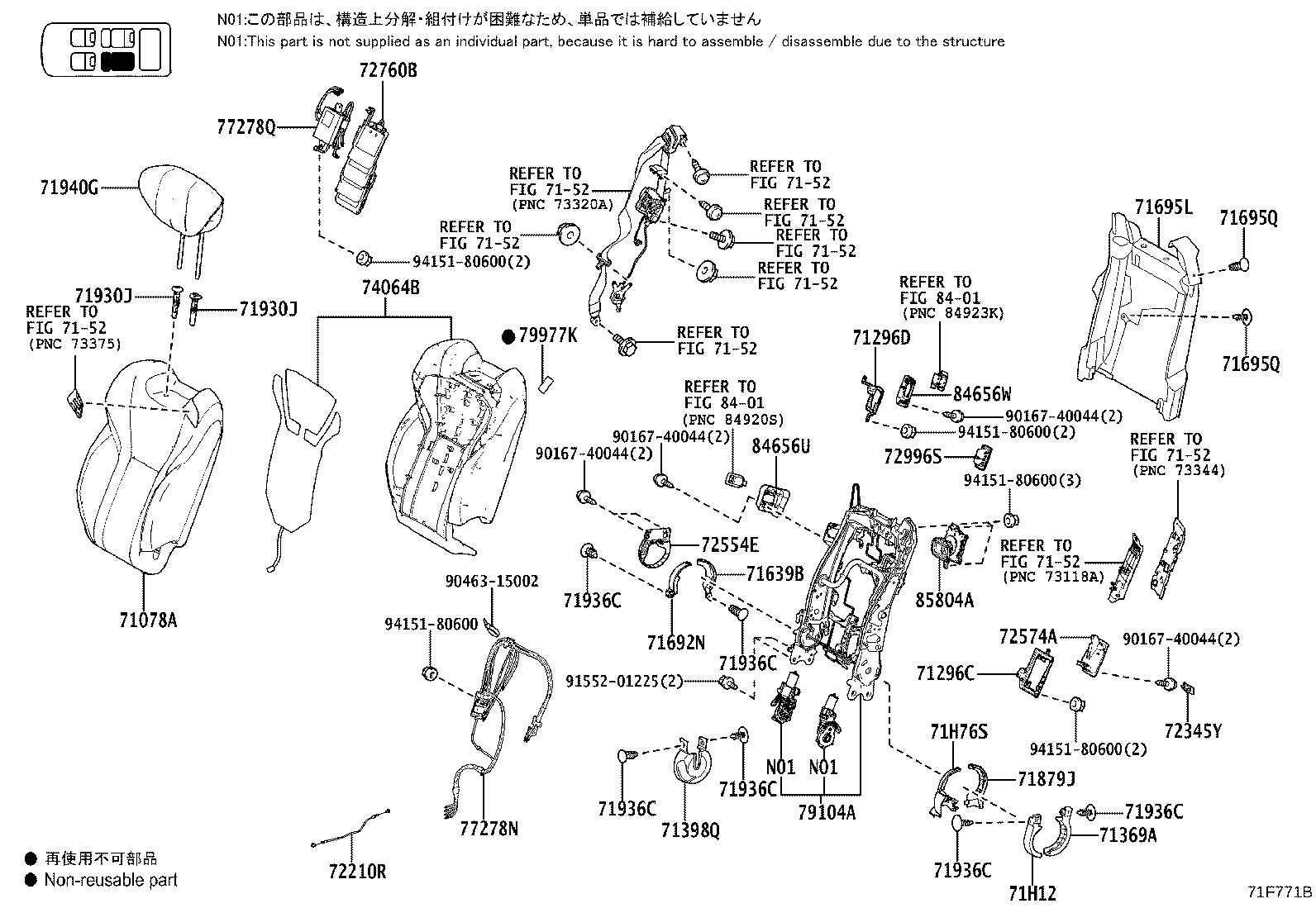

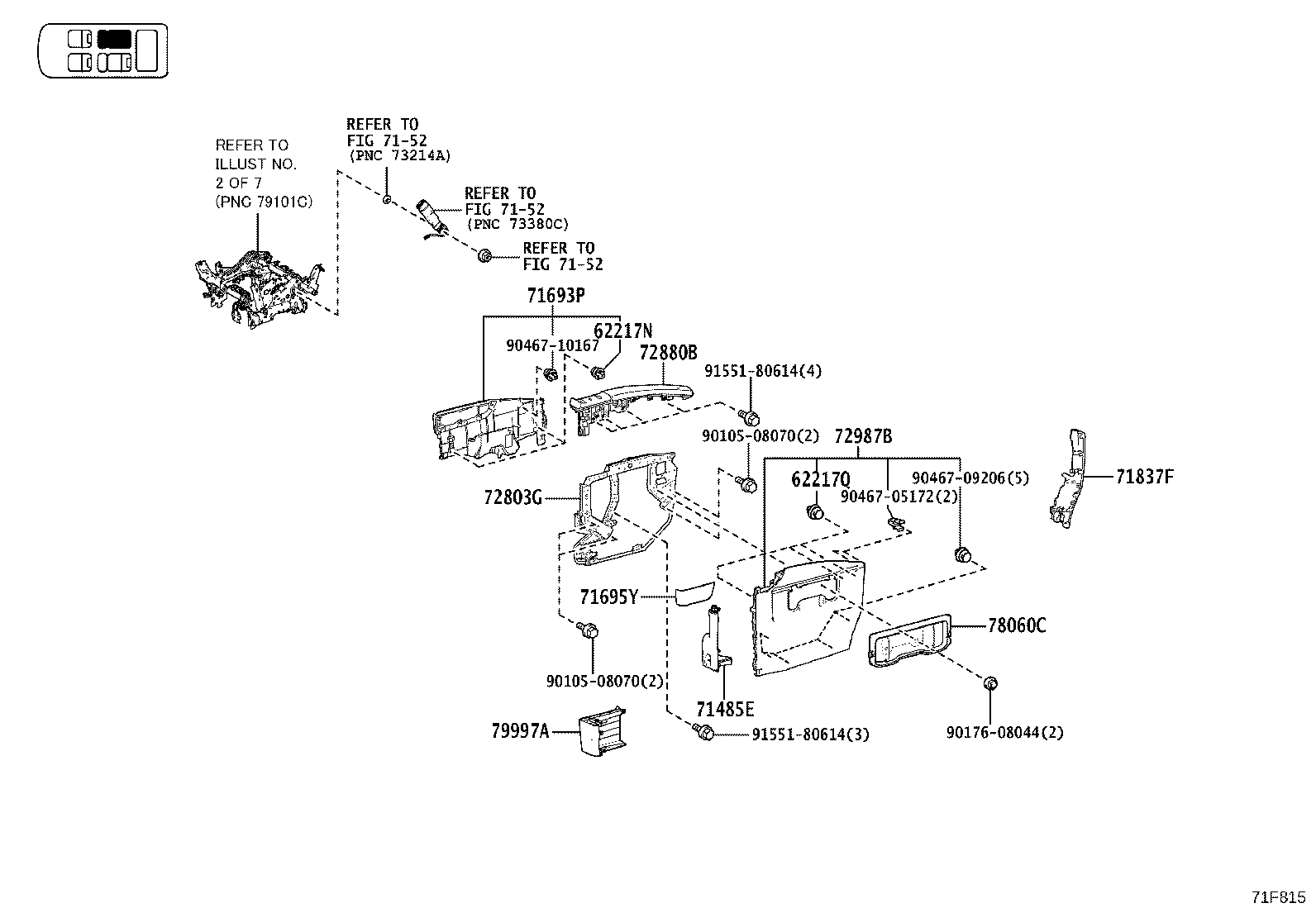

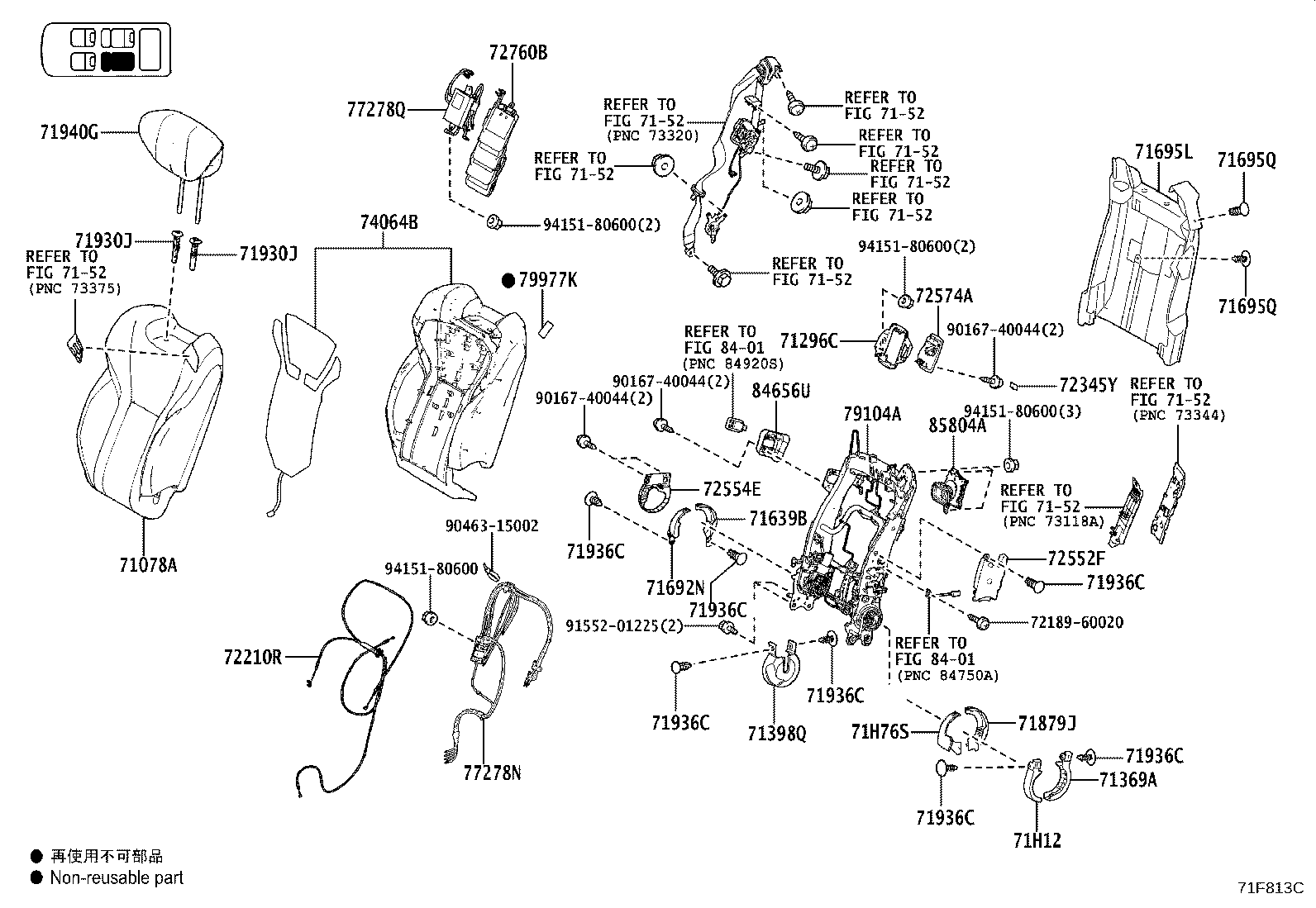

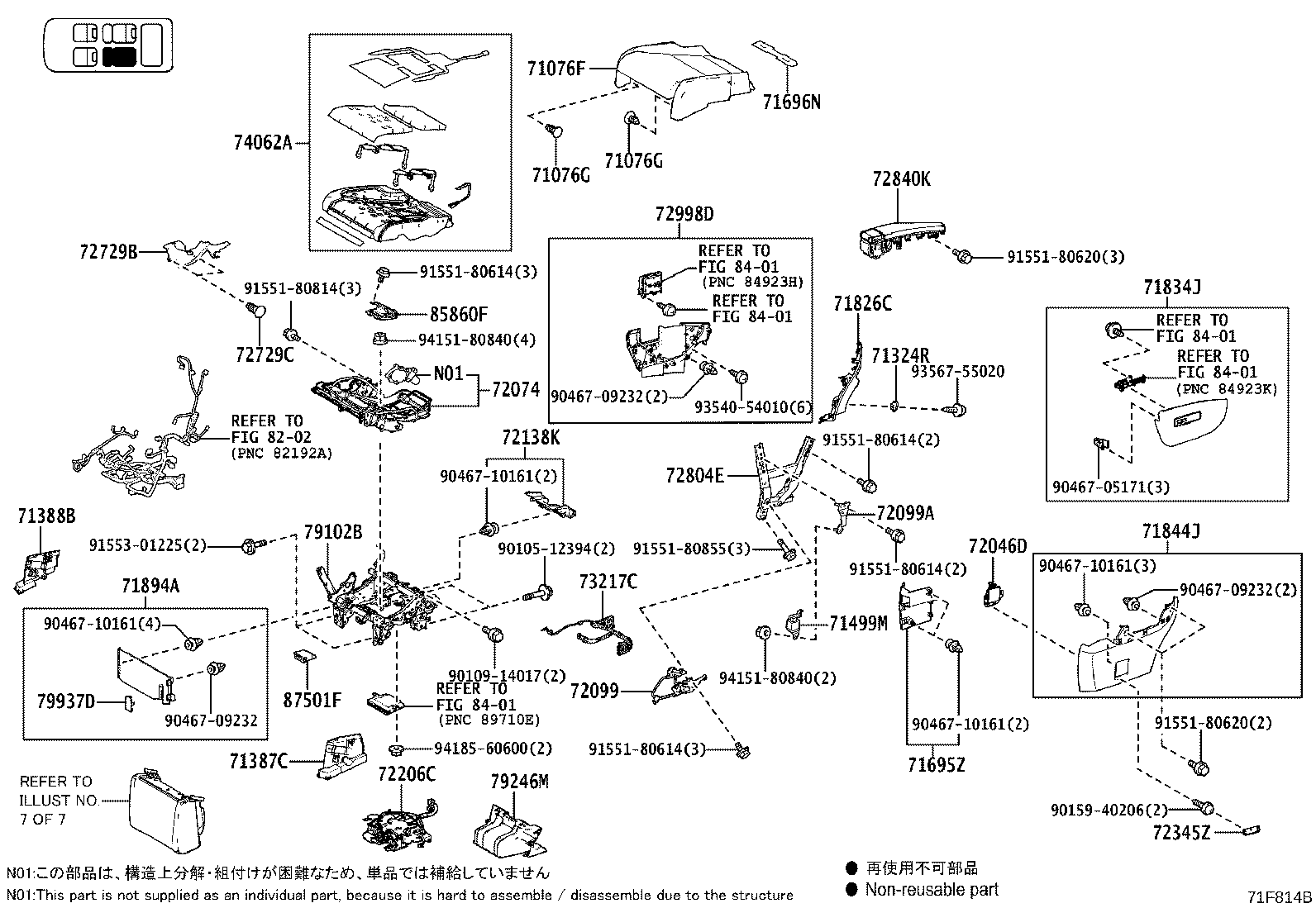

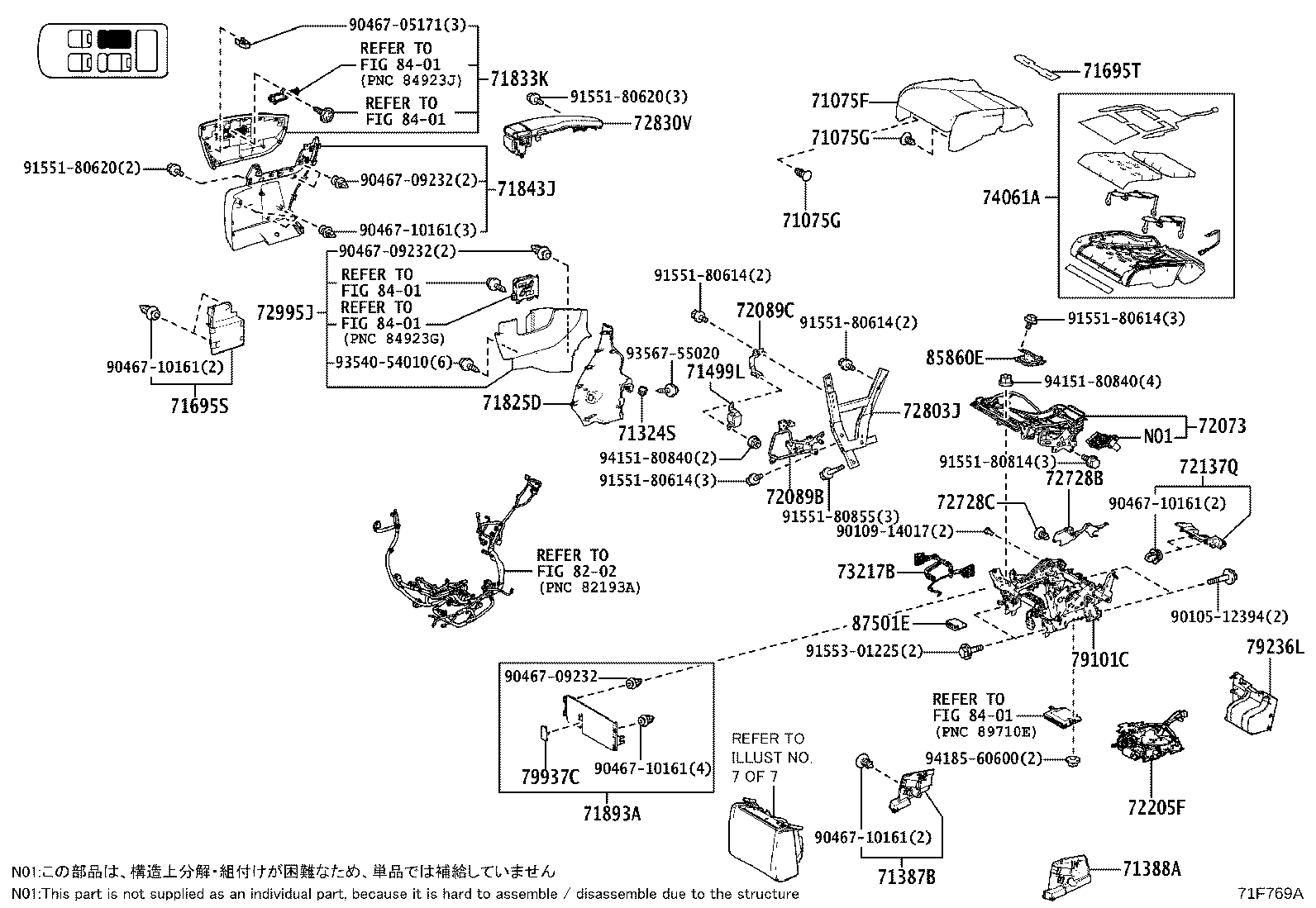

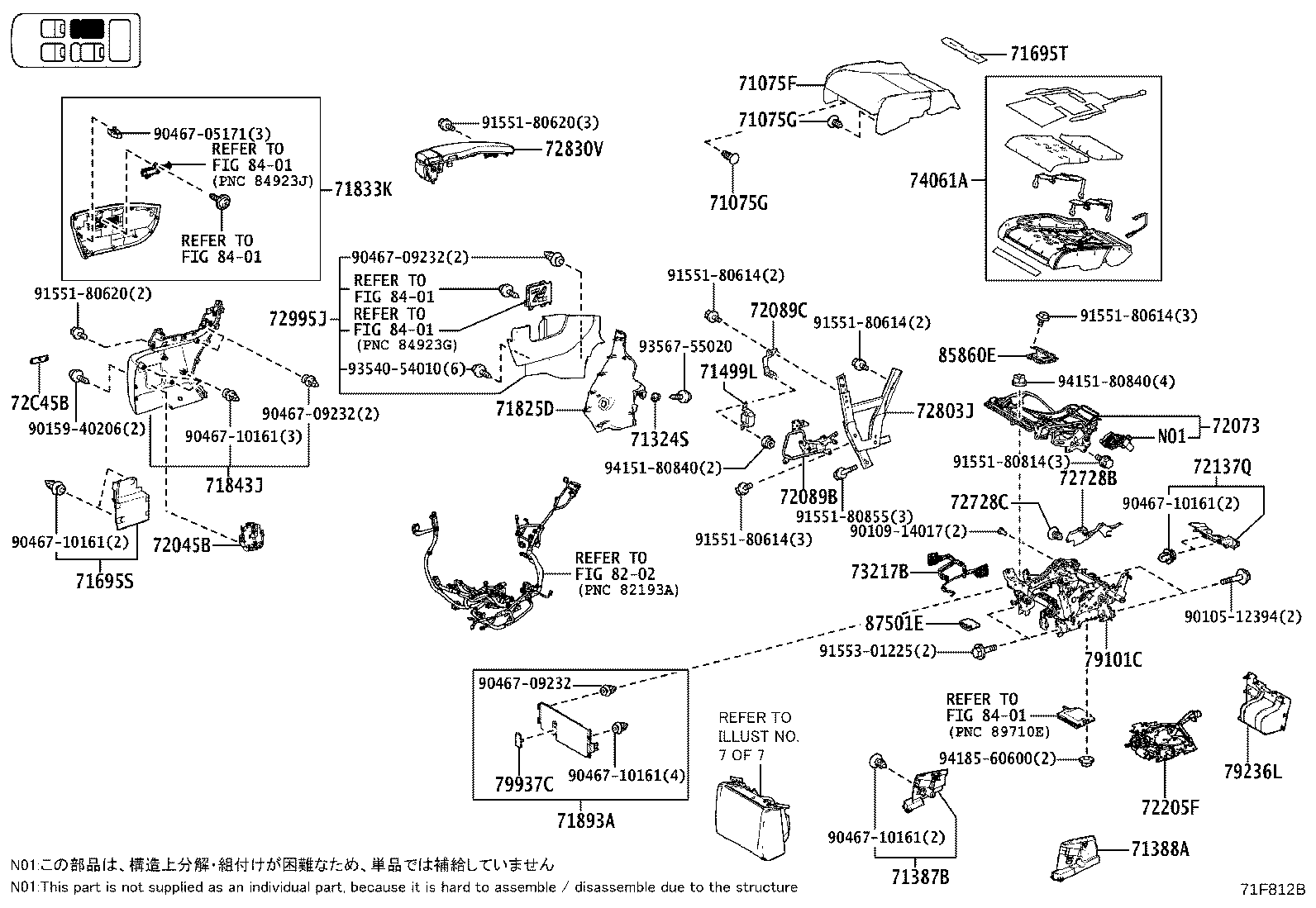

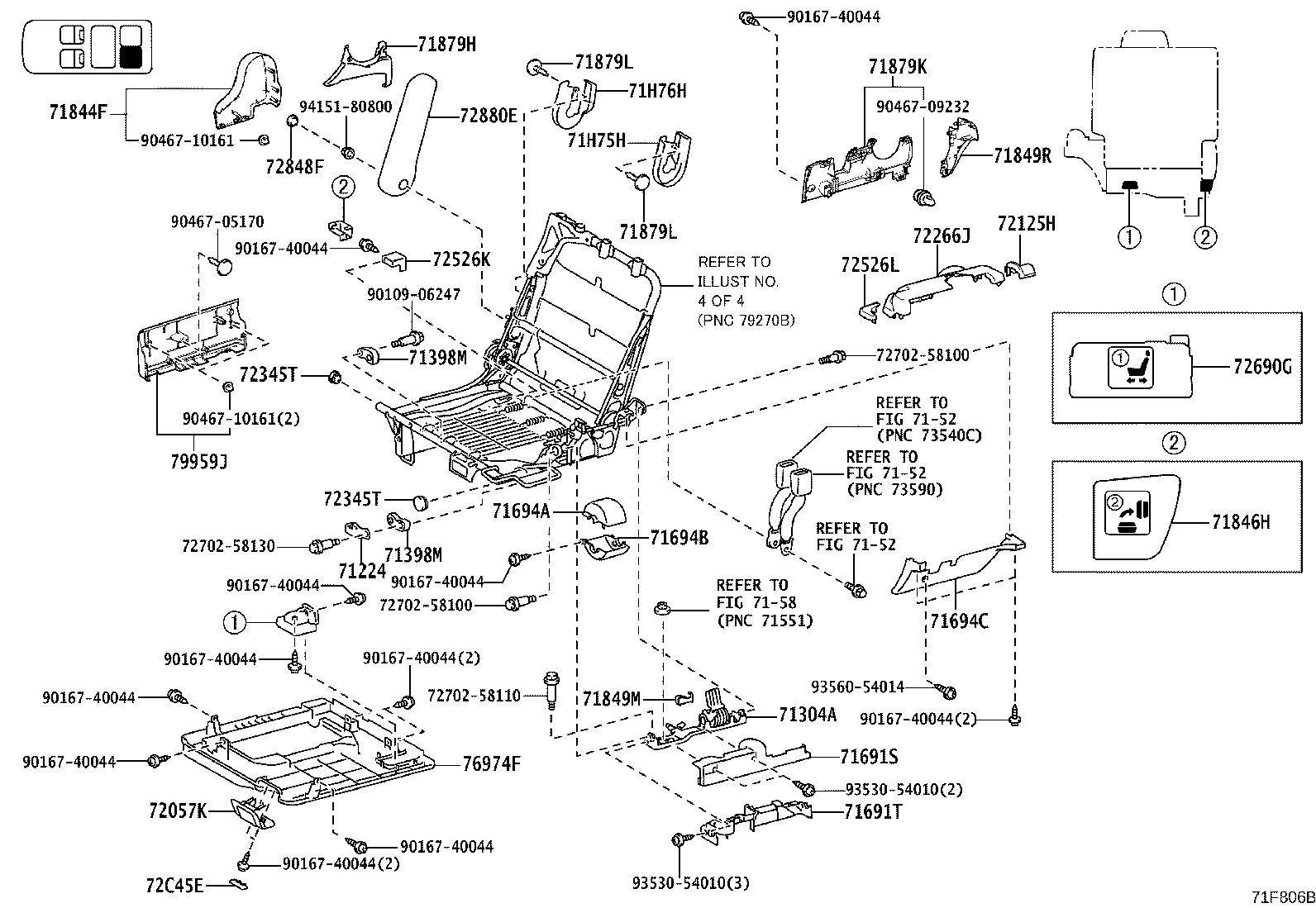

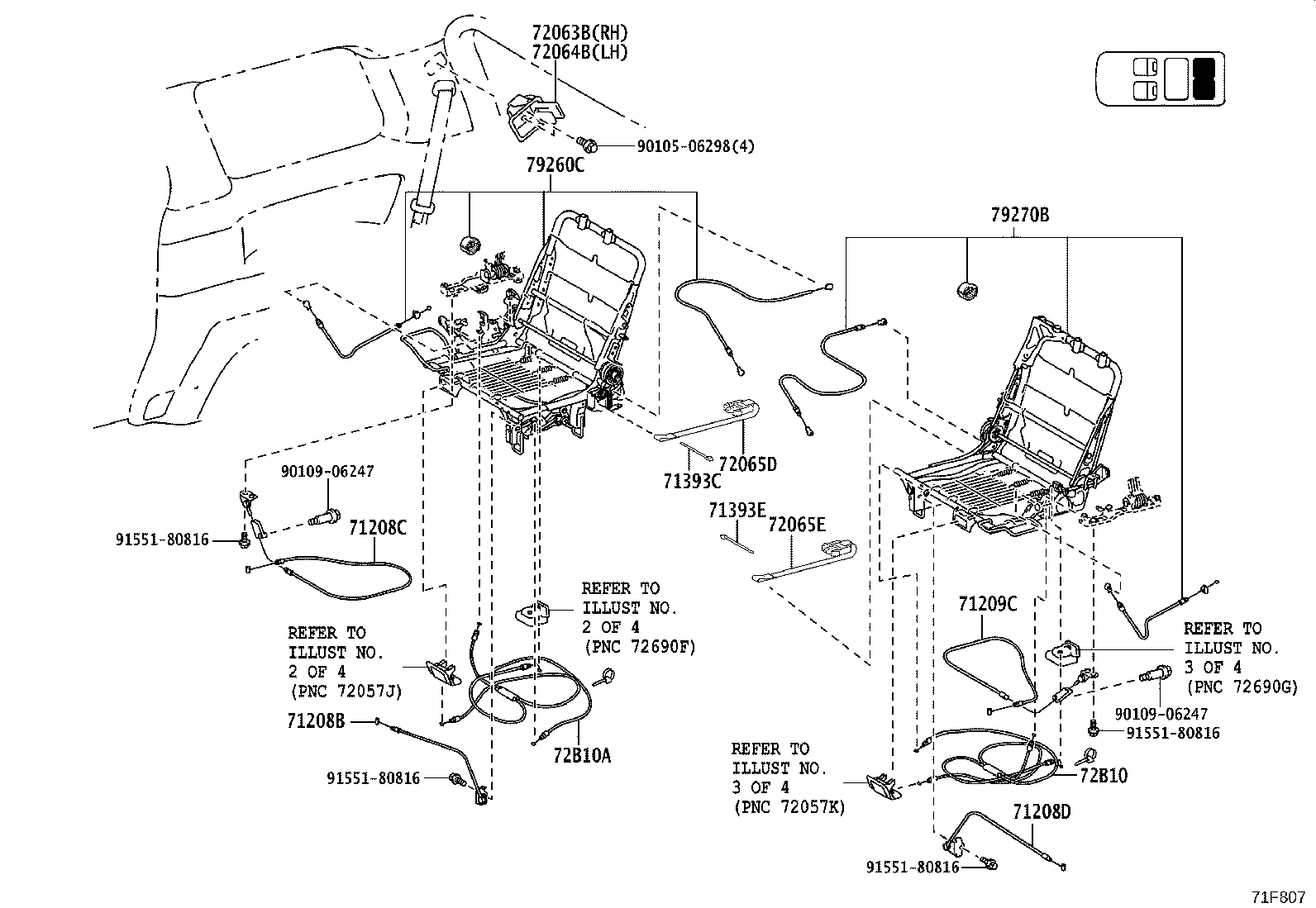

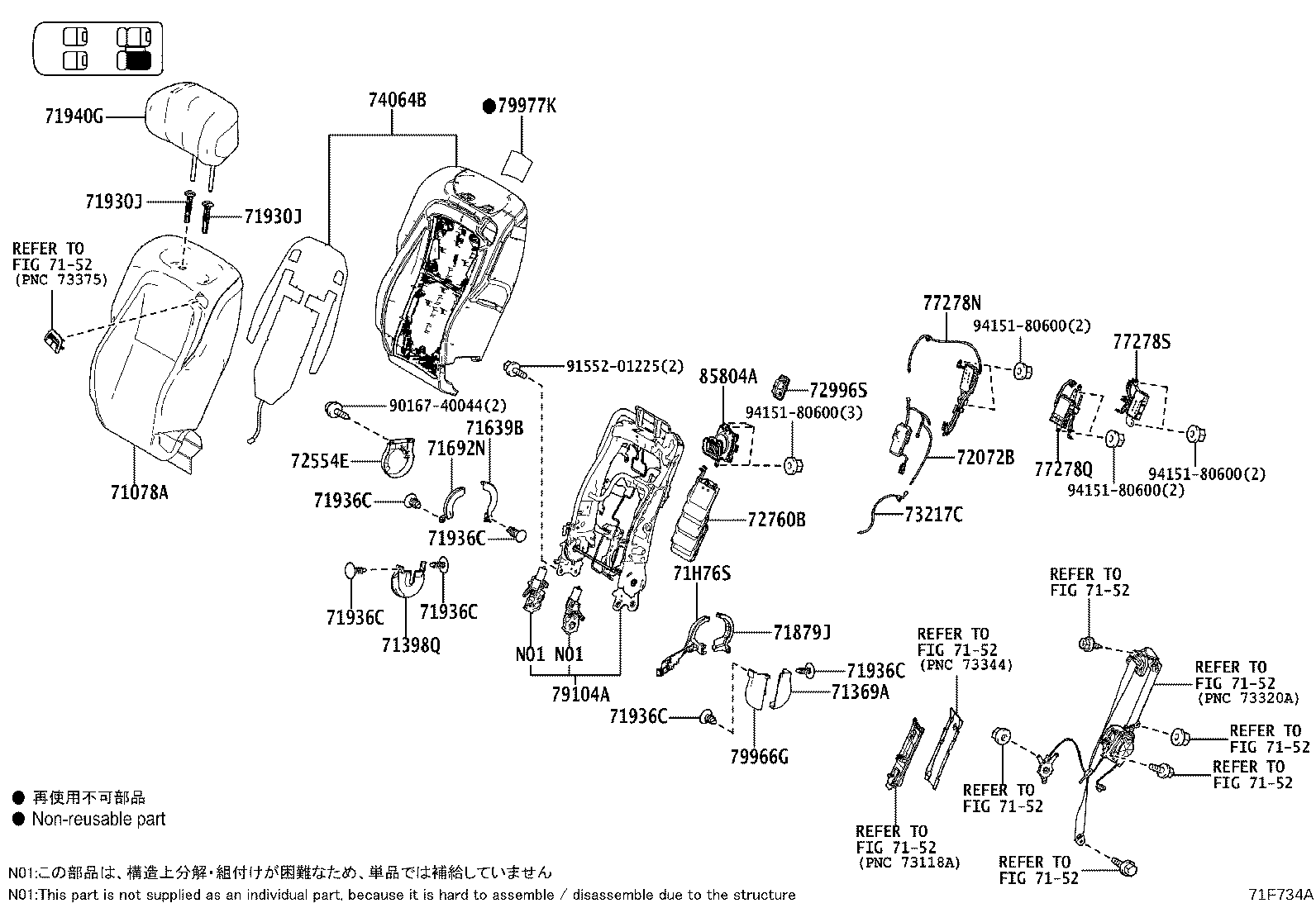

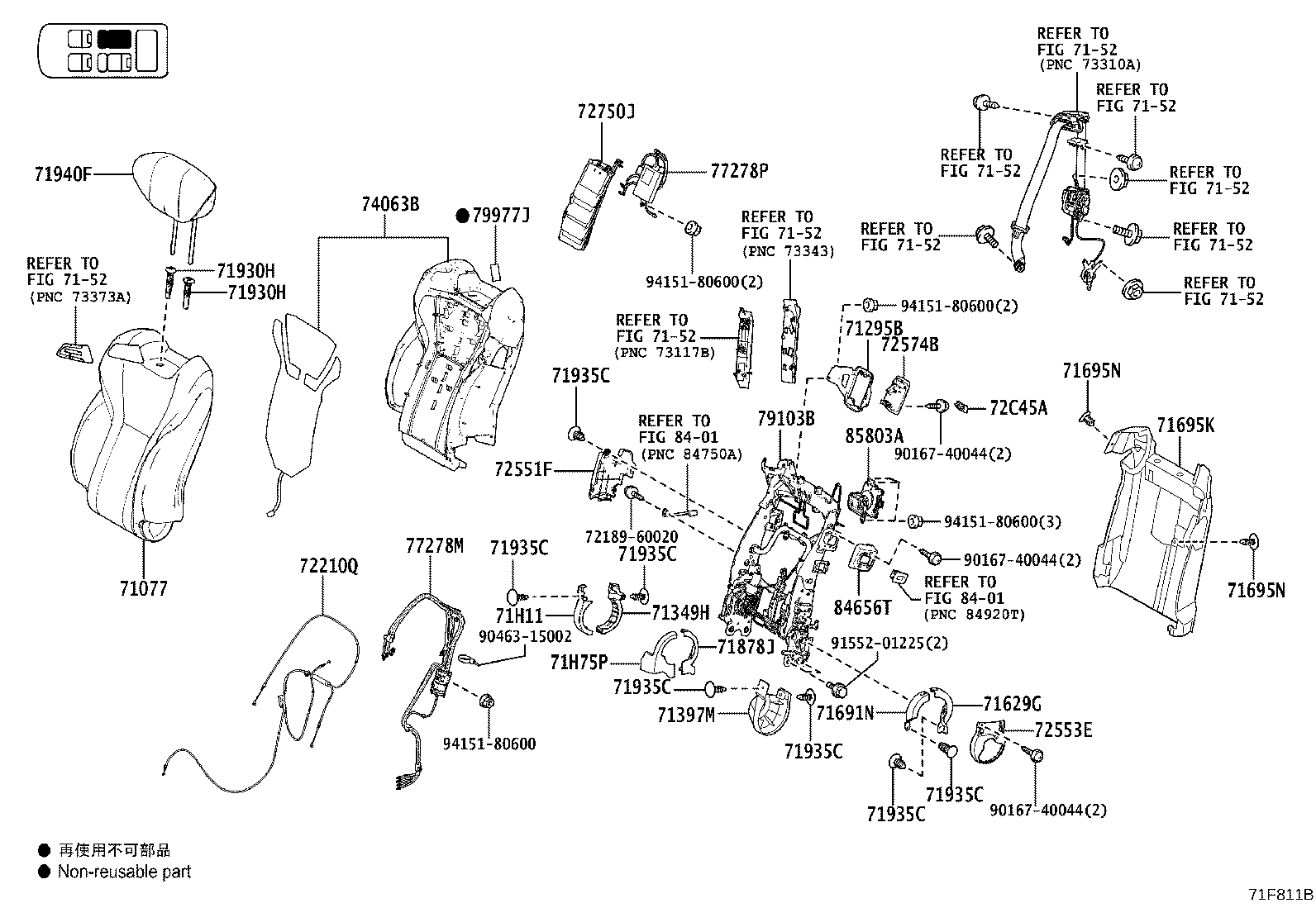

Figure 71F728B 71F728B 2023-06 → — Figure 71F729B 71F729B 2023-06 → — Figure 71F734B 71F734B 2023-06 → — Figure 71F735C 71F735C 2023-06 → — Figure 71F727B 71F727B 2023-06 → — Figure 71F768B 71F768B 2023-06 → — Figure 71F811B 71F811B 2023-06 → — Figure 71F769A 71F769A 2023-06 → — Figure 71F812A 71F812A 2023-06 → — Figure 71F770 71F770 2023-06 → — Figure 71F815 71F815 2023-06 → — Figure 71F771B 71F771B 2023-06 → — Figure 71F813C 71F813C 2023-06 → — Figure 71F772B 71F772B 2023-06 → — Figure 71F814B 71F814B 2023-06 → — Figure 71F773 71F773 2023-06 → — Figure 71F816A 71F816A 2023-06 → — Figure 71F9B9 71F9B9 2023-06 → — Figure 71F930C 71F930C 2023-06 → — Figure 71F804 71F804 2023-06 → — Figure 71F9D9 71F9D9 2023-11 → — Figure 71F805B 71F805B 2023-06 → — Figure 71F806B 71F806B 2023-06 → — Figure 71F807 71F807 2023-06 → —

Part groups

PNCDescription
62217N Clip, NO.1 Seat Cushion Hinge Cover (FOR RH SEAT)
62217P Clip, NO.1 Seat Cushion Hinge Cover (FOR LH SEAT)
62217Q Clip, NO.1 Seat Center Armrest Cover, NO.1
62217R Clip, NO.1 Seat Center Armrest Cover, NO.2
66990W Holder Assy, Rear NO.2 Seat Cup, LH
66990X Holder Assy, Rear NO.2 Seat Cup, RH
71075F Cover Sub-assy, NO.1 Seat Cushion, RH
71075G Clip, NO.1 Seat Cushion Cover(FOR RH SEAT)
71076F Cover Sub-assy, NO.1 Seat Cushion, LH
71076G Clip, NO.1 Seat Cushion Cover(FOR LH SEAT)
71077 Cover Sub-assy, Rear NO.1 Seatback, RH
71078A Cover Sub-assy, Rear NO.1 Seatback, LH
71208B Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208C Wire Sub-assy, NO.2 Seat Cushion, RH NO.2
71208D Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71209C Wire Sub-assy, NO.2 Seat Cushion, LH NO.2
71223A Bracket, NO.2 Seat Cushion Side, RH
71224 Bracket, NO.2 Seat Cushion Side, LH
71295B Plate, NO.1 Seatback Upper Side, RH NO.1
71295C Plate, NO.1 Seatback Upper Side, RH NO.2
71296C Plate, NO.1 Seatback Upper Side, LH NO.1
71296D Plate, NO.1 Seatback Upper Side, LH NO.2
71303E Hinge Sub-assy, Rear NO.2 Seat, RH
71304A Hinge Sub-assy, Rear NO.2 Seat, LH
71324R Cushion, Rear NO.1 Seat, LH
71324S Cushion, Rear NO.1 Seat, RH
71349H Cover, NO.1 Seatback Stay, RH
71369A Cover, NO.1 Seatback Stay, LH
71387B Retainer, Rear Seat Cushion Holder, RH
71387C Retainer, Rear Seat Cushion Holder, RH NO.1
71388A Retainer, Rear Seat Cushion Holder, LH
71388B Retainer, Rear Seat Cushion Holder, LH NO.1
71393C Band, NO.2 Seat Cushion, RH NO.1
71393E Band, NO.2 Seat Cushion, LH NO.1
71397M Cover, Center Seat Hinge, Upper RH
71398L Guide, NO.2 Seat Cushion Support, RH
71398M Guide, NO.2 Seat Cushion Support, LH
71398Q Cover, Center Seat Hinge, Upper LH
71485E Cover, Rear Seat Hinge
71486F Cover, Rear Seat Hinge, LH
71499L Damper, NO.1 Seatback Spring, RH
71499M Damper, NO.1 Seatback Spring, LH
71611C Pad, Rear Seat Cushion, Front RH(FOR SEPARATE TYPE)
71611H Pad, Rear NO.1 Seat Cushion, RH
71612 Pad, Rear Seat Cushion, Front LH(FOR SEPARATE TYPE)
71612G Pad, Rear NO.1 Seat Cushion, LH
71612H Pad, NO.1 Seat Cushion Under, RH
71612J Pad, NO.1 Seat Cushion Under, LH
71613B Pad, Rear Seat Cushion, RH
71614C Pad, Rear Seat Cushion, LH
71629G Cover, Rear Seat Cushion Hinge
71639B Cover, NO.1 Seat Cushion Hinge, LH
71691N Cover, Rear Seat Cushion Hinge, Upper RH NO.1
71691Q Cover, Rear NO.2 Seat Lock, Upper NO.1 RH
71691R Cover, Rear NO.2 Seat Lock, Upper NO.2 RH
71691S Cover, Rear NO.2 Seat Lock, Upper NO.1 LH
71691T Cover, Rear NO.2 Seat Lock, Upper NO.2 LH
71692N Cover, Rear Seat Cushion Hinge, NO.3
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693G Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2
71693H Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.3
71693P Cover, Rear Seat Cushion Hinge, Lower RH NO.1
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694B Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2
71694C Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.3
71694H Cover, Rear Seat Cushion Hinge, Lower LH NO.1
71695K Protector, NO.1 Seatback, RH
71695L Protector, NO.1 Seatback, LH
71695M Clip, Rear NO.1 Seat Protector, NO.1 RH
71695N Clip, Rear NO.1 Seat Protector, NO.2 RH
71695P Clip, Rear NO.1 Seat Protector, NO.1 LH
71695Q Clip, Rear NO.1 Seat Protector, NO.2 LH
71695S Protector, Rear Seat, NO.1
71695T Protector, Rear Seat, NO.2
71695Y Protector, Rear Seat, NO.3
71695Z Protector, Rear Seat, NO.1 LH
71696F Protector, NO.2 Seatback, RH
71696G Protector, NO.2 Seatback, LH
71696N Protector, Rear Seat, NO.2
71757 Plate, Seat Under Tray, NO.1
71757C Plate, Seat Under Tray, NO.1 LH
71825A Moulding, NO.1 Seat Cushion, RH Inner
71825D Moulding, Rear NO.1 Seat Cushion, RH
71826A Moulding, NO.1 Seat Cushion, LH Inner
71826C Moulding, Rear Seat Cushion, LH
71827C Moulding, Rear Seat Cushion, Rear LH
71833K Cover, NO.1 Seat Reclining, NO.1 RH Outer
71834J Cover, NO.1 Seat Reclining, NO.1 LH Outer
71837F Moulding, Rear Seat Cushion, Rear RH
71843H Cover, NO.2 Seat Reclining, NO.2 RH Inner
71843J Cover, Rear NO.1 Seat Reclining, NO.2 RH
71844F Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844J Cover, Rear NO.1 Seat Reclining, NO.2 LH
71845E Cap, Rear NO.2 Seat Cover, RH
71846H Cap, Rear NO.2 Seat Cover, LH
71848U Cap, NO.2 Seat Adjuster Cover, RH
71849M Cap, NO.2 Seat Adjuster Cover, LH
71849R Cap, Seat Adjuster Cover, LH NO.2
71878H Cover, Rear Seat Reclining, Inner RH
71878J Cover, Rear NO.1 Seat Reclining, Inner RH
71878K Cover, Rear NO.2 Seat Reclining, Inner RH
71879H Cover, Rear Seat Reclining, Inner LH
71879J Cover, Rear NO.1 Seat Reclining, Inner LH
71879K Cover, Rear NO.2 Seat Reclining, Inner LH
71879L Clip, Rear NO.2 Seat Reclining Cover, LH
71893A Shield, Power Adjuster, Front RH
71894A Shield, Power Adjuster, Front LH
71930H Support Assy, NO.1 Seat Headrest, RH
71930J Support Assy, NO.1 Seat Headrest, LH
71930K Support Assy, NO.2 Seat Headrest, RH
71930L Support Assy, NO.2 Seat Headrest, LH
71930R Support Assy, Rear NO.2 Seat Headrest, Center
71931H Support, NO.1 Seat Footrest(FOR RH SEAT)
71931J Support, NO.1 Seat Footrest(FOR LH SEAT)
71935C Clip
71936C Clip
71940F Headrest Assy, NO.1 Seat, RH
71940G Headrest Assy, NO.1 Seat, LH
71940H Headrest Assy, NO.2 Seat, RH
71940J Headrest Assy, NO.2 Seat, LH
71960F Headrest Assy, Rear NO.2 Seat, Center
71F95 Protector, Rear Seat, NO.4
71H11 Cover, Reclining Adjuster, RH
71H12 Cover, Reclining Adjuster, LH
71H48A Cap, Seat Adjuster Cover, RH NO.2
71H75E Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75F Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT)
71H75G Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 RH SEAT)
71H75H Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 LH SEAT)
71H75P Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK)
71H76E Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76F Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71H76G Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 RH SEAT)
71H76H Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT)
71H76S Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK)
72045B Cover Sub-assy, NO.1 Seat Track, Outer RH
72046D Cover Sub-assy, Rear Seat Track, Outer LH NO.1
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72063B Hook Sub-assy, Rear Seat, RH
72064B Hook Sub-assy, Rear Seat, LH
72065D Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72071D Pump Sub-assy, Lumber Support, RH
72072B Pump Sub-assy, Lumber Support, LH
72073 Adjuster Sub-assy, Rear Seat Reclining, RH
72074 Adjuster Sub-assy, Rear Seat Reclining, LH
72089B Bracket Sub-assy, Rear Seat Armrest, RH
72089C Bracket Sub-assy, Rear Seat Armrest, RH NO.2
72089D Bracket Sub-assy, Rear Seat Armrest, RH NO.3
72099 Bracket Sub-assy, Rear Seat Armrest, LH
72099A Bracket Sub-assy, Rear Seat Armrest, LH NO.2
72099B Bracket Sub-assy, Rear Seat Armrest, LH NO.3
72125G Cover, Seat Track Lock Plate, NO.1
72125H Cover, Seat Track Lock Plate, NO.2
72137Q Cover, Rear Seat Track, NO.2
72138K Cover, Rear Seat Track, LH NO.2
72205F Housing Sub-assy, Power Seat, NO.1
72206C Housing Sub-assy, Power Seat, NO.2
72210Q Cable Assy, NO.1 Seat Slide, RH
72210R Cable Assy, NO.1 Seat Slide, LH
72265P Cover, Seat Track Upper Rail, RH
72266J Cover, Seat Track Upper Rail, LH
72345S Cap, NO.2 Seat Stand Frame, RH
72345T Cap, NO.2 Seat Stand Frame, LH
72345Y Cap, NO.1 Seat Stand Frame, NO.1(FOR LH SEAT)
72345Z Cap, NO.1 Seat Stand Frame, NO.2(FOR LH SEAT)
72525P Handle, NO.2 Seat Reclining Adjuster Release, RH
72525R Handle, Reclining Adjuster Release, RH
72526K Handle, NO.2 Seat Reclining Adjuster Release, LH
72526L Handle, Reclining Adjuster Release, LH
72551F Cover, Reclining Link, RH NO.1
72552F Cover, Reclining Link, LH NO.1
72553E Protector, Reclining Cover, RH NO.1
72554E Protector, Reclining Cover, LH NO.1
72574A Lever, Reclining Control, LH
72574B Lever, Reclining Control, RH
72690F Lever Assy, NO.2 Seat Cushion Lock Release, RH
72690G Lever Assy, NO.2 Seat Cushion Lock Release, LH
72728B Protector, NO.1 Seat Reclining, Inner RH
72728C Clip, NO.1 Seat Reclining Protector, RH
72729B Protector, NO.1 Seat Reclining, Inner LH
72729C Clip, NO.1 Seat Reclining Protector, LH
72750J Adjuster Assy, Lumbar Support, RH
72760B Adjuster Assy, Lumbar Support, LH
72803G Frame Sub-assy, Rear Seat Armrest, RH
72803J Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT)
72804D Frame Sub-assy, Rear Seat Armrest, LH
72804E Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT)
72830V Armrest Assy, Rear NO.1 Seat, RH
72832B Plate, Rear Seat Armrest
72833C Panel, Rear Seat Center Armrest, NO.1
72833E Plate, Rear Seat Armrest, NO.2
72834 Panel, Rear Seat Center Armrest, NO.2
72840K Armrest Assy, Rear NO.1 Seat, LH
72848E Cap, NO.2 Seat Armrest, NO.1 RH
72848F Cap, NO.2 Seat Armrest, NO.1 LH
72880B Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT)
72880E Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT)
72890C Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT)
72890D Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT)
72927L Clip (FOR REAR SEAT CUSHION UNDER COVER)
72928N Clip (FOR REAR SEAT CUSHION UNDER COVER)
72987B Cover, Rear Seat Center Armrest
72988B Cover, NO.1 Seat Center Armrest, NO.2
72995J Cover, Rear NO.1 Seat Cushion
72996R Cover, Rear NO.1 Seatback, RH
72996S Cover, Rear NO.1 Seatback, LH
72998D Cover, Rear Seat Cushion, LH
72B10 Cable Assy, Rear NO.2 Seat Track Control(FOR LH SEAT)
72B10A Cable Assy, Rear NO.2 Seat Track Control(FOR RH SEAT)
72C45A Cap, NO.1 Seat Stand Frame, NO.1(FOR RH SEAT)
72C45B Cap, NO.1 Seat Stand Frame, NO.2(FOR RH SEAT)
72C45D Cap, Rear NO.2 Seat Stand Frame(FOR RH SEAT)
72C45E Cap, Seat Stand Frame
73217B Tube, Rear Seat Adjuster
73217C Tube, Adjuster, LH
74061A Bag Sub-assy, Seat Cushion Pad, RH
74062A Bag Sub-assy, Seat Cushion Pad, LH
74063B Bag Sub-assy, Seatback Pad, RH
74064B Bag Sub-assy, Seatback Pad, LH
74930A Cushion Assy, Main Stretcher, RH(FOR SEAT CUSHION)
74930B Cushion Assy, Main Stretcher, LH(FOR SEAT CUSHION)
74930G Cushion Assy, Main Stretcher, RH NO.2(FOR SEAT CUSHION)
74930H Cushion Assy, Main Stretcher, LH NO.2(FOR SEAT CUSHION)
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
77278H Valve, Check W/Hose, RH(FOR SEAT CUSHION)
77278J Valve, Check W/Hose, LH(FOR SEAT CUSHION)
77278M Valve, Check W/Hose, RH NO.1(FOR SEATBACK)
77278N Valve, Check W/Hose, LH NO.1(FOR SEATBACK)
77278P Valve, Check W/Hose, RH NO.2(FOR SEATBACK)
77278Q Valve, Check W/Hose, LH NO.2(FOR SEATBACK)
77278R Valve, Check W/Hose, RH NO.3(FOR SEATBACK)
77278S Valve, Check W/Hose, LH NO.3(FOR SEATBACK)
78060C Table Assy, NO.1 Seat Side
78093A Frame Sub-aasy, NO.1 Seat Footrest(FOR RH SEAT)
78093B Frame Sub-aasy, NO.1 Seat Footrest(FOR LH SEAT)
78097A Cover Sub-assy, NO.1 Seat Footrest(FOR RH SEAT)
78097B Cover Sub-assy, NO.1 Seat Footrest(FOR LH SEAT)
78656J Cover, Rear Seat Legrest, RH
78656K Cover, Rear Seat Legrest, LH
78987B Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987C Cover, Rear NO.1 Seat Footrest, NO.1 RH
78990B Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79015C Pad Sub-assy, NO.1 Seat Cushion, RH
79016 Pad Sub-assy, NO.1 Seat Cushion, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79101C Frame Sub-assy, NO.1 Seat Cushion, RH
79102B Frame Sub-assy, NO.1 Seat Cushion, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79235F Pad, NO.2 Seat Cushion, RH
79236L Cover, Rear Seat Leg, RH
79245A Pad, NO.2 Seat Cushion, LH
79246M Cover, Rear Seat Leg, LH
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79937C Cover, NO.1 Seat Leg, NO.1(FOR RH SEAT)
79937D Cover, NO.1 Seat Leg, NO.1(FOR LH SEAT)
79937E Cover, NO.1 Seat Leg, NO.2(FOR RH SEAT)
79937F Cover, NO.1 Seat Leg, NO.2(FOR LH SEAT)
79959G Cover, NO.2 Seat Leg, RH NO.1
79959J Cover, NO.2 Seat Leg, LH NO.1
79965H Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT)
79966G Cover, NO.1 Seat Leg Side, NO.3(FOR LH SEAT)
79977J Felt, Seatback
79977K Felt, Seatback, NO.2
79997A Protector, Seat Leg Box, NO.1
79998A Protector, Seat Leg Box, NO.2
84656T Bezel, Switch, NO.1
84656U Bezel, Switch, NO.2
84656V Bezel, Switch, NO.3
84656W Bezel, Switch, NO.4
85803A Blower Sub-assy, Seatback Climate, RH
85804A Blower Sub-assy, Seatback Climate, LH
85860E Blower Assy, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85860F Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
87510Y Heater Assy, Rear NO.1 Seat Cushion, LH
87510Z Heater Assy, Rear NO.1 Seat Cushion, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
