Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

23 part groups · 3 illustrations

Illustrations

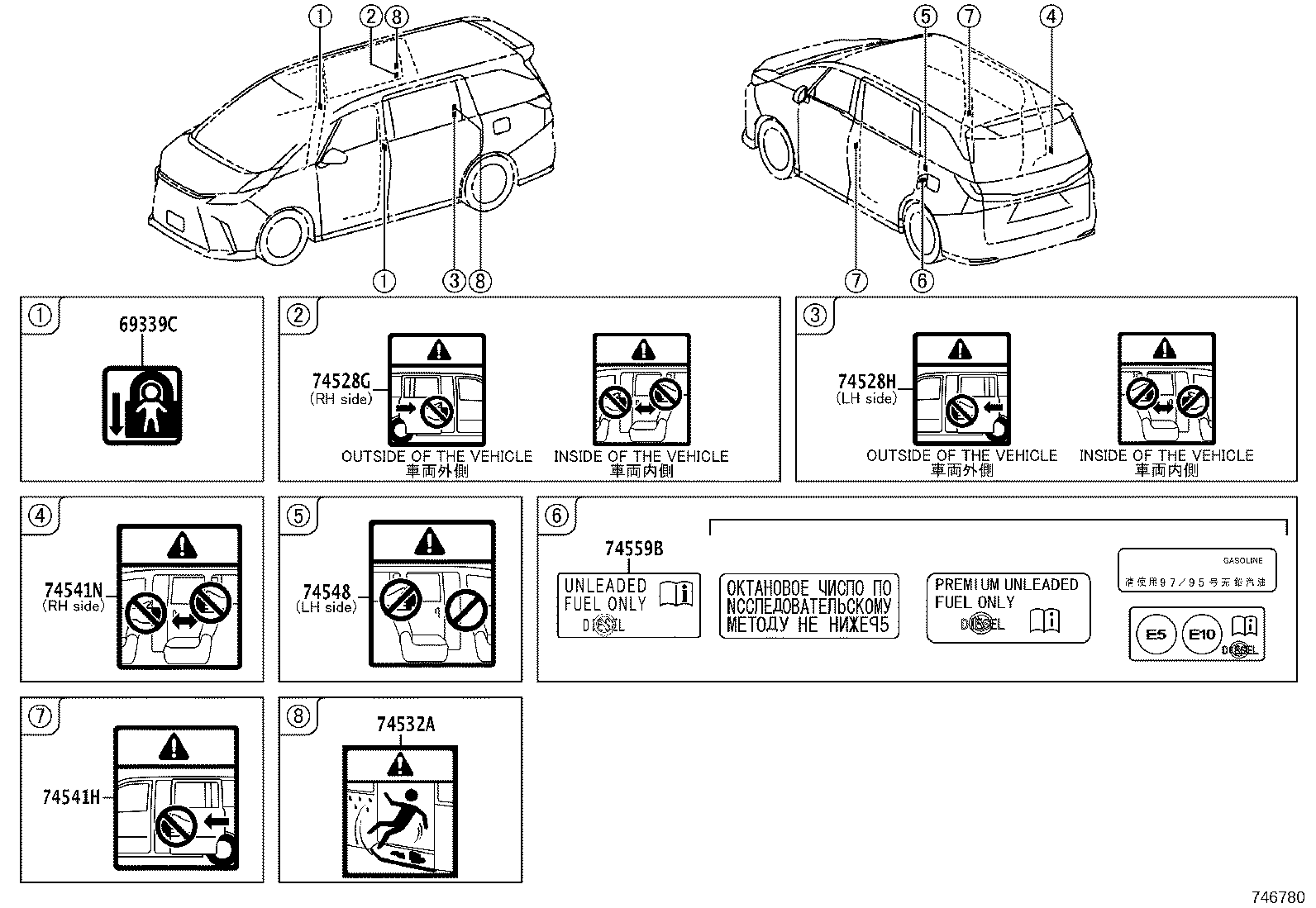

Figure 746779C 746779C 2023-06 → — Figure 746780 746780 2023-06 → — Figure 746781C 746781C 2023-06 → —

Part groups

PNCDescription
11298B Label, Emission Control Information
288A2 Label, Battery Location
42661 Label, Tire Pressure Information
47288 Label, Brake Fluid Notice
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515C Label, Theft Warning Information
74528B Label, Back Door Caution
74528G Label, Power Slide Door Caution
74528H Label, Power Slide Door Caution
74528K Label, Door Closer Caution
7452A Label, Shift Control Information
74532A Plate, Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74541H Plate, Body Caution
74541N Label, Body Caution
74543Y Label, Hand Safety Caution
74548 Plate, Body Caution
74559B Label, Fuel Information
74569B Label, Vehicle Information
88723H Label, Cooler Service Caution
88733A Label, Cooler Service Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
