Toyota Lexus LM500H/350H

2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 2 illustrations

Illustrations

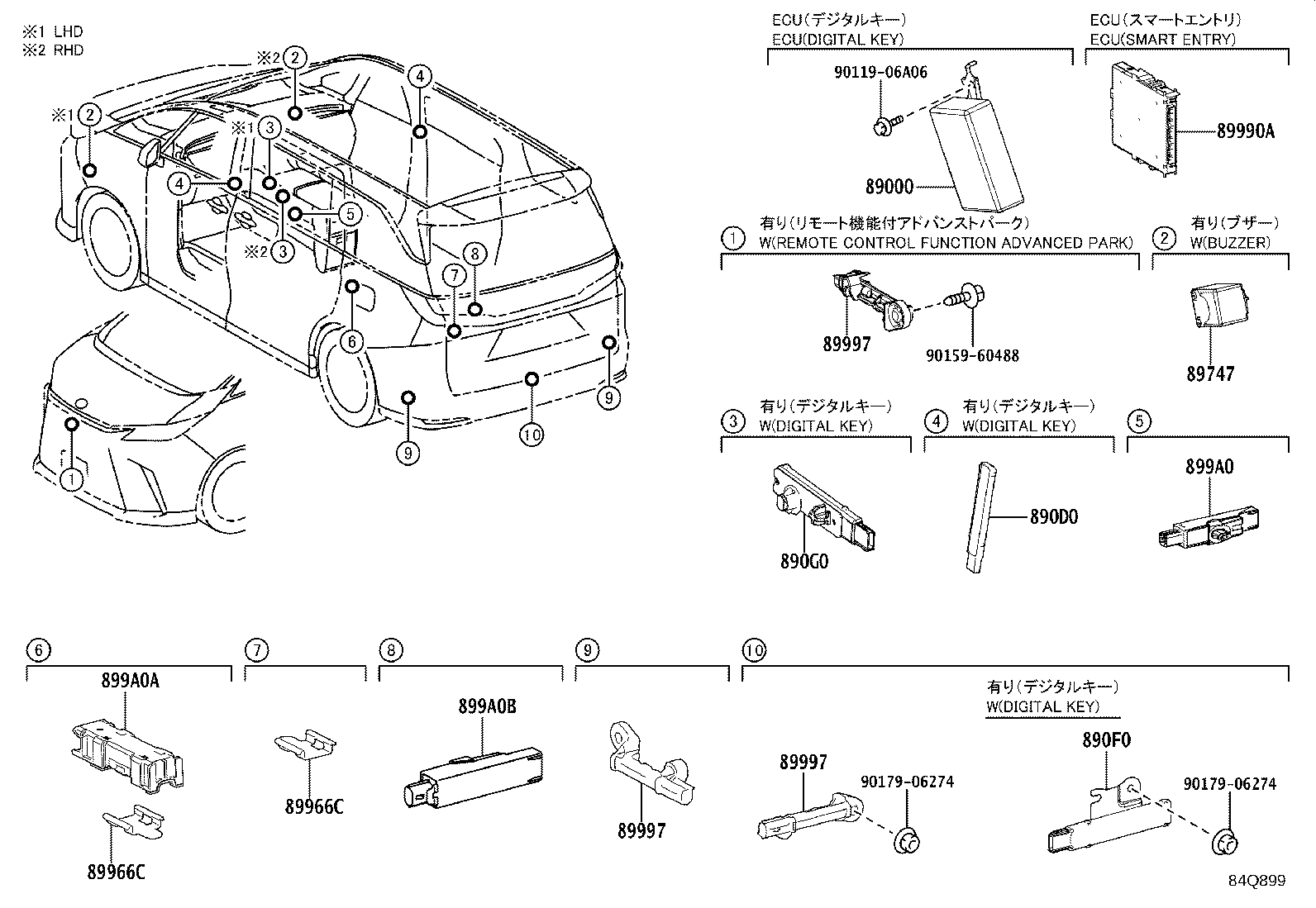

Figure 84Q898 84Q898 2023-06 → — Figure 84Q899 84Q899 2023-06 → —

Part groups

PNCDescription
89000 Computer Assy, Digital Key
890D0 Receiver Assy, Ble Door Digital Key
890F0 Receiver Assy, Ble Luggage Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
89747 Buzzer, Wireless Door Lock
89966C Bracket, Oscillator Electrical Key
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
