Toyota Lexus LM500H/350H
2023-06 → present · chassis AAWH1#,TAWH15 · catalogue 714320 · General
Supported model
Data version 2023-11

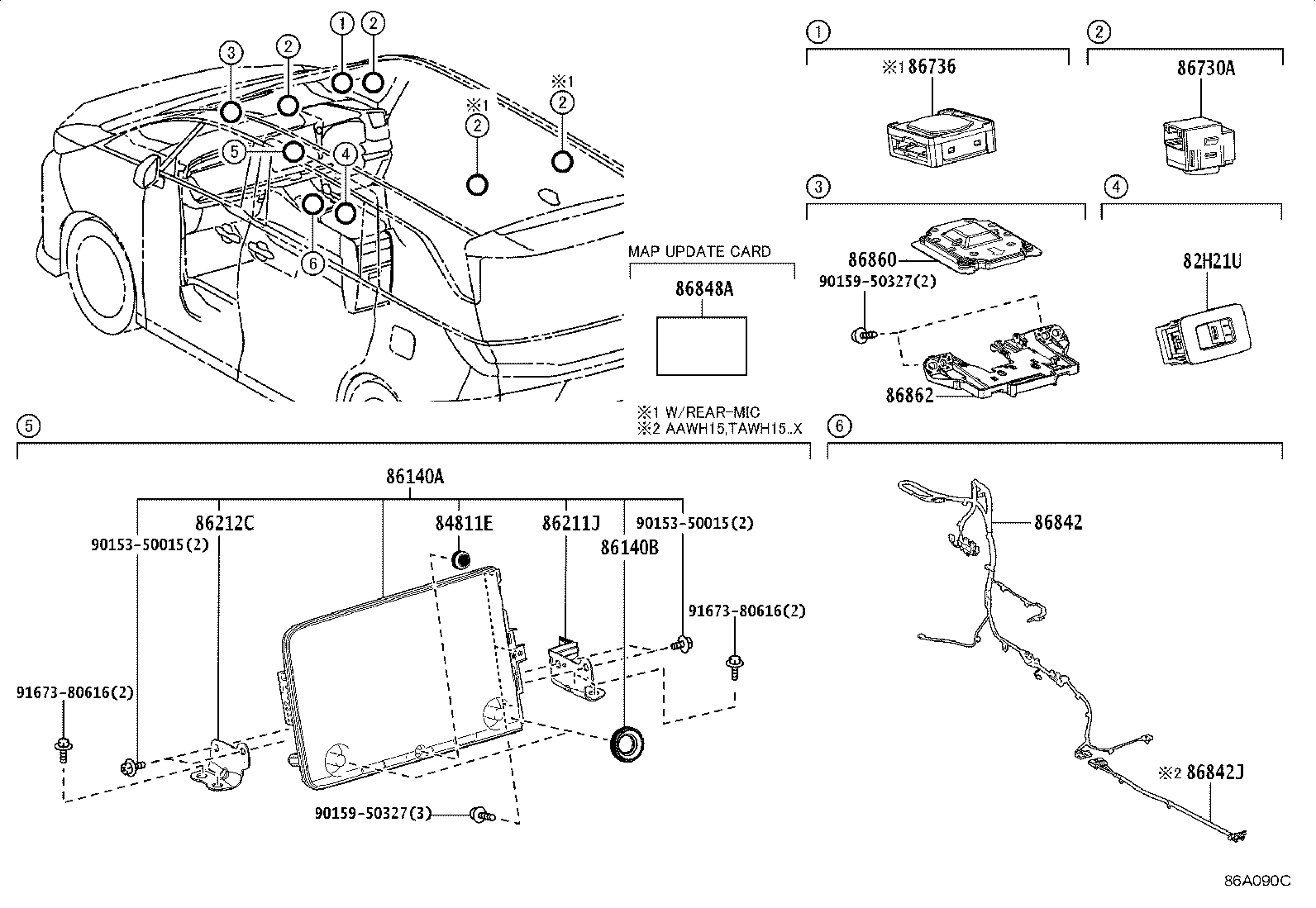

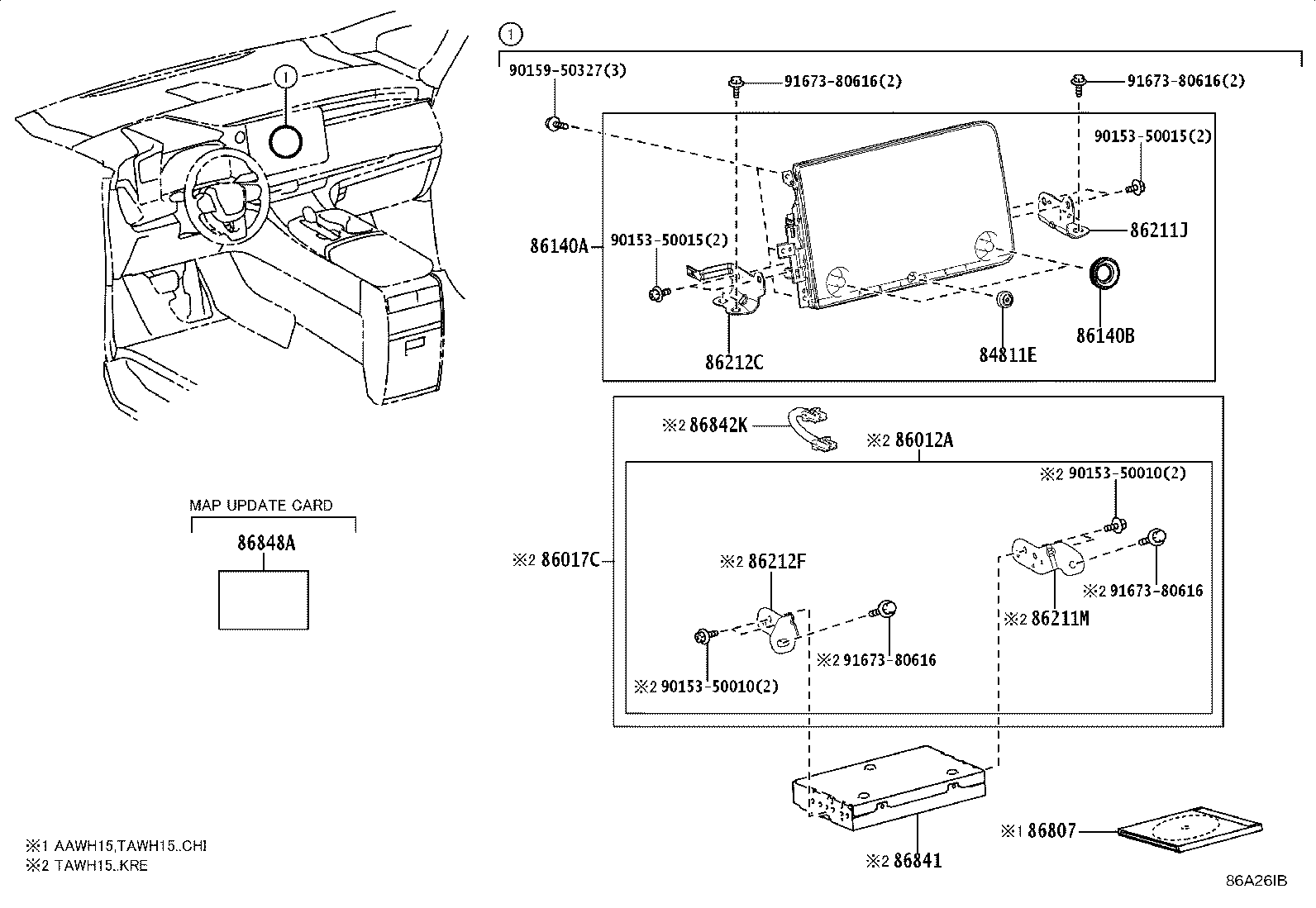

Navigation & Front Monitor Display
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82H21U | Cover, Connector |
| 84811E | Knob, Switch |
| 86012A | Parts Set, Radio Setting |
| 86017C | Fitting Set, Navigation Setting |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86211M | Bracket, Radio Receiver, NO.3 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86212F | Bracket, Radio Receiver, NO.4 |
| 86730A | Microphone Assy, Telephone |
| 86736 | Converter, Microphone |
| 86807 | Disc Kit, Cd-rom |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86842J | Wire, Navigation, NO.2 |
| 86842K | Wire, Navigation, NO.3 |
| 86848A | Card, Serial Number Map Update |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
