Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · General

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

24 part groups · 7 illustrations

Illustrations

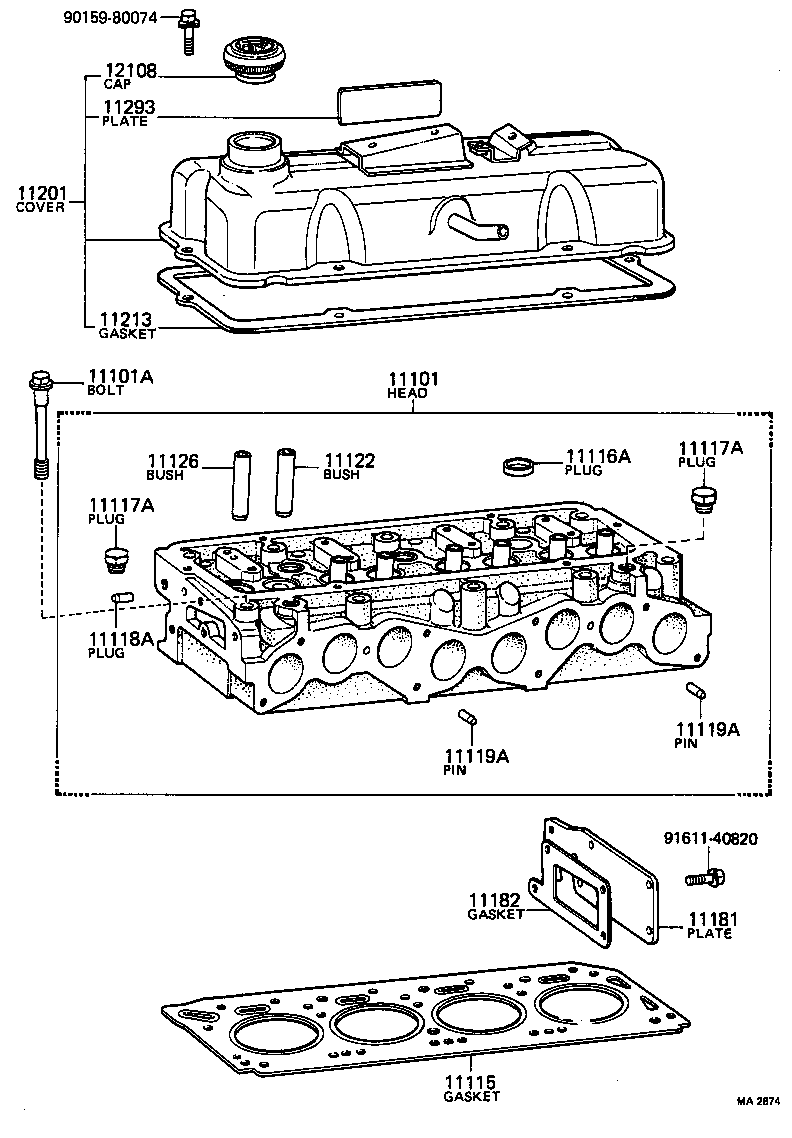

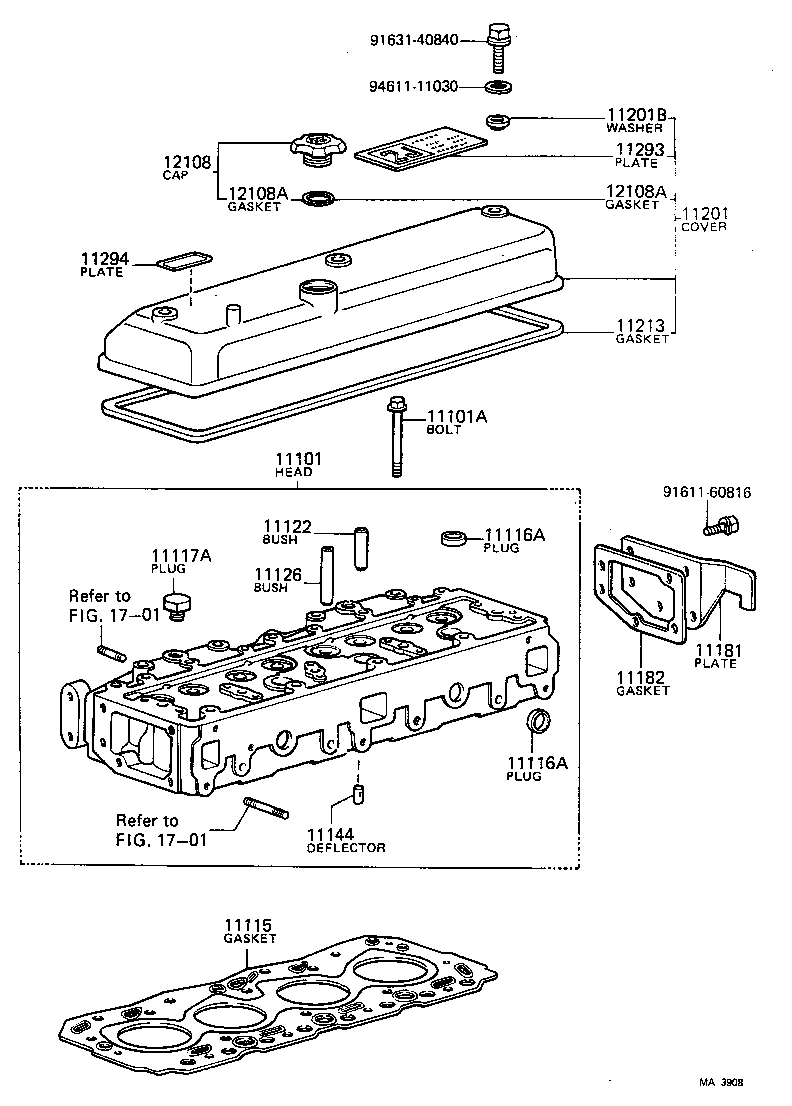

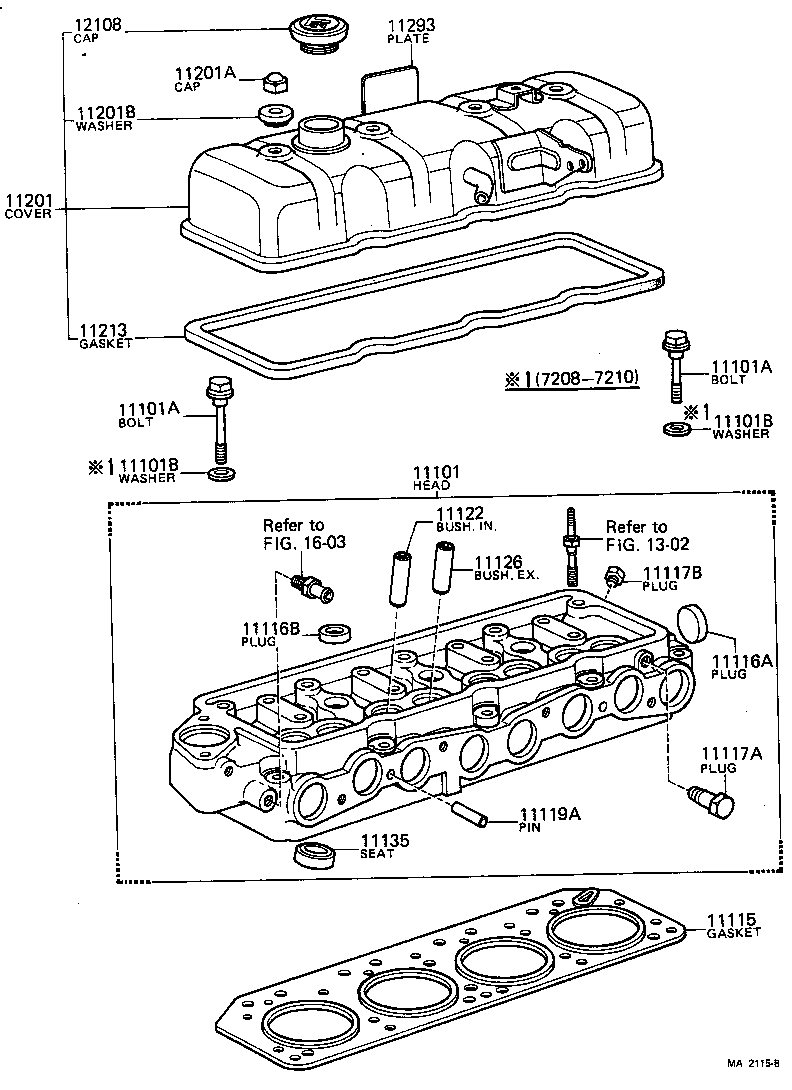

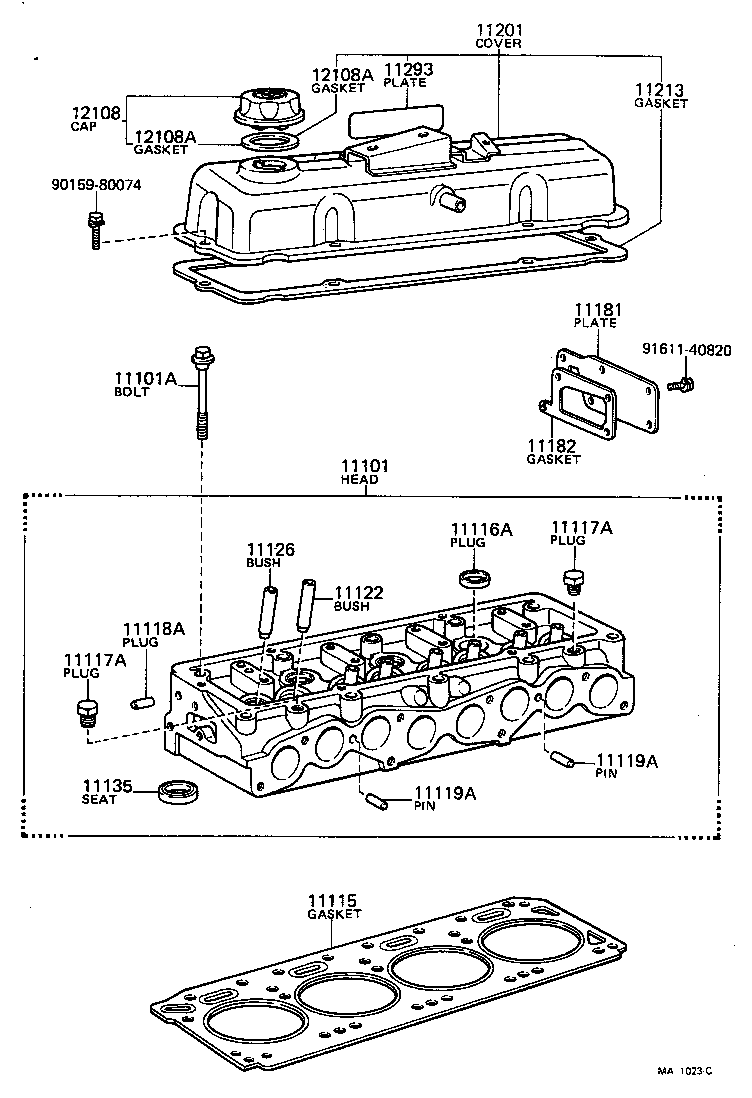

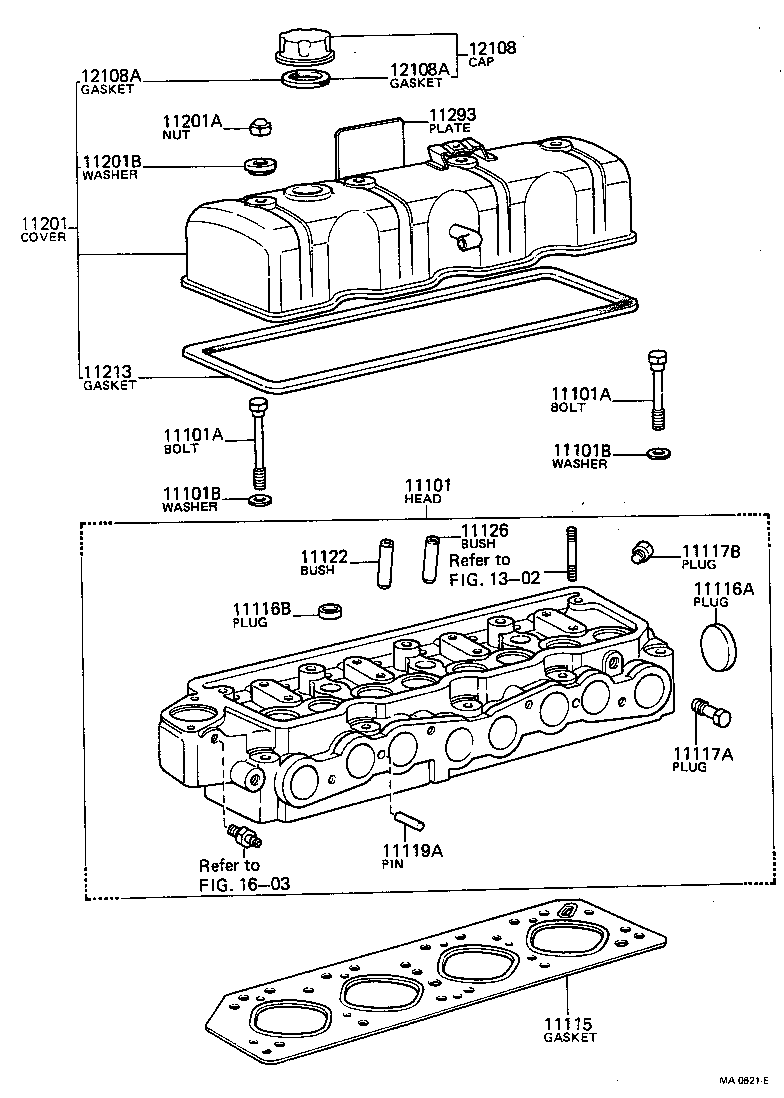

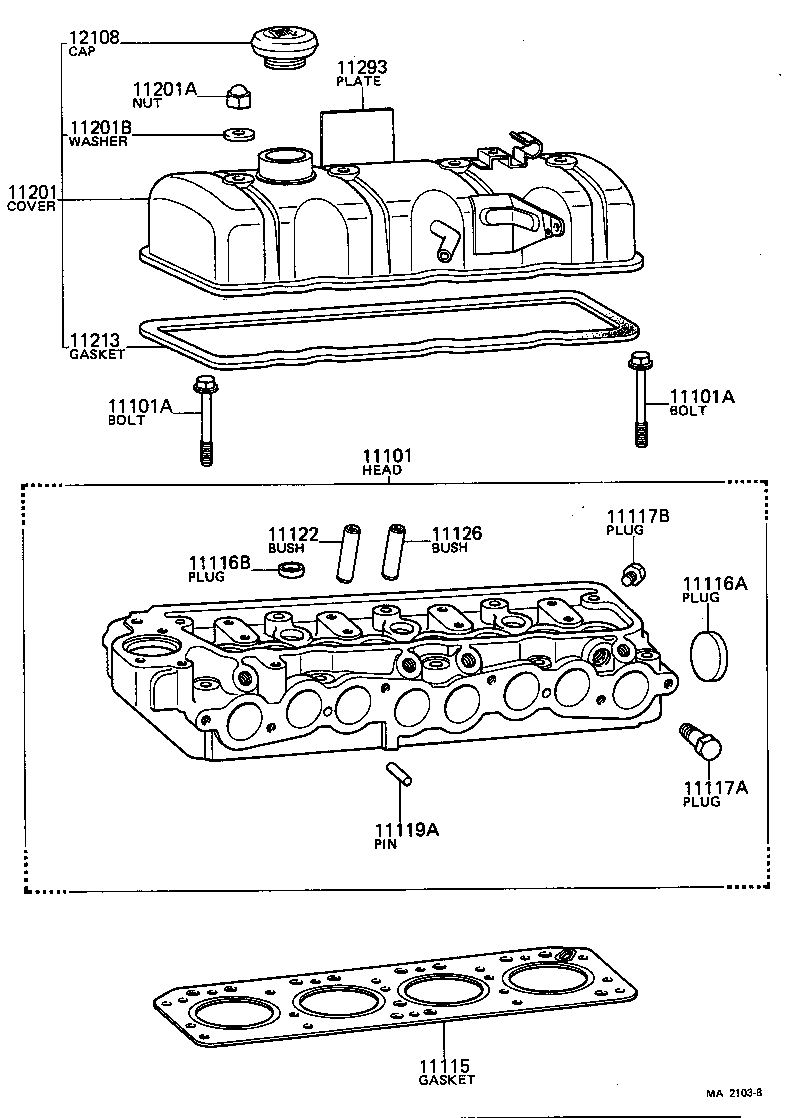

Figure MA3563A MA3563A 1972-07 → 1977-08 Figure MA3908 MA3908 1977-08 → 1979-02 Figure MA0621E MA0621E 1971-09 → 1972-08 Figure MA2115B MA2115B 1972-08 → 1975-11 Figure MA2103B MA2103B 1975-11 → 1979-02 Figure MA1023C MA1023C 1972-07 → 1974-12 Figure MA2874 MA2874 1974-12 → 1979-02

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11118A Plug, Straight, NO.1
11119A Pin, Straight, NO.1
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11135 Seat, Exhaust Valve
11144 Deflector, Cylinder Head Water, NO.1
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11293 Plate, Engine Caution & Engine Name
11294 Plate, Engine Caution, NO.2
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
