Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · General

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 3 illustrations

Illustrations

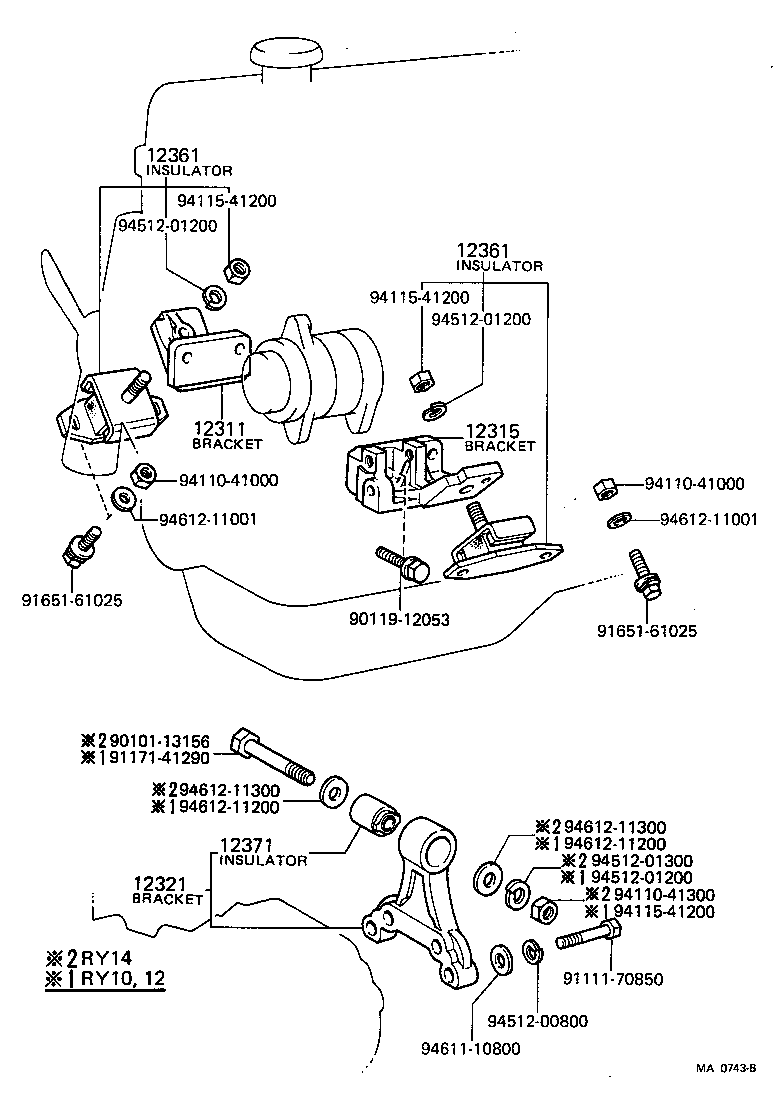

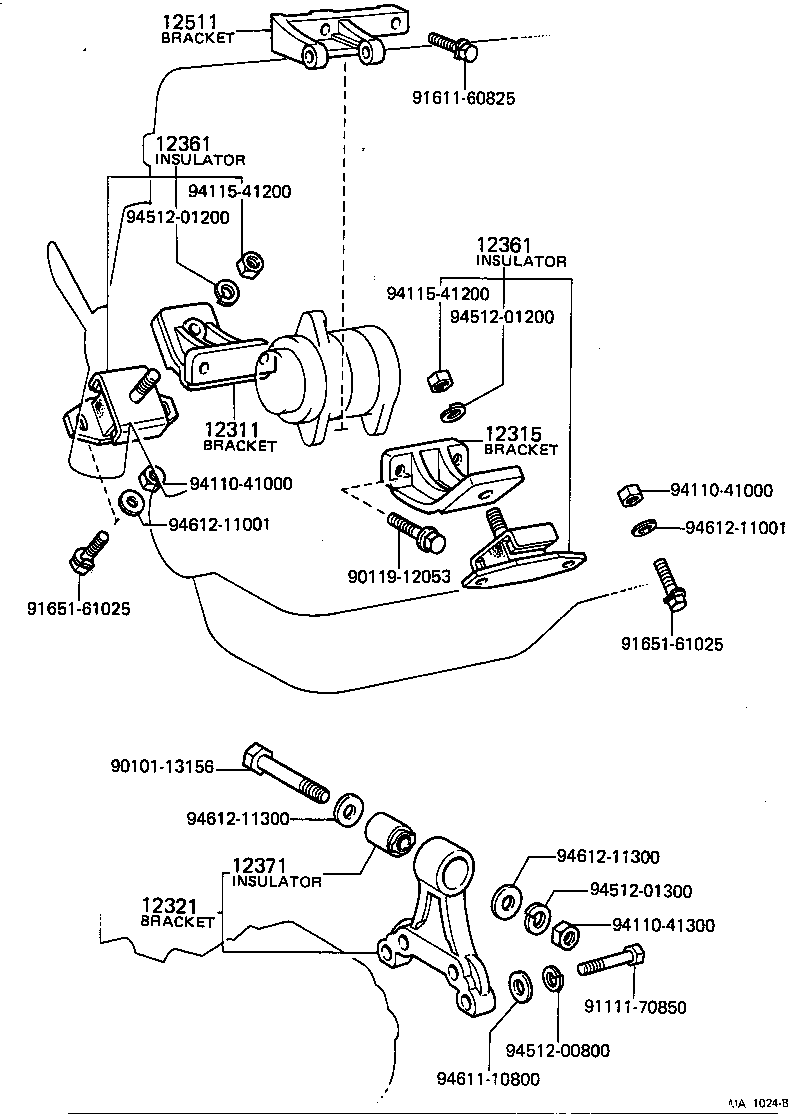

Figure MA0944D MA0944D 1972-07 → 1979-02 Figure MA0743B MA0743B 1971-09 → 1979-02 Figure MA1024B MA1024B 1972-07 → 1979-02

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
