Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · General
Discontinued model
Data version 1979-02

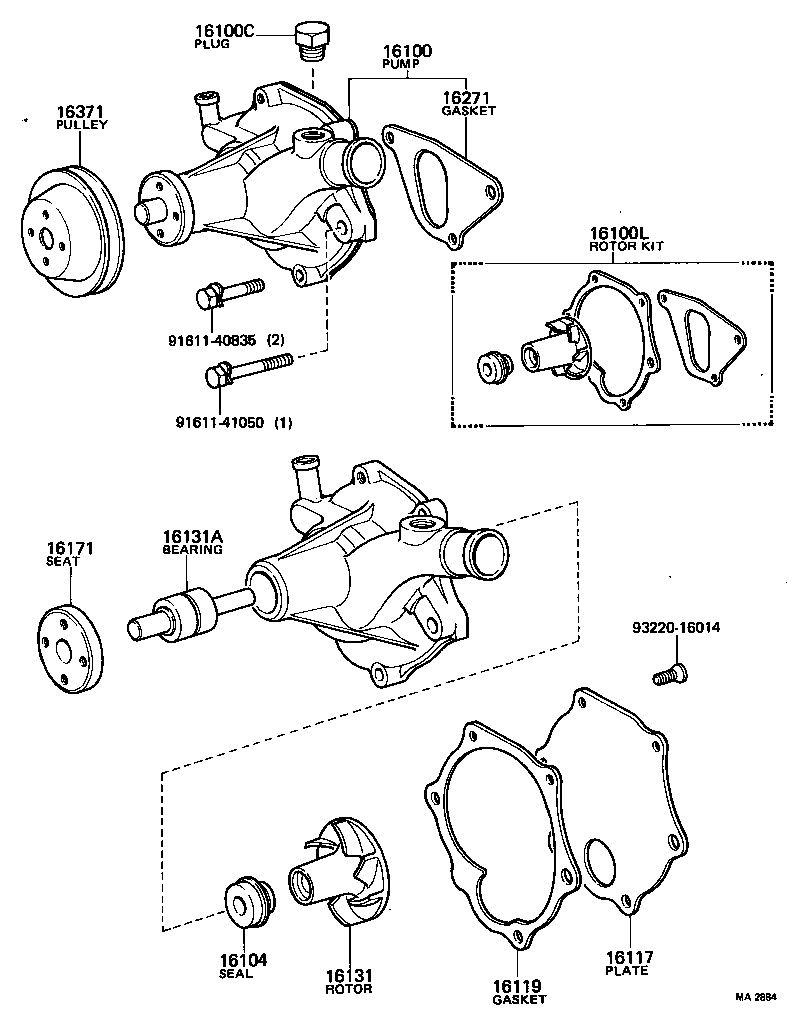

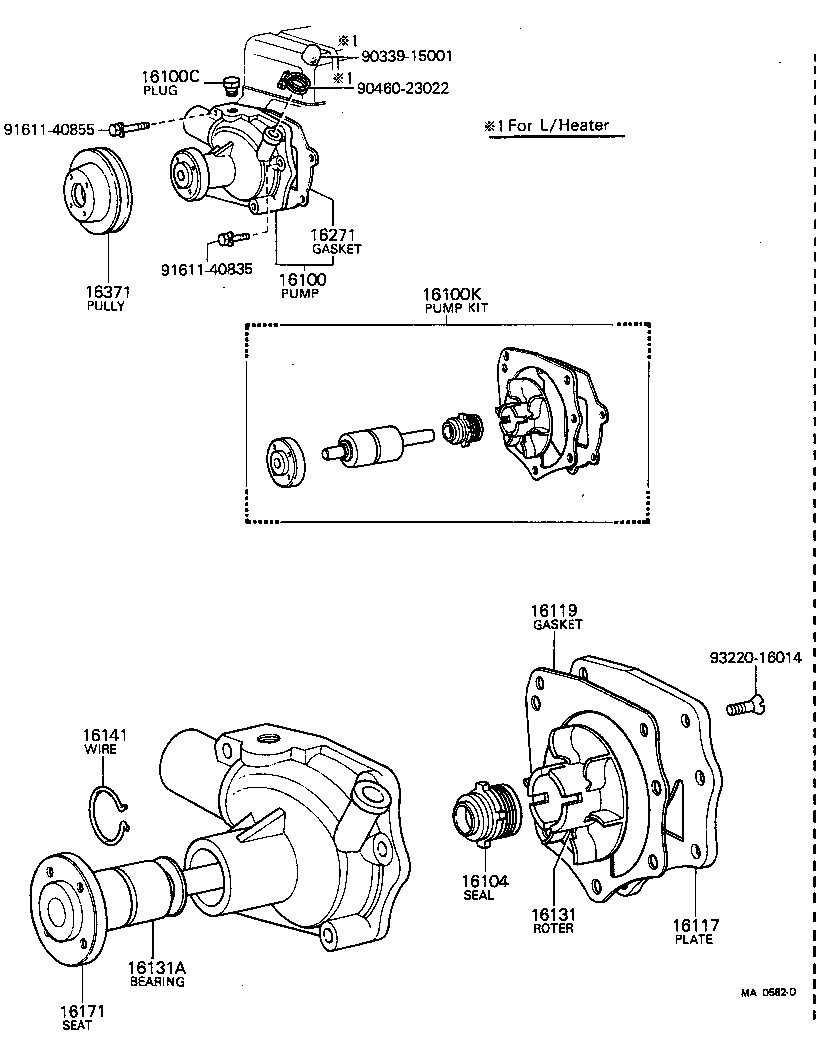

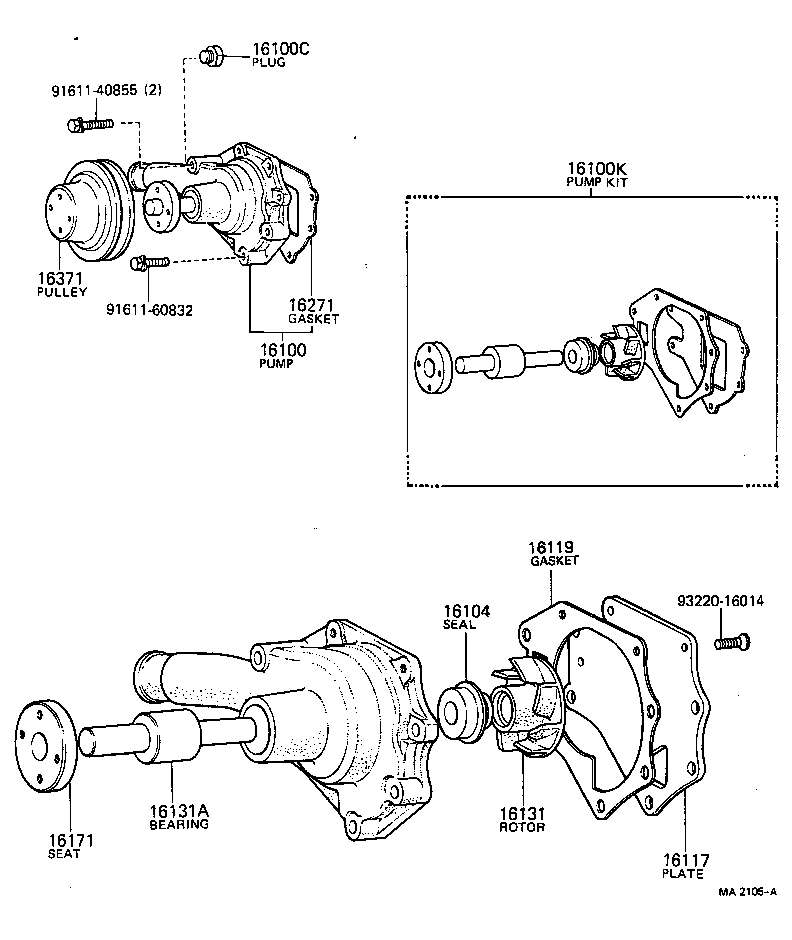

Water Pump
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100C | Plug, W/Head Taper Screw |
| 16100K | Pump Kit, Water |
| 16100L | Rotor Kit, Water Pump |
| 16104 | Seal Set, Water Pump |
| 16117 | Plate, Water Pump |
| 16119 | Gasket, Water Pump Body |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16131A | Bearing, Water Pump |
| 16141 | Wire, Water Pump Bearing Retaining |
| 16171 | Seat, Water Pump Pulley |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
