Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · General
Discontinued model
Data version 1979-02

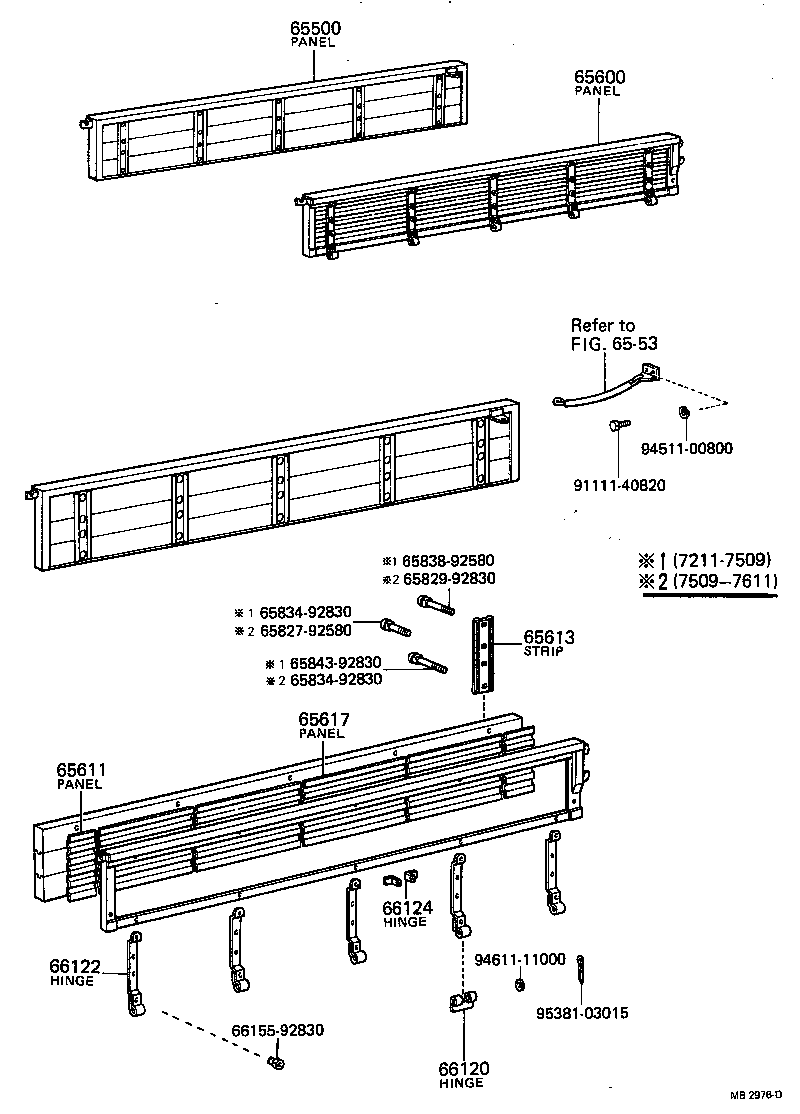

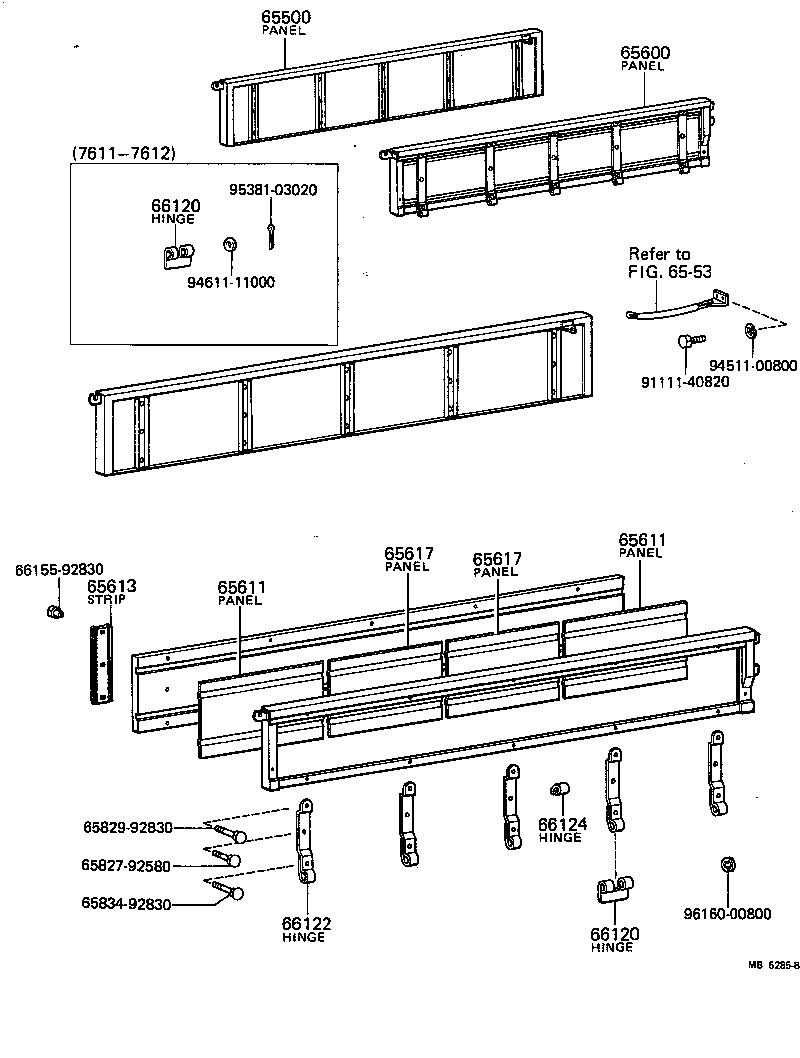

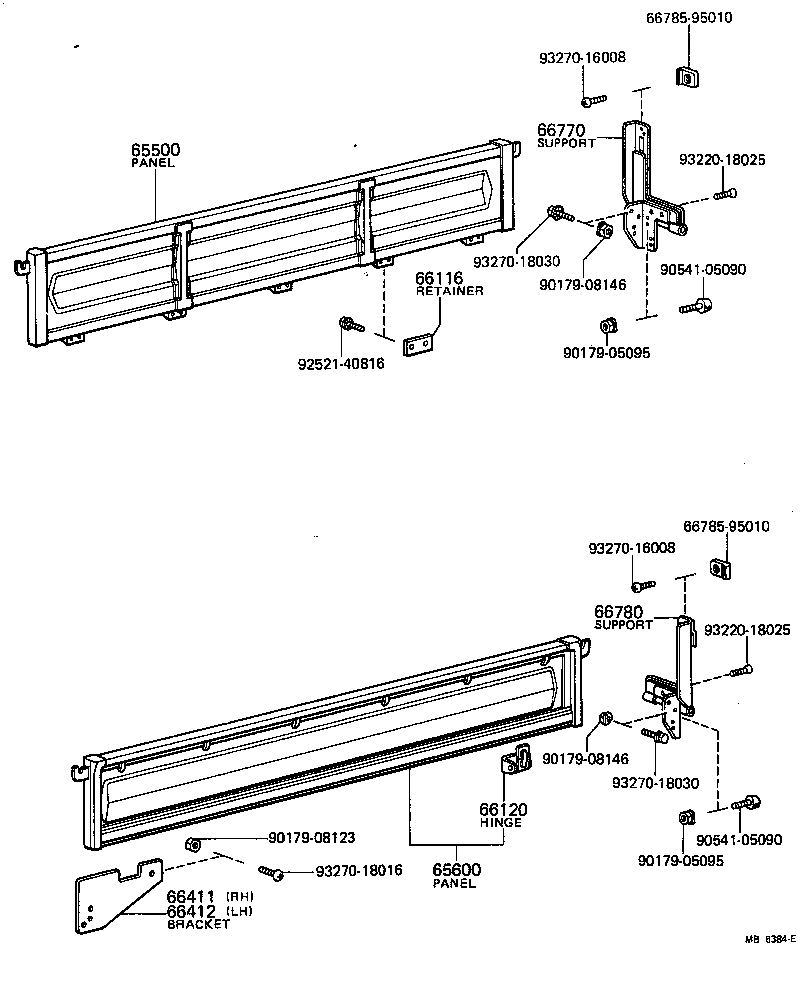

Rear Body Side Panel
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 65313 | Panel, Floor Front Corner, RH |
| 65314 | Panel, Floor Front Corner, LH |
| 65315 | Panel, Floor Rear Corner, RH |
| 65316 | Panel, Floor Rear Corner, LH |
| 65350 | Cover Assy, Battery Service Hole |
| 65352 | Packing, Battery Service Hole Cover |
| 65500 | Panel Assy, Rear Body Side, RH |
| 65500A | Plug, Hole(FOR REAR BODY SIDE PANEL) |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65611 | Panel, Side Gate |
| 65613 | Strip, Side Gate Hinge, Inside |
| 65617 | Panel, Side Gate, Corner |
| 65651 | Panel, Wheel House |
| 66115 | Pin, Gate Hinge |
| 66116 | Retainer, Gate Hinge, Lower |
| 66120 | Hinge Assy, Side Gate |
| 66122 | Hinge, Side Gate, Male |
| 66124 | Hinge, Side Gate, Female |
| 66153 | Latch, Tail Gate Female, RH |
| 66154 | Latch, Tail Gate Female, LH |
| 66332 | Cushion, Rubber |
| 66411 | Bracket, Guard Frame, RH |
| 66412 | Bracket, Guard Frame, LH |
| 66770 | Support Sub-assy, Side Gate, RH |
| 66780 | Support Sub-assy, Side Gate, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
