Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · General

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

10 part groups · 3 illustrations

Illustrations

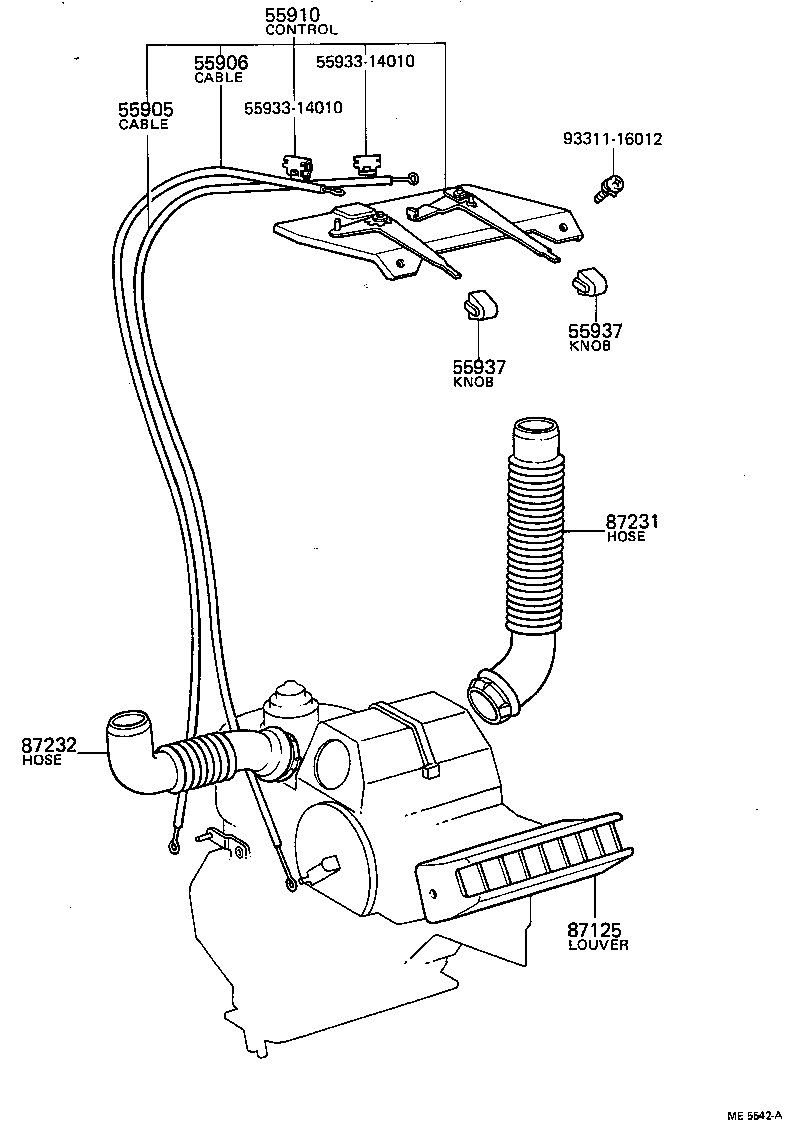

Figure ME4161C ME4161C 1971-09 → 1976-11 Figure ME4161C ME4161C 1976-11 → 1979-02 Figure ME5542A ME5542A 1976-11 → 1979-02

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55910 Control Assy, Heater OR Boost Ventilator
55931 Clamp, Heater Control Wire
55932 Guide, Lever, NO.1
55936 Stopper, Heater Control Wire Clamp
55937 Knob, Heater Control Lever
87125 Louver, Ventilation
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
