Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

26 part groups · 6 illustrations

Illustrations

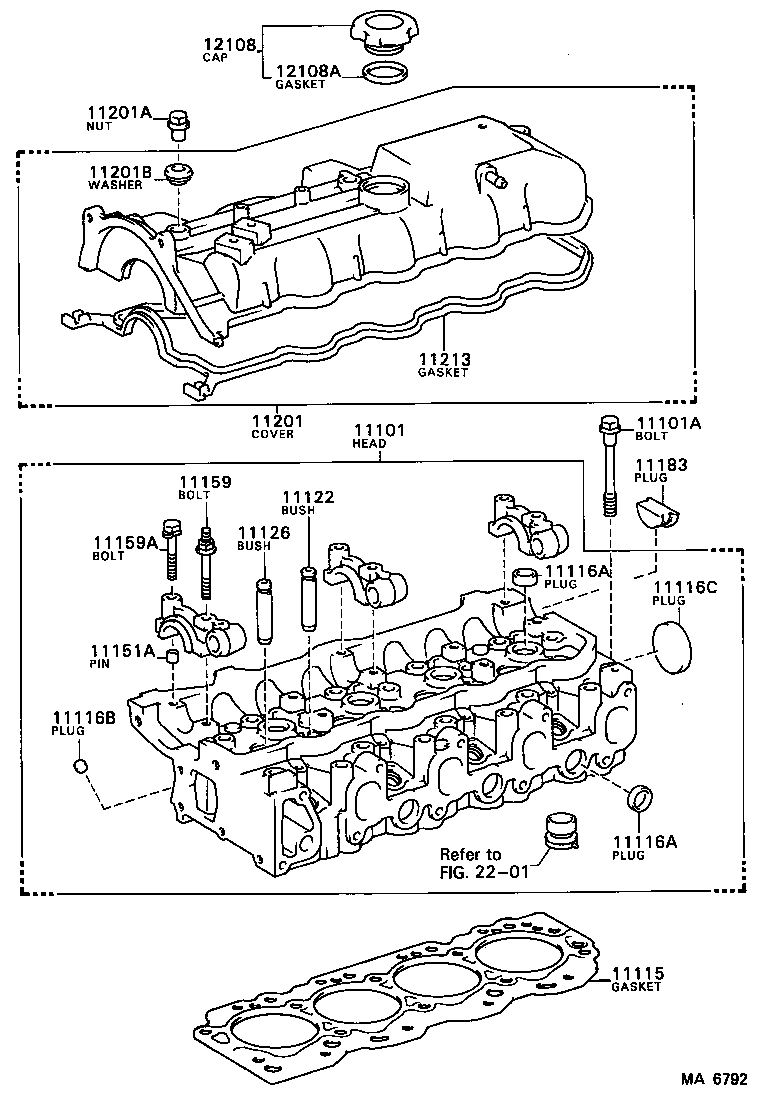

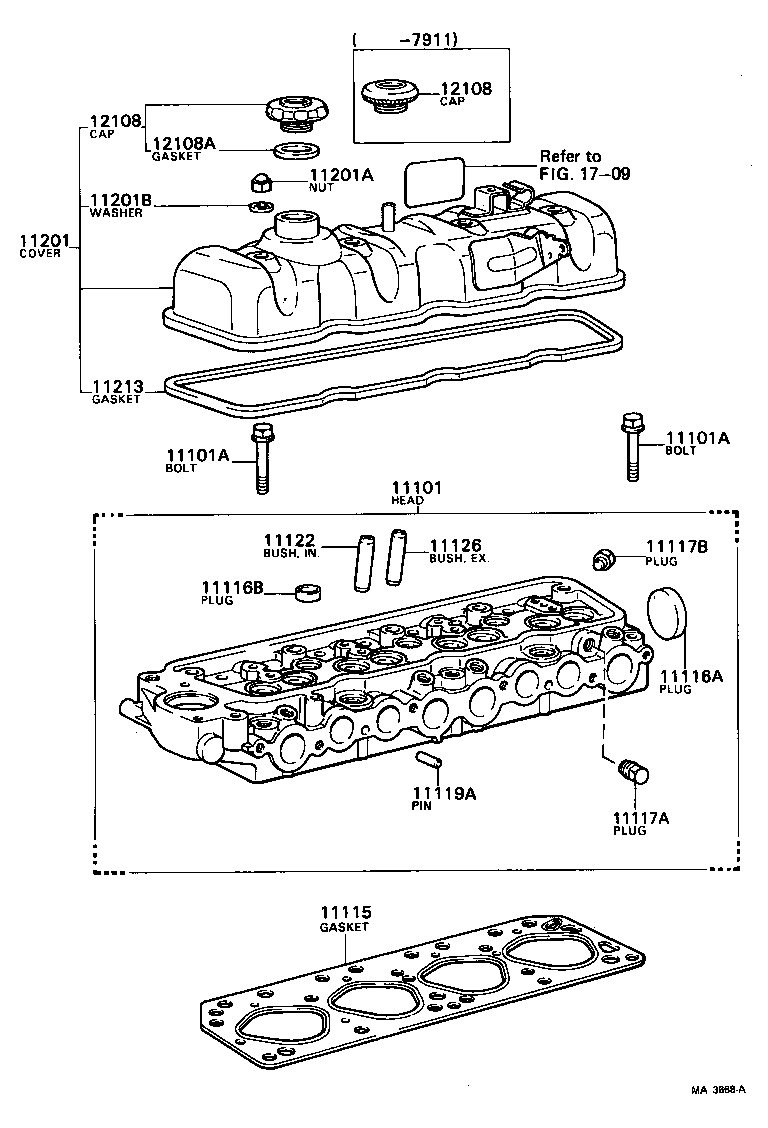

Figure MA3773C MA3773C 1979-03 → 1983-08 Figure MA3735F MA3735F 1979-03 → 1982-04 Figure MA6003 MA6003 1982-04 → 1983-08 Figure MA6792 MA6792 1983-08 → — Figure MA3668A MA3668A 1979-03 → — Figure MA2874E MA2874E 1979-03 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11118A Plug, Straight, NO.1
11119A Pin, Straight, NO.1
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11144 Deflector, Cylinder Head Water, NO.1
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11159 Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
