Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

9 part groups · 3 illustrations

Illustrations

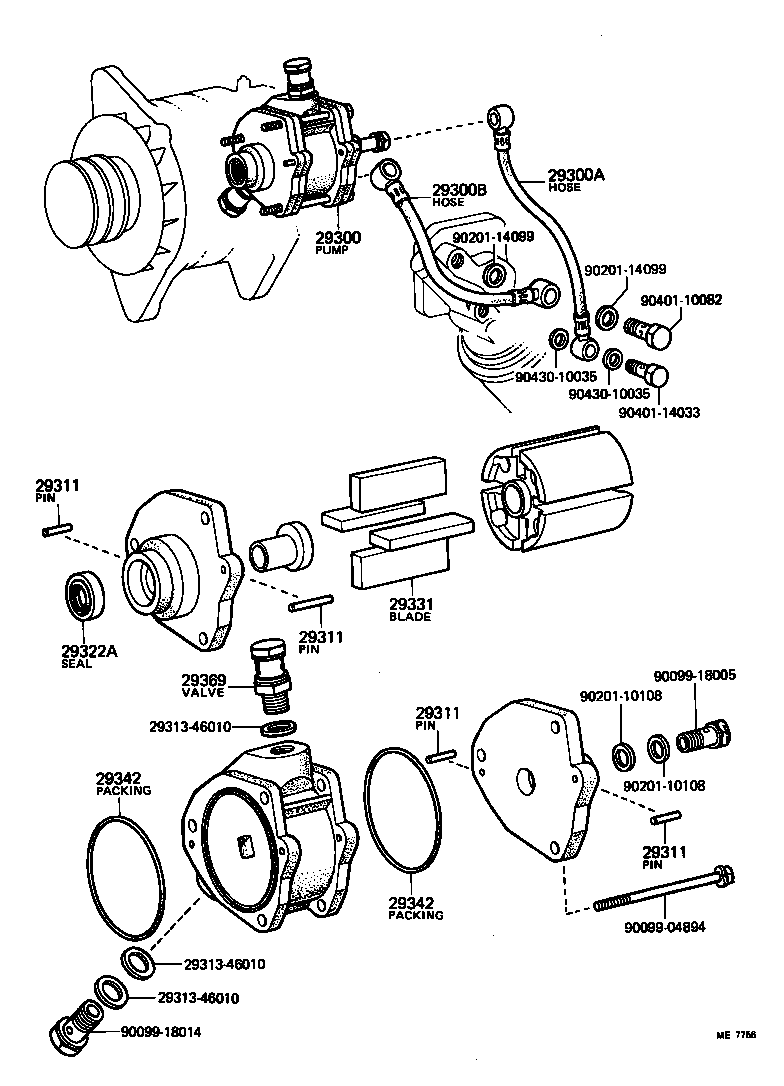

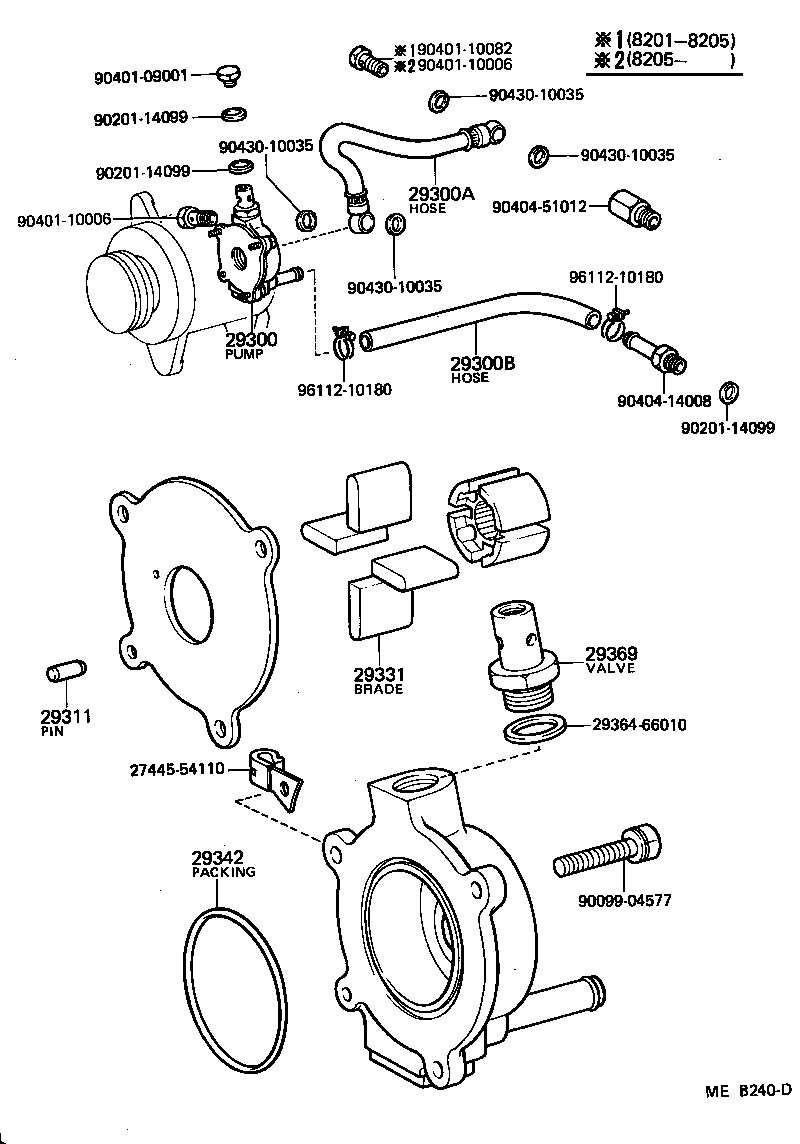

Figure ME8752 ME8752 1979-03 → 1982-01 Figure MEB240D MEB240D 1982-01 → — Figure ME7756 ME7756 1979-03 → 1983-08

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29300E Cover, Oil Hose
29311 Pin, Vacuum Pump Dowel, NO.1
29322A Seal, Vacuum Pump Oil
29331 Blade, Vacuum Pump, A
29342 Packing, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
